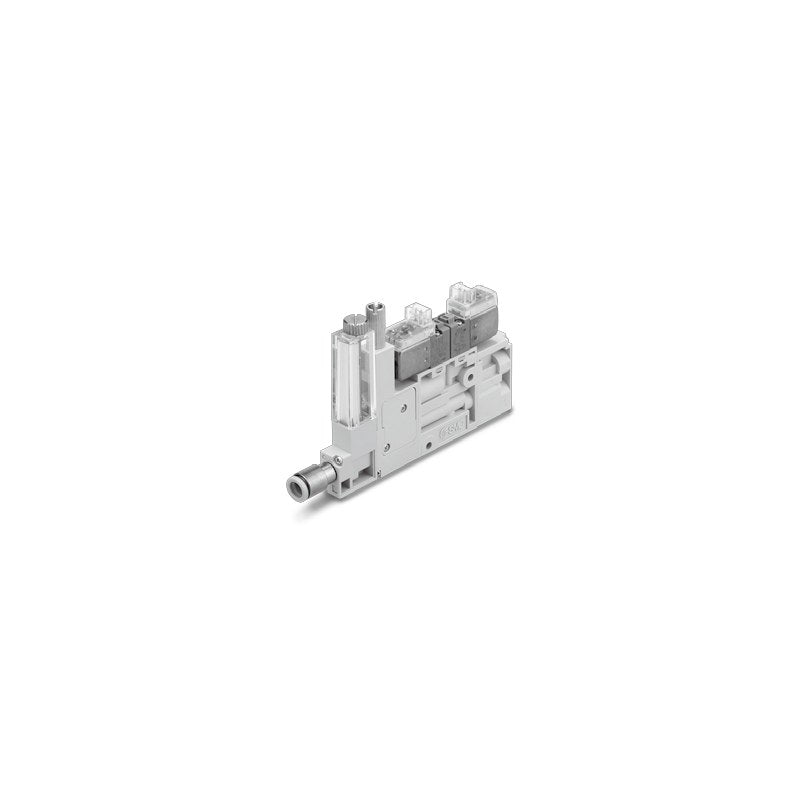

SMC ZQ-A Thin Vacuum Unit, Vacuum Pump System (Single and Manifold)

SMC ZQ-A Thin Vacuum Unit, Vacuum Pump System (Single and Manifold)

SMC ZQ-A series 10.2 mm thin vacuum unit for vacuum pump systems (ZQ000), as single units, manifold-use units and ZZQ1 manifold bases.

Key features

  • Vacuum switching (supply) valve, release valve, release flow needle, suction filter and vacuum pressure switch in a 10.2 mm wide body
  • Valve combinations K1, K2, J1, J2, Q1, Q2 (N.C., N.O., latching supply valve; with or without release valve); IO-Link switch with K1/K2
  • Switches: ZSE10 vacuum/compound pressure switch, filter only (F) or IO-Link switch; lead wire with connector included in listed codes
  • Single-unit codes list matched PV/PS fittings with V port; manifold-use units list V port fitting only
  • ZZQ1 manifold base for 1 to 8 stations with PV port left or right and common or separate release (PD) supply

Specifications

Fluid Air
Operating temperature 5 to 50°C (no condensation)
Vacuum supply (PV) port 0 to -101.3 kPa
Pilot supply (PS) port 0.3 to 0.5 MPa
Release supply (PD) port 0 to 0.45 MPa
Flow, vacuum side (V to PV) C 0.31 dm³/(s·bar), Cv 0.09
Flow, release side (PS to V) C 0.24 dm³/(s·bar), Cv 0.08
Main valve response time 25 ms or less
Valve coil voltage DC24V
Body width 10.2 mm
Source SMC Korea catalog CAT.KS100-139A (SMCKR_ZQ__A.pdf), p. 5, 5-1, 6, 7 (PDF p. 9-12)
ZQ000UA-K15L-EAG-00 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-EAG-22 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-EAG-33 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-EAG-55 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-EAG-00 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-EAG-22 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-EAG-33 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-EAG-55 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-EAG-00 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-EAG-22 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-EAG-33 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-EAG-55 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-EAG-00 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-EAG-22 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-EAG-33 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-EAG-55 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-EAG-00 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-EAG-22 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-EAG-33 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-EAG-55 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-EAG-00 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-EAG-22 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-EAG-33 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-EAG-55 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-EAMG-00 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-EAMG-22 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-EAMG-33 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-EAMG-55 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-EAMG-00 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-EAMG-22 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-EAMG-33 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-EAMG-55 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-EAMG-00 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-EAMG-22 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-EAMG-33 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-EAMG-55 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-EAMG-00 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-EAMG-22 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-EAMG-33 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-EAMG-55 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-EAMG-00 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-EAMG-22 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-EAMG-33 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-EAMG-55 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-EAMG-00 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-EAMG-22 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-EAMG-33 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-EAMG-55 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-EBG-00 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-EBG-22 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-EBG-33 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-EBG-55 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-EBG-00 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-EBG-22 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-EBG-33 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-EBG-55 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-EBG-00 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-EBG-22 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-EBG-33 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-EBG-55 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-EBG-00 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-EBG-22 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-EBG-33 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-EBG-55 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-EBG-00 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-EBG-22 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-EBG-33 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-EBG-55 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-EBG-00 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-EBG-22 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-EBG-33 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-EBG-55 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-EBMG-00 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-EBMG-22 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-EBMG-33 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-EBMG-55 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-EBMG-00 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-EBMG-22 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-EBMG-33 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-EBMG-55 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-EBMG-00 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-EBMG-22 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-EBMG-33 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-EBMG-55 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-EBMG-00 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-EBMG-22 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-EBMG-33 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-EBMG-55 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-EBMG-00 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-EBMG-22 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-EBMG-33 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-EBMG-55 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-EBMG-00 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-EBMG-22 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-EBMG-33 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-EBMG-55 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-ECG-00 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-ECG-22 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-ECG-33 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-ECG-55 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-ECG-00 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-ECG-22 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-ECG-33 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-ECG-55 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-ECG-00 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-ECG-22 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-ECG-33 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-ECG-55 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-ECG-00 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-ECG-22 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-ECG-33 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-ECG-55 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-ECG-00 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-ECG-22 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-ECG-33 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-ECG-55 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-ECG-00 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-ECG-22 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-ECG-33 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-ECG-55 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-ECMG-00 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-ECMG-22 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-ECMG-33 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-ECMG-55 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-ECMG-00 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-ECMG-22 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-ECMG-33 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-ECMG-55 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-ECMG-00 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-ECMG-22 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-ECMG-33 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-ECMG-55 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-ECMG-00 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-ECMG-22 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-ECMG-33 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-ECMG-55 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-ECMG-00 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-ECMG-22 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-ECMG-33 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-ECMG-55 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-ECMG-00 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-ECMG-22 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-ECMG-33 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-ECMG-55 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-EEG-00 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-EEG-22 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-EEG-33 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-EEG-55 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-EEG-00 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-EEG-22 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-EEG-33 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-EEG-55 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-EEG-00 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-EEG-22 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-EEG-33 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-EEG-55 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-EEG-00 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-EEG-22 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-EEG-33 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-EEG-55 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-EEG-00 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-EEG-22 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-EEG-33 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-EEG-55 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-EEG-00 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-EEG-22 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-EEG-33 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-EEG-55 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-EEMG-00 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-EEMG-22 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-EEMG-33 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-EEMG-55 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-EEMG-00 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-EEMG-22 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-EEMG-33 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-EEMG-55 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-EEMG-00 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-EEMG-22 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-EEMG-33 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-EEMG-55 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-EEMG-00 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-EEMG-22 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-EEMG-33 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-EEMG-55 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-EEMG-00 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-EEMG-22 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-EEMG-33 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-EEMG-55 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-EEMG-00 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-EEMG-22 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-EEMG-33 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-EEMG-55 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-FAG-00 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-FAG-22 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-FAG-33 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-FAG-55 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-FAG-00 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-FAG-22 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-FAG-33 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-FAG-55 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-FAG-00 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-FAG-22 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-FAG-33 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-FAG-55 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-FAG-00 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-FAG-22 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-FAG-33 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-FAG-55 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-FAG-00 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-FAG-22 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-FAG-33 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-FAG-55 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-FAG-00 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-FAG-22 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-FAG-33 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-FAG-55 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-FAMG-00 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-FAMG-22 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-FAMG-33 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-FAMG-55 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-FAMG-00 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-FAMG-22 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-FAMG-33 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-FAMG-55 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-FAMG-00 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-FAMG-22 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-FAMG-33 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-FAMG-55 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-FAMG-00 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-FAMG-22 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-FAMG-33 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-FAMG-55 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-FAMG-00 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-FAMG-22 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-FAMG-33 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-FAMG-55 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-FAMG-00 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-FAMG-22 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-FAMG-33 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-FAMG-55 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-FBG-00 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-FBG-22 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-FBG-33 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-FBG-55 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-FBG-00 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-FBG-22 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-FBG-33 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-FBG-55 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-FBG-00 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-FBG-22 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-FBG-33 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-FBG-55 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-FBG-00 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-FBG-22 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-FBG-33 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-FBG-55 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-FBG-00 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-FBG-22 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-FBG-33 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-FBG-55 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-FBG-00 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-FBG-22 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-FBG-33 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-FBG-55 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-FBMG-00 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-FBMG-22 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-FBMG-33 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-FBMG-55 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-FBMG-00 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-FBMG-22 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-FBMG-33 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-FBMG-55 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-FBMG-00 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-FBMG-22 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-FBMG-33 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-FBMG-55 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-FBMG-00 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-FBMG-22 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-FBMG-33 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-FBMG-55 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-FBMG-00 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-FBMG-22 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-FBMG-33 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-FBMG-55 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-FBMG-00 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-FBMG-22 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-FBMG-33 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-FBMG-55 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-FCG-00 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-FCG-22 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-FCG-33 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-FCG-55 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-FCG-00 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-FCG-22 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-FCG-33 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-FCG-55 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-FCG-00 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-FCG-22 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-FCG-33 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-FCG-55 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-FCG-00 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-FCG-22 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-FCG-33 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-FCG-55 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-FCG-00 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-FCG-22 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-FCG-33 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-FCG-55 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-FCG-00 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-FCG-22 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-FCG-33 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-FCG-55 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-FCMG-00 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-FCMG-22 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-FCMG-33 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-FCMG-55 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-FCMG-00 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-FCMG-22 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-FCMG-33 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-FCMG-55 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-FCMG-00 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-FCMG-22 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-FCMG-33 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-FCMG-55 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-FCMG-00 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-FCMG-22 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-FCMG-33 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-FCMG-55 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-FCMG-00 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-FCMG-22 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-FCMG-33 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-FCMG-55 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-FCMG-00 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-FCMG-22 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-FCMG-33 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-FCMG-55 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-FEG-00 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-FEG-22 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-FEG-33 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-FEG-55 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-FEG-00 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-FEG-22 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-FEG-33 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-FEG-55 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-FEG-00 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-FEG-22 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-FEG-33 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-FEG-55 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-FEG-00 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-FEG-22 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-FEG-33 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-FEG-55 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-FEG-00 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-FEG-22 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-FEG-33 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-FEG-55 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-FEG-00 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-FEG-22 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-FEG-33 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-FEG-55 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-FEMG-00 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-FEMG-22 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-FEMG-33 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-FEMG-55 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-FEMG-00 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-FEMG-22 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-FEMG-33 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-FEMG-55 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-FEMG-00 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-FEMG-22 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-FEMG-33 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-FEMG-55 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-FEMG-00 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-FEMG-22 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-FEMG-33 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-FEMG-55 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-FEMG-00 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-FEMG-22 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-FEMG-33 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-FEMG-55 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-FEMG-00 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-FEMG-22 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-FEMG-33 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-FEMG-55 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-F-00 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-F-22 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-F-33 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-F-55 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-F-00 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-F-22 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-F-33 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-F-55 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-F-00 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-F-22 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-F-33 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-F-55 Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-F-00 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-F-22 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-F-33 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-F-55 Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-F-00 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-F-22 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-F-33 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-F-55 Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-F-00 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-F-22 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-F-33 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-F-55 Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15LO-ELH-00 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15LO-ELH-22 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15LO-ELH-33 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15LO-ELH-55 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25LO-ELH-00 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25LO-ELH-22 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25LO-ELH-33 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25LO-ELH-55 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15LO-ELMH-00 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15LO-ELMH-22 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15LO-ELMH-33 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15LO-ELMH-55 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25LO-ELMH-00 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25LO-ELMH-22 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25LO-ELMH-33 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25LO-ELMH-55 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15LO-FLH-00 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15LO-FLH-22 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15LO-FLH-33 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15LO-FLH-55 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25LO-FLH-00 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25LO-FLH-22 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25LO-FLH-33 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25LO-FLH-55 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15LO-FLMH-00 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15LO-FLMH-22 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15LO-FLMH-33 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15LO-FLMH-55 Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25LO-FLMH-00 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25LO-FLMH-22 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25LO-FLMH-33 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25LO-FLMH-55 Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000MA-K15L-EAG-0 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K15L-EAG-1 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K15L-EAG-2 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K15L-EAG-3 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K15L-EAG-4 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K15L-EAG-5 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K25L-EAG-0 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K25L-EAG-1 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K25L-EAG-2 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K25L-EAG-3 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K25L-EAG-4 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K25L-EAG-5 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J15L-EAG-0 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J15L-EAG-1 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J15L-EAG-2 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J15L-EAG-3 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J15L-EAG-4 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J15L-EAG-5 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J25L-EAG-0 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J25L-EAG-1 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J25L-EAG-2 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J25L-EAG-3 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J25L-EAG-4 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J25L-EAG-5 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q15L-EAG-0 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q15L-EAG-1 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q15L-EAG-2 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q15L-EAG-3 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q15L-EAG-4 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q15L-EAG-5 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q25L-EAG-0 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q25L-EAG-1 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q25L-EAG-2 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q25L-EAG-3 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q25L-EAG-4 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q25L-EAG-5 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K15L-EBG-0 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K15L-EBG-1 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K15L-EBG-2 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K15L-EBG-3 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K15L-EBG-4 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K15L-EBG-5 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K25L-EBG-0 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K25L-EBG-1 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K25L-EBG-2 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K25L-EBG-3 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K25L-EBG-4 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K25L-EBG-5 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J15L-EBG-0 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J15L-EBG-1 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J15L-EBG-2 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J15L-EBG-3 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J15L-EBG-4 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J15L-EBG-5 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J25L-EBG-0 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J25L-EBG-1 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J25L-EBG-2 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J25L-EBG-3 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J25L-EBG-4 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J25L-EBG-5 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q15L-EBG-0 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q15L-EBG-1 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q15L-EBG-2 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q15L-EBG-3 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q15L-EBG-4 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q15L-EBG-5 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q25L-EBG-0 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q25L-EBG-1 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q25L-EBG-2 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q25L-EBG-3 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q25L-EBG-4 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q25L-EBG-5 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K15L-ECG-0 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K15L-ECG-1 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K15L-ECG-2 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K15L-ECG-3 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K15L-ECG-4 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K15L-ECG-5 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K25L-ECG-0 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K25L-ECG-1 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K25L-ECG-2 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K25L-ECG-3 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K25L-ECG-4 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K25L-ECG-5 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J15L-ECG-0 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J15L-ECG-1 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J15L-ECG-2 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J15L-ECG-3 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J15L-ECG-4 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J15L-ECG-5 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J25L-ECG-0 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J25L-ECG-1 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J25L-ECG-2 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J25L-ECG-3 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J25L-ECG-4 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J25L-ECG-5 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q15L-ECG-0 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q15L-ECG-1 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q15L-ECG-2 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q15L-ECG-3 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q15L-ECG-4 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q15L-ECG-5 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q25L-ECG-0 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q25L-ECG-1 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q25L-ECG-2 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q25L-ECG-3 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q25L-ECG-4 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q25L-ECG-5 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K15L-EEG-0 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K15L-EEG-1 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K15L-EEG-2 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K15L-EEG-3 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K15L-EEG-4 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K15L-EEG-5 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K25L-EEG-0 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K25L-EEG-1 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K25L-EEG-2 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K25L-EEG-3 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K25L-EEG-4 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K25L-EEG-5 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J15L-EEG-0 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J15L-EEG-1 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J15L-EEG-2 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J15L-EEG-3 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J15L-EEG-4 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J15L-EEG-5 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J25L-EEG-0 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J25L-EEG-1 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J25L-EEG-2 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J25L-EEG-3 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J25L-EEG-4 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J25L-EEG-5 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q15L-EEG-0 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q15L-EEG-1 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q15L-EEG-2 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q15L-EEG-3 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q15L-EEG-4 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q15L-EEG-5 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q25L-EEG-0 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q25L-EEG-1 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q25L-EEG-2 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q25L-EEG-3 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q25L-EEG-4 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q25L-EEG-5 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K15L-FAG-0 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K15L-FAG-1 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K15L-FAG-2 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K15L-FAG-3 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K15L-FAG-4 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K15L-FAG-5 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K25L-FAG-0 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K25L-FAG-1 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K25L-FAG-2 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K25L-FAG-3 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K25L-FAG-4 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K25L-FAG-5 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J15L-FAG-0 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J15L-FAG-1 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J15L-FAG-2 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J15L-FAG-3 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J15L-FAG-4 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J15L-FAG-5 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J25L-FAG-0 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J25L-FAG-1 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J25L-FAG-2 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J25L-FAG-3 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J25L-FAG-4 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J25L-FAG-5 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q15L-FAG-0 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q15L-FAG-1 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q15L-FAG-2 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q15L-FAG-3 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q15L-FAG-4 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q15L-FAG-5 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q25L-FAG-0 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q25L-FAG-1 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q25L-FAG-2 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q25L-FAG-3 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q25L-FAG-4 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q25L-FAG-5 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K15L-FBG-0 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K15L-FBG-1 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K15L-FBG-2 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K15L-FBG-3 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K15L-FBG-4 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K15L-FBG-5 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K25L-FBG-0 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K25L-FBG-1 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K25L-FBG-2 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K25L-FBG-3 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K25L-FBG-4 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K25L-FBG-5 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J15L-FBG-0 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J15L-FBG-1 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J15L-FBG-2 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J15L-FBG-3 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J15L-FBG-4 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J15L-FBG-5 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J25L-FBG-0 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J25L-FBG-1 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J25L-FBG-2 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J25L-FBG-3 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J25L-FBG-4 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J25L-FBG-5 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q15L-FBG-0 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q15L-FBG-1 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q15L-FBG-2 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q15L-FBG-3 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q15L-FBG-4 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q15L-FBG-5 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q25L-FBG-0 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q25L-FBG-1 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q25L-FBG-2 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q25L-FBG-3 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q25L-FBG-4 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q25L-FBG-5 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K15L-FCG-0 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K15L-FCG-1 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K15L-FCG-2 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K15L-FCG-3 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K15L-FCG-4 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K15L-FCG-5 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K25L-FCG-0 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K25L-FCG-1 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K25L-FCG-2 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K25L-FCG-3 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K25L-FCG-4 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K25L-FCG-5 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J15L-FCG-0 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J15L-FCG-1 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J15L-FCG-2 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J15L-FCG-3 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J15L-FCG-4 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J15L-FCG-5 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J25L-FCG-0 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J25L-FCG-1 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J25L-FCG-2 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J25L-FCG-3 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J25L-FCG-4 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J25L-FCG-5 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q15L-FCG-0 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q15L-FCG-1 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q15L-FCG-2 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q15L-FCG-3 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q15L-FCG-4 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q15L-FCG-5 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q25L-FCG-0 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q25L-FCG-1 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q25L-FCG-2 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q25L-FCG-3 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q25L-FCG-4 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q25L-FCG-5 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K15L-FEG-0 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K15L-FEG-1 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K15L-FEG-2 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K15L-FEG-3 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K15L-FEG-4 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K15L-FEG-5 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K25L-FEG-0 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K25L-FEG-1 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K25L-FEG-2 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K25L-FEG-3 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K25L-FEG-4 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K25L-FEG-5 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J15L-FEG-0 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J15L-FEG-1 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J15L-FEG-2 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J15L-FEG-3 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J15L-FEG-4 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J15L-FEG-5 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J25L-FEG-0 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J25L-FEG-1 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J25L-FEG-2 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J25L-FEG-3 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J25L-FEG-4 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J25L-FEG-5 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q15L-FEG-0 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q15L-FEG-1 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q15L-FEG-2 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q15L-FEG-3 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q15L-FEG-4 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q15L-FEG-5 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q25L-FEG-0 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q25L-FEG-1 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q25L-FEG-2 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q25L-FEG-3 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q25L-FEG-4 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q25L-FEG-5 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K15L-F-0 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V M5 (no fitting)
ZQ000MA-K15L-F-1 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø3.2 straight
ZQ000MA-K15L-F-2 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 straight
ZQ000MA-K15L-F-3 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø6 straight
ZQ000MA-K15L-F-4 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø3.2 elbow
ZQ000MA-K15L-F-5 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 elbow
ZQ000MA-K25L-F-0 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V M5 (no fitting)
ZQ000MA-K25L-F-1 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø3.2 straight
ZQ000MA-K25L-F-2 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 straight
ZQ000MA-K25L-F-3 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø6 straight
ZQ000MA-K25L-F-4 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø3.2 elbow
ZQ000MA-K25L-F-5 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 elbow
ZQ000MA-J15L-F-0 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V M5 (no fitting)
ZQ000MA-J15L-F-1 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø3.2 straight
ZQ000MA-J15L-F-2 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 straight
ZQ000MA-J15L-F-3 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø6 straight
ZQ000MA-J15L-F-4 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø3.2 elbow
ZQ000MA-J15L-F-5 Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 elbow
ZQ000MA-J25L-F-0 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V M5 (no fitting)
ZQ000MA-J25L-F-1 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø3.2 straight
ZQ000MA-J25L-F-2 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 straight
ZQ000MA-J25L-F-3 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø6 straight
ZQ000MA-J25L-F-4 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø3.2 elbow
ZQ000MA-J25L-F-5 Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 elbow
ZQ000MA-Q15L-F-0 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V M5 (no fitting)
ZQ000MA-Q15L-F-1 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø3.2 straight
ZQ000MA-Q15L-F-2 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 straight
ZQ000MA-Q15L-F-3 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø6 straight
ZQ000MA-Q15L-F-4 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø3.2 elbow
ZQ000MA-Q15L-F-5 Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 elbow
ZQ000MA-Q25L-F-0 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V M5 (no fitting)
ZQ000MA-Q25L-F-1 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø3.2 straight
ZQ000MA-Q25L-F-2 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 straight
ZQ000MA-Q25L-F-3 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø6 straight
ZQ000MA-Q25L-F-4 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø3.2 elbow
ZQ000MA-Q25L-F-5 Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 elbow
ZQ000MA-K15LO-ELH-0 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K15LO-ELH-1 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K15LO-ELH-2 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K15LO-ELH-3 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K15LO-ELH-4 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K15LO-ELH-5 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K25LO-ELH-0 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K25LO-ELH-1 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K25LO-ELH-2 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K25LO-ELH-3 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K25LO-ELH-4 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K25LO-ELH-5 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K15LO-FLH-0 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K15LO-FLH-1 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K15LO-FLH-2 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K15LO-FLH-3 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K15LO-FLH-4 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K15LO-FLH-5 Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K25LO-FLH-0 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K25LO-FLH-1 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K25LO-FLH-2 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K25LO-FLH-3 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K25LO-FLH-4 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K25LO-FLH-5 Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø4 elbow
ZZQ101A-LOB Item: Manifold base, 1 station | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, PD via PS port
ZZQ101A-LOC Item: Manifold base, 1 station | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, separate PD port
ZZQ101A-ROB Item: Manifold base, 1 station | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, PD via PS port
ZZQ101A-ROC Item: Manifold base, 1 station | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, separate PD port
ZZQ102A-LOB Item: Manifold base, 2 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, PD via PS port
ZZQ102A-LOC Item: Manifold base, 2 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, separate PD port
ZZQ102A-ROB Item: Manifold base, 2 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, PD via PS port
ZZQ102A-ROC Item: Manifold base, 2 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, separate PD port
ZZQ103A-LOB Item: Manifold base, 3 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, PD via PS port
ZZQ103A-LOC Item: Manifold base, 3 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, separate PD port
ZZQ103A-ROB Item: Manifold base, 3 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, PD via PS port
ZZQ103A-ROC Item: Manifold base, 3 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, separate PD port
ZZQ104A-LOB Item: Manifold base, 4 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, PD via PS port
ZZQ104A-LOC Item: Manifold base, 4 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, separate PD port
ZZQ104A-ROB Item: Manifold base, 4 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, PD via PS port
ZZQ104A-ROC Item: Manifold base, 4 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, separate PD port
ZZQ105A-LOB Item: Manifold base, 5 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, PD via PS port
ZZQ105A-LOC Item: Manifold base, 5 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, separate PD port
ZZQ105A-ROB Item: Manifold base, 5 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, PD via PS port
ZZQ105A-ROC Item: Manifold base, 5 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, separate PD port
ZZQ106A-LOB Item: Manifold base, 6 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, PD via PS port
ZZQ106A-LOC Item: Manifold base, 6 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, separate PD port
ZZQ106A-ROB Item: Manifold base, 6 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, PD via PS port
ZZQ106A-ROC Item: Manifold base, 6 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, separate PD port
ZZQ107A-LOB Item: Manifold base, 7 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, PD via PS port
ZZQ107A-LOC Item: Manifold base, 7 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, separate PD port
ZZQ107A-ROB Item: Manifold base, 7 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, PD via PS port
ZZQ107A-ROC Item: Manifold base, 7 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, separate PD port
ZZQ108A-LOB Item: Manifold base, 8 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, PD via PS port
ZZQ108A-LOC Item: Manifold base, 8 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, separate PD port
ZZQ108A-ROB Item: Manifold base, 8 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, PD via PS port
ZZQ108A-ROC Item: Manifold base, 8 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, separate PD port
Vacuum EquipmentSMC
820 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ZQ-A Thin Vacuum Unit, Vacuum Pump System (Single and Manifold)

Brand SMC·Vacuum Equipment

Available part numbers (820)

ZQ000UA-K15L-EAG-00, ZQ000UA-K15L-EAG-22, ZQ000UA-K15L-EAG-33, ZQ000UA-K15L-EAG-55, ZQ000UA-K25L-EAG-00, ZQ000UA-K25L-EAG-22, ZQ000UA-K25L-EAG-33, ZQ000UA-K25L-EAG-55, ZQ000UA-J15L-EAG-00, ZQ000UA-J15L-EAG-22 + 810 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZQ000UA-K15L-EAG-00Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-EAG-22Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-EAG-33Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-EAG-55Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-EAG-00Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-EAG-22Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-EAG-33Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-EAG-55Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-EAG-00Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-EAG-22Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-EAG-33Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-EAG-55Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-EAG-00Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-EAG-22Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-EAG-33Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-EAG-55Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-EAG-00Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-EAG-22Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-EAG-33Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-EAG-55Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-EAG-00Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-EAG-22Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-EAG-33Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-EAG-55Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-EAMG-00Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-EAMG-22Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-EAMG-33Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-EAMG-55Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-EAMG-00Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-EAMG-22Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-EAMG-33Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-EAMG-55Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-EAMG-00Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-EAMG-22Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-EAMG-33Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-EAMG-55Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-EAMG-00Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-EAMG-22Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-EAMG-33Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-EAMG-55Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-EAMG-00Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-EAMG-22Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-EAMG-33Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-EAMG-55Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-EAMG-00Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-EAMG-22Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-EAMG-33Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-EAMG-55Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-EBG-00Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-EBG-22Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-EBG-33Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-EBG-55Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-EBG-00Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-EBG-22Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-EBG-33Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-EBG-55Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-EBG-00Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-EBG-22Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-EBG-33Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-EBG-55Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-EBG-00Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-EBG-22Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-EBG-33Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-EBG-55Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-EBG-00Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-EBG-22Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-EBG-33Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-EBG-55Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-EBG-00Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-EBG-22Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-EBG-33Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-EBG-55Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-EBMG-00Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-EBMG-22Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-EBMG-33Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-EBMG-55Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-EBMG-00Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-EBMG-22Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-EBMG-33Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-EBMG-55Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-EBMG-00Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-EBMG-22Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-EBMG-33Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-EBMG-55Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-EBMG-00Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-EBMG-22Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-EBMG-33Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-EBMG-55Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-EBMG-00Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-EBMG-22Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-EBMG-33Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-EBMG-55Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-EBMG-00Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-EBMG-22Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-EBMG-33Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-EBMG-55Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-ECG-00Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-ECG-22Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-ECG-33Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-ECG-55Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-ECG-00Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-ECG-22Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-ECG-33Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-ECG-55Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-ECG-00Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-ECG-22Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-ECG-33Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-ECG-55Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-ECG-00Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-ECG-22Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-ECG-33Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-ECG-55Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-ECG-00Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-ECG-22Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-ECG-33Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-ECG-55Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-ECG-00Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-ECG-22Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-ECG-33Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-ECG-55Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-ECMG-00Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-ECMG-22Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-ECMG-33Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-ECMG-55Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-ECMG-00Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-ECMG-22Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-ECMG-33Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-ECMG-55Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-ECMG-00Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-ECMG-22Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-ECMG-33Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-ECMG-55Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-ECMG-00Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-ECMG-22Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-ECMG-33Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-ECMG-55Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-ECMG-00Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-ECMG-22Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-ECMG-33Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-ECMG-55Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-ECMG-00Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-ECMG-22Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-ECMG-33Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-ECMG-55Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-EEG-00Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-EEG-22Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-EEG-33Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-EEG-55Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-EEG-00Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-EEG-22Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-EEG-33Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-EEG-55Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-EEG-00Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-EEG-22Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-EEG-33Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-EEG-55Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-EEG-00Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-EEG-22Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-EEG-33Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-EEG-55Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-EEG-00Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-EEG-22Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-EEG-33Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-EEG-55Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-EEG-00Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-EEG-22Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-EEG-33Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-EEG-55Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-EEMG-00Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-EEMG-22Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-EEMG-33Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-EEMG-55Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-EEMG-00Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-EEMG-22Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-EEMG-33Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-EEMG-55Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-EEMG-00Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-EEMG-22Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-EEMG-33Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-EEMG-55Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-EEMG-00Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-EEMG-22Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-EEMG-33Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-EEMG-55Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-EEMG-00Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-EEMG-22Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-EEMG-33Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-EEMG-55Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-EEMG-00Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-EEMG-22Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-EEMG-33Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-EEMG-55Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-FAG-00Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-FAG-22Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-FAG-33Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-FAG-55Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-FAG-00Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-FAG-22Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-FAG-33Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-FAG-55Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-FAG-00Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-FAG-22Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-FAG-33Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-FAG-55Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-FAG-00Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-FAG-22Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-FAG-33Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-FAG-55Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-FAG-00Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-FAG-22Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-FAG-33Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-FAG-55Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-FAG-00Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-FAG-22Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-FAG-33Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-FAG-55Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-FAMG-00Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-FAMG-22Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-FAMG-33Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-FAMG-55Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-FAMG-00Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-FAMG-22Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-FAMG-33Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-FAMG-55Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-FAMG-00Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-FAMG-22Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-FAMG-33Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-FAMG-55Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-FAMG-00Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-FAMG-22Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-FAMG-33Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-FAMG-55Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-FAMG-00Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-FAMG-22Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-FAMG-33Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-FAMG-55Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-FAMG-00Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-FAMG-22Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-FAMG-33Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-FAMG-55Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-FBG-00Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-FBG-22Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-FBG-33Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-FBG-55Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-FBG-00Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-FBG-22Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-FBG-33Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-FBG-55Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-FBG-00Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-FBG-22Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-FBG-33Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-FBG-55Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-FBG-00Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-FBG-22Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-FBG-33Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-FBG-55Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-FBG-00Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-FBG-22Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-FBG-33Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-FBG-55Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-FBG-00Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-FBG-22Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-FBG-33Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-FBG-55Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-FBMG-00Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-FBMG-22Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-FBMG-33Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-FBMG-55Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-FBMG-00Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-FBMG-22Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-FBMG-33Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-FBMG-55Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-FBMG-00Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-FBMG-22Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-FBMG-33Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-FBMG-55Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-FBMG-00Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-FBMG-22Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-FBMG-33Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-FBMG-55Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-FBMG-00Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-FBMG-22Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-FBMG-33Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-FBMG-55Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-FBMG-00Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-FBMG-22Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-FBMG-33Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-FBMG-55Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-FCG-00Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-FCG-22Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-FCG-33Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-FCG-55Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-FCG-00Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-FCG-22Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-FCG-33Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-FCG-55Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-FCG-00Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-FCG-22Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-FCG-33Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-FCG-55Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-FCG-00Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-FCG-22Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-FCG-33Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-FCG-55Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-FCG-00Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-FCG-22Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-FCG-33Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-FCG-55Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-FCG-00Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-FCG-22Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-FCG-33Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-FCG-55Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-FCMG-00Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-FCMG-22Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-FCMG-33Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-FCMG-55Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-FCMG-00Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-FCMG-22Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-FCMG-33Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-FCMG-55Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-FCMG-00Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-FCMG-22Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-FCMG-33Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-FCMG-55Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-FCMG-00Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-FCMG-22Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-FCMG-33Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-FCMG-55Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-FCMG-00Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-FCMG-22Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-FCMG-33Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-FCMG-55Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-FCMG-00Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-FCMG-22Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-FCMG-33Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-FCMG-55Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-FEG-00Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-FEG-22Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-FEG-33Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-FEG-55Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-FEG-00Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-FEG-22Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-FEG-33Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-FEG-55Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-FEG-00Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-FEG-22Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-FEG-33Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-FEG-55Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-FEG-00Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-FEG-22Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-FEG-33Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-FEG-55Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-FEG-00Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-FEG-22Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-FEG-33Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-FEG-55Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-FEG-00Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-FEG-22Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-FEG-33Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-FEG-55Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-FEMG-00Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-FEMG-22Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-FEMG-33Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-FEMG-55Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-FEMG-00Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-FEMG-22Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-FEMG-33Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-FEMG-55Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-FEMG-00Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-FEMG-22Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-FEMG-33Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-FEMG-55Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-FEMG-00Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-FEMG-22Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-FEMG-33Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-FEMG-55Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-FEMG-00Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-FEMG-22Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-FEMG-33Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-FEMG-55Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-FEMG-00Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-FEMG-22Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-FEMG-33Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-FEMG-55Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15L-F-00Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15L-F-22Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15L-F-33Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15L-F-55Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25L-F-00Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25L-F-22Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25L-F-33Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25L-F-55Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J15L-F-00Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J15L-F-22Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 / P ø4 straight
ZQ000UA-J15L-F-33Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø6 / P ø6 straight
ZQ000UA-J15L-F-55Item: Single unit | Valves: Supply N.C., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 / P ø4 elbow
ZQ000UA-J25L-F-00Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-J25L-F-22Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 / P ø4 straight
ZQ000UA-J25L-F-33Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø6 / P ø6 straight
ZQ000UA-J25L-F-55Item: Single unit | Valves: Supply N.O., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q15L-F-00Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q15L-F-22Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q15L-F-33Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q15L-F-55Item: Single unit | Valves: Supply latching + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 / P ø4 elbow
ZQ000UA-Q25L-F-00Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-Q25L-F-22Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 / P ø4 straight
ZQ000UA-Q25L-F-33Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø6 / P ø6 straight
ZQ000UA-Q25L-F-55Item: Single unit | Valves: Supply latching, no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15LO-ELH-00Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15LO-ELH-22Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15LO-ELH-33Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15LO-ELH-55Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25LO-ELH-00Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25LO-ELH-22Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25LO-ELH-33Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25LO-ELH-55Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15LO-ELMH-00Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15LO-ELMH-22Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15LO-ELMH-33Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15LO-ELMH-55Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25LO-ELMH-00Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25LO-ELMH-22Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25LO-ELMH-33Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25LO-ELMH-55Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15LO-FLH-00Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15LO-FLH-22Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15LO-FLH-33Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15LO-FLH-55Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25LO-FLH-00Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25LO-FLH-22Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25LO-FLH-33Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25LO-FLH-55Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K15LO-FLMH-00Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K15LO-FLMH-22Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K15LO-FLMH-33Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K15LO-FLMH-55Item: Single unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000UA-K25LO-FLMH-00Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: SI unit (kPa) fixed | Fittings: V M5 / P M5 (no fittings)
ZQ000UA-K25LO-FLMH-22Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 straight
ZQ000UA-K25LO-FLMH-33Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: SI unit (kPa) fixed | Fittings: V ø6 / P ø6 straight
ZQ000UA-K25LO-FLMH-55Item: Single unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: SI unit (kPa) fixed | Fittings: V ø4 / P ø4 elbow
ZQ000MA-K15L-EAG-0Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K15L-EAG-1Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K15L-EAG-2Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K15L-EAG-3Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K15L-EAG-4Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K15L-EAG-5Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K25L-EAG-0Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K25L-EAG-1Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K25L-EAG-2Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K25L-EAG-3Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K25L-EAG-4Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K25L-EAG-5Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J15L-EAG-0Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J15L-EAG-1Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J15L-EAG-2Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J15L-EAG-3Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J15L-EAG-4Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J15L-EAG-5Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J25L-EAG-0Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J25L-EAG-1Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J25L-EAG-2Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J25L-EAG-3Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J25L-EAG-4Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J25L-EAG-5Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q15L-EAG-0Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q15L-EAG-1Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q15L-EAG-2Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q15L-EAG-3Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q15L-EAG-4Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q15L-EAG-5Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q25L-EAG-0Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q25L-EAG-1Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q25L-EAG-2Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q25L-EAG-3Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q25L-EAG-4Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q25L-EAG-5Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K15L-EBG-0Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K15L-EBG-1Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K15L-EBG-2Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K15L-EBG-3Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K15L-EBG-4Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K15L-EBG-5Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K25L-EBG-0Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K25L-EBG-1Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K25L-EBG-2Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K25L-EBG-3Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K25L-EBG-4Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K25L-EBG-5Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J15L-EBG-0Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J15L-EBG-1Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J15L-EBG-2Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J15L-EBG-3Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J15L-EBG-4Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J15L-EBG-5Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J25L-EBG-0Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J25L-EBG-1Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J25L-EBG-2Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J25L-EBG-3Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J25L-EBG-4Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J25L-EBG-5Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q15L-EBG-0Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q15L-EBG-1Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q15L-EBG-2Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q15L-EBG-3Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q15L-EBG-4Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q15L-EBG-5Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q25L-EBG-0Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q25L-EBG-1Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q25L-EBG-2Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q25L-EBG-3Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q25L-EBG-4Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q25L-EBG-5Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K15L-ECG-0Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K15L-ECG-1Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K15L-ECG-2Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K15L-ECG-3Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K15L-ECG-4Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K15L-ECG-5Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K25L-ECG-0Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K25L-ECG-1Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K25L-ECG-2Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K25L-ECG-3Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K25L-ECG-4Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K25L-ECG-5Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J15L-ECG-0Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J15L-ECG-1Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J15L-ECG-2Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J15L-ECG-3Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J15L-ECG-4Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J15L-ECG-5Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J25L-ECG-0Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J25L-ECG-1Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J25L-ECG-2Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J25L-ECG-3Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J25L-ECG-4Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J25L-ECG-5Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q15L-ECG-0Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q15L-ECG-1Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q15L-ECG-2Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q15L-ECG-3Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q15L-ECG-4Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q15L-ECG-5Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q25L-ECG-0Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q25L-ECG-1Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q25L-ECG-2Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q25L-ECG-3Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q25L-ECG-4Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q25L-ECG-5Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K15L-EEG-0Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K15L-EEG-1Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K15L-EEG-2Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K15L-EEG-3Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K15L-EEG-4Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K15L-EEG-5Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K25L-EEG-0Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K25L-EEG-1Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K25L-EEG-2Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K25L-EEG-3Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K25L-EEG-4Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K25L-EEG-5Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J15L-EEG-0Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J15L-EEG-1Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J15L-EEG-2Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J15L-EEG-3Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J15L-EEG-4Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J15L-EEG-5Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J25L-EEG-0Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J25L-EEG-1Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J25L-EEG-2Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J25L-EEG-3Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J25L-EEG-4Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J25L-EEG-5Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q15L-EEG-0Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q15L-EEG-1Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q15L-EEG-2Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q15L-EEG-3Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q15L-EEG-4Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q15L-EEG-5Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q25L-EEG-0Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q25L-EEG-1Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q25L-EEG-2Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q25L-EEG-3Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q25L-EEG-4Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q25L-EEG-5Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: 0 to -101 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K15L-FAG-0Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K15L-FAG-1Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K15L-FAG-2Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K15L-FAG-3Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K15L-FAG-4Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K15L-FAG-5Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K25L-FAG-0Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K25L-FAG-1Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K25L-FAG-2Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K25L-FAG-3Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K25L-FAG-4Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K25L-FAG-5Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J15L-FAG-0Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J15L-FAG-1Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J15L-FAG-2Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J15L-FAG-3Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J15L-FAG-4Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J15L-FAG-5Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J25L-FAG-0Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J25L-FAG-1Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J25L-FAG-2Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J25L-FAG-3Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J25L-FAG-4Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J25L-FAG-5Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q15L-FAG-0Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q15L-FAG-1Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q15L-FAG-2Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q15L-FAG-3Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q15L-FAG-4Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q15L-FAG-5Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q25L-FAG-0Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q25L-FAG-1Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q25L-FAG-2Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q25L-FAG-3Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q25L-FAG-4Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q25L-FAG-5Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K15L-FBG-0Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K15L-FBG-1Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K15L-FBG-2Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K15L-FBG-3Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K15L-FBG-4Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K15L-FBG-5Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K25L-FBG-0Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K25L-FBG-1Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K25L-FBG-2Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K25L-FBG-3Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K25L-FBG-4Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K25L-FBG-5Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J15L-FBG-0Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J15L-FBG-1Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J15L-FBG-2Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J15L-FBG-3Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J15L-FBG-4Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J15L-FBG-5Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J25L-FBG-0Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J25L-FBG-1Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J25L-FBG-2Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J25L-FBG-3Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J25L-FBG-4Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J25L-FBG-5Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q15L-FBG-0Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q15L-FBG-1Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q15L-FBG-2Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q15L-FBG-3Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q15L-FBG-4Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q15L-FBG-5Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q25L-FBG-0Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q25L-FBG-1Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q25L-FBG-2Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q25L-FBG-3Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q25L-FBG-4Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q25L-FBG-5Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 2 outputs | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K15L-FCG-0Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K15L-FCG-1Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K15L-FCG-2Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K15L-FCG-3Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K15L-FCG-4Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K15L-FCG-5Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K25L-FCG-0Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K25L-FCG-1Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K25L-FCG-2Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K25L-FCG-3Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K25L-FCG-4Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K25L-FCG-5Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J15L-FCG-0Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J15L-FCG-1Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J15L-FCG-2Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J15L-FCG-3Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J15L-FCG-4Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J15L-FCG-5Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J25L-FCG-0Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J25L-FCG-1Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J25L-FCG-2Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J25L-FCG-3Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J25L-FCG-4Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J25L-FCG-5Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q15L-FCG-0Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q15L-FCG-1Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q15L-FCG-2Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q15L-FCG-3Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q15L-FCG-4Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q15L-FCG-5Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q25L-FCG-0Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q25L-FCG-1Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q25L-FCG-2Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q25L-FCG-3Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q25L-FCG-4Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q25L-FCG-5Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, NPN 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K15L-FEG-0Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K15L-FEG-1Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K15L-FEG-2Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K15L-FEG-3Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K15L-FEG-4Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K15L-FEG-5Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K25L-FEG-0Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K25L-FEG-1Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K25L-FEG-2Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K25L-FEG-3Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K25L-FEG-4Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K25L-FEG-5Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J15L-FEG-0Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J15L-FEG-1Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J15L-FEG-2Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J15L-FEG-3Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J15L-FEG-4Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J15L-FEG-5Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-J25L-FEG-0Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-J25L-FEG-1Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-J25L-FEG-2Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-J25L-FEG-3Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-J25L-FEG-4Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-J25L-FEG-5Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q15L-FEG-0Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q15L-FEG-1Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q15L-FEG-2Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q15L-FEG-3Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q15L-FEG-4Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q15L-FEG-5Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-Q25L-FEG-0Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-Q25L-FEG-1Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-Q25L-FEG-2Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-Q25L-FEG-3Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-Q25L-FEG-4Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-Q25L-FEG-5Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: -100 to 100 kPa, PNP 1 out+analog | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K15L-F-0Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V M5 (no fitting)
ZQ000MA-K15L-F-1Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø3.2 straight
ZQ000MA-K15L-F-2Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 straight
ZQ000MA-K15L-F-3Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø6 straight
ZQ000MA-K15L-F-4Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø3.2 elbow
ZQ000MA-K15L-F-5Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 elbow
ZQ000MA-K25L-F-0Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V M5 (no fitting)
ZQ000MA-K25L-F-1Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø3.2 straight
ZQ000MA-K25L-F-2Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 straight
ZQ000MA-K25L-F-3Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø6 straight
ZQ000MA-K25L-F-4Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø3.2 elbow
ZQ000MA-K25L-F-5Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 elbow
ZQ000MA-J15L-F-0Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V M5 (no fitting)
ZQ000MA-J15L-F-1Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø3.2 straight
ZQ000MA-J15L-F-2Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 straight
ZQ000MA-J15L-F-3Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø6 straight
ZQ000MA-J15L-F-4Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø3.2 elbow
ZQ000MA-J15L-F-5Item: Manifold-use unit | Valves: Supply N.C., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 elbow
ZQ000MA-J25L-F-0Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V M5 (no fitting)
ZQ000MA-J25L-F-1Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø3.2 straight
ZQ000MA-J25L-F-2Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 straight
ZQ000MA-J25L-F-3Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø6 straight
ZQ000MA-J25L-F-4Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø3.2 elbow
ZQ000MA-J25L-F-5Item: Manifold-use unit | Valves: Supply N.O., no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 elbow
ZQ000MA-Q15L-F-0Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V M5 (no fitting)
ZQ000MA-Q15L-F-1Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø3.2 straight
ZQ000MA-Q15L-F-2Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 straight
ZQ000MA-Q15L-F-3Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø6 straight
ZQ000MA-Q15L-F-4Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø3.2 elbow
ZQ000MA-Q15L-F-5Item: Manifold-use unit | Valves: Supply latching + release N.C. | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 elbow
ZQ000MA-Q25L-F-0Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V M5 (no fitting)
ZQ000MA-Q25L-F-1Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø3.2 straight
ZQ000MA-Q25L-F-2Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 straight
ZQ000MA-Q25L-F-3Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø6 straight
ZQ000MA-Q25L-F-4Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø3.2 elbow
ZQ000MA-Q25L-F-5Item: Manifold-use unit | Valves: Supply latching, no release valve | Pressure switch: Suction filter only (no switch) | Display unit: Not applicable | Fittings: V ø4 elbow
ZQ000MA-K15LO-ELH-0Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K15LO-ELH-1Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K15LO-ELH-2Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K15LO-ELH-3Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K15LO-ELH-4Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K15LO-ELH-5Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K25LO-ELH-0Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K25LO-ELH-1Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K25LO-ELH-2Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K25LO-ELH-3Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K25LO-ELH-4Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K25LO-ELH-5Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link vacuum 0 to -101 kPa | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K15LO-FLH-0Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K15LO-FLH-1Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K15LO-FLH-2Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K15LO-FLH-3Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K15LO-FLH-4Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K15LO-FLH-5Item: Manifold-use unit | Valves: Supply N.C. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø4 elbow
ZQ000MA-K25LO-FLH-0Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V M5 (no fitting)
ZQ000MA-K25LO-FLH-1Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø3.2 straight
ZQ000MA-K25LO-FLH-2Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø4 straight
ZQ000MA-K25LO-FLH-3Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø6 straight
ZQ000MA-K25LO-FLH-4Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø3.2 elbow
ZQ000MA-K25LO-FLH-5Item: Manifold-use unit | Valves: Supply N.O. + release N.C. | Pressure switch: IO-Link compound -100 to 100 kPa | Display unit: Unit switching | Fittings: V ø4 elbow
ZZQ101A-LOBItem: Manifold base, 1 station | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, PD via PS port
ZZQ101A-LOCItem: Manifold base, 1 station | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, separate PD port
ZZQ101A-ROBItem: Manifold base, 1 station | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, PD via PS port
ZZQ101A-ROCItem: Manifold base, 1 station | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, separate PD port
ZZQ102A-LOBItem: Manifold base, 2 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, PD via PS port
ZZQ102A-LOCItem: Manifold base, 2 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, separate PD port
ZZQ102A-ROBItem: Manifold base, 2 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, PD via PS port
ZZQ102A-ROCItem: Manifold base, 2 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, separate PD port
ZZQ103A-LOBItem: Manifold base, 3 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, PD via PS port
ZZQ103A-LOCItem: Manifold base, 3 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, separate PD port
ZZQ103A-ROBItem: Manifold base, 3 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, PD via PS port
ZZQ103A-ROCItem: Manifold base, 3 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, separate PD port
ZZQ104A-LOBItem: Manifold base, 4 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, PD via PS port
ZZQ104A-LOCItem: Manifold base, 4 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, separate PD port
ZZQ104A-ROBItem: Manifold base, 4 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, PD via PS port
ZZQ104A-ROCItem: Manifold base, 4 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, separate PD port
ZZQ105A-LOBItem: Manifold base, 5 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, PD via PS port
ZZQ105A-LOCItem: Manifold base, 5 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, separate PD port
ZZQ105A-ROBItem: Manifold base, 5 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, PD via PS port
ZZQ105A-ROCItem: Manifold base, 5 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, separate PD port
ZZQ106A-LOBItem: Manifold base, 6 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, PD via PS port
ZZQ106A-LOCItem: Manifold base, 6 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, separate PD port
ZZQ106A-ROBItem: Manifold base, 6 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, PD via PS port
ZZQ106A-ROCItem: Manifold base, 6 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, separate PD port
ZZQ107A-LOBItem: Manifold base, 7 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, PD via PS port
ZZQ107A-LOCItem: Manifold base, 7 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, separate PD port
ZZQ107A-ROBItem: Manifold base, 7 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, PD via PS port
ZZQ107A-ROCItem: Manifold base, 7 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, separate PD port
ZZQ108A-LOBItem: Manifold base, 8 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, PD via PS port
ZZQ108A-LOCItem: Manifold base, 8 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV left, separate PD port
ZZQ108A-ROBItem: Manifold base, 8 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, PD via PS port
ZZQ108A-ROCItem: Manifold base, 8 stations | Valves: Not applicable | Pressure switch: Not applicable | Display unit: Not applicable | Fittings: PV right, separate PD port

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
