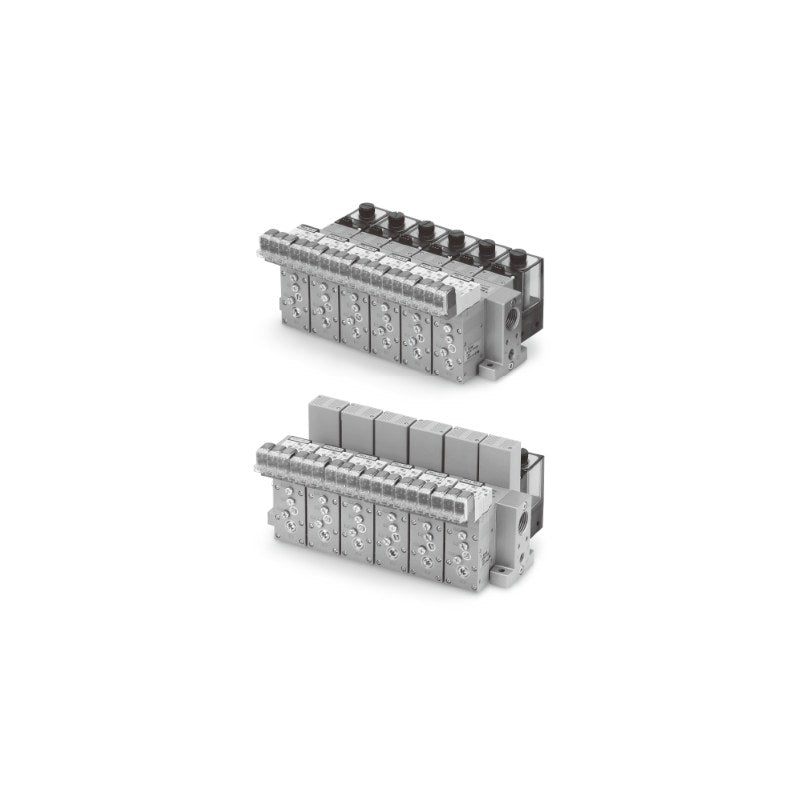

SMC ZR100 Large Vacuum Unit, Vacuum Pump System and ZZR1 Manifold

SMC ZR100 Large Vacuum Unit, Vacuum Pump System and ZZR1 Manifold

SMC ZR100 large vacuum unit for vacuum pump systems (valve unit + vacuum pressure switch + suction filter), plus ZZR1 manifold bases for ZR ejector and pump units.

Key features

  • Valve unit combinations K1 (double-solenoid vacuum switching valve, self-holding), K2, C1, C3 solenoid and K3, C2 air operated
  • ZSE20A digital pressure switch, ZSE2 vacuum switch or suction filter only
  • Listed solenoid codes: DC24V, M plug connector 0.3 m, light/surge suppressor (5MZ)
  • ZZR1 manifold base 1 to 6 stations, supply port right, left or both sides, Rc thread (G: F, NPTF: T on order)
  • Function plates ZR1-RV1/RV3 for individual port supply are ordered separately

Specifications

Fluid Air
Vacuum supply (PV) port Rc1/8
Pilot / release ports M5
Manifold common exhaust (EXH) Rc1/2
Max. manifold stations 6
Switch rated pressure range 0 to -101 kPa
Filter 30 µm PVA sponge
Manifold base mass 0.28 kg (1 station) + 0.12 kg per station
Source SMC Korea catalog ZR series (SMCKR_ZR.pdf), p. 658, 663-1, 663-2, 674 (PDF p. 42, 52, 53, 66)
ZR100-K15MZ-DXL Item: Vacuum pump system unit | Valves: Supply double SOL + release N.C. | Switch/filter: ZSE20A NPN 2 out + copy, filter | Stations: Single unit | Supply port: Not applicable
ZR100-K15MZ-DYL Item: Vacuum pump system unit | Valves: Supply double SOL + release N.C. | Switch/filter: ZSE20A PNP 2 out + copy, filter | Stations: Single unit | Supply port: Not applicable
ZR100-K15MZ-DRL Item: Vacuum pump system unit | Valves: Supply double SOL + release N.C. | Switch/filter: ZSE20A NPN 2 out + analog V, filter | Stations: Single unit | Supply port: Not applicable
ZR100-K15MZ-DSL Item: Vacuum pump system unit | Valves: Supply double SOL + release N.C. | Switch/filter: ZSE20A NPN 2 out + analog I, filter | Stations: Single unit | Supply port: Not applicable
ZR100-K15MZ-DTL Item: Vacuum pump system unit | Valves: Supply double SOL + release N.C. | Switch/filter: ZSE20A PNP 2 out + analog V, filter | Stations: Single unit | Supply port: Not applicable
ZR100-K15MZ-DVL Item: Vacuum pump system unit | Valves: Supply double SOL + release N.C. | Switch/filter: ZSE20A PNP 2 out + analog I, filter | Stations: Single unit | Supply port: Not applicable
ZR100-K15MZ-EC Item: Vacuum pump system unit | Valves: Supply double SOL + release N.C. | Switch/filter: ZSE2 NPN 1 output, filter | Stations: Single unit | Supply port: Not applicable
ZR100-K15MZ-E55C Item: Vacuum pump system unit | Valves: Supply double SOL + release N.C. | Switch/filter: ZSE2 PNP 1 output, filter | Stations: Single unit | Supply port: Not applicable
ZR100-K15MZ-F Item: Vacuum pump system unit | Valves: Supply double SOL + release N.C. | Switch/filter: Suction filter only | Stations: Single unit | Supply port: Not applicable
ZR100-K25MZ-DXL Item: Vacuum pump system unit | Valves: Supply N.C. + release N.C. | Switch/filter: ZSE20A NPN 2 out + copy, filter | Stations: Single unit | Supply port: Not applicable
ZR100-K25MZ-DYL Item: Vacuum pump system unit | Valves: Supply N.C. + release N.C. | Switch/filter: ZSE20A PNP 2 out + copy, filter | Stations: Single unit | Supply port: Not applicable
ZR100-K25MZ-DRL Item: Vacuum pump system unit | Valves: Supply N.C. + release N.C. | Switch/filter: ZSE20A NPN 2 out + analog V, filter | Stations: Single unit | Supply port: Not applicable
ZR100-K25MZ-DSL Item: Vacuum pump system unit | Valves: Supply N.C. + release N.C. | Switch/filter: ZSE20A NPN 2 out + analog I, filter | Stations: Single unit | Supply port: Not applicable
ZR100-K25MZ-DTL Item: Vacuum pump system unit | Valves: Supply N.C. + release N.C. | Switch/filter: ZSE20A PNP 2 out + analog V, filter | Stations: Single unit | Supply port: Not applicable
ZR100-K25MZ-DVL Item: Vacuum pump system unit | Valves: Supply N.C. + release N.C. | Switch/filter: ZSE20A PNP 2 out + analog I, filter | Stations: Single unit | Supply port: Not applicable
ZR100-K25MZ-EC Item: Vacuum pump system unit | Valves: Supply N.C. + release N.C. | Switch/filter: ZSE2 NPN 1 output, filter | Stations: Single unit | Supply port: Not applicable
ZR100-K25MZ-E55C Item: Vacuum pump system unit | Valves: Supply N.C. + release N.C. | Switch/filter: ZSE2 PNP 1 output, filter | Stations: Single unit | Supply port: Not applicable
ZR100-K25MZ-F Item: Vacuum pump system unit | Valves: Supply N.C. + release N.C. | Switch/filter: Suction filter only | Stations: Single unit | Supply port: Not applicable
ZR100-K3-DXL Item: Vacuum pump system unit | Valves: Supply + release air operated | Switch/filter: ZSE20A NPN 2 out + copy, filter | Stations: Single unit | Supply port: Not applicable
ZR100-K3-DYL Item: Vacuum pump system unit | Valves: Supply + release air operated | Switch/filter: ZSE20A PNP 2 out + copy, filter | Stations: Single unit | Supply port: Not applicable
ZR100-K3-DRL Item: Vacuum pump system unit | Valves: Supply + release air operated | Switch/filter: ZSE20A NPN 2 out + analog V, filter | Stations: Single unit | Supply port: Not applicable
ZR100-K3-DSL Item: Vacuum pump system unit | Valves: Supply + release air operated | Switch/filter: ZSE20A NPN 2 out + analog I, filter | Stations: Single unit | Supply port: Not applicable
ZR100-K3-DTL Item: Vacuum pump system unit | Valves: Supply + release air operated | Switch/filter: ZSE20A PNP 2 out + analog V, filter | Stations: Single unit | Supply port: Not applicable
ZR100-K3-DVL Item: Vacuum pump system unit | Valves: Supply + release air operated | Switch/filter: ZSE20A PNP 2 out + analog I, filter | Stations: Single unit | Supply port: Not applicable
ZR100-K3-EC Item: Vacuum pump system unit | Valves: Supply + release air operated | Switch/filter: ZSE2 NPN 1 output, filter | Stations: Single unit | Supply port: Not applicable
ZR100-K3-E55C Item: Vacuum pump system unit | Valves: Supply + release air operated | Switch/filter: ZSE2 PNP 1 output, filter | Stations: Single unit | Supply port: Not applicable
ZR100-K3-F Item: Vacuum pump system unit | Valves: Supply + release air operated | Switch/filter: Suction filter only | Stations: Single unit | Supply port: Not applicable
ZR100-C15MZ-DXL Item: Vacuum pump system unit | Valves: N.C. valve, supply/release common | Switch/filter: ZSE20A NPN 2 out + copy, filter | Stations: Single unit | Supply port: Not applicable
ZR100-C15MZ-DYL Item: Vacuum pump system unit | Valves: N.C. valve, supply/release common | Switch/filter: ZSE20A PNP 2 out + copy, filter | Stations: Single unit | Supply port: Not applicable
ZR100-C15MZ-DRL Item: Vacuum pump system unit | Valves: N.C. valve, supply/release common | Switch/filter: ZSE20A NPN 2 out + analog V, filter | Stations: Single unit | Supply port: Not applicable
ZR100-C15MZ-DSL Item: Vacuum pump system unit | Valves: N.C. valve, supply/release common | Switch/filter: ZSE20A NPN 2 out + analog I, filter | Stations: Single unit | Supply port: Not applicable
ZR100-C15MZ-DTL Item: Vacuum pump system unit | Valves: N.C. valve, supply/release common | Switch/filter: ZSE20A PNP 2 out + analog V, filter | Stations: Single unit | Supply port: Not applicable
ZR100-C15MZ-DVL Item: Vacuum pump system unit | Valves: N.C. valve, supply/release common | Switch/filter: ZSE20A PNP 2 out + analog I, filter | Stations: Single unit | Supply port: Not applicable
ZR100-C15MZ-EC Item: Vacuum pump system unit | Valves: N.C. valve, supply/release common | Switch/filter: ZSE2 NPN 1 output, filter | Stations: Single unit | Supply port: Not applicable
ZR100-C15MZ-E55C Item: Vacuum pump system unit | Valves: N.C. valve, supply/release common | Switch/filter: ZSE2 PNP 1 output, filter | Stations: Single unit | Supply port: Not applicable
ZR100-C15MZ-F Item: Vacuum pump system unit | Valves: N.C. valve, supply/release common | Switch/filter: Suction filter only | Stations: Single unit | Supply port: Not applicable
ZR100-C2-DXL Item: Vacuum pump system unit | Valves: Air operated, supply/release common | Switch/filter: ZSE20A NPN 2 out + copy, filter | Stations: Single unit | Supply port: Not applicable
ZR100-C2-DYL Item: Vacuum pump system unit | Valves: Air operated, supply/release common | Switch/filter: ZSE20A PNP 2 out + copy, filter | Stations: Single unit | Supply port: Not applicable
ZR100-C2-DRL Item: Vacuum pump system unit | Valves: Air operated, supply/release common | Switch/filter: ZSE20A NPN 2 out + analog V, filter | Stations: Single unit | Supply port: Not applicable
ZR100-C2-DSL Item: Vacuum pump system unit | Valves: Air operated, supply/release common | Switch/filter: ZSE20A NPN 2 out + analog I, filter | Stations: Single unit | Supply port: Not applicable
ZR100-C2-DTL Item: Vacuum pump system unit | Valves: Air operated, supply/release common | Switch/filter: ZSE20A PNP 2 out + analog V, filter | Stations: Single unit | Supply port: Not applicable
ZR100-C2-DVL Item: Vacuum pump system unit | Valves: Air operated, supply/release common | Switch/filter: ZSE20A PNP 2 out + analog I, filter | Stations: Single unit | Supply port: Not applicable
ZR100-C2-EC Item: Vacuum pump system unit | Valves: Air operated, supply/release common | Switch/filter: ZSE2 NPN 1 output, filter | Stations: Single unit | Supply port: Not applicable
ZR100-C2-E55C Item: Vacuum pump system unit | Valves: Air operated, supply/release common | Switch/filter: ZSE2 PNP 1 output, filter | Stations: Single unit | Supply port: Not applicable
ZR100-C2-F Item: Vacuum pump system unit | Valves: Air operated, supply/release common | Switch/filter: Suction filter only | Stations: Single unit | Supply port: Not applicable
ZR100-C35MZ-DXL Item: Vacuum pump system unit | Valves: N.O. valve, supply/release common | Switch/filter: ZSE20A NPN 2 out + copy, filter | Stations: Single unit | Supply port: Not applicable
ZR100-C35MZ-DYL Item: Vacuum pump system unit | Valves: N.O. valve, supply/release common | Switch/filter: ZSE20A PNP 2 out + copy, filter | Stations: Single unit | Supply port: Not applicable
ZR100-C35MZ-DRL Item: Vacuum pump system unit | Valves: N.O. valve, supply/release common | Switch/filter: ZSE20A NPN 2 out + analog V, filter | Stations: Single unit | Supply port: Not applicable
ZR100-C35MZ-DSL Item: Vacuum pump system unit | Valves: N.O. valve, supply/release common | Switch/filter: ZSE20A NPN 2 out + analog I, filter | Stations: Single unit | Supply port: Not applicable
ZR100-C35MZ-DTL Item: Vacuum pump system unit | Valves: N.O. valve, supply/release common | Switch/filter: ZSE20A PNP 2 out + analog V, filter | Stations: Single unit | Supply port: Not applicable
ZR100-C35MZ-DVL Item: Vacuum pump system unit | Valves: N.O. valve, supply/release common | Switch/filter: ZSE20A PNP 2 out + analog I, filter | Stations: Single unit | Supply port: Not applicable
ZR100-C35MZ-EC Item: Vacuum pump system unit | Valves: N.O. valve, supply/release common | Switch/filter: ZSE2 NPN 1 output, filter | Stations: Single unit | Supply port: Not applicable
ZR100-C35MZ-E55C Item: Vacuum pump system unit | Valves: N.O. valve, supply/release common | Switch/filter: ZSE2 PNP 1 output, filter | Stations: Single unit | Supply port: Not applicable
ZR100-C35MZ-F Item: Vacuum pump system unit | Valves: N.O. valve, supply/release common | Switch/filter: Suction filter only | Stations: Single unit | Supply port: Not applicable
ZZR101-R Item: Manifold base (Rc ports) | Valves: Not applicable | Switch/filter: Not applicable | Stations: 1 | Supply port: Right side
ZZR101-L Item: Manifold base (Rc ports) | Valves: Not applicable | Switch/filter: Not applicable | Stations: 1 | Supply port: Left side
ZZR101-B Item: Manifold base (Rc ports) | Valves: Not applicable | Switch/filter: Not applicable | Stations: 1 | Supply port: Both sides
ZZR102-R Item: Manifold base (Rc ports) | Valves: Not applicable | Switch/filter: Not applicable | Stations: 2 | Supply port: Right side
ZZR102-L Item: Manifold base (Rc ports) | Valves: Not applicable | Switch/filter: Not applicable | Stations: 2 | Supply port: Left side
ZZR102-B Item: Manifold base (Rc ports) | Valves: Not applicable | Switch/filter: Not applicable | Stations: 2 | Supply port: Both sides
ZZR103-R Item: Manifold base (Rc ports) | Valves: Not applicable | Switch/filter: Not applicable | Stations: 3 | Supply port: Right side
ZZR103-L Item: Manifold base (Rc ports) | Valves: Not applicable | Switch/filter: Not applicable | Stations: 3 | Supply port: Left side
ZZR103-B Item: Manifold base (Rc ports) | Valves: Not applicable | Switch/filter: Not applicable | Stations: 3 | Supply port: Both sides
ZZR104-R Item: Manifold base (Rc ports) | Valves: Not applicable | Switch/filter: Not applicable | Stations: 4 | Supply port: Right side
ZZR104-L Item: Manifold base (Rc ports) | Valves: Not applicable | Switch/filter: Not applicable | Stations: 4 | Supply port: Left side
ZZR104-B Item: Manifold base (Rc ports) | Valves: Not applicable | Switch/filter: Not applicable | Stations: 4 | Supply port: Both sides
ZZR105-R Item: Manifold base (Rc ports) | Valves: Not applicable | Switch/filter: Not applicable | Stations: 5 | Supply port: Right side
ZZR105-L Item: Manifold base (Rc ports) | Valves: Not applicable | Switch/filter: Not applicable | Stations: 5 | Supply port: Left side
ZZR105-B Item: Manifold base (Rc ports) | Valves: Not applicable | Switch/filter: Not applicable | Stations: 5 | Supply port: Both sides
ZZR106-R Item: Manifold base (Rc ports) | Valves: Not applicable | Switch/filter: Not applicable | Stations: 6 | Supply port: Right side
ZZR106-L Item: Manifold base (Rc ports) | Valves: Not applicable | Switch/filter: Not applicable | Stations: 6 | Supply port: Left side
ZZR106-B Item: Manifold base (Rc ports) | Valves: Not applicable | Switch/filter: Not applicable | Stations: 6 | Supply port: Both sides
