• SMC ZU-A In-line Vacuum Ejector (Nozzle 0.3 to 0.7 mm)
1 1

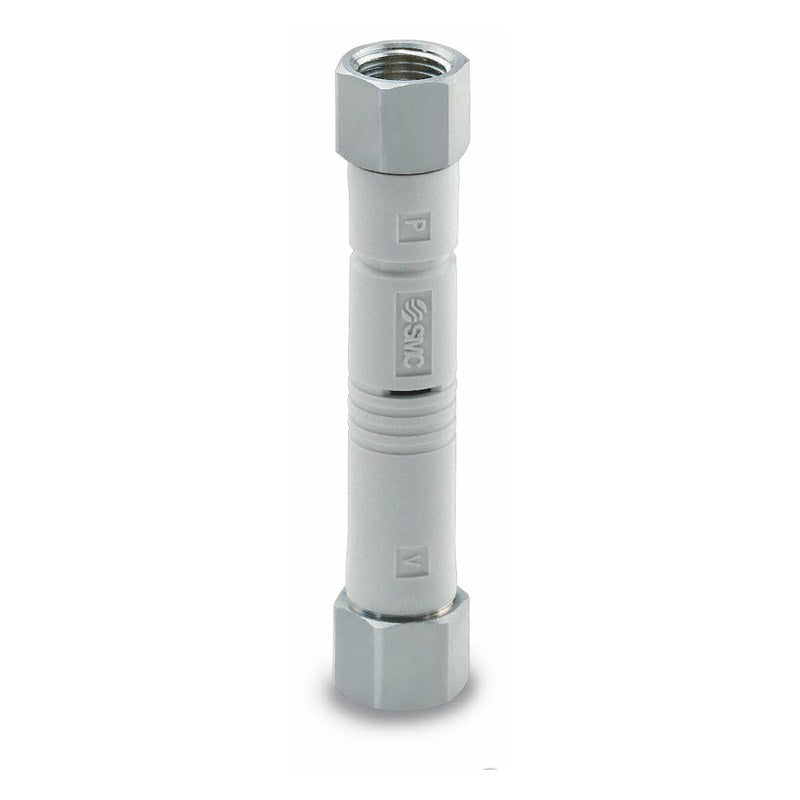

SMC ZU-A In-line Vacuum Ejector (Nozzle 0.3 to 0.7 mm)

SMC ZU-A In-line Vacuum Ejector (Nozzle 0.3 to 0.7 mm)

SMC ZUA series straight in-line vacuum ejector for installing in the vacuum line next to the pad, nozzle ø0.3 to ø0.7 mm, high-vacuum S or high-flow L type.

Key features

  • Compact and light: ø10.4 mm outside diameter, 3.9 g, 52 mm long (ZU05, one-touch)
  • Installed close to the pad on the moving side for fast response; one vacuum source per pad prevents pick-up errors
  • S type up to -90 kPa, L type -40/-48 kPa with larger suction flow
  • One-touch fittings ø4/ø6, inch ø5/32" (ZU03/04) or Rc1/8 female thread (ZU05/07)
  • Recommended supply valve C value: ZU03 0.04, ZU04 0.08, ZU05 0.12, ZU07 0.23 dm³/(s·bar)

Specifications

Fluid Air
Operating pressure range 0.1 to 0.6 MPa
Standard supply pressure ZU03/04 0.35 MPa, ZU05/07 0.45 MPa
Operating temperature -5 to 50°C (no freezing)
Air consumption ZU03 4.2, ZU04 7.7, ZU05 14, ZU07 28 L/min (ANR)
Body material Resin
Applicable tubing FEP, PFA, nylon, soft nylon, polyurethane
Source SMC Korea catalog ZU-A CAT.KS100-118B (SMCKR_ZU-A.pdf), p. 1-2
ZU03SA Nozzle: ø0.3 mm | Max. vacuum: S, -85 kPa | Max. suction: 1.8 L/min | Ports: ø4 one-touch
ZU03SAN Nozzle: ø0.3 mm | Max. vacuum: S, -85 kPa | Max. suction: 1.8 L/min | Ports: ø5/32" one-touch
ZU03LA Nozzle: ø0.3 mm | Max. vacuum: L, -40 kPa | Max. suction: 3.4 L/min | Ports: ø4 one-touch
ZU03LAN Nozzle: ø0.3 mm | Max. vacuum: L, -40 kPa | Max. suction: 3.4 L/min | Ports: ø5/32" one-touch
ZU04SA Nozzle: ø0.4 mm | Max. vacuum: S, -87 kPa | Max. suction: 3.2 L/min | Ports: ø4 one-touch
ZU04SAN Nozzle: ø0.4 mm | Max. vacuum: S, -87 kPa | Max. suction: 3.2 L/min | Ports: ø5/32" one-touch
ZU04LA Nozzle: ø0.4 mm | Max. vacuum: L, -40 kPa | Max. suction: 5.8 L/min | Ports: ø4 one-touch
ZU04LAN Nozzle: ø0.4 mm | Max. vacuum: L, -40 kPa | Max. suction: 5.8 L/min | Ports: ø5/32" one-touch
ZU05SA Nozzle: ø0.5 mm | Max. vacuum: S, -90 kPa | Max. suction: 7 L/min | Ports: ø6 one-touch
ZU05SA01 Nozzle: ø0.5 mm | Max. vacuum: S, -90 kPa | Max. suction: 7 L/min | Ports: Rc1/8 female
ZU05LA Nozzle: ø0.5 mm | Max. vacuum: L, -48 kPa | Max. suction: 13 L/min | Ports: ø6 one-touch
ZU05LA01 Nozzle: ø0.5 mm | Max. vacuum: L, -48 kPa | Max. suction: 13 L/min | Ports: Rc1/8 female
ZU07SA Nozzle: ø0.7 mm | Max. vacuum: S, -90 kPa | Max. suction: 11 L/min | Ports: ø6 one-touch
ZU07SA01 Nozzle: ø0.7 mm | Max. vacuum: S, -90 kPa | Max. suction: 11 L/min | Ports: Rc1/8 female
ZU07LA Nozzle: ø0.7 mm | Max. vacuum: L, -48 kPa | Max. suction: 16 L/min | Ports: ø6 one-touch
ZU07LA01 Nozzle: ø0.7 mm | Max. vacuum: L, -48 kPa | Max. suction: 16 L/min | Ports: Rc1/8 female
Vacuum EjectorsSMC
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ZU-A In-line Vacuum Ejector (Nozzle 0.3 to 0.7 mm)

Brand SMC·Vacuum Ejectors

Available part numbers (16)

ZU03SA, ZU03SAN, ZU03LA, ZU03LAN, ZU04SA, ZU04SAN, ZU04LA, ZU04LAN, ZU05SA, ZU05SA01 + 6 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZU03SANozzle: ø0.3 mm | Max. vacuum: S, -85 kPa | Max. suction: 1.8 L/min | Ports: ø4 one-touch
ZU03SANNozzle: ø0.3 mm | Max. vacuum: S, -85 kPa | Max. suction: 1.8 L/min | Ports: ø5/32" one-touch
ZU03LANozzle: ø0.3 mm | Max. vacuum: L, -40 kPa | Max. suction: 3.4 L/min | Ports: ø4 one-touch
ZU03LANNozzle: ø0.3 mm | Max. vacuum: L, -40 kPa | Max. suction: 3.4 L/min | Ports: ø5/32" one-touch
ZU04SANozzle: ø0.4 mm | Max. vacuum: S, -87 kPa | Max. suction: 3.2 L/min | Ports: ø4 one-touch
ZU04SANNozzle: ø0.4 mm | Max. vacuum: S, -87 kPa | Max. suction: 3.2 L/min | Ports: ø5/32" one-touch
ZU04LANozzle: ø0.4 mm | Max. vacuum: L, -40 kPa | Max. suction: 5.8 L/min | Ports: ø4 one-touch
ZU04LANNozzle: ø0.4 mm | Max. vacuum: L, -40 kPa | Max. suction: 5.8 L/min | Ports: ø5/32" one-touch
ZU05SANozzle: ø0.5 mm | Max. vacuum: S, -90 kPa | Max. suction: 7 L/min | Ports: ø6 one-touch
ZU05SA01Nozzle: ø0.5 mm | Max. vacuum: S, -90 kPa | Max. suction: 7 L/min | Ports: Rc1/8 female
ZU05LANozzle: ø0.5 mm | Max. vacuum: L, -48 kPa | Max. suction: 13 L/min | Ports: ø6 one-touch
ZU05LA01Nozzle: ø0.5 mm | Max. vacuum: L, -48 kPa | Max. suction: 13 L/min | Ports: Rc1/8 female
ZU07SANozzle: ø0.7 mm | Max. vacuum: S, -90 kPa | Max. suction: 11 L/min | Ports: ø6 one-touch
ZU07SA01Nozzle: ø0.7 mm | Max. vacuum: S, -90 kPa | Max. suction: 11 L/min | Ports: Rc1/8 female
ZU07LANozzle: ø0.7 mm | Max. vacuum: L, -48 kPa | Max. suction: 16 L/min | Ports: ø6 one-touch
ZU07LA01Nozzle: ø0.7 mm | Max. vacuum: L, -48 kPa | Max. suction: 16 L/min | Ports: Rc1/8 female
