• SMC ZVB Static Elimination Dust Removal Box with Ionizer
1 1

SMC ZVB Static Elimination Dust Removal Box with Ionizer

SMC ZVB Static Elimination Dust Removal Box with Ionizer

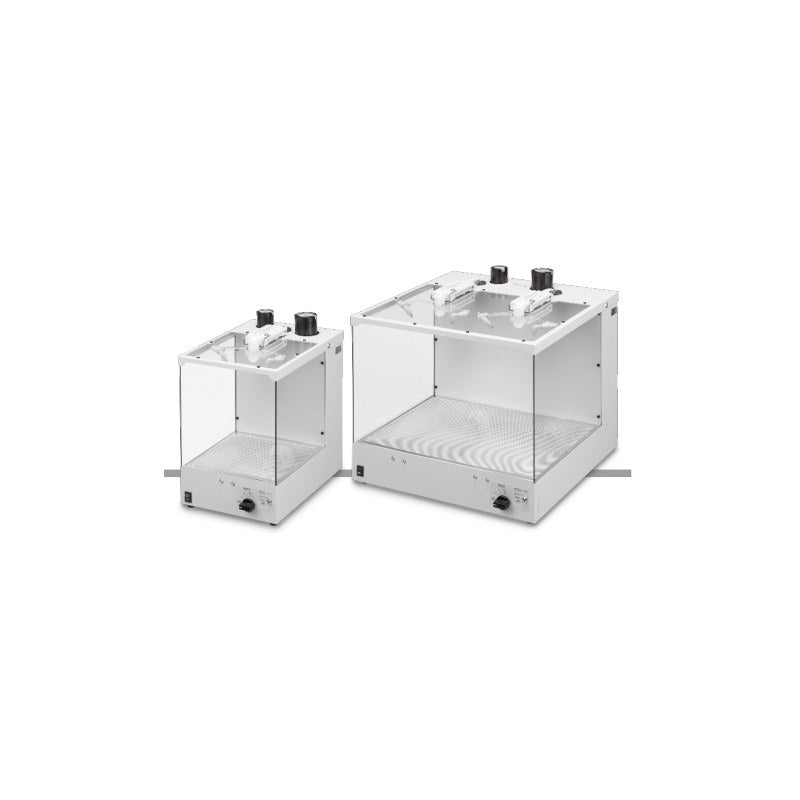

SMC ZVB series all-in-one box that combines ionizer static elimination, auxiliary air blow dust removal and air-operated vacuum dust collection in A4 (ZVB20) or A3 (ZVB40) size.

Key features

  • Nozzle type ionizer with diffusion nozzle: offset ±10 V, decay time 0.3 s (1000 V to 100 V)
  • Separate ion blow and auxiliary air blow nozzles for higher static and dust removal efficiency
  • Pneumatic vacuum flow dust collector, no pump and maintenance-free
  • Work space 202 x 212 mm (ZVB20) or 392 x 298 mm (ZVB40); continuous or timer operation 2/5/10 s
  • Options as suffix: D (3 m exhaust duct hose), P (dust bag), S (auxiliary blow needle valve)

Specifications

Ion generation Corona discharge, high-frequency AC
Fluid Air (dry)
Operating pressure 0.2 to 0.8 MPa
Dust collector supply pressure 0.1 to 0.7 MPa
Exhaust flow ZVB20 410-1580, ZVB40 820-3160 L/min (ANR)
Power supply 85 to 264 VAC 50/60 Hz (with dedicated AC adapter)
Power consumption ZVB20 10.6 W, ZVB40 15.1 W
Auxiliary blow Continuous / pulse 50 or 100 ms
Operating temperature 0 to 55°C (no freezing)
Mass ZVB20 5.1 kg, ZVB40 9.9 kg
Supply port ZVB20 ø8, ZVB40 ø10 tube
Source SMC Korea catalog ZVB (SMCKR_ZVB.pdf), p. 194-200 (How to Order p. 196)
ZVB20-B Size: ZVB20 (A4 size) | Ionizers mounted: 1 | Photoelectric sensor: None | AC adapter: None (DC plug only)
ZVB20-BA Size: ZVB20 (A4 size) | Ionizers mounted: 1 | Photoelectric sensor: None | AC adapter: With AC adapter
ZVB20-BS Size: ZVB20 (A4 size) | Ionizers mounted: 1 | Photoelectric sensor: Built-in photoelectric sensor | AC adapter: None (DC plug only)
ZVB20-BSA Size: ZVB20 (A4 size) | Ionizers mounted: 1 | Photoelectric sensor: Built-in photoelectric sensor | AC adapter: With AC adapter
ZVB40-B Size: ZVB40 (A3 size) | Ionizers mounted: 2 | Photoelectric sensor: None | AC adapter: None (DC plug only)
ZVB40-BA Size: ZVB40 (A3 size) | Ionizers mounted: 2 | Photoelectric sensor: None | AC adapter: With AC adapter
ZVB40-BS Size: ZVB40 (A3 size) | Ionizers mounted: 2 | Photoelectric sensor: Built-in photoelectric sensor | AC adapter: None (DC plug only)
ZVB40-BSA Size: ZVB40 (A3 size) | Ionizers mounted: 2 | Photoelectric sensor: Built-in photoelectric sensor | AC adapter: With AC adapter
IonizersSMC
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ZVB Static Elimination Dust Removal Box with Ionizer

Brand SMC·Ionizers

Available part numbers (8)

ZVB20-B, ZVB20-BA, ZVB20-BS, ZVB20-BSA, ZVB40-B, ZVB40-BA, ZVB40-BS, ZVB40-BSA

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZVB20-BSize: ZVB20 (A4 size) | Ionizers mounted: 1 | Photoelectric sensor: None | AC adapter: None (DC plug only)
ZVB20-BASize: ZVB20 (A4 size) | Ionizers mounted: 1 | Photoelectric sensor: None | AC adapter: With AC adapter
ZVB20-BSSize: ZVB20 (A4 size) | Ionizers mounted: 1 | Photoelectric sensor: Built-in photoelectric sensor | AC adapter: None (DC plug only)
ZVB20-BSASize: ZVB20 (A4 size) | Ionizers mounted: 1 | Photoelectric sensor: Built-in photoelectric sensor | AC adapter: With AC adapter
ZVB40-BSize: ZVB40 (A3 size) | Ionizers mounted: 2 | Photoelectric sensor: None | AC adapter: None (DC plug only)
ZVB40-BASize: ZVB40 (A3 size) | Ionizers mounted: 2 | Photoelectric sensor: None | AC adapter: With AC adapter
ZVB40-BSSize: ZVB40 (A3 size) | Ionizers mounted: 2 | Photoelectric sensor: Built-in photoelectric sensor | AC adapter: None (DC plug only)
ZVB40-BSASize: ZVB40 (A3 size) | Ionizers mounted: 2 | Photoelectric sensor: Built-in photoelectric sensor | AC adapter: With AC adapter
