SMC ZXP7-PFL1 Flange-Mounted Vacuum Pads for Kawada NEXTAGE

SMC ZXP7-PFL1 Flange-Mounted Vacuum Pads for Kawada NEXTAGE

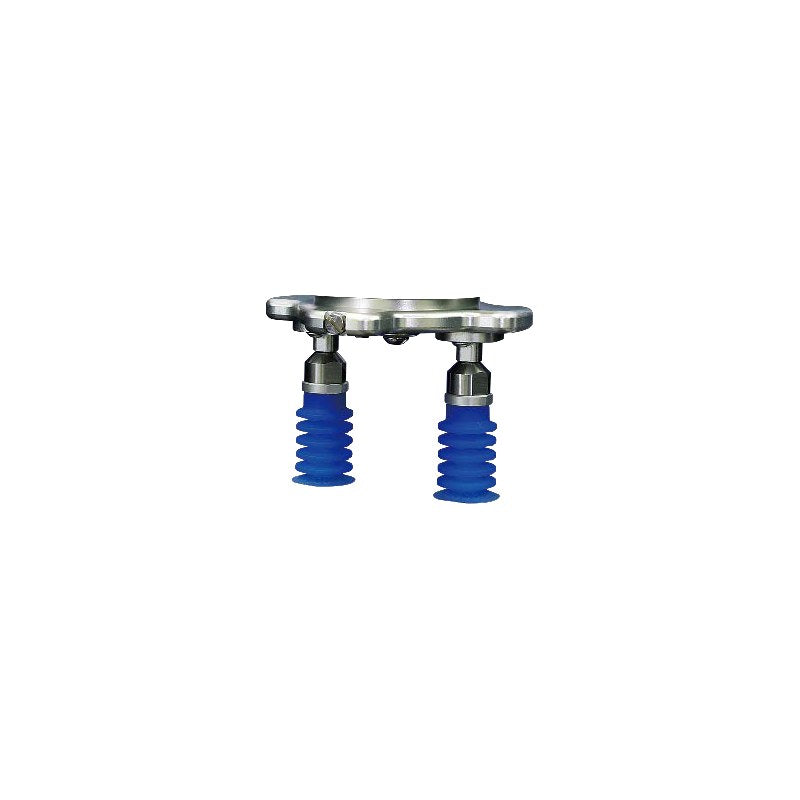

SMC ZXP7-PFL1 flange-mounted vacuum pad unit for the Kawada Robotics NEXTAGE humanoid dual-arm robot, with internal vacuum passages so no individual pad tubing is needed.

Key features

  • Mounting ISO9409-1-50-4-M6; vacuum supplied through the flange, no tubing to each pad
  • Rounded, compact housing without sharp corners to avoid interference with work or operators
  • Pad options: ZP flat, ribbed, bellows, thin flat and multi-stage bellows ø8 to ø32 in NBR, silicone, urethane or FKM, plus ZP3P film-packaging bellows (blue silicone); 4 adapter pads supplied
  • Pad quantity (1 to 5) and pad pitch (50 to 70 mm) can be changed
  • Vacuum supply port M5x0.8 or Rc1/8 (recommended fitting KQ2(S/L)08-01NS, tube TU0805, ordered separately)
  • ZXP7-PFL1-A-X1 = pad mounting flange only; suction assist valve ZP2V-B6-05 available separately

Specifications

Compatible robots Kawada Robotics NEXTAGE
Robot mounting ISO9409-1-50-4-M6
Fluid Air
Operating temperature 5 to 50°C
Max. payload 7 kg (depends on pad and work)
Vacuum supply (PV) port M5x0.8, Rc1/8
Pads mounted 4 (supplied), 1 to 5 possible
Mass 228 g, excl. pads
Source SMC Korea catalog CAT.KS160-8A (SMCKR_Attachment_for_Co-Robots_for_Kawada.pdf), p. 1, 4-7 (PDF p. 2, 5-8)
ZXP7-PFL1-A-X1 Pad dia.: None | Pad shape: None (flange only) | Pad material: None
ZXP7-PFL1-ZP08UN-X1 Pad dia.: ø8 | Pad shape: Flat | Pad material: NBR
ZXP7-PFL1-ZP08US-X1 Pad dia.: ø8 | Pad shape: Flat | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP08UU-X1 Pad dia.: ø8 | Pad shape: Flat | Pad material: Urethane rubber
ZXP7-PFL1-ZP08UF-X1 Pad dia.: ø8 | Pad shape: Flat | Pad material: FKM
ZXP7-PFL1-ZP08BN-X1 Pad dia.: ø8 | Pad shape: Bellows | Pad material: NBR
ZXP7-PFL1-ZP08BS-X1 Pad dia.: ø8 | Pad shape: Bellows | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP08BU-X1 Pad dia.: ø8 | Pad shape: Bellows | Pad material: Urethane rubber
ZXP7-PFL1-ZP08BF-X1 Pad dia.: ø8 | Pad shape: Bellows | Pad material: FKM
ZXP7-PFL1-ZP10UTN-X1 Pad dia.: ø10 | Pad shape: Thin flat | Pad material: NBR
ZXP7-PFL1-ZP10UTS-X1 Pad dia.: ø10 | Pad shape: Thin flat | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP10UTU-X1 Pad dia.: ø10 | Pad shape: Thin flat | Pad material: Urethane rubber
ZXP7-PFL1-ZP10UTF-X1 Pad dia.: ø10 | Pad shape: Thin flat | Pad material: FKM
ZXP7-PFL1-ZP13UTN-X1 Pad dia.: ø13 | Pad shape: Thin flat | Pad material: NBR
ZXP7-PFL1-ZP13UTS-X1 Pad dia.: ø13 | Pad shape: Thin flat | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP13UTU-X1 Pad dia.: ø13 | Pad shape: Thin flat | Pad material: Urethane rubber
ZXP7-PFL1-ZP13UTF-X1 Pad dia.: ø13 | Pad shape: Thin flat | Pad material: FKM
ZXP7-PFL1-ZP16UTN-X1 Pad dia.: ø16 | Pad shape: Thin flat | Pad material: NBR
ZXP7-PFL1-ZP16UTS-X1 Pad dia.: ø16 | Pad shape: Thin flat | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP16UTU-X1 Pad dia.: ø16 | Pad shape: Thin flat | Pad material: Urethane rubber
ZXP7-PFL1-ZP16UTF-X1 Pad dia.: ø16 | Pad shape: Thin flat | Pad material: FKM
ZXP7-PFL1-ZP10UN-X1 Pad dia.: ø10 | Pad shape: Flat | Pad material: NBR
ZXP7-PFL1-ZP10US-X1 Pad dia.: ø10 | Pad shape: Flat | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP10UU-X1 Pad dia.: ø10 | Pad shape: Flat | Pad material: Urethane rubber
ZXP7-PFL1-ZP10UF-X1 Pad dia.: ø10 | Pad shape: Flat | Pad material: FKM
ZXP7-PFL1-ZP13UN-X1 Pad dia.: ø13 | Pad shape: Flat | Pad material: NBR
ZXP7-PFL1-ZP13US-X1 Pad dia.: ø13 | Pad shape: Flat | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP13UU-X1 Pad dia.: ø13 | Pad shape: Flat | Pad material: Urethane rubber
ZXP7-PFL1-ZP13UF-X1 Pad dia.: ø13 | Pad shape: Flat | Pad material: FKM
ZXP7-PFL1-ZP16UN-X1 Pad dia.: ø16 | Pad shape: Flat | Pad material: NBR
ZXP7-PFL1-ZP16US-X1 Pad dia.: ø16 | Pad shape: Flat | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP16UU-X1 Pad dia.: ø16 | Pad shape: Flat | Pad material: Urethane rubber
ZXP7-PFL1-ZP16UF-X1 Pad dia.: ø16 | Pad shape: Flat | Pad material: FKM
ZXP7-PFL1-ZP20UN-X1 Pad dia.: ø20 | Pad shape: Flat | Pad material: NBR
ZXP7-PFL1-ZP20US-X1 Pad dia.: ø20 | Pad shape: Flat | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP20UU-X1 Pad dia.: ø20 | Pad shape: Flat | Pad material: Urethane rubber
ZXP7-PFL1-ZP20UF-X1 Pad dia.: ø20 | Pad shape: Flat | Pad material: FKM
ZXP7-PFL1-ZP25UN-X1 Pad dia.: ø25 | Pad shape: Flat | Pad material: NBR
ZXP7-PFL1-ZP25US-X1 Pad dia.: ø25 | Pad shape: Flat | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP25UU-X1 Pad dia.: ø25 | Pad shape: Flat | Pad material: Urethane rubber
ZXP7-PFL1-ZP25UF-X1 Pad dia.: ø25 | Pad shape: Flat | Pad material: FKM
ZXP7-PFL1-ZP32UN-X1 Pad dia.: ø32 | Pad shape: Flat | Pad material: NBR
ZXP7-PFL1-ZP32US-X1 Pad dia.: ø32 | Pad shape: Flat | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP32UU-X1 Pad dia.: ø32 | Pad shape: Flat | Pad material: Urethane rubber
ZXP7-PFL1-ZP32UF-X1 Pad dia.: ø32 | Pad shape: Flat | Pad material: FKM
ZXP7-PFL1-ZP10CN-X1 Pad dia.: ø10 | Pad shape: Flat with ribs | Pad material: NBR
ZXP7-PFL1-ZP10CS-X1 Pad dia.: ø10 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP10CU-X1 Pad dia.: ø10 | Pad shape: Flat with ribs | Pad material: Urethane rubber
ZXP7-PFL1-ZP10CF-X1 Pad dia.: ø10 | Pad shape: Flat with ribs | Pad material: FKM
ZXP7-PFL1-ZP13CN-X1 Pad dia.: ø13 | Pad shape: Flat with ribs | Pad material: NBR
ZXP7-PFL1-ZP13CS-X1 Pad dia.: ø13 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP13CU-X1 Pad dia.: ø13 | Pad shape: Flat with ribs | Pad material: Urethane rubber
ZXP7-PFL1-ZP13CF-X1 Pad dia.: ø13 | Pad shape: Flat with ribs | Pad material: FKM
ZXP7-PFL1-ZP16CN-X1 Pad dia.: ø16 | Pad shape: Flat with ribs | Pad material: NBR
ZXP7-PFL1-ZP16CS-X1 Pad dia.: ø16 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP16CU-X1 Pad dia.: ø16 | Pad shape: Flat with ribs | Pad material: Urethane rubber
ZXP7-PFL1-ZP16CF-X1 Pad dia.: ø16 | Pad shape: Flat with ribs | Pad material: FKM
ZXP7-PFL1-ZP20CN-X1 Pad dia.: ø20 | Pad shape: Flat with ribs | Pad material: NBR
ZXP7-PFL1-ZP20CS-X1 Pad dia.: ø20 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP20CU-X1 Pad dia.: ø20 | Pad shape: Flat with ribs | Pad material: Urethane rubber
ZXP7-PFL1-ZP20CF-X1 Pad dia.: ø20 | Pad shape: Flat with ribs | Pad material: FKM
ZXP7-PFL1-ZP25CN-X1 Pad dia.: ø25 | Pad shape: Flat with ribs | Pad material: NBR
ZXP7-PFL1-ZP25CS-X1 Pad dia.: ø25 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP25CU-X1 Pad dia.: ø25 | Pad shape: Flat with ribs | Pad material: Urethane rubber
ZXP7-PFL1-ZP25CF-X1 Pad dia.: ø25 | Pad shape: Flat with ribs | Pad material: FKM
ZXP7-PFL1-ZP32CN-X1 Pad dia.: ø32 | Pad shape: Flat with ribs | Pad material: NBR
ZXP7-PFL1-ZP32CS-X1 Pad dia.: ø32 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP32CU-X1 Pad dia.: ø32 | Pad shape: Flat with ribs | Pad material: Urethane rubber
ZXP7-PFL1-ZP32CF-X1 Pad dia.: ø32 | Pad shape: Flat with ribs | Pad material: FKM
ZXP7-PFL1-ZP10BN-X1 Pad dia.: ø10 | Pad shape: Bellows | Pad material: NBR
ZXP7-PFL1-ZP10BS-X1 Pad dia.: ø10 | Pad shape: Bellows | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP10BU-X1 Pad dia.: ø10 | Pad shape: Bellows | Pad material: Urethane rubber
ZXP7-PFL1-ZP10BF-X1 Pad dia.: ø10 | Pad shape: Bellows | Pad material: FKM
ZXP7-PFL1-ZP13BN-X1 Pad dia.: ø13 | Pad shape: Bellows | Pad material: NBR
ZXP7-PFL1-ZP13BS-X1 Pad dia.: ø13 | Pad shape: Bellows | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP13BU-X1 Pad dia.: ø13 | Pad shape: Bellows | Pad material: Urethane rubber
ZXP7-PFL1-ZP13BF-X1 Pad dia.: ø13 | Pad shape: Bellows | Pad material: FKM
ZXP7-PFL1-ZP16BN-X1 Pad dia.: ø16 | Pad shape: Bellows | Pad material: NBR
ZXP7-PFL1-ZP16BS-X1 Pad dia.: ø16 | Pad shape: Bellows | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP16BU-X1 Pad dia.: ø16 | Pad shape: Bellows | Pad material: Urethane rubber
ZXP7-PFL1-ZP16BF-X1 Pad dia.: ø16 | Pad shape: Bellows | Pad material: FKM
ZXP7-PFL1-ZP20BN-X1 Pad dia.: ø20 | Pad shape: Bellows | Pad material: NBR
ZXP7-PFL1-ZP20BS-X1 Pad dia.: ø20 | Pad shape: Bellows | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP20BU-X1 Pad dia.: ø20 | Pad shape: Bellows | Pad material: Urethane rubber
ZXP7-PFL1-ZP20BF-X1 Pad dia.: ø20 | Pad shape: Bellows | Pad material: FKM
ZXP7-PFL1-ZP25BN-X1 Pad dia.: ø25 | Pad shape: Bellows | Pad material: NBR
ZXP7-PFL1-ZP25BS-X1 Pad dia.: ø25 | Pad shape: Bellows | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP25BU-X1 Pad dia.: ø25 | Pad shape: Bellows | Pad material: Urethane rubber
ZXP7-PFL1-ZP25BF-X1 Pad dia.: ø25 | Pad shape: Bellows | Pad material: FKM
ZXP7-PFL1-ZP32BN-X1 Pad dia.: ø32 | Pad shape: Bellows | Pad material: NBR
ZXP7-PFL1-ZP32BS-X1 Pad dia.: ø32 | Pad shape: Bellows | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP32BU-X1 Pad dia.: ø32 | Pad shape: Bellows | Pad material: Urethane rubber
ZXP7-PFL1-ZP32BF-X1 Pad dia.: ø32 | Pad shape: Bellows | Pad material: FKM
ZXP7-PFL1-ZP20UTN-X1 Pad dia.: ø20 | Pad shape: Thin flat | Pad material: NBR
ZXP7-PFL1-ZP20UTS-X1 Pad dia.: ø20 | Pad shape: Thin flat | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP20UTU-X1 Pad dia.: ø20 | Pad shape: Thin flat | Pad material: Urethane rubber
ZXP7-PFL1-ZP20UTF-X1 Pad dia.: ø20 | Pad shape: Thin flat | Pad material: FKM
ZXP7-PFL1-ZP16JN-X1 Pad dia.: ø16 | Pad shape: Multi-stage bellows | Pad material: NBR
ZXP7-PFL1-ZP16JS-X1 Pad dia.: ø16 | Pad shape: Multi-stage bellows | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP16JU-X1 Pad dia.: ø16 | Pad shape: Multi-stage bellows | Pad material: Urethane rubber
ZXP7-PFL1-ZP16JF-X1 Pad dia.: ø16 | Pad shape: Multi-stage bellows | Pad material: FKM
ZXP7-PFL1-ZPB25JN-X1 Pad dia.: ø25 | Pad shape: Multi-stage bellows | Pad material: NBR
ZXP7-PFL1-ZPB25JS-X1 Pad dia.: ø25 | Pad shape: Multi-stage bellows | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZPB25JU-X1 Pad dia.: ø25 | Pad shape: Multi-stage bellows | Pad material: Urethane rubber
ZXP7-PFL1-ZPB25JF-X1 Pad dia.: ø25 | Pad shape: Multi-stage bellows | Pad material: FKM
ZXP7-PFL1-ZPB30JN-X1 Pad dia.: ø30 | Pad shape: Multi-stage bellows | Pad material: NBR
ZXP7-PFL1-ZPB30JS-X1 Pad dia.: ø30 | Pad shape: Multi-stage bellows | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZPB30JU-X1 Pad dia.: ø30 | Pad shape: Multi-stage bellows | Pad material: Urethane rubber
ZXP7-PFL1-ZPB30JF-X1 Pad dia.: ø30 | Pad shape: Multi-stage bellows | Pad material: FKM
ZXP7-PFL1-ZP3P20JT2SF-X1 Pad dia.: ø20 | Pad shape: ZP3P 2.5-stage bellows | Pad material: Silicone rubber (blue)
ZXP7-PFL1-ZP3P20JT2SFM-X1 Pad dia.: ø20 | Pad shape: ZP3P 2.5-stage bellows, mesh att. | Pad material: Silicone rubber (blue)
ZXP7-PFL1-ZP3P32JT2SF-X1 Pad dia.: ø32 | Pad shape: ZP3P 2.5-stage bellows | Pad material: Silicone rubber (blue)
ZXP7-PFL1-ZP3P32JT2SFM-X1 Pad dia.: ø32 | Pad shape: ZP3P 2.5-stage bellows, mesh att. | Pad material: Silicone rubber (blue)
ZXP7-PFL1-ZP3P20JT5SF-X1 Pad dia.: ø20 | Pad shape: ZP3P 5.5-stage bellows | Pad material: Silicone rubber (blue)
ZXP7-PFL1-ZP3P25JT5SF-X1 Pad dia.: ø25 | Pad shape: ZP3P 5.5-stage bellows | Pad material: Silicone rubber (blue)
ZXP7-PFL1-ZP3P32JT5SF-X1 Pad dia.: ø32 | Pad shape: ZP3P 5.5-stage bellows | Pad material: Silicone rubber (blue)
Vacuum PadsSMC
116 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ZXP7-PFL1 Flange-Mounted Vacuum Pads for Kawada NEXTAGE

Brand SMC·Vacuum Pads

Available part numbers (116)

ZXP7-PFL1-A-X1, ZXP7-PFL1-ZP08UN-X1, ZXP7-PFL1-ZP08US-X1, ZXP7-PFL1-ZP08UU-X1, ZXP7-PFL1-ZP08UF-X1, ZXP7-PFL1-ZP08BN-X1, ZXP7-PFL1-ZP08BS-X1, ZXP7-PFL1-ZP08BU-X1, ZXP7-PFL1-ZP08BF-X1, ZXP7-PFL1-ZP10UTN-X1 + 106 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZXP7-PFL1-A-X1Pad dia.: None | Pad shape: None (flange only) | Pad material: None
ZXP7-PFL1-ZP08UN-X1Pad dia.: ø8 | Pad shape: Flat | Pad material: NBR
ZXP7-PFL1-ZP08US-X1Pad dia.: ø8 | Pad shape: Flat | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP08UU-X1Pad dia.: ø8 | Pad shape: Flat | Pad material: Urethane rubber
ZXP7-PFL1-ZP08UF-X1Pad dia.: ø8 | Pad shape: Flat | Pad material: FKM
ZXP7-PFL1-ZP08BN-X1Pad dia.: ø8 | Pad shape: Bellows | Pad material: NBR
ZXP7-PFL1-ZP08BS-X1Pad dia.: ø8 | Pad shape: Bellows | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP08BU-X1Pad dia.: ø8 | Pad shape: Bellows | Pad material: Urethane rubber
ZXP7-PFL1-ZP08BF-X1Pad dia.: ø8 | Pad shape: Bellows | Pad material: FKM
ZXP7-PFL1-ZP10UTN-X1Pad dia.: ø10 | Pad shape: Thin flat | Pad material: NBR
ZXP7-PFL1-ZP10UTS-X1Pad dia.: ø10 | Pad shape: Thin flat | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP10UTU-X1Pad dia.: ø10 | Pad shape: Thin flat | Pad material: Urethane rubber
ZXP7-PFL1-ZP10UTF-X1Pad dia.: ø10 | Pad shape: Thin flat | Pad material: FKM
ZXP7-PFL1-ZP13UTN-X1Pad dia.: ø13 | Pad shape: Thin flat | Pad material: NBR
ZXP7-PFL1-ZP13UTS-X1Pad dia.: ø13 | Pad shape: Thin flat | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP13UTU-X1Pad dia.: ø13 | Pad shape: Thin flat | Pad material: Urethane rubber
ZXP7-PFL1-ZP13UTF-X1Pad dia.: ø13 | Pad shape: Thin flat | Pad material: FKM
ZXP7-PFL1-ZP16UTN-X1Pad dia.: ø16 | Pad shape: Thin flat | Pad material: NBR
ZXP7-PFL1-ZP16UTS-X1Pad dia.: ø16 | Pad shape: Thin flat | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP16UTU-X1Pad dia.: ø16 | Pad shape: Thin flat | Pad material: Urethane rubber
ZXP7-PFL1-ZP16UTF-X1Pad dia.: ø16 | Pad shape: Thin flat | Pad material: FKM
ZXP7-PFL1-ZP10UN-X1Pad dia.: ø10 | Pad shape: Flat | Pad material: NBR
ZXP7-PFL1-ZP10US-X1Pad dia.: ø10 | Pad shape: Flat | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP10UU-X1Pad dia.: ø10 | Pad shape: Flat | Pad material: Urethane rubber
ZXP7-PFL1-ZP10UF-X1Pad dia.: ø10 | Pad shape: Flat | Pad material: FKM
ZXP7-PFL1-ZP13UN-X1Pad dia.: ø13 | Pad shape: Flat | Pad material: NBR
ZXP7-PFL1-ZP13US-X1Pad dia.: ø13 | Pad shape: Flat | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP13UU-X1Pad dia.: ø13 | Pad shape: Flat | Pad material: Urethane rubber
ZXP7-PFL1-ZP13UF-X1Pad dia.: ø13 | Pad shape: Flat | Pad material: FKM
ZXP7-PFL1-ZP16UN-X1Pad dia.: ø16 | Pad shape: Flat | Pad material: NBR
ZXP7-PFL1-ZP16US-X1Pad dia.: ø16 | Pad shape: Flat | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP16UU-X1Pad dia.: ø16 | Pad shape: Flat | Pad material: Urethane rubber
ZXP7-PFL1-ZP16UF-X1Pad dia.: ø16 | Pad shape: Flat | Pad material: FKM
ZXP7-PFL1-ZP20UN-X1Pad dia.: ø20 | Pad shape: Flat | Pad material: NBR
ZXP7-PFL1-ZP20US-X1Pad dia.: ø20 | Pad shape: Flat | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP20UU-X1Pad dia.: ø20 | Pad shape: Flat | Pad material: Urethane rubber
ZXP7-PFL1-ZP20UF-X1Pad dia.: ø20 | Pad shape: Flat | Pad material: FKM
ZXP7-PFL1-ZP25UN-X1Pad dia.: ø25 | Pad shape: Flat | Pad material: NBR
ZXP7-PFL1-ZP25US-X1Pad dia.: ø25 | Pad shape: Flat | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP25UU-X1Pad dia.: ø25 | Pad shape: Flat | Pad material: Urethane rubber
ZXP7-PFL1-ZP25UF-X1Pad dia.: ø25 | Pad shape: Flat | Pad material: FKM
ZXP7-PFL1-ZP32UN-X1Pad dia.: ø32 | Pad shape: Flat | Pad material: NBR
ZXP7-PFL1-ZP32US-X1Pad dia.: ø32 | Pad shape: Flat | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP32UU-X1Pad dia.: ø32 | Pad shape: Flat | Pad material: Urethane rubber
ZXP7-PFL1-ZP32UF-X1Pad dia.: ø32 | Pad shape: Flat | Pad material: FKM
ZXP7-PFL1-ZP10CN-X1Pad dia.: ø10 | Pad shape: Flat with ribs | Pad material: NBR
ZXP7-PFL1-ZP10CS-X1Pad dia.: ø10 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP10CU-X1Pad dia.: ø10 | Pad shape: Flat with ribs | Pad material: Urethane rubber
ZXP7-PFL1-ZP10CF-X1Pad dia.: ø10 | Pad shape: Flat with ribs | Pad material: FKM
ZXP7-PFL1-ZP13CN-X1Pad dia.: ø13 | Pad shape: Flat with ribs | Pad material: NBR
ZXP7-PFL1-ZP13CS-X1Pad dia.: ø13 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP13CU-X1Pad dia.: ø13 | Pad shape: Flat with ribs | Pad material: Urethane rubber
ZXP7-PFL1-ZP13CF-X1Pad dia.: ø13 | Pad shape: Flat with ribs | Pad material: FKM
ZXP7-PFL1-ZP16CN-X1Pad dia.: ø16 | Pad shape: Flat with ribs | Pad material: NBR
ZXP7-PFL1-ZP16CS-X1Pad dia.: ø16 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP16CU-X1Pad dia.: ø16 | Pad shape: Flat with ribs | Pad material: Urethane rubber
ZXP7-PFL1-ZP16CF-X1Pad dia.: ø16 | Pad shape: Flat with ribs | Pad material: FKM
ZXP7-PFL1-ZP20CN-X1Pad dia.: ø20 | Pad shape: Flat with ribs | Pad material: NBR
ZXP7-PFL1-ZP20CS-X1Pad dia.: ø20 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP20CU-X1Pad dia.: ø20 | Pad shape: Flat with ribs | Pad material: Urethane rubber
ZXP7-PFL1-ZP20CF-X1Pad dia.: ø20 | Pad shape: Flat with ribs | Pad material: FKM
ZXP7-PFL1-ZP25CN-X1Pad dia.: ø25 | Pad shape: Flat with ribs | Pad material: NBR
ZXP7-PFL1-ZP25CS-X1Pad dia.: ø25 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP25CU-X1Pad dia.: ø25 | Pad shape: Flat with ribs | Pad material: Urethane rubber
ZXP7-PFL1-ZP25CF-X1Pad dia.: ø25 | Pad shape: Flat with ribs | Pad material: FKM
ZXP7-PFL1-ZP32CN-X1Pad dia.: ø32 | Pad shape: Flat with ribs | Pad material: NBR
ZXP7-PFL1-ZP32CS-X1Pad dia.: ø32 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP32CU-X1Pad dia.: ø32 | Pad shape: Flat with ribs | Pad material: Urethane rubber
ZXP7-PFL1-ZP32CF-X1Pad dia.: ø32 | Pad shape: Flat with ribs | Pad material: FKM
ZXP7-PFL1-ZP10BN-X1Pad dia.: ø10 | Pad shape: Bellows | Pad material: NBR
ZXP7-PFL1-ZP10BS-X1Pad dia.: ø10 | Pad shape: Bellows | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP10BU-X1Pad dia.: ø10 | Pad shape: Bellows | Pad material: Urethane rubber
ZXP7-PFL1-ZP10BF-X1Pad dia.: ø10 | Pad shape: Bellows | Pad material: FKM
ZXP7-PFL1-ZP13BN-X1Pad dia.: ø13 | Pad shape: Bellows | Pad material: NBR
ZXP7-PFL1-ZP13BS-X1Pad dia.: ø13 | Pad shape: Bellows | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP13BU-X1Pad dia.: ø13 | Pad shape: Bellows | Pad material: Urethane rubber
ZXP7-PFL1-ZP13BF-X1Pad dia.: ø13 | Pad shape: Bellows | Pad material: FKM
ZXP7-PFL1-ZP16BN-X1Pad dia.: ø16 | Pad shape: Bellows | Pad material: NBR
ZXP7-PFL1-ZP16BS-X1Pad dia.: ø16 | Pad shape: Bellows | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP16BU-X1Pad dia.: ø16 | Pad shape: Bellows | Pad material: Urethane rubber
ZXP7-PFL1-ZP16BF-X1Pad dia.: ø16 | Pad shape: Bellows | Pad material: FKM
ZXP7-PFL1-ZP20BN-X1Pad dia.: ø20 | Pad shape: Bellows | Pad material: NBR
ZXP7-PFL1-ZP20BS-X1Pad dia.: ø20 | Pad shape: Bellows | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP20BU-X1Pad dia.: ø20 | Pad shape: Bellows | Pad material: Urethane rubber
ZXP7-PFL1-ZP20BF-X1Pad dia.: ø20 | Pad shape: Bellows | Pad material: FKM
ZXP7-PFL1-ZP25BN-X1Pad dia.: ø25 | Pad shape: Bellows | Pad material: NBR
ZXP7-PFL1-ZP25BS-X1Pad dia.: ø25 | Pad shape: Bellows | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP25BU-X1Pad dia.: ø25 | Pad shape: Bellows | Pad material: Urethane rubber
ZXP7-PFL1-ZP25BF-X1Pad dia.: ø25 | Pad shape: Bellows | Pad material: FKM
ZXP7-PFL1-ZP32BN-X1Pad dia.: ø32 | Pad shape: Bellows | Pad material: NBR
ZXP7-PFL1-ZP32BS-X1Pad dia.: ø32 | Pad shape: Bellows | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP32BU-X1Pad dia.: ø32 | Pad shape: Bellows | Pad material: Urethane rubber
ZXP7-PFL1-ZP32BF-X1Pad dia.: ø32 | Pad shape: Bellows | Pad material: FKM
ZXP7-PFL1-ZP20UTN-X1Pad dia.: ø20 | Pad shape: Thin flat | Pad material: NBR
ZXP7-PFL1-ZP20UTS-X1Pad dia.: ø20 | Pad shape: Thin flat | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP20UTU-X1Pad dia.: ø20 | Pad shape: Thin flat | Pad material: Urethane rubber
ZXP7-PFL1-ZP20UTF-X1Pad dia.: ø20 | Pad shape: Thin flat | Pad material: FKM
ZXP7-PFL1-ZP16JN-X1Pad dia.: ø16 | Pad shape: Multi-stage bellows | Pad material: NBR
ZXP7-PFL1-ZP16JS-X1Pad dia.: ø16 | Pad shape: Multi-stage bellows | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZP16JU-X1Pad dia.: ø16 | Pad shape: Multi-stage bellows | Pad material: Urethane rubber
ZXP7-PFL1-ZP16JF-X1Pad dia.: ø16 | Pad shape: Multi-stage bellows | Pad material: FKM
ZXP7-PFL1-ZPB25JN-X1Pad dia.: ø25 | Pad shape: Multi-stage bellows | Pad material: NBR
ZXP7-PFL1-ZPB25JS-X1Pad dia.: ø25 | Pad shape: Multi-stage bellows | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZPB25JU-X1Pad dia.: ø25 | Pad shape: Multi-stage bellows | Pad material: Urethane rubber
ZXP7-PFL1-ZPB25JF-X1Pad dia.: ø25 | Pad shape: Multi-stage bellows | Pad material: FKM
ZXP7-PFL1-ZPB30JN-X1Pad dia.: ø30 | Pad shape: Multi-stage bellows | Pad material: NBR
ZXP7-PFL1-ZPB30JS-X1Pad dia.: ø30 | Pad shape: Multi-stage bellows | Pad material: Silicone rubber (white)
ZXP7-PFL1-ZPB30JU-X1Pad dia.: ø30 | Pad shape: Multi-stage bellows | Pad material: Urethane rubber
ZXP7-PFL1-ZPB30JF-X1Pad dia.: ø30 | Pad shape: Multi-stage bellows | Pad material: FKM
ZXP7-PFL1-ZP3P20JT2SF-X1Pad dia.: ø20 | Pad shape: ZP3P 2.5-stage bellows | Pad material: Silicone rubber (blue)
ZXP7-PFL1-ZP3P20JT2SFM-X1Pad dia.: ø20 | Pad shape: ZP3P 2.5-stage bellows, mesh att. | Pad material: Silicone rubber (blue)
ZXP7-PFL1-ZP3P32JT2SF-X1Pad dia.: ø32 | Pad shape: ZP3P 2.5-stage bellows | Pad material: Silicone rubber (blue)
ZXP7-PFL1-ZP3P32JT2SFM-X1Pad dia.: ø32 | Pad shape: ZP3P 2.5-stage bellows, mesh att. | Pad material: Silicone rubber (blue)
ZXP7-PFL1-ZP3P20JT5SF-X1Pad dia.: ø20 | Pad shape: ZP3P 5.5-stage bellows | Pad material: Silicone rubber (blue)
ZXP7-PFL1-ZP3P25JT5SF-X1Pad dia.: ø25 | Pad shape: ZP3P 5.5-stage bellows | Pad material: Silicone rubber (blue)
ZXP7-PFL1-ZP3P32JT5SF-X1Pad dia.: ø32 | Pad shape: ZP3P 5.5-stage bellows | Pad material: Silicone rubber (blue)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
