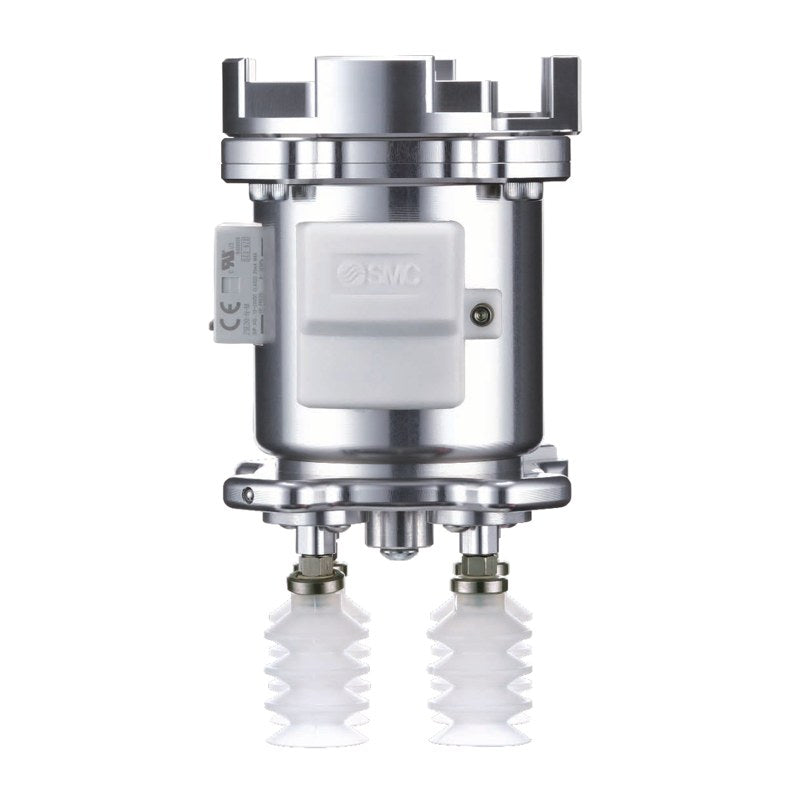

SMC ZXP7 Vacuum Gripper for Mitsubishi MELFA ASSISTA

SMC ZXP7 Vacuum Gripper for Mitsubishi MELFA ASSISTA

SMC ZXP7-X1-ASSISTA all-in-one vacuum gripper for the Mitsubishi Electric MELFA ASSISTA collaborative robot, connected with one air tube and one M12 connector.

Key features

  • Works by connecting one compressed air tube and the M12 robot connector only
  • Integrated vacuum ejector, supply and release valves, digital pressure switch and pads; rounded housing
  • Pad options: ZP flat, ribbed, bellows, thin flat and multi-stage bellows ø8 to ø32 in NBR, silicone, urethane or FKM, plus ZP3P film-packaging bellows (blue silicone); 4 adapter pads supplied
  • Pressure switch output: NPN or PNP with unit switching (listed); SI-fixed (A/D) and psi (B/E) types also in the chart
  • Connector storage flange, coil tube ø6 and 3 piping fittings supplied

Specifications

Compatible robots Mitsubishi Electric MELFA ASSISTA
Body size 75 mm
Fluid Air
Operating temperature 5 to 50°C
Max. payload 7 kg (depends on pad and work)
Max. vacuum pressure -84 kPa
Suction flow rate 17 L/min (ANR)
Air consumption 57 L/min (ANR)
Supply pressure 0.3 to 0.55 MPa (standard 0.5 MPa)
Supply port One-touch fitting ø6
Power / connector DC24V ±10%, M12 8-pin (plug)
Pressure switch Digital, 0 to -101 kPa, ±2% F.S. ±1 digit
Mass 1018 g (793 g without pad flange), excl. pads
Source SMC Korea catalog CAT.KS160-3A (SMCKR_Attachment_for_Co-Robots_for_Mitsubishi.pdf), p. 4-7 (PDF p. 5-8)
ZXP7A-ZP08UN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Flat | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP08US-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP08UU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP08UF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Flat | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP08BN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP08BS-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP08BU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP08BF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10UTN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Thin flat | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10UTS-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Thin flat | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10UTU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Thin flat | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10UTF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Thin flat | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13UTN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Thin flat | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13UTS-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Thin flat | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13UTU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Thin flat | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13UTF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Thin flat | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16UTN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Thin flat | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16UTS-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Thin flat | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16UTU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Thin flat | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16UTF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Thin flat | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10UN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10US-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10UU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10UF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13UN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13US-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13UU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13UF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16UN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16US-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16UU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16UF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20UN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20US-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20UU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20UF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP25UN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP25US-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP25UU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP25UF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP32UN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP32US-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP32UU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP32UF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10CN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat with ribs | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10CS-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10CU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat with ribs | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10CF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat with ribs | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13CN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat with ribs | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13CS-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13CU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat with ribs | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13CF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat with ribs | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16CN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat with ribs | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16CS-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16CU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat with ribs | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16CF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat with ribs | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20CN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat with ribs | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20CS-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20CU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat with ribs | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20CF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat with ribs | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP25CN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat with ribs | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP25CS-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP25CU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat with ribs | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP25CF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat with ribs | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP32CN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat with ribs | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP32CS-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP32CU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat with ribs | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP32CF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat with ribs | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10BN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10BS-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10BU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10BF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13BN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13BS-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13BU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13BF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16BN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16BS-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16BU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16BF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20BN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20BS-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20BU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20BF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP25BN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP25BS-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP25BU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP25BF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP32BN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP32BS-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP32BU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP32BF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20UTN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Thin flat | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20UTS-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Thin flat | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20UTU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Thin flat | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20UTF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Thin flat | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16JN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Multi-stage bellows | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16JS-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Multi-stage bellows | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16JU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Multi-stage bellows | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16JF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Multi-stage bellows | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZPB25JN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Multi-stage bellows | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZPB25JS-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Multi-stage bellows | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZPB25JU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Multi-stage bellows | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZPB25JF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Multi-stage bellows | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZPB30JN-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø30 | Pad shape: Multi-stage bellows | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZPB30JS-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø30 | Pad shape: Multi-stage bellows | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZPB30JU-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø30 | Pad shape: Multi-stage bellows | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZPB30JF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø30 | Pad shape: Multi-stage bellows | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP3P20JT2SF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: ZP3P 2.5-stage bellows | Pad material: Silicone rubber (blue) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP3P20JT2SFM-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: ZP3P 2.5-stage bellows, mesh att. | Pad material: Silicone rubber (blue) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP3P32JT2SF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: ZP3P 2.5-stage bellows | Pad material: Silicone rubber (blue) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP3P32JT2SFM-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: ZP3P 2.5-stage bellows, mesh att. | Pad material: Silicone rubber (blue) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP3P20JT5SF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: ZP3P 5.5-stage bellows | Pad material: Silicone rubber (blue) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP3P25JT5SF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: ZP3P 5.5-stage bellows | Pad material: Silicone rubber (blue) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP3P32JT5SF-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: ZP3P 5.5-stage bellows | Pad material: Silicone rubber (blue) | Pressure switch output: NPN (unit switching)
ZXP7A-X1-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: None | Pad shape: None (no pad) | Pad material: None | Pressure switch output: NPN (unit switching)
ZXP7N-X1-ASSISTA Pad flange: Without | Pad dia.: None | Pad shape: None (no pad) | Pad material: None | Pressure switch output: NPN (unit switching)
ZXP7A-ZP08UN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Flat | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP08US-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP08UU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP08UF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Flat | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP08BN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP08BS-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP08BU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP08BF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10UTN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Thin flat | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10UTS-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Thin flat | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10UTU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Thin flat | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10UTF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Thin flat | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13UTN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Thin flat | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13UTS-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Thin flat | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13UTU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Thin flat | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13UTF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Thin flat | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16UTN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Thin flat | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16UTS-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Thin flat | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16UTU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Thin flat | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16UTF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Thin flat | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10UN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10US-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10UU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10UF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13UN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13US-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13UU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13UF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16UN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16US-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16UU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16UF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20UN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20US-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20UU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20UF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP25UN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP25US-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP25UU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP25UF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP32UN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP32US-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP32UU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP32UF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10CN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat with ribs | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10CS-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10CU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat with ribs | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10CF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat with ribs | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13CN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat with ribs | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13CS-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13CU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat with ribs | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13CF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat with ribs | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16CN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat with ribs | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16CS-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16CU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat with ribs | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16CF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat with ribs | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20CN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat with ribs | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20CS-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20CU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat with ribs | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20CF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat with ribs | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP25CN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat with ribs | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP25CS-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP25CU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat with ribs | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP25CF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat with ribs | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP32CN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat with ribs | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP32CS-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP32CU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat with ribs | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP32CF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat with ribs | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10BN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10BS-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10BU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10BF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13BN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13BS-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13BU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13BF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16BN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16BS-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16BU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16BF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20BN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20BS-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20BU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20BF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP25BN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP25BS-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP25BU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP25BF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP32BN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP32BS-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP32BU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP32BF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20UTN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Thin flat | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20UTS-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Thin flat | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20UTU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Thin flat | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20UTF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Thin flat | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16JN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Multi-stage bellows | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16JS-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Multi-stage bellows | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16JU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Multi-stage bellows | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16JF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Multi-stage bellows | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZPB25JN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Multi-stage bellows | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZPB25JS-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Multi-stage bellows | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZPB25JU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Multi-stage bellows | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZPB25JF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Multi-stage bellows | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZPB30JN-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø30 | Pad shape: Multi-stage bellows | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZPB30JS-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø30 | Pad shape: Multi-stage bellows | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZPB30JU-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø30 | Pad shape: Multi-stage bellows | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZPB30JF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø30 | Pad shape: Multi-stage bellows | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP3P20JT2SF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: ZP3P 2.5-stage bellows | Pad material: Silicone rubber (blue) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP3P20JT2SFM-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: ZP3P 2.5-stage bellows, mesh att. | Pad material: Silicone rubber (blue) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP3P32JT2SF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: ZP3P 2.5-stage bellows | Pad material: Silicone rubber (blue) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP3P32JT2SFM-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: ZP3P 2.5-stage bellows, mesh att. | Pad material: Silicone rubber (blue) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP3P20JT5SF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: ZP3P 5.5-stage bellows | Pad material: Silicone rubber (blue) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP3P25JT5SF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: ZP3P 5.5-stage bellows | Pad material: Silicone rubber (blue) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP3P32JT5SF-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: ZP3P 5.5-stage bellows | Pad material: Silicone rubber (blue) | Pressure switch output: PNP (unit switching)
ZXP7A-X1C-ASSISTA Pad flange: With (42x42 mm) | Pad dia.: None | Pad shape: None (no pad) | Pad material: None | Pressure switch output: PNP (unit switching)
ZXP7N-X1C-ASSISTA Pad flange: Without | Pad dia.: None | Pad shape: None (no pad) | Pad material: None | Pressure switch output: PNP (unit switching)
Vacuum EquipmentSMC
234 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ZXP7 Vacuum Gripper for Mitsubishi MELFA ASSISTA

Brand SMC·Vacuum Equipment

Available part numbers (234)

ZXP7A-ZP08UN-X1-ASSISTA, ZXP7A-ZP08US-X1-ASSISTA, ZXP7A-ZP08UU-X1-ASSISTA, ZXP7A-ZP08UF-X1-ASSISTA, ZXP7A-ZP08BN-X1-ASSISTA, ZXP7A-ZP08BS-X1-ASSISTA, ZXP7A-ZP08BU-X1-ASSISTA, ZXP7A-ZP08BF-X1-ASSISTA, ZXP7A-ZP10UTN-X1-ASSISTA, ZXP7A-ZP10UTS-X1-ASSISTA + 224 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZXP7A-ZP08UN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Flat | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP08US-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP08UU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP08UF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Flat | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP08BN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP08BS-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP08BU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP08BF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10UTN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Thin flat | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10UTS-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Thin flat | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10UTU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Thin flat | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10UTF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Thin flat | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13UTN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Thin flat | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13UTS-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Thin flat | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13UTU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Thin flat | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13UTF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Thin flat | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16UTN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Thin flat | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16UTS-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Thin flat | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16UTU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Thin flat | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16UTF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Thin flat | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10UN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10US-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10UU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10UF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13UN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13US-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13UU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13UF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16UN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16US-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16UU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16UF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20UN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20US-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20UU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20UF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP25UN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP25US-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP25UU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP25UF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP32UN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP32US-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP32UU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP32UF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10CN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat with ribs | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10CS-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10CU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat with ribs | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10CF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat with ribs | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13CN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat with ribs | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13CS-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13CU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat with ribs | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13CF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat with ribs | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16CN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat with ribs | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16CS-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16CU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat with ribs | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16CF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat with ribs | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20CN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat with ribs | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20CS-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20CU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat with ribs | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20CF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat with ribs | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP25CN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat with ribs | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP25CS-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP25CU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat with ribs | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP25CF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat with ribs | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP32CN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat with ribs | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP32CS-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP32CU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat with ribs | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP32CF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat with ribs | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10BN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10BS-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10BU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP10BF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13BN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13BS-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13BU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP13BF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16BN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16BS-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16BU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16BF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20BN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20BS-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20BU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20BF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP25BN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP25BS-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP25BU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP25BF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP32BN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP32BS-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP32BU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP32BF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20UTN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Thin flat | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20UTS-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Thin flat | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20UTU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Thin flat | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP20UTF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Thin flat | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16JN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Multi-stage bellows | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16JS-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Multi-stage bellows | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16JU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Multi-stage bellows | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZP16JF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Multi-stage bellows | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZPB25JN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Multi-stage bellows | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZPB25JS-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Multi-stage bellows | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZPB25JU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Multi-stage bellows | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZPB25JF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Multi-stage bellows | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZPB30JN-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø30 | Pad shape: Multi-stage bellows | Pad material: NBR | Pressure switch output: NPN (unit switching)
ZXP7A-ZPB30JS-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø30 | Pad shape: Multi-stage bellows | Pad material: Silicone rubber (white) | Pressure switch output: NPN (unit switching)
ZXP7A-ZPB30JU-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø30 | Pad shape: Multi-stage bellows | Pad material: Urethane rubber | Pressure switch output: NPN (unit switching)
ZXP7A-ZPB30JF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø30 | Pad shape: Multi-stage bellows | Pad material: FKM | Pressure switch output: NPN (unit switching)
ZXP7A-ZP3P20JT2SF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: ZP3P 2.5-stage bellows | Pad material: Silicone rubber (blue) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP3P20JT2SFM-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: ZP3P 2.5-stage bellows, mesh att. | Pad material: Silicone rubber (blue) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP3P32JT2SF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: ZP3P 2.5-stage bellows | Pad material: Silicone rubber (blue) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP3P32JT2SFM-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: ZP3P 2.5-stage bellows, mesh att. | Pad material: Silicone rubber (blue) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP3P20JT5SF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: ZP3P 5.5-stage bellows | Pad material: Silicone rubber (blue) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP3P25JT5SF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: ZP3P 5.5-stage bellows | Pad material: Silicone rubber (blue) | Pressure switch output: NPN (unit switching)
ZXP7A-ZP3P32JT5SF-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: ZP3P 5.5-stage bellows | Pad material: Silicone rubber (blue) | Pressure switch output: NPN (unit switching)
ZXP7A-X1-ASSISTAPad flange: With (42x42 mm) | Pad dia.: None | Pad shape: None (no pad) | Pad material: None | Pressure switch output: NPN (unit switching)
ZXP7N-X1-ASSISTAPad flange: Without | Pad dia.: None | Pad shape: None (no pad) | Pad material: None | Pressure switch output: NPN (unit switching)
ZXP7A-ZP08UN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Flat | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP08US-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP08UU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP08UF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Flat | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP08BN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP08BS-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP08BU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP08BF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø8 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10UTN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Thin flat | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10UTS-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Thin flat | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10UTU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Thin flat | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10UTF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Thin flat | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13UTN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Thin flat | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13UTS-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Thin flat | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13UTU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Thin flat | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13UTF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Thin flat | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16UTN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Thin flat | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16UTS-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Thin flat | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16UTU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Thin flat | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16UTF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Thin flat | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10UN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10US-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10UU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10UF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13UN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13US-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13UU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13UF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16UN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16US-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16UU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16UF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20UN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20US-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20UU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20UF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP25UN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP25US-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP25UU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP25UF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP32UN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP32US-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP32UU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP32UF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10CN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat with ribs | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10CS-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10CU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat with ribs | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10CF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Flat with ribs | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13CN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat with ribs | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13CS-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13CU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat with ribs | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13CF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Flat with ribs | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16CN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat with ribs | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16CS-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16CU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat with ribs | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16CF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Flat with ribs | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20CN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat with ribs | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20CS-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20CU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat with ribs | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20CF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Flat with ribs | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP25CN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat with ribs | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP25CS-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP25CU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat with ribs | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP25CF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Flat with ribs | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP32CN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat with ribs | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP32CS-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat with ribs | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP32CU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat with ribs | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP32CF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Flat with ribs | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10BN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10BS-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10BU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP10BF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø10 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13BN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13BS-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13BU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP13BF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø13 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16BN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16BS-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16BU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16BF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20BN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20BS-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20BU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20BF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP25BN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP25BS-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP25BU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP25BF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP32BN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Bellows | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP32BS-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Bellows | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP32BU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Bellows | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP32BF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: Bellows | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20UTN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Thin flat | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20UTS-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Thin flat | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20UTU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Thin flat | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP20UTF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: Thin flat | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16JN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Multi-stage bellows | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16JS-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Multi-stage bellows | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16JU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Multi-stage bellows | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZP16JF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø16 | Pad shape: Multi-stage bellows | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZPB25JN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Multi-stage bellows | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZPB25JS-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Multi-stage bellows | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZPB25JU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Multi-stage bellows | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZPB25JF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: Multi-stage bellows | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZPB30JN-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø30 | Pad shape: Multi-stage bellows | Pad material: NBR | Pressure switch output: PNP (unit switching)
ZXP7A-ZPB30JS-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø30 | Pad shape: Multi-stage bellows | Pad material: Silicone rubber (white) | Pressure switch output: PNP (unit switching)
ZXP7A-ZPB30JU-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø30 | Pad shape: Multi-stage bellows | Pad material: Urethane rubber | Pressure switch output: PNP (unit switching)
ZXP7A-ZPB30JF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø30 | Pad shape: Multi-stage bellows | Pad material: FKM | Pressure switch output: PNP (unit switching)
ZXP7A-ZP3P20JT2SF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: ZP3P 2.5-stage bellows | Pad material: Silicone rubber (blue) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP3P20JT2SFM-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: ZP3P 2.5-stage bellows, mesh att. | Pad material: Silicone rubber (blue) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP3P32JT2SF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: ZP3P 2.5-stage bellows | Pad material: Silicone rubber (blue) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP3P32JT2SFM-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: ZP3P 2.5-stage bellows, mesh att. | Pad material: Silicone rubber (blue) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP3P20JT5SF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø20 | Pad shape: ZP3P 5.5-stage bellows | Pad material: Silicone rubber (blue) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP3P25JT5SF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø25 | Pad shape: ZP3P 5.5-stage bellows | Pad material: Silicone rubber (blue) | Pressure switch output: PNP (unit switching)
ZXP7A-ZP3P32JT5SF-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: ø32 | Pad shape: ZP3P 5.5-stage bellows | Pad material: Silicone rubber (blue) | Pressure switch output: PNP (unit switching)
ZXP7A-X1C-ASSISTAPad flange: With (42x42 mm) | Pad dia.: None | Pad shape: None (no pad) | Pad material: None | Pressure switch output: PNP (unit switching)
ZXP7N-X1C-ASSISTAPad flange: Without | Pad dia.: None | Pad shape: None (no pad) | Pad material: None | Pressure switch output: PNP (unit switching)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
