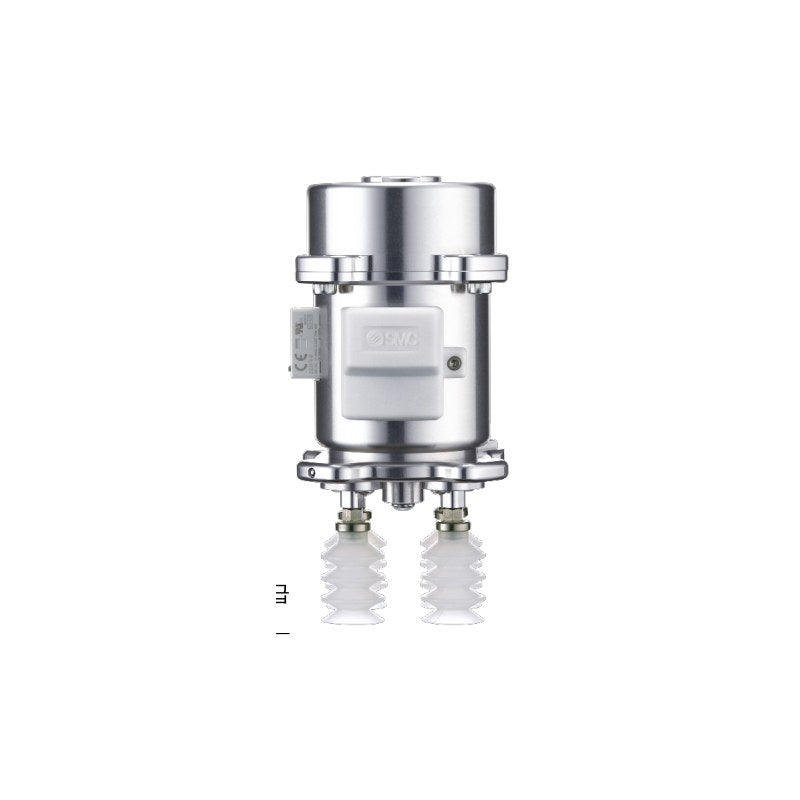

SMC ZXP7 Vacuum Gripper for Yaskawa MOTOMAN HC Series

SMC ZXP7 all-in-one vacuum gripper for Yaskawa MOTOMAN-HC10DTP/HC20DTP/HC20SDTP (plug and play, code 12) and MOTOMAN-HC10DT with internal robot piping (code 11).

Key features

Code 12: one air tube and one M8 connector (HC10DTP, HC20DTP, HC20SDTP), ISO9409-1-50-4-M6
Code 11: uses the robot built-in air piping and I/O cable, no external tubing (HC10DT; not for HC10)
Integrated vacuum ejector, supply valve, solenoid valve, digital pressure switch and pads; rounded housing
Pad options: ZP flat, ribbed, bellows, thin flat and multi-stage bellows ø8 to ø32 in NBR, silicone, urethane or FKM, plus ZP3P film-packaging bellows (blue silicone); 4 adapter pads supplied
Pressure switch output: NPN or PNP with unit switching (listed); SI-fixed (A/D) and psi (B/E) types also in the chart

Specifications

Compatible robots	HC10DTP/HC20DTP/HC20SDTP (12); HC10DT (11)
Body size	75 mm
Fluid	Air
Operating temperature	5 to 50°C
Max. payload	7 kg (depends on pad and work)
Max. vacuum pressure	-84 kPa
Suction flow rate	17 L/min (ANR)
Air consumption	57 L/min (ANR)
Supply pressure	0.3 to 0.55 MPa (standard 0.5 MPa)
Supply port	One-touch ø6 (12); built-in one-touch ø4 (11)
Power / connector	DC24V ±10%; M8 8-pin socket (12), I/O connector 51227-0800 (11)
Mass	810 g / 586 g w/o flange (12); 895 g / 671 g w/o flange (11)
Source	SMC Korea catalog CAT.KS160-5B (SMCKR_Attachment_for_Co-Robots_for_Yaskawa.pdf), p. 1, 4-8 (PDF p. 2, 5-9)

ZXP7A12-ZP08UN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP08US-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP08UU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP08UF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP08BN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP08BS-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP08BU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP08BF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP10UTN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP10UTS-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP10UTU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP10UTF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP13UTN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP13UTS-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP13UTU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP13UTF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP16UTN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP16UTS-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP16UTU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP16UTF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP10UN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP10US-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP10UU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP10UF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP13UN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP13US-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP13UU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP13UF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP16UN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP16US-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP16UU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP16UF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP20UN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP20US-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP20UU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP20UF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP25UN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP25US-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP25UU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP25UF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP32UN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP32US-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP32UU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP32UF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP10CN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP10CS-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP10CU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP10CF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP13CN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP13CS-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP13CU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP13CF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP16CN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP16CS-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP16CU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP16CF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP20CN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP20CS-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP20CU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP20CF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP25CN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP25CS-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP25CU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP25CF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP32CN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP32CS-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP32CU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP32CF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP10BN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP10BS-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP10BU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP10BF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP13BN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP13BS-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP13BU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP13BF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP16BN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP16BS-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP16BU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP16BF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP20BN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP20BS-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP20BU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP20BF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP25BN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP25BS-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP25BU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP25BF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP32BN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP32BS-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP32BU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP32BF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP20UTN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP20UTS-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP20UTU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP20UTF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP16JN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP16JS-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP16JU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP16JF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZPB25JN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZPB25JS-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZPB25JU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZPB25JF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZPB30JN-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZPB30JS-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZPB30JU-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZPB30JF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP3P20JT2SF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: ZP3P 2.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP3P20JT2SFM-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: ZP3P 2.5-stage bellows, mesh att. \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP3P32JT2SF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: ZP3P 2.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP3P32JT2SFM-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: ZP3P 2.5-stage bellows, mesh att. \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP3P20JT5SF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: ZP3P 5.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP3P25JT5SF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: ZP3P 5.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP3P32JT5SF-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: ZP3P 5.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
ZXP7A12-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: None \| Pad shape: None (no pad) \| Pad material: None \| Pressure switch output: NPN (unit switching)
ZXP7N12-X1		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: Without \| Pad dia.: None \| Pad shape: None (no pad) \| Pad material: None \| Pressure switch output: NPN (unit switching)
ZXP7A12-ZP08UN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP08US-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP08UU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP08UF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP08BN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP08BS-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP08BU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP08BF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP10UTN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP10UTS-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP10UTU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP10UTF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP13UTN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP13UTS-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP13UTU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP13UTF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP16UTN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP16UTS-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP16UTU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP16UTF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP10UN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP10US-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP10UU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP10UF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP13UN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP13US-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP13UU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP13UF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP16UN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP16US-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP16UU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP16UF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP20UN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP20US-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP20UU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP20UF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP25UN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP25US-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP25UU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP25UF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP32UN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP32US-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP32UU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP32UF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP10CN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP10CS-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP10CU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP10CF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP13CN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP13CS-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP13CU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP13CF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP16CN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP16CS-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP16CU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP16CF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP20CN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP20CS-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP20CU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP20CF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP25CN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP25CS-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP25CU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP25CF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP32CN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP32CS-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP32CU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP32CF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP10BN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP10BS-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP10BU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP10BF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP13BN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP13BS-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP13BU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP13BF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP16BN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP16BS-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP16BU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP16BF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP20BN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP20BS-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP20BU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP20BF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP25BN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP25BS-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP25BU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP25BF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP32BN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP32BS-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP32BU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP32BF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP20UTN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP20UTS-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP20UTU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP20UTF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP16JN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP16JS-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP16JU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP16JF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZPB25JN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZPB25JS-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZPB25JU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZPB25JF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZPB30JN-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZPB30JS-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZPB30JU-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZPB30JF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP3P20JT2SF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: ZP3P 2.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP3P20JT2SFM-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: ZP3P 2.5-stage bellows, mesh att. \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP3P32JT2SF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: ZP3P 2.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP3P32JT2SFM-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: ZP3P 2.5-stage bellows, mesh att. \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP3P20JT5SF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: ZP3P 5.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP3P25JT5SF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: ZP3P 5.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
ZXP7A12-ZP3P32JT5SF-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: ZP3P 5.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
ZXP7A12-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: None \| Pad shape: None (no pad) \| Pad material: None \| Pressure switch output: PNP (unit switching)
ZXP7N12-X1C		Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: Without \| Pad dia.: None \| Pad shape: None (no pad) \| Pad material: None \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP08UN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP08US-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP08UU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP08UF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP08BN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP08BS-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP08BU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP08BF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP10UTN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP10UTS-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP10UTU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP10UTF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP13UTN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP13UTS-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP13UTU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP13UTF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP16UTN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP16UTS-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP16UTU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP16UTF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP10UN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP10US-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP10UU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP10UF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP13UN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP13US-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP13UU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP13UF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP16UN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP16US-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP16UU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP16UF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP20UN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP20US-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP20UU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP20UF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP25UN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP25US-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP25UU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP25UF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP32UN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP32US-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP32UU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP32UF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP10CN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP10CS-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP10CU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP10CF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP13CN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP13CS-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP13CU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP13CF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP16CN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP16CS-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP16CU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP16CF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP20CN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP20CS-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP20CU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP20CF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP25CN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP25CS-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP25CU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP25CF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP32CN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP32CS-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP32CU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP32CF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP10BN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP10BS-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP10BU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP10BF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP13BN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP13BS-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP13BU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP13BF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP16BN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP16BS-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP16BU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP16BF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP20BN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP20BS-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP20BU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP20BF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP25BN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP25BS-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP25BU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP25BF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP32BN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP32BS-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP32BU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP32BF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP20UTN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP20UTS-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP20UTU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP20UTF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP16JN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP16JS-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP16JU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP16JF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZPB25JN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZPB25JS-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZPB25JU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZPB25JF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZPB30JN-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZPB30JS-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZPB30JU-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZPB30JF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP3P20JT2SF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: ZP3P 2.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP3P20JT2SFM-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: ZP3P 2.5-stage bellows, mesh att. \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP3P32JT2SF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: ZP3P 2.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP3P32JT2SFM-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: ZP3P 2.5-stage bellows, mesh att. \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP3P20JT5SF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: ZP3P 5.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP3P25JT5SF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: ZP3P 5.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP3P32JT5SF-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: ZP3P 5.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
ZXP7A11-X1		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: None \| Pad shape: None (no pad) \| Pad material: None \| Pressure switch output: NPN (unit switching)
ZXP7N11-X1		Robot: HC10DT \| Pad flange: Without \| Pad dia.: None \| Pad shape: None (no pad) \| Pad material: None \| Pressure switch output: NPN (unit switching)
ZXP7A11-ZP08UN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP08US-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP08UU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP08UF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP08BN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP08BS-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP08BU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP08BF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP10UTN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP10UTS-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP10UTU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP10UTF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP13UTN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP13UTS-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP13UTU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP13UTF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP16UTN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP16UTS-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP16UTU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP16UTF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP10UN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP10US-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP10UU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP10UF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP13UN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP13US-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP13UU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP13UF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP16UN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP16US-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP16UU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP16UF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP20UN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP20US-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP20UU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP20UF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP25UN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP25US-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP25UU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP25UF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP32UN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP32US-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP32UU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP32UF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP10CN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP10CS-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP10CU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP10CF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP13CN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP13CS-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP13CU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP13CF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP16CN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP16CS-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP16CU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP16CF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP20CN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP20CS-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP20CU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP20CF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP25CN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP25CS-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP25CU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP25CF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP32CN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP32CS-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP32CU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP32CF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP10BN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP10BS-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP10BU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP10BF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP13BN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP13BS-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP13BU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP13BF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP16BN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP16BS-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP16BU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP16BF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP20BN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP20BS-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP20BU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP20BF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP25BN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP25BS-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP25BU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP25BF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP32BN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP32BS-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP32BU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP32BF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP20UTN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP20UTS-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP20UTU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP20UTF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP16JN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP16JS-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP16JU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP16JF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZPB25JN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZPB25JS-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZPB25JU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZPB25JF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZPB30JN-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZPB30JS-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZPB30JU-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZPB30JF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP3P20JT2SF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: ZP3P 2.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP3P20JT2SFM-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: ZP3P 2.5-stage bellows, mesh att. \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP3P32JT2SF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: ZP3P 2.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP3P32JT2SFM-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: ZP3P 2.5-stage bellows, mesh att. \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP3P20JT5SF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: ZP3P 5.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP3P25JT5SF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: ZP3P 5.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
ZXP7A11-ZP3P32JT5SF-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: ZP3P 5.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
ZXP7A11-X1C		Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: None \| Pad shape: None (no pad) \| Pad material: None \| Pressure switch output: PNP (unit switching)
ZXP7N11-X1C		Robot: HC10DT \| Pad flange: Without \| Pad dia.: None \| Pad shape: None (no pad) \| Pad material: None \| Pressure switch output: PNP (unit switching)

Vacuum EquipmentSMC

468 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ZXP7 Vacuum Gripper for Yaskawa MOTOMAN HC Series

Brand SMC·Vacuum Equipment

Available part numbers (468)

ZXP7A12-ZP08UN-X1, ZXP7A12-ZP08US-X1, ZXP7A12-ZP08UU-X1, ZXP7A12-ZP08UF-X1, ZXP7A12-ZP08BN-X1, ZXP7A12-ZP08BS-X1, ZXP7A12-ZP08BU-X1, ZXP7A12-ZP08BF-X1, ZXP7A12-ZP10UTN-X1, ZXP7A12-ZP10UTS-X1 + 458 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	ZXP7A12-ZP08UN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP08US-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP08UU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP08UF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP08BN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP08BS-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP08BU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP08BF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP10UTN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP10UTS-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP10UTU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP10UTF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP13UTN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP13UTS-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP13UTU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP13UTF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP16UTN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP16UTS-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP16UTU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP16UTF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP10UN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP10US-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP10UU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP10UF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP13UN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP13US-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP13UU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP13UF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP16UN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP16US-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP16UU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP16UF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP20UN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP20US-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP20UU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP20UF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP25UN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP25US-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP25UU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP25UF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP32UN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP32US-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP32UU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP32UF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP10CN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP10CS-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP10CU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP10CF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP13CN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP13CS-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP13CU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP13CF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP16CN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP16CS-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP16CU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP16CF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP20CN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP20CS-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP20CU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP20CF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP25CN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP25CS-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP25CU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP25CF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP32CN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP32CS-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP32CU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP32CF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP10BN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP10BS-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP10BU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP10BF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP13BN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP13BS-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP13BU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP13BF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP16BN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP16BS-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP16BU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP16BF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP20BN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP20BS-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP20BU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP20BF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP25BN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP25BS-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP25BU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP25BF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP32BN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP32BS-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP32BU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP32BF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP20UTN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP20UTS-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP20UTU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP20UTF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP16JN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP16JS-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP16JU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP16JF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZPB25JN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZPB25JS-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZPB25JU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZPB25JF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZPB30JN-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZPB30JS-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZPB30JU-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZPB30JF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP3P20JT2SF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: ZP3P 2.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP3P20JT2SFM-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: ZP3P 2.5-stage bellows, mesh att. \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP3P32JT2SF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: ZP3P 2.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP3P32JT2SFM-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: ZP3P 2.5-stage bellows, mesh att. \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP3P20JT5SF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: ZP3P 5.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP3P25JT5SF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: ZP3P 5.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP3P32JT5SF-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: ZP3P 5.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
	ZXP7A12-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: None \| Pad shape: None (no pad) \| Pad material: None \| Pressure switch output: NPN (unit switching)
	ZXP7N12-X1	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: Without \| Pad dia.: None \| Pad shape: None (no pad) \| Pad material: None \| Pressure switch output: NPN (unit switching)
	ZXP7A12-ZP08UN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP08US-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP08UU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP08UF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP08BN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP08BS-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP08BU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP08BF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP10UTN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP10UTS-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP10UTU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP10UTF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP13UTN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP13UTS-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP13UTU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP13UTF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP16UTN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP16UTS-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP16UTU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP16UTF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP10UN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP10US-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP10UU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP10UF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP13UN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP13US-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP13UU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP13UF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP16UN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP16US-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP16UU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP16UF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP20UN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP20US-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP20UU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP20UF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP25UN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP25US-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP25UU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP25UF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP32UN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP32US-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP32UU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP32UF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP10CN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP10CS-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP10CU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP10CF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP13CN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP13CS-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP13CU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP13CF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP16CN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP16CS-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP16CU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP16CF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP20CN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP20CS-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP20CU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP20CF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP25CN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP25CS-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP25CU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP25CF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP32CN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP32CS-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP32CU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP32CF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP10BN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP10BS-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP10BU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP10BF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP13BN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP13BS-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP13BU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP13BF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP16BN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP16BS-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP16BU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP16BF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP20BN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP20BS-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP20BU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP20BF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP25BN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP25BS-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP25BU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP25BF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP32BN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP32BS-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP32BU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP32BF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP20UTN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP20UTS-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP20UTU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP20UTF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP16JN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP16JS-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP16JU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP16JF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZPB25JN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZPB25JS-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZPB25JU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZPB25JF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZPB30JN-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZPB30JS-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZPB30JU-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZPB30JF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP3P20JT2SF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: ZP3P 2.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP3P20JT2SFM-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: ZP3P 2.5-stage bellows, mesh att. \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP3P32JT2SF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: ZP3P 2.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP3P32JT2SFM-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: ZP3P 2.5-stage bellows, mesh att. \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP3P20JT5SF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: ZP3P 5.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP3P25JT5SF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: ZP3P 5.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-ZP3P32JT5SF-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: ZP3P 5.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
	ZXP7A12-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: With (42x42 mm) \| Pad dia.: None \| Pad shape: None (no pad) \| Pad material: None \| Pressure switch output: PNP (unit switching)
	ZXP7N12-X1C	Robot: HC10DTP/HC20DTP/HC20SDTP \| Pad flange: Without \| Pad dia.: None \| Pad shape: None (no pad) \| Pad material: None \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP08UN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP08US-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP08UU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP08UF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP08BN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP08BS-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP08BU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP08BF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP10UTN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP10UTS-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP10UTU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP10UTF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP13UTN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP13UTS-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP13UTU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP13UTF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP16UTN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP16UTS-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP16UTU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP16UTF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP10UN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP10US-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP10UU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP10UF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP13UN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP13US-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP13UU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP13UF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP16UN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP16US-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP16UU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP16UF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP20UN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP20US-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP20UU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP20UF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP25UN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP25US-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP25UU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP25UF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP32UN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP32US-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP32UU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP32UF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP10CN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP10CS-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP10CU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP10CF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP13CN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP13CS-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP13CU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP13CF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP16CN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP16CS-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP16CU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP16CF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP20CN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP20CS-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP20CU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP20CF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP25CN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP25CS-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP25CU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP25CF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP32CN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP32CS-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP32CU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP32CF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP10BN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP10BS-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP10BU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP10BF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP13BN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP13BS-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP13BU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP13BF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP16BN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP16BS-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP16BU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP16BF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP20BN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP20BS-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP20BU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP20BF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP25BN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP25BS-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP25BU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP25BF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP32BN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP32BS-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP32BU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP32BF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP20UTN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP20UTS-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP20UTU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP20UTF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP16JN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP16JS-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP16JU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP16JF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZPB25JN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZPB25JS-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZPB25JU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZPB25JF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZPB30JN-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: NBR \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZPB30JS-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZPB30JU-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: Urethane rubber \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZPB30JF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: FKM \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP3P20JT2SF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: ZP3P 2.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP3P20JT2SFM-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: ZP3P 2.5-stage bellows, mesh att. \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP3P32JT2SF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: ZP3P 2.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP3P32JT2SFM-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: ZP3P 2.5-stage bellows, mesh att. \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP3P20JT5SF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: ZP3P 5.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP3P25JT5SF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: ZP3P 5.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP3P32JT5SF-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: ZP3P 5.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: NPN (unit switching)
	ZXP7A11-X1	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: None \| Pad shape: None (no pad) \| Pad material: None \| Pressure switch output: NPN (unit switching)
	ZXP7N11-X1	Robot: HC10DT \| Pad flange: Without \| Pad dia.: None \| Pad shape: None (no pad) \| Pad material: None \| Pressure switch output: NPN (unit switching)
	ZXP7A11-ZP08UN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP08US-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP08UU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP08UF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP08BN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP08BS-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP08BU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP08BF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø8 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP10UTN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP10UTS-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP10UTU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP10UTF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP13UTN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP13UTS-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP13UTU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP13UTF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP16UTN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP16UTS-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP16UTU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP16UTF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP10UN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP10US-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP10UU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP10UF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP13UN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP13US-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP13UU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP13UF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP16UN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP16US-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP16UU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP16UF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP20UN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP20US-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP20UU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP20UF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP25UN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP25US-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP25UU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP25UF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP32UN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP32US-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP32UU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP32UF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP10CN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP10CS-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP10CU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP10CF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP13CN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP13CS-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP13CU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP13CF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP16CN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP16CS-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP16CU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP16CF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP20CN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP20CS-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP20CU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP20CF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP25CN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP25CS-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP25CU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP25CF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP32CN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP32CS-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP32CU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP32CF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Flat with ribs \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP10BN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP10BS-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP10BU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP10BF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø10 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP13BN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP13BS-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP13BU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP13BF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø13 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP16BN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP16BS-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP16BU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP16BF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP20BN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP20BS-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP20BU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP20BF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP25BN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP25BS-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP25BU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP25BF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP32BN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP32BS-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP32BU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP32BF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: Bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP20UTN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP20UTS-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP20UTU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP20UTF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: Thin flat \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP16JN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP16JS-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP16JU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP16JF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø16 \| Pad shape: Multi-stage bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZPB25JN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZPB25JS-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZPB25JU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZPB25JF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: Multi-stage bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZPB30JN-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: NBR \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZPB30JS-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: Silicone rubber (white) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZPB30JU-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: Urethane rubber \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZPB30JF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø30 \| Pad shape: Multi-stage bellows \| Pad material: FKM \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP3P20JT2SF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: ZP3P 2.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP3P20JT2SFM-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: ZP3P 2.5-stage bellows, mesh att. \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP3P32JT2SF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: ZP3P 2.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP3P32JT2SFM-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: ZP3P 2.5-stage bellows, mesh att. \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP3P20JT5SF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø20 \| Pad shape: ZP3P 5.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP3P25JT5SF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø25 \| Pad shape: ZP3P 5.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-ZP3P32JT5SF-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: ø32 \| Pad shape: ZP3P 5.5-stage bellows \| Pad material: Silicone rubber (blue) \| Pressure switch output: PNP (unit switching)
	ZXP7A11-X1C	Robot: HC10DT \| Pad flange: With (42x42 mm) \| Pad dia.: None \| Pad shape: None (no pad) \| Pad material: None \| Pressure switch output: PNP (unit switching)
	ZXP7N11-X1C	Robot: HC10DT \| Pad flange: Without \| Pad dia.: None \| Pad shape: None (no pad) \| Pad material: None \| Pressure switch output: PNP (unit switching)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC ZXP7 Vacuum Gripper for Yaskawa MOTOMAN HC Series
