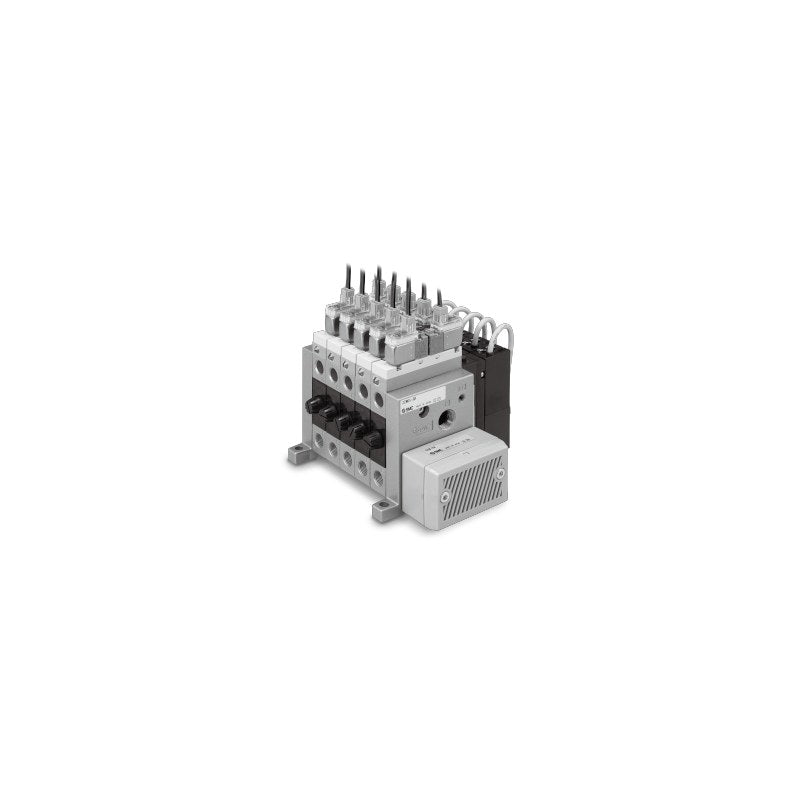

SMC ZZM Stacking Manifold for ZM Vacuum Ejector (1 to 10 Stations)

SMC ZZM Stacking Manifold for ZM Vacuum Ejector (1 to 10 Stations)

SMC ZZM stacking manifold for ZM series vacuum ejectors, 1 to 10 stations with common exhaust port or dedicated ZZM-SA silencer.

Key features

  • Stacking type manifold for ZM3/4/5/6 manifold ejector units (order units separately, marked with *)
  • Common air supply port 1/4 and individual supply port 1/8; common and individual supply can be mixed
  • Common exhaust port 1/2 or 3/4, or dedicated ZZM-SA silencer (bolt-on), on right, left or both sides
  • Max. simultaneous operation depends on ejector size (e.g. ZM053: 10 stations, ZM153: 3 stations one-side exhaust)
  • Port thread Rc standard; NPTF (T) and G (F) on order

Specifications

Manifold type Stacking
Max. stations 10
Common supply port (P) Rc1/4
Individual supply port (P) Rc1/8
Common exhaust port (EXH) Rc1/2 or Rc3/4
Dedicated silencer ZZM-SA (with bolts)
Applicable ejectors ZM05/07/10/13/15 manifold units
Station counting From left, viewed from vacuum (V) port side
Source SMC Korea catalog ZM Series (SMCKR_ZM.pdf), p. 190 (PDF p. 16)
ZZM01-04R Stations: 1 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM01-04R-R Stations: 1 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Right
ZZM01-04R-L Stations: 1 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Left
ZZM01-04L Stations: 1 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM01-04L-R Stations: 1 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Right
ZZM01-04L-L Stations: 1 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Left
ZZM01-04B Stations: 1 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM01-04B-R Stations: 1 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM01-04B-L Stations: 1 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM01-06R Stations: 1 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM01-06R-R Stations: 1 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Right
ZZM01-06R-L Stations: 1 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Left
ZZM01-06L Stations: 1 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM01-06L-R Stations: 1 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Right
ZZM01-06L-L Stations: 1 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Left
ZZM01-06B Stations: 1 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM01-06B-R Stations: 1 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM01-06B-L Stations: 1 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM01-SR Stations: 1 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Both sides
ZZM01-SR-R Stations: 1 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Right
ZZM01-SR-L Stations: 1 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Left
ZZM01-SL Stations: 1 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Both sides
ZZM01-SL-R Stations: 1 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Right
ZZM01-SL-L Stations: 1 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Left
ZZM01-SB Stations: 1 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM01-SB-R Stations: 1 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Right
ZZM01-SB-L Stations: 1 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Left
ZZM02-04R Stations: 2 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM02-04R-R Stations: 2 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Right
ZZM02-04R-L Stations: 2 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Left
ZZM02-04L Stations: 2 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM02-04L-R Stations: 2 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Right
ZZM02-04L-L Stations: 2 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Left
ZZM02-04B Stations: 2 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM02-04B-R Stations: 2 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM02-04B-L Stations: 2 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM02-06R Stations: 2 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM02-06R-R Stations: 2 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Right
ZZM02-06R-L Stations: 2 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Left
ZZM02-06L Stations: 2 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM02-06L-R Stations: 2 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Right
ZZM02-06L-L Stations: 2 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Left
ZZM02-06B Stations: 2 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM02-06B-R Stations: 2 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM02-06B-L Stations: 2 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM02-SR Stations: 2 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Both sides
ZZM02-SR-R Stations: 2 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Right
ZZM02-SR-L Stations: 2 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Left
ZZM02-SL Stations: 2 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Both sides
ZZM02-SL-R Stations: 2 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Right
ZZM02-SL-L Stations: 2 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Left
ZZM02-SB Stations: 2 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM02-SB-R Stations: 2 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Right
ZZM02-SB-L Stations: 2 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Left
ZZM03-04R Stations: 3 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM03-04R-R Stations: 3 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Right
ZZM03-04R-L Stations: 3 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Left
ZZM03-04L Stations: 3 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM03-04L-R Stations: 3 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Right
ZZM03-04L-L Stations: 3 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Left
ZZM03-04B Stations: 3 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM03-04B-R Stations: 3 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM03-04B-L Stations: 3 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM03-06R Stations: 3 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM03-06R-R Stations: 3 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Right
ZZM03-06R-L Stations: 3 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Left
ZZM03-06L Stations: 3 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM03-06L-R Stations: 3 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Right
ZZM03-06L-L Stations: 3 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Left
ZZM03-06B Stations: 3 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM03-06B-R Stations: 3 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM03-06B-L Stations: 3 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM03-SR Stations: 3 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Both sides
ZZM03-SR-R Stations: 3 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Right
ZZM03-SR-L Stations: 3 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Left
ZZM03-SL Stations: 3 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Both sides
ZZM03-SL-R Stations: 3 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Right
ZZM03-SL-L Stations: 3 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Left
ZZM03-SB Stations: 3 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM03-SB-R Stations: 3 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Right
ZZM03-SB-L Stations: 3 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Left
ZZM04-04R Stations: 4 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM04-04R-R Stations: 4 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Right
ZZM04-04R-L Stations: 4 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Left
ZZM04-04L Stations: 4 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM04-04L-R Stations: 4 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Right
ZZM04-04L-L Stations: 4 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Left
ZZM04-04B Stations: 4 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM04-04B-R Stations: 4 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM04-04B-L Stations: 4 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM04-06R Stations: 4 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM04-06R-R Stations: 4 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Right
ZZM04-06R-L Stations: 4 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Left
ZZM04-06L Stations: 4 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM04-06L-R Stations: 4 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Right
ZZM04-06L-L Stations: 4 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Left
ZZM04-06B Stations: 4 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM04-06B-R Stations: 4 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM04-06B-L Stations: 4 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM04-SR Stations: 4 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Both sides
ZZM04-SR-R Stations: 4 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Right
ZZM04-SR-L Stations: 4 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Left
ZZM04-SL Stations: 4 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Both sides
ZZM04-SL-R Stations: 4 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Right
ZZM04-SL-L Stations: 4 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Left
ZZM04-SB Stations: 4 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM04-SB-R Stations: 4 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Right
ZZM04-SB-L Stations: 4 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Left
ZZM05-04R Stations: 5 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM05-04R-R Stations: 5 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Right
ZZM05-04R-L Stations: 5 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Left
ZZM05-04L Stations: 5 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM05-04L-R Stations: 5 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Right
ZZM05-04L-L Stations: 5 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Left
ZZM05-04B Stations: 5 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM05-04B-R Stations: 5 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM05-04B-L Stations: 5 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM05-06R Stations: 5 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM05-06R-R Stations: 5 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Right
ZZM05-06R-L Stations: 5 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Left
ZZM05-06L Stations: 5 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM05-06L-R Stations: 5 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Right
ZZM05-06L-L Stations: 5 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Left
ZZM05-06B Stations: 5 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM05-06B-R Stations: 5 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM05-06B-L Stations: 5 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM05-SR Stations: 5 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Both sides
ZZM05-SR-R Stations: 5 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Right
ZZM05-SR-L Stations: 5 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Left
ZZM05-SL Stations: 5 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Both sides
ZZM05-SL-R Stations: 5 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Right
ZZM05-SL-L Stations: 5 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Left
ZZM05-SB Stations: 5 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM05-SB-R Stations: 5 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Right
ZZM05-SB-L Stations: 5 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Left
ZZM06-04R Stations: 6 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM06-04R-R Stations: 6 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Right
ZZM06-04R-L Stations: 6 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Left
ZZM06-04L Stations: 6 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM06-04L-R Stations: 6 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Right
ZZM06-04L-L Stations: 6 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Left
ZZM06-04B Stations: 6 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM06-04B-R Stations: 6 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM06-04B-L Stations: 6 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM06-06R Stations: 6 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM06-06R-R Stations: 6 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Right
ZZM06-06R-L Stations: 6 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Left
ZZM06-06L Stations: 6 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM06-06L-R Stations: 6 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Right
ZZM06-06L-L Stations: 6 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Left
ZZM06-06B Stations: 6 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM06-06B-R Stations: 6 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM06-06B-L Stations: 6 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM06-SR Stations: 6 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Both sides
ZZM06-SR-R Stations: 6 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Right
ZZM06-SR-L Stations: 6 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Left
ZZM06-SL Stations: 6 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Both sides
ZZM06-SL-R Stations: 6 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Right
ZZM06-SL-L Stations: 6 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Left
ZZM06-SB Stations: 6 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM06-SB-R Stations: 6 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Right
ZZM06-SB-L Stations: 6 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Left
ZZM07-04R Stations: 7 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM07-04R-R Stations: 7 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Right
ZZM07-04R-L Stations: 7 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Left
ZZM07-04L Stations: 7 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM07-04L-R Stations: 7 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Right
ZZM07-04L-L Stations: 7 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Left
ZZM07-04B Stations: 7 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM07-04B-R Stations: 7 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM07-04B-L Stations: 7 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM07-06R Stations: 7 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM07-06R-R Stations: 7 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Right
ZZM07-06R-L Stations: 7 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Left
ZZM07-06L Stations: 7 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM07-06L-R Stations: 7 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Right
ZZM07-06L-L Stations: 7 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Left
ZZM07-06B Stations: 7 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM07-06B-R Stations: 7 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM07-06B-L Stations: 7 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM07-SR Stations: 7 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Both sides
ZZM07-SR-R Stations: 7 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Right
ZZM07-SR-L Stations: 7 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Left
ZZM07-SL Stations: 7 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Both sides
ZZM07-SL-R Stations: 7 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Right
ZZM07-SL-L Stations: 7 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Left
ZZM07-SB Stations: 7 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM07-SB-R Stations: 7 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Right
ZZM07-SB-L Stations: 7 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Left
ZZM08-04R Stations: 8 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM08-04R-R Stations: 8 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Right
ZZM08-04R-L Stations: 8 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Left
ZZM08-04L Stations: 8 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM08-04L-R Stations: 8 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Right
ZZM08-04L-L Stations: 8 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Left
ZZM08-04B Stations: 8 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM08-04B-R Stations: 8 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM08-04B-L Stations: 8 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM08-06R Stations: 8 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM08-06R-R Stations: 8 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Right
ZZM08-06R-L Stations: 8 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Left
ZZM08-06L Stations: 8 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM08-06L-R Stations: 8 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Right
ZZM08-06L-L Stations: 8 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Left
ZZM08-06B Stations: 8 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM08-06B-R Stations: 8 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM08-06B-L Stations: 8 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM08-SR Stations: 8 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Both sides
ZZM08-SR-R Stations: 8 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Right
ZZM08-SR-L Stations: 8 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Left
ZZM08-SL Stations: 8 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Both sides
ZZM08-SL-R Stations: 8 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Right
ZZM08-SL-L Stations: 8 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Left
ZZM08-SB Stations: 8 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM08-SB-R Stations: 8 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Right
ZZM08-SB-L Stations: 8 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Left
ZZM09-04R Stations: 9 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM09-04R-R Stations: 9 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Right
ZZM09-04R-L Stations: 9 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Left
ZZM09-04L Stations: 9 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM09-04L-R Stations: 9 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Right
ZZM09-04L-L Stations: 9 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Left
ZZM09-04B Stations: 9 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM09-04B-R Stations: 9 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM09-04B-L Stations: 9 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM09-06R Stations: 9 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM09-06R-R Stations: 9 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Right
ZZM09-06R-L Stations: 9 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Left
ZZM09-06L Stations: 9 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM09-06L-R Stations: 9 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Right
ZZM09-06L-L Stations: 9 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Left
ZZM09-06B Stations: 9 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM09-06B-R Stations: 9 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM09-06B-L Stations: 9 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM09-SR Stations: 9 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Both sides
ZZM09-SR-R Stations: 9 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Right
ZZM09-SR-L Stations: 9 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Left
ZZM09-SL Stations: 9 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Both sides
ZZM09-SL-R Stations: 9 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Right
ZZM09-SL-L Stations: 9 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Left
ZZM09-SB Stations: 9 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM09-SB-R Stations: 9 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Right
ZZM09-SB-L Stations: 9 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Left
ZZM10-04R Stations: 10 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM10-04R-R Stations: 10 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Right
ZZM10-04R-L Stations: 10 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Left
ZZM10-04L Stations: 10 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM10-04L-R Stations: 10 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Right
ZZM10-04L-L Stations: 10 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Left
ZZM10-04B Stations: 10 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM10-04B-R Stations: 10 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM10-04B-L Stations: 10 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM10-06R Stations: 10 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM10-06R-R Stations: 10 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Right
ZZM10-06R-L Stations: 10 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Left
ZZM10-06L Stations: 10 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM10-06L-R Stations: 10 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Right
ZZM10-06L-L Stations: 10 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Left
ZZM10-06B Stations: 10 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM10-06B-R Stations: 10 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM10-06B-L Stations: 10 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM10-SR Stations: 10 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Both sides
ZZM10-SR-R Stations: 10 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Right
ZZM10-SR-L Stations: 10 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Left
ZZM10-SL Stations: 10 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Both sides
ZZM10-SL-R Stations: 10 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Right
ZZM10-SL-L Stations: 10 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Left
ZZM10-SB Stations: 10 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM10-SB-R Stations: 10 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Right
ZZM10-SB-L Stations: 10 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Left
ManifoldsSMC
270 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC ZZM Stacking Manifold for ZM Vacuum Ejector (1 to 10 Stations)

Brand SMC·Manifolds

Available part numbers (270)

ZZM01-04R, ZZM01-04R-R, ZZM01-04R-L, ZZM01-04L, ZZM01-04L-R, ZZM01-04L-L, ZZM01-04B, ZZM01-04B-R, ZZM01-04B-L, ZZM01-06R + 260 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZZM01-04RStations: 1 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM01-04R-RStations: 1 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Right
ZZM01-04R-LStations: 1 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Left
ZZM01-04LStations: 1 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM01-04L-RStations: 1 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Right
ZZM01-04L-LStations: 1 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Left
ZZM01-04BStations: 1 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM01-04B-RStations: 1 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM01-04B-LStations: 1 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM01-06RStations: 1 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM01-06R-RStations: 1 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Right
ZZM01-06R-LStations: 1 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Left
ZZM01-06LStations: 1 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM01-06L-RStations: 1 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Right
ZZM01-06L-LStations: 1 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Left
ZZM01-06BStations: 1 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM01-06B-RStations: 1 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM01-06B-LStations: 1 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM01-SRStations: 1 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Both sides
ZZM01-SR-RStations: 1 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Right
ZZM01-SR-LStations: 1 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Left
ZZM01-SLStations: 1 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Both sides
ZZM01-SL-RStations: 1 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Right
ZZM01-SL-LStations: 1 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Left
ZZM01-SBStations: 1 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM01-SB-RStations: 1 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Right
ZZM01-SB-LStations: 1 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Left
ZZM02-04RStations: 2 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM02-04R-RStations: 2 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Right
ZZM02-04R-LStations: 2 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Left
ZZM02-04LStations: 2 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM02-04L-RStations: 2 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Right
ZZM02-04L-LStations: 2 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Left
ZZM02-04BStations: 2 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM02-04B-RStations: 2 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM02-04B-LStations: 2 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM02-06RStations: 2 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM02-06R-RStations: 2 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Right
ZZM02-06R-LStations: 2 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Left
ZZM02-06LStations: 2 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM02-06L-RStations: 2 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Right
ZZM02-06L-LStations: 2 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Left
ZZM02-06BStations: 2 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM02-06B-RStations: 2 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM02-06B-LStations: 2 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM02-SRStations: 2 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Both sides
ZZM02-SR-RStations: 2 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Right
ZZM02-SR-LStations: 2 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Left
ZZM02-SLStations: 2 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Both sides
ZZM02-SL-RStations: 2 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Right
ZZM02-SL-LStations: 2 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Left
ZZM02-SBStations: 2 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM02-SB-RStations: 2 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Right
ZZM02-SB-LStations: 2 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Left
ZZM03-04RStations: 3 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM03-04R-RStations: 3 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Right
ZZM03-04R-LStations: 3 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Left
ZZM03-04LStations: 3 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM03-04L-RStations: 3 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Right
ZZM03-04L-LStations: 3 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Left
ZZM03-04BStations: 3 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM03-04B-RStations: 3 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM03-04B-LStations: 3 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM03-06RStations: 3 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM03-06R-RStations: 3 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Right
ZZM03-06R-LStations: 3 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Left
ZZM03-06LStations: 3 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM03-06L-RStations: 3 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Right
ZZM03-06L-LStations: 3 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Left
ZZM03-06BStations: 3 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM03-06B-RStations: 3 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM03-06B-LStations: 3 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM03-SRStations: 3 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Both sides
ZZM03-SR-RStations: 3 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Right
ZZM03-SR-LStations: 3 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Left
ZZM03-SLStations: 3 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Both sides
ZZM03-SL-RStations: 3 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Right
ZZM03-SL-LStations: 3 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Left
ZZM03-SBStations: 3 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM03-SB-RStations: 3 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Right
ZZM03-SB-LStations: 3 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Left
ZZM04-04RStations: 4 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM04-04R-RStations: 4 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Right
ZZM04-04R-LStations: 4 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Left
ZZM04-04LStations: 4 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM04-04L-RStations: 4 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Right
ZZM04-04L-LStations: 4 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Left
ZZM04-04BStations: 4 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM04-04B-RStations: 4 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM04-04B-LStations: 4 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM04-06RStations: 4 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM04-06R-RStations: 4 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Right
ZZM04-06R-LStations: 4 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Left
ZZM04-06LStations: 4 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM04-06L-RStations: 4 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Right
ZZM04-06L-LStations: 4 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Left
ZZM04-06BStations: 4 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM04-06B-RStations: 4 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM04-06B-LStations: 4 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM04-SRStations: 4 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Both sides
ZZM04-SR-RStations: 4 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Right
ZZM04-SR-LStations: 4 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Left
ZZM04-SLStations: 4 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Both sides
ZZM04-SL-RStations: 4 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Right
ZZM04-SL-LStations: 4 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Left
ZZM04-SBStations: 4 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM04-SB-RStations: 4 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Right
ZZM04-SB-LStations: 4 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Left
ZZM05-04RStations: 5 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM05-04R-RStations: 5 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Right
ZZM05-04R-LStations: 5 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Left
ZZM05-04LStations: 5 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM05-04L-RStations: 5 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Right
ZZM05-04L-LStations: 5 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Left
ZZM05-04BStations: 5 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM05-04B-RStations: 5 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM05-04B-LStations: 5 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM05-06RStations: 5 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM05-06R-RStations: 5 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Right
ZZM05-06R-LStations: 5 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Left
ZZM05-06LStations: 5 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM05-06L-RStations: 5 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Right
ZZM05-06L-LStations: 5 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Left
ZZM05-06BStations: 5 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM05-06B-RStations: 5 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM05-06B-LStations: 5 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM05-SRStations: 5 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Both sides
ZZM05-SR-RStations: 5 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Right
ZZM05-SR-LStations: 5 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Left
ZZM05-SLStations: 5 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Both sides
ZZM05-SL-RStations: 5 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Right
ZZM05-SL-LStations: 5 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Left
ZZM05-SBStations: 5 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM05-SB-RStations: 5 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Right
ZZM05-SB-LStations: 5 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Left
ZZM06-04RStations: 6 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM06-04R-RStations: 6 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Right
ZZM06-04R-LStations: 6 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Left
ZZM06-04LStations: 6 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM06-04L-RStations: 6 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Right
ZZM06-04L-LStations: 6 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Left
ZZM06-04BStations: 6 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM06-04B-RStations: 6 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM06-04B-LStations: 6 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM06-06RStations: 6 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM06-06R-RStations: 6 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Right
ZZM06-06R-LStations: 6 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Left
ZZM06-06LStations: 6 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM06-06L-RStations: 6 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Right
ZZM06-06L-LStations: 6 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Left
ZZM06-06BStations: 6 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM06-06B-RStations: 6 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM06-06B-LStations: 6 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM06-SRStations: 6 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Both sides
ZZM06-SR-RStations: 6 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Right
ZZM06-SR-LStations: 6 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Left
ZZM06-SLStations: 6 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Both sides
ZZM06-SL-RStations: 6 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Right
ZZM06-SL-LStations: 6 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Left
ZZM06-SBStations: 6 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM06-SB-RStations: 6 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Right
ZZM06-SB-LStations: 6 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Left
ZZM07-04RStations: 7 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM07-04R-RStations: 7 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Right
ZZM07-04R-LStations: 7 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Left
ZZM07-04LStations: 7 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM07-04L-RStations: 7 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Right
ZZM07-04L-LStations: 7 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Left
ZZM07-04BStations: 7 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM07-04B-RStations: 7 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM07-04B-LStations: 7 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM07-06RStations: 7 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM07-06R-RStations: 7 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Right
ZZM07-06R-LStations: 7 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Left
ZZM07-06LStations: 7 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM07-06L-RStations: 7 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Right
ZZM07-06L-LStations: 7 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Left
ZZM07-06BStations: 7 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM07-06B-RStations: 7 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM07-06B-LStations: 7 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM07-SRStations: 7 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Both sides
ZZM07-SR-RStations: 7 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Right
ZZM07-SR-LStations: 7 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Left
ZZM07-SLStations: 7 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Both sides
ZZM07-SL-RStations: 7 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Right
ZZM07-SL-LStations: 7 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Left
ZZM07-SBStations: 7 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM07-SB-RStations: 7 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Right
ZZM07-SB-LStations: 7 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Left
ZZM08-04RStations: 8 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM08-04R-RStations: 8 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Right
ZZM08-04R-LStations: 8 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Left
ZZM08-04LStations: 8 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM08-04L-RStations: 8 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Right
ZZM08-04L-LStations: 8 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Left
ZZM08-04BStations: 8 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM08-04B-RStations: 8 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM08-04B-LStations: 8 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM08-06RStations: 8 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM08-06R-RStations: 8 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Right
ZZM08-06R-LStations: 8 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Left
ZZM08-06LStations: 8 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM08-06L-RStations: 8 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Right
ZZM08-06L-LStations: 8 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Left
ZZM08-06BStations: 8 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM08-06B-RStations: 8 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM08-06B-LStations: 8 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM08-SRStations: 8 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Both sides
ZZM08-SR-RStations: 8 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Right
ZZM08-SR-LStations: 8 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Left
ZZM08-SLStations: 8 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Both sides
ZZM08-SL-RStations: 8 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Right
ZZM08-SL-LStations: 8 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Left
ZZM08-SBStations: 8 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM08-SB-RStations: 8 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Right
ZZM08-SB-LStations: 8 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Left
ZZM09-04RStations: 9 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM09-04R-RStations: 9 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Right
ZZM09-04R-LStations: 9 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Left
ZZM09-04LStations: 9 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM09-04L-RStations: 9 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Right
ZZM09-04L-LStations: 9 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Left
ZZM09-04BStations: 9 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM09-04B-RStations: 9 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM09-04B-LStations: 9 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM09-06RStations: 9 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM09-06R-RStations: 9 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Right
ZZM09-06R-LStations: 9 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Left
ZZM09-06LStations: 9 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM09-06L-RStations: 9 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Right
ZZM09-06L-LStations: 9 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Left
ZZM09-06BStations: 9 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM09-06B-RStations: 9 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM09-06B-LStations: 9 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM09-SRStations: 9 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Both sides
ZZM09-SR-RStations: 9 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Right
ZZM09-SR-LStations: 9 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Left
ZZM09-SLStations: 9 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Both sides
ZZM09-SL-RStations: 9 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Right
ZZM09-SL-LStations: 9 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Left
ZZM09-SBStations: 9 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM09-SB-RStations: 9 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Right
ZZM09-SB-LStations: 9 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Left
ZZM10-04RStations: 10 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM10-04R-RStations: 10 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Right
ZZM10-04R-LStations: 10 | EXH port: Rc1/2 port | EXH/silencer position: Right | Common P port position: Left
ZZM10-04LStations: 10 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM10-04L-RStations: 10 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Right
ZZM10-04L-LStations: 10 | EXH port: Rc1/2 port | EXH/silencer position: Left | Common P port position: Left
ZZM10-04BStations: 10 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM10-04B-RStations: 10 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM10-04B-LStations: 10 | EXH port: Rc1/2 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM10-06RStations: 10 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Both sides
ZZM10-06R-RStations: 10 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Right
ZZM10-06R-LStations: 10 | EXH port: Rc3/4 port | EXH/silencer position: Right | Common P port position: Left
ZZM10-06LStations: 10 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Both sides
ZZM10-06L-RStations: 10 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Right
ZZM10-06L-LStations: 10 | EXH port: Rc3/4 port | EXH/silencer position: Left | Common P port position: Left
ZZM10-06BStations: 10 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM10-06B-RStations: 10 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Right
ZZM10-06B-LStations: 10 | EXH port: Rc3/4 port | EXH/silencer position: Both sides | Common P port position: Left
ZZM10-SRStations: 10 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Both sides
ZZM10-SR-RStations: 10 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Right
ZZM10-SR-LStations: 10 | EXH port: ZZM-SA silencer | EXH/silencer position: Right | Common P port position: Left
ZZM10-SLStations: 10 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Both sides
ZZM10-SL-RStations: 10 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Right
ZZM10-SL-LStations: 10 | EXH port: ZZM-SA silencer | EXH/silencer position: Left | Common P port position: Left
ZZM10-SBStations: 10 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Both sides
ZZM10-SB-RStations: 10 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Right
ZZM10-SB-LStations: 10 | EXH port: ZZM-SA silencer | EXH/silencer position: Both sides | Common P port position: Left

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
