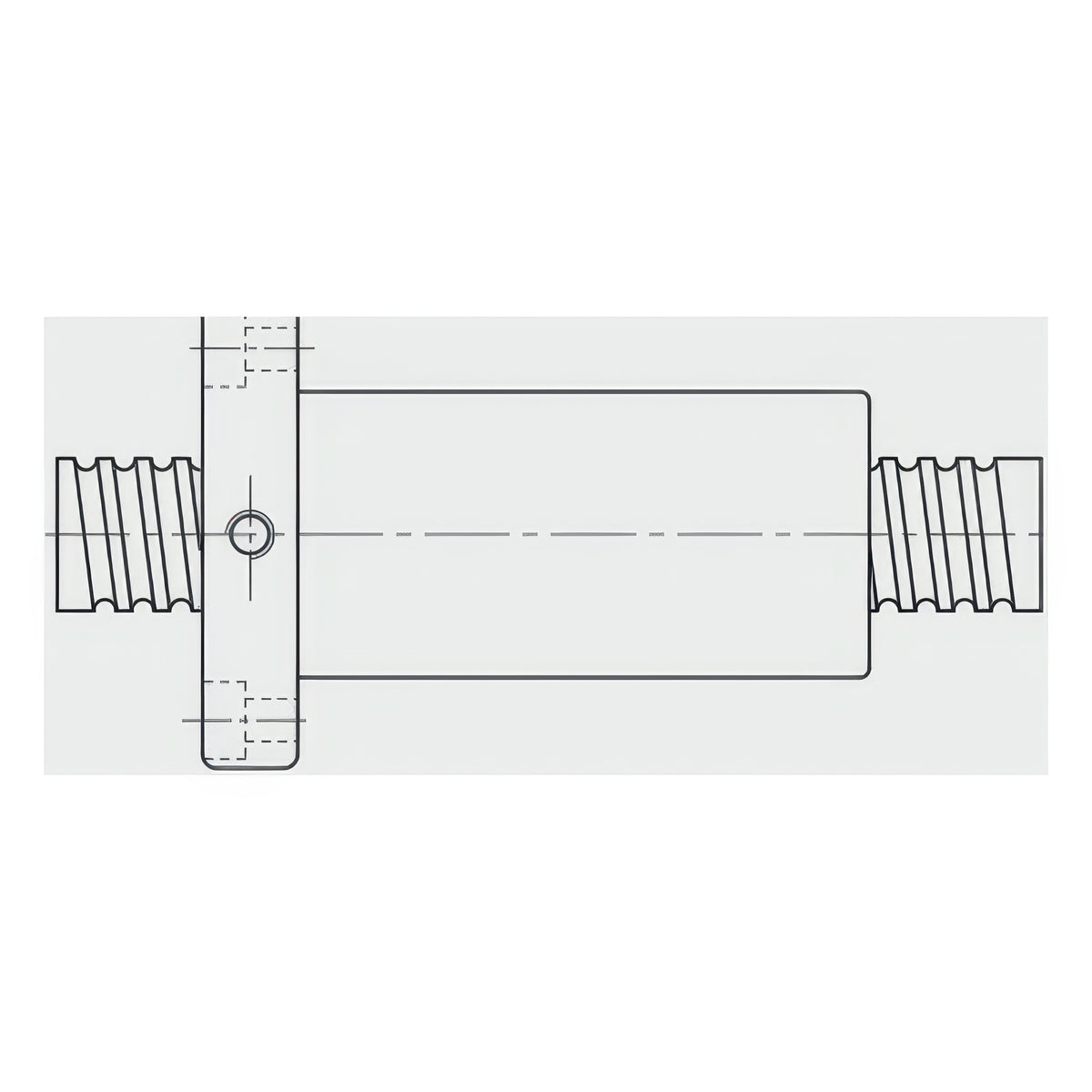

TBI MOTION OFV Offset-Preload Ball Screw Nut (V Type)

TBI MOTION OFV Offset-Preload Ball Screw Nut (V Type)

OFV is the offset-preload version of the SFV high-load external-circulation ball screw nut.

Key features

  • Lead-shift preload in one nut body removes backlash for rigid machine-tool axes
  • Sizes cover 16 to 80 mm screw diameter with 5 or 10 mm lead
  • Dimensions and load ratings should be confirmed with the maker catalog

Specifications

Circuit code 4.8
Nut type OFV offset-preload external circulation nut
OFV01605-4.8 Nominal screw diameter: 16 mm | Lead: 5 mm | Circuit code: 4.8 | Nut weight: 0.800 kg | Screw shaft weight: 1.56 kg/m | Nut type: OFV offset-preload external circulation nut
OFV02005-4.8 Nominal screw diameter: 20 mm | Lead: 5 mm | Circuit code: 4.8 | Nut weight: 1.066 kg | Screw shaft weight: 2.45 kg/m | Nut type: OFV offset-preload external circulation nut
OFV02505-4.8 Nominal screw diameter: 25 mm | Lead: 5 mm | Circuit code: 4.8 | Nut weight: 1.212 kg | Screw shaft weight: 3.83 kg/m | Nut type: OFV offset-preload external circulation nut
OFV03205-4.8 Nominal screw diameter: 32 mm | Lead: 5 mm | Circuit code: 4.8 | Nut weight: 1.572 kg | Screw shaft weight: 6.29 kg/m | Nut type: OFV offset-preload external circulation nut
OFV03210-4.8 Nominal screw diameter: 32 mm | Lead: 10 mm | Circuit code: 4.8 | Nut weight: 4.978 kg | Screw shaft weight: 6.23 kg/m | Nut type: OFV offset-preload external circulation nut
OFV04005-4.8 Nominal screw diameter: 40 mm | Lead: 5 mm | Circuit code: 4.8 | Nut weight: 2.226 kg | Screw shaft weight: 9.84 kg/m | Nut type: OFV offset-preload external circulation nut
OFV04010-4.8 Nominal screw diameter: 40 mm | Lead: 10 mm | Circuit code: 4.8 | Nut weight: 6.084 kg | Screw shaft weight: 9.78 kg/m | Nut type: OFV offset-preload external circulation nut
OFV05010-4.8 Nominal screw diameter: 50 mm | Lead: 10 mm | Circuit code: 4.8 | Nut weight: 6.560 kg | Screw shaft weight: 15.33 kg/m | Nut type: OFV offset-preload external circulation nut
OFV06310-4.8 Nominal screw diameter: 63 mm | Lead: 10 mm | Circuit code: 4.8 | Nut weight: 9.606 kg | Screw shaft weight: 24.39 kg/m | Nut type: OFV offset-preload external circulation nut
OFV08010-4.8 Nominal screw diameter: 80 mm | Lead: 10 mm | Circuit code: 4.8 | Nut weight: 12.890 kg | Screw shaft weight: 39.38 kg/m | Nut type: OFV offset-preload external circulation nut
Ball ScrewsTBI MOTION
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TBI MOTION OFV Offset-Preload Ball Screw Nut (V Type)

Brand TBI MOTION·Ball Screws

Available part numbers (10)

OFV01605-4.8, OFV02005-4.8, OFV02505-4.8, OFV03205-4.8, OFV03210-4.8, OFV04005-4.8, OFV04010-4.8, OFV05010-4.8, OFV06310-4.8, OFV08010-4.8

How to order

Send the TBI MOTION part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
OFV01605-4.8Nominal screw diameter: 16 mm | Lead: 5 mm | Circuit code: 4.8 | Nut weight: 0.800 kg | Screw shaft weight: 1.56 kg/m | Nut type: OFV offset-preload external circulation nut
OFV02005-4.8Nominal screw diameter: 20 mm | Lead: 5 mm | Circuit code: 4.8 | Nut weight: 1.066 kg | Screw shaft weight: 2.45 kg/m | Nut type: OFV offset-preload external circulation nut
OFV02505-4.8Nominal screw diameter: 25 mm | Lead: 5 mm | Circuit code: 4.8 | Nut weight: 1.212 kg | Screw shaft weight: 3.83 kg/m | Nut type: OFV offset-preload external circulation nut
OFV03205-4.8Nominal screw diameter: 32 mm | Lead: 5 mm | Circuit code: 4.8 | Nut weight: 1.572 kg | Screw shaft weight: 6.29 kg/m | Nut type: OFV offset-preload external circulation nut
OFV03210-4.8Nominal screw diameter: 32 mm | Lead: 10 mm | Circuit code: 4.8 | Nut weight: 4.978 kg | Screw shaft weight: 6.23 kg/m | Nut type: OFV offset-preload external circulation nut
OFV04005-4.8Nominal screw diameter: 40 mm | Lead: 5 mm | Circuit code: 4.8 | Nut weight: 2.226 kg | Screw shaft weight: 9.84 kg/m | Nut type: OFV offset-preload external circulation nut
OFV04010-4.8Nominal screw diameter: 40 mm | Lead: 10 mm | Circuit code: 4.8 | Nut weight: 6.084 kg | Screw shaft weight: 9.78 kg/m | Nut type: OFV offset-preload external circulation nut
OFV05010-4.8Nominal screw diameter: 50 mm | Lead: 10 mm | Circuit code: 4.8 | Nut weight: 6.560 kg | Screw shaft weight: 15.33 kg/m | Nut type: OFV offset-preload external circulation nut
OFV06310-4.8Nominal screw diameter: 63 mm | Lead: 10 mm | Circuit code: 4.8 | Nut weight: 9.606 kg | Screw shaft weight: 24.39 kg/m | Nut type: OFV offset-preload external circulation nut
OFV08010-4.8Nominal screw diameter: 80 mm | Lead: 10 mm | Circuit code: 4.8 | Nut weight: 12.890 kg | Screw shaft weight: 39.38 kg/m | Nut type: OFV offset-preload external circulation nut
