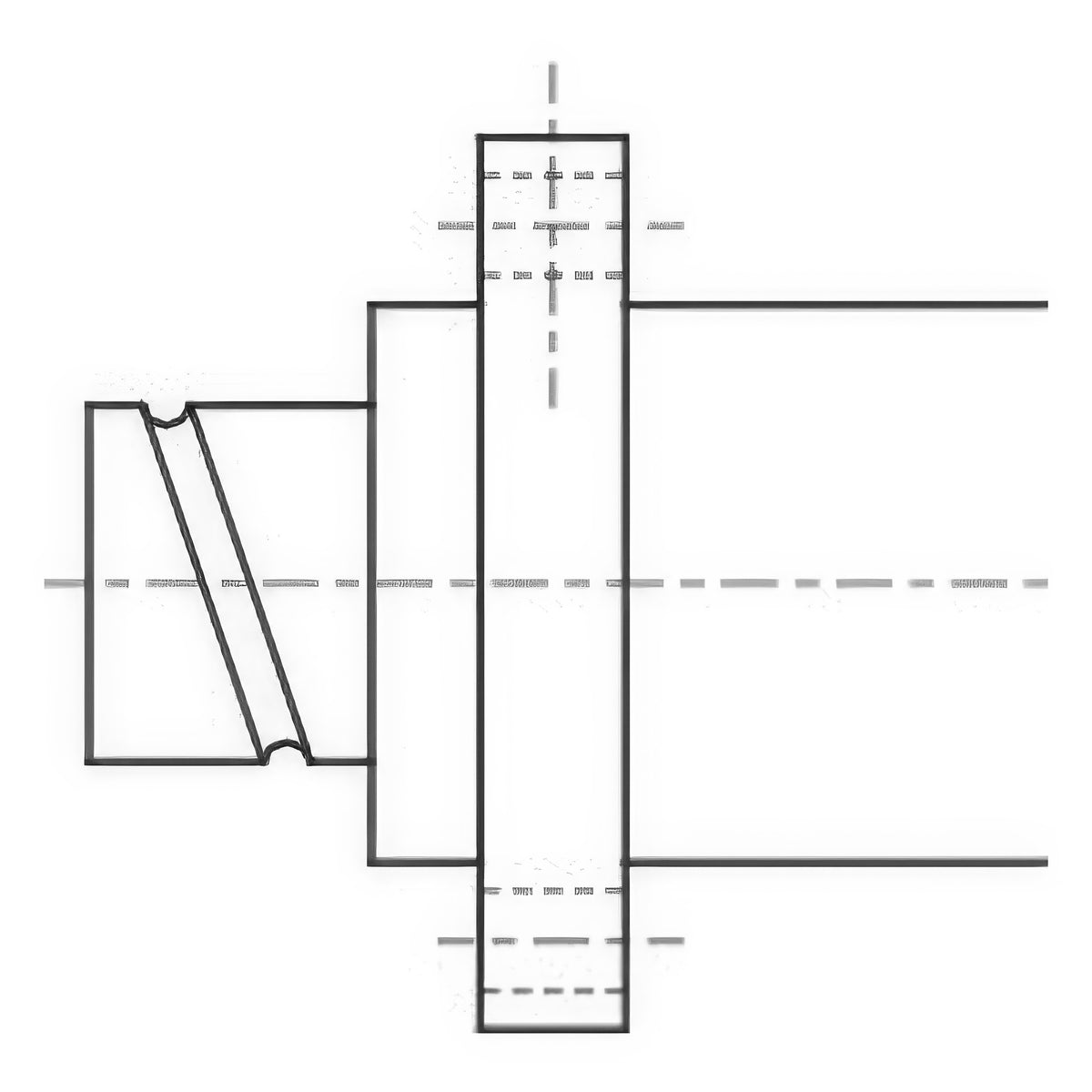

TBI MOTION SFNH/SFH Precision Ground Ball Screw Flange Nut

SFNH/SFH (formerly SFS) is a precision ground ball screw flange nut with a DIN-style flange for slide tables, high-speed and strong dust-proof applications.

Key features

It uses an end-cap recirculation system suited to high lead and high-speed motion
Sizes run from 12 to 50 mm screw diameter with leads of 5 to 50 mm
Flange shape changes at 40 mm diameter and above, and most sizes up to 25 mm are also available with left-hand thread
Nuts are ordered to the TBI MOTION nut ordering format (series, thread direction, shaft diameter, lead, circuits, flange cut, surface treatment)
Preload classes and accuracy grades (C0-C10) are selected separately

SFH01205-2.8		Nominal screw diameter: 12 mm \| Lead: 5 mm \| Ball diameter: 2.5 mm \| Circuits: 2.8x1 \| Nut OD D: 24 mm \| Flange OD A: 40 mm \| Flange thickness B: 10 mm \| E: 5 mm \| Nut length L: 30 mm \| Bolt PCD W: 32 mm \| Flange width H: 30 mm \| Mounting hole X: 4.5 mm \| Dynamic load rating Ca: 661 kgf \| Static load rating C0a: 1316 kgf \| Stiffness: 19 kgf/um \| Left-hand thread available
SFH01210-2.8		Nominal screw diameter: 12 mm \| Lead: 10 mm \| Ball diameter: 2.5 mm \| Circuits: 2.8x1 \| Nut OD D: 24 mm \| Flange OD A: 40 mm \| Flange thickness B: 10 mm \| E: 5 mm \| Nut length L: 45 mm \| Bolt PCD W: 32 mm \| Flange width H: 30 mm \| Mounting hole X: 4.5 mm \| Dynamic load rating Ca: 642 kgf \| Static load rating C0a: 1287 kgf \| Stiffness: 19 kgf/um \| Left-hand thread available
SFH01605-3.8		Nominal screw diameter: 16 mm \| Lead: 5 mm \| Ball diameter: 2.778 mm \| Circuits: 3.8x1 \| Nut OD D: 28 mm \| Flange OD A: 48 mm \| Flange thickness B: 10 mm \| E: 5 mm \| Nut length L: 37 mm \| Bolt PCD W: 38 mm \| Flange width H: 40 mm \| Mounting hole X: 5.5 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1112 kgf \| Static load rating C0a: 2507 kgf \| Stiffness: 30 kgf/um \| Left-hand thread available
SFH01610-2.8		Nominal screw diameter: 16 mm \| Lead: 10 mm \| Ball diameter: 2.778 mm \| Circuits: 2.8x1 \| Nut OD D: 28 mm \| Flange OD A: 48 mm \| Flange thickness B: 10 mm \| E: 5 mm \| Nut length L: 45 mm \| Bolt PCD W: 38 mm \| Flange width H: 40 mm \| Mounting hole X: 5.5 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 839 kgf \| Static load rating C0a: 1821 kgf \| Stiffness: 23 kgf/um \| Left-hand thread available
SFH01616-1.8		Nominal screw diameter: 16 mm \| Lead: 16 mm \| Ball diameter: 2.778 mm \| Circuits: 1.8x1 \| Nut OD D: 28 mm \| Flange OD A: 48 mm \| Flange thickness B: 10 mm \| E: 5 mm \| Nut length L: 45 mm \| Bolt PCD W: 38 mm \| Flange width H: 40 mm \| Mounting hole X: 5.5 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 552 kgf \| Static load rating C0a: 1137 kgf \| Stiffness: 14 kgf/um \| Left-hand thread available
SFH01616-2.8		Nominal screw diameter: 16 mm \| Lead: 16 mm \| Ball diameter: 2.778 mm \| Circuits: 2.8x1 \| Nut OD D: 28 mm \| Flange OD A: 48 mm \| Flange thickness B: 10 mm \| E: 5 mm \| Nut length L: 61 mm \| Bolt PCD W: 38 mm \| Flange width H: 40 mm \| Mounting hole X: 5.5 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 808 kgf \| Static load rating C0a: 1769 kgf \| Stiffness: 22 kgf/um \| Left-hand thread available
SFH01620-1.8		Nominal screw diameter: 16 mm \| Lead: 20 mm \| Ball diameter: 2.778 mm \| Circuits: 1.8x1 \| Nut OD D: 28 mm \| Flange OD A: 48 mm \| Flange thickness B: 10 mm \| E: 7 mm \| Nut length L: 58 mm \| Bolt PCD W: 38 mm \| Flange width H: 40 mm \| Mounting hole X: 5.5 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 554 kgf \| Static load rating C0a: 1170 kgf \| Stiffness: 14 kgf/um \| Left-hand thread available
SFH02005-3.8		Nominal screw diameter: 20 mm \| Lead: 5 mm \| Ball diameter: 3.175 mm \| Circuits: 3.8x1 \| Nut OD D: 36 mm \| Flange OD A: 58 mm \| Flange thickness B: 10 mm \| E: 7 mm \| Nut length L: 37 mm \| Bolt PCD W: 47 mm \| Flange width H: 44 mm \| Mounting hole X: 6.6 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1484 kgf \| Static load rating C0a: 3681 kgf \| Stiffness: 37 kgf/um \| Left-hand thread available
SFH02010-3.8		Nominal screw diameter: 20 mm \| Lead: 10 mm \| Ball diameter: 3.175 mm \| Circuits: 3.8x1 \| Nut OD D: 36 mm \| Flange OD A: 58 mm \| Flange thickness B: 10 mm \| E: 7 mm \| Nut length L: 55 mm \| Bolt PCD W: 47 mm \| Flange width H: 44 mm \| Mounting hole X: 6.6 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1516 kgf \| Static load rating C0a: 3833 kgf \| Stiffness: 40 kgf/um \| Left-hand thread available
SFH02020-1.8		Nominal screw diameter: 20 mm \| Lead: 20 mm \| Ball diameter: 3.175 mm \| Circuits: 1.8x1 \| Nut OD D: 36 mm \| Flange OD A: 58 mm \| Flange thickness B: 10 mm \| E: 7 mm \| Nut length L: 54 mm \| Bolt PCD W: 47 mm \| Flange width H: 44 mm \| Mounting hole X: 6.6 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 764 kgf \| Static load rating C0a: 1758 kgf \| Stiffness: 19 kgf/um \| Left-hand thread available
SFH02020-2.8		Nominal screw diameter: 20 mm \| Lead: 20 mm \| Ball diameter: 3.175 mm \| Circuits: 2.8x1 \| Nut OD D: 36 mm \| Flange OD A: 58 mm \| Flange thickness B: 10 mm \| E: 7 mm \| Nut length L: 74 mm \| Bolt PCD W: 47 mm \| Flange width H: 44 mm \| Mounting hole X: 6.6 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1118 kgf \| Static load rating C0a: 2734 kgf \| Stiffness: 29 kgf/um \| Left-hand thread available
SFH02505-3.8		Nominal screw diameter: 25 mm \| Lead: 5 mm \| Ball diameter: 3.175 mm \| Circuits: 3.8x1 \| Nut OD D: 40 mm \| Flange OD A: 62 mm \| Flange thickness B: 10 mm \| E: 7 mm \| Nut length L: 37 mm \| Bolt PCD W: 51 mm \| Flange width H: 48 mm \| Mounting hole X: 6.6 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1650 kgf \| Static load rating C0a: 4658 kgf \| Stiffness: 43 kgf/um \| Left-hand thread available
SFH02510-3.8		Nominal screw diameter: 25 mm \| Lead: 10 mm \| Ball diameter: 3.175 mm \| Circuits: 3.8x1 \| Nut OD D: 40 mm \| Flange OD A: 62 mm \| Flange thickness B: 12 mm \| E: 7 mm \| Nut length L: 55 mm \| Bolt PCD W: 51 mm \| Flange width H: 48 mm \| Mounting hole X: 6.6 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1638 kgf \| Static load rating C0a: 4633 kgf \| Stiffness: 45 kgf/um \| Left-hand thread available
SFH02525-1.8		Nominal screw diameter: 25 mm \| Lead: 25 mm \| Ball diameter: 3.175 mm \| Circuits: 1.8x1 \| Nut OD D: 40 mm \| Flange OD A: 62 mm \| Flange thickness B: 12 mm \| E: 7 mm \| Nut length L: 64 mm \| Bolt PCD W: 51 mm \| Flange width H: 48 mm \| Mounting hole X: 6.6 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 843 kgf \| Static load rating C0a: 2199 kgf \| Stiffness: 22 kgf/um \| Left-hand thread available
SFH02525-2.8		Nominal screw diameter: 25 mm \| Lead: 25 mm \| Ball diameter: 3.175 mm \| Circuits: 2.8x1 \| Nut OD D: 40 mm \| Flange OD A: 62 mm \| Flange thickness B: 12 mm \| E: 7 mm \| Nut length L: 89 mm \| Bolt PCD W: 51 mm \| Flange width H: 48 mm \| Mounting hole X: 6.6 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1232 kgf \| Static load rating C0a: 3421 kgf \| Stiffness: 34 kgf/um \| Left-hand thread available
SFH03205-3.8		Nominal screw diameter: 32 mm \| Lead: 5 mm \| Ball diameter: 3.175 mm \| Circuits: 3.8x1 \| Nut OD D: 50 mm \| Flange OD A: 80 mm \| Flange thickness B: 12 mm \| E: 9 mm \| Nut length L: 37 mm \| Bolt PCD W: 65 mm \| Flange width H: 62 mm \| Mounting hole X: 9 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1839 kgf \| Static load rating C0a: 6026 kgf \| Stiffness: 51 kgf/um
SFH03210-3.8		Nominal screw diameter: 32 mm \| Lead: 10 mm \| Ball diameter: 3.969 mm \| Circuits: 3.8x1 \| Nut OD D: 50 mm \| Flange OD A: 80 mm \| Flange thickness B: 12 mm \| E: 9 mm \| Nut length L: 57 mm \| Bolt PCD W: 65 mm \| Flange width H: 62 mm \| Mounting hole X: 9 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 2460 kgf \| Static load rating C0a: 7255 kgf \| Stiffness: 55 kgf/um
SFH03220-2.8		Nominal screw diameter: 32 mm \| Lead: 20 mm \| Ball diameter: 3.969 mm \| Circuits: 2.8x1 \| Nut OD D: 50 mm \| Flange OD A: 80 mm \| Flange thickness B: 12 mm \| E: 9 mm \| Nut length L: 76 mm \| Bolt PCD W: 65 mm \| Flange width H: 62 mm \| Mounting hole X: 9 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1907 kgf \| Static load rating C0a: 5482 kgf \| Stiffness: 43 kgf/um
SFH03232-1.8		Nominal screw diameter: 32 mm \| Lead: 32 mm \| Ball diameter: 3.969 mm \| Circuits: 1.8x1 \| Nut OD D: 50 mm \| Flange OD A: 80 mm \| Flange thickness B: 12 mm \| E: 9 mm \| Nut length L: 80 mm \| Bolt PCD W: 65 mm \| Flange width H: 62 mm \| Mounting hole X: 9 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1257 kgf \| Static load rating C0a: 3426 kgf \| Stiffness: 27 kgf/um
SFH03232-2.8		Nominal screw diameter: 32 mm \| Lead: 32 mm \| Ball diameter: 3.969 mm \| Circuits: 2.8x1 \| Nut OD D: 50 mm \| Flange OD A: 80 mm \| Flange thickness B: 12 mm \| E: 9 mm \| Nut length L: 112 mm \| Bolt PCD W: 65 mm \| Flange width H: 62 mm \| Mounting hole X: 9 mm \| Oil hole Q: M6 \| Dynamic load rating Ca: 1838 kgf \| Static load rating C0a: 5329 kgf \| Stiffness: 42 kgf/um
SFH04005-3.8		Nominal screw diameter: 40 mm \| Lead: 5 mm \| Ball diameter: 3.175 mm \| Circuits: 3.8x1 \| Nut OD D: 63 mm \| Flange OD A: 93 mm \| Flange thickness B: 15 mm \| E: 9 mm \| Nut length L: 42 mm \| Bolt PCD W: 78 mm \| Flange width H: 70 mm \| Mounting hole X: 9 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 2018 kgf \| Static load rating C0a: 7589 kgf \| Stiffness: 60 kgf/um
SFH04010-3.8		Nominal screw diameter: 40 mm \| Lead: 10 mm \| Ball diameter: 6.35 mm \| Circuits: 3.8x1 \| Nut OD D: 63 mm \| Flange OD A: 93 mm \| Flange thickness B: 14 mm \| E: 9 mm \| Nut length L: 60 mm \| Bolt PCD W: 78 mm \| Flange width H: 70 mm \| Mounting hole X: 9 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 5035 kgf \| Static load rating C0a: 13943 kgf \| Stiffness: 67 kgf/um
SFH04020-2.8		Nominal screw diameter: 40 mm \| Lead: 20 mm \| Ball diameter: 6.35 mm \| Circuits: 2.8x1 \| Nut OD D: 63 mm \| Flange OD A: 93 mm \| Flange thickness B: 14 mm \| E: 9 mm \| Nut length L: 80 mm \| Bolt PCD W: 78 mm \| Flange width H: 70 mm \| Mounting hole X: 9 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 3959 kgf \| Static load rating C0a: 10715 kgf \| Stiffness: 54 kgf/um
SFH04040-1.8		Nominal screw diameter: 40 mm \| Lead: 40 mm \| Ball diameter: 6.35 mm \| Circuits: 1.8x1 \| Nut OD D: 63 mm \| Flange OD A: 93 mm \| Flange thickness B: 14 mm \| E: 9 mm \| Nut length L: 98 mm \| Bolt PCD W: 78 mm \| Flange width H: 70 mm \| Mounting hole X: 9 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 2585 kgf \| Static load rating C0a: 6648 kgf \| Stiffness: 34 kgf/um
SFH04040-2.8		Nominal screw diameter: 40 mm \| Lead: 40 mm \| Ball diameter: 6.35 mm \| Circuits: 2.8x1 \| Nut OD D: 63 mm \| Flange OD A: 93 mm \| Flange thickness B: 14 mm \| E: 9 mm \| Nut length L: 138 mm \| Bolt PCD W: 78 mm \| Flange width H: 70 mm \| Mounting hole X: 9 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 3780 kgf \| Static load rating C0a: 10341 kgf \| Stiffness: 52 kgf/um
SFH05005-3.8		Nominal screw diameter: 50 mm \| Lead: 5 mm \| Ball diameter: 3.175 mm \| Circuits: 3.8x1 \| Nut OD D: 75 mm \| Flange OD A: 110 mm \| Flange thickness B: 15 mm \| E: 10.5 mm \| Nut length L: 42 mm \| Bolt PCD W: 93 mm \| Flange width H: 85 mm \| Mounting hole X: 11 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 2207 kgf \| Static load rating C0a: 9542 kgf \| Stiffness: 68 kgf/um
SFH05010-3.8		Nominal screw diameter: 50 mm \| Lead: 10 mm \| Ball diameter: 6.35 mm \| Circuits: 3.8x1 \| Nut OD D: 75 mm \| Flange OD A: 110 mm \| Flange thickness B: 18 mm \| E: 10.5 mm \| Nut length L: 60 mm \| Bolt PCD W: 93 mm \| Flange width H: 85 mm \| Mounting hole X: 11 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 5638 kgf \| Static load rating C0a: 17852 kgf \| Stiffness: 79 kgf/um
SFH05020-3.8		Nominal screw diameter: 50 mm \| Lead: 20 mm \| Ball diameter: 6.35 mm \| Circuits: 3.8x1 \| Nut OD D: 75 mm \| Flange OD A: 110 mm \| Flange thickness B: 18 mm \| E: 10.5 mm \| Nut length L: 100 mm \| Bolt PCD W: 93 mm \| Flange width H: 85 mm \| Mounting hole X: 11 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 5749 kgf \| Static load rating C0a: 18485 kgf \| Stiffness: 87 kgf/um
SFH05050-1.8		Nominal screw diameter: 50 mm \| Lead: 50 mm \| Ball diameter: 6.35 mm \| Circuits: 1.8x1 \| Nut OD D: 75 mm \| Flange OD A: 110 mm \| Flange thickness B: 18 mm \| E: 10.5 mm \| Nut length L: 120 mm \| Bolt PCD W: 93 mm \| Flange width H: 85 mm \| Mounting hole X: 11 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 2946 kgf \| Static load rating C0a: 8749 kgf \| Stiffness: 42 kgf/um
SFH05050-2.8		Nominal screw diameter: 50 mm \| Lead: 50 mm \| Ball diameter: 6.35 mm \| Circuits: 2.8x1 \| Nut OD D: 75 mm \| Flange OD A: 110 mm \| Flange thickness B: 18 mm \| E: 10.5 mm \| Nut length L: 170 mm \| Bolt PCD W: 93 mm \| Flange width H: 85 mm \| Mounting hole X: 11 mm \| Oil hole Q: M8 \| Dynamic load rating Ca: 4308 kgf \| Static load rating C0a: 13610 kgf \| Stiffness: 65 kgf/um

Ball ScrewsTBI MOTION

30 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TBI MOTION SFNH/SFH Precision Ground Ball Screw Flange Nut

Brand TBI MOTION·Ball Screws

Available part numbers (30)

SFH01205-2.8, SFH01210-2.8, SFH01605-3.8, SFH01610-2.8, SFH01616-1.8, SFH01616-2.8, SFH01620-1.8, SFH02005-3.8, SFH02010-3.8, SFH02020-1.8 + 20 more — see full table ↓
