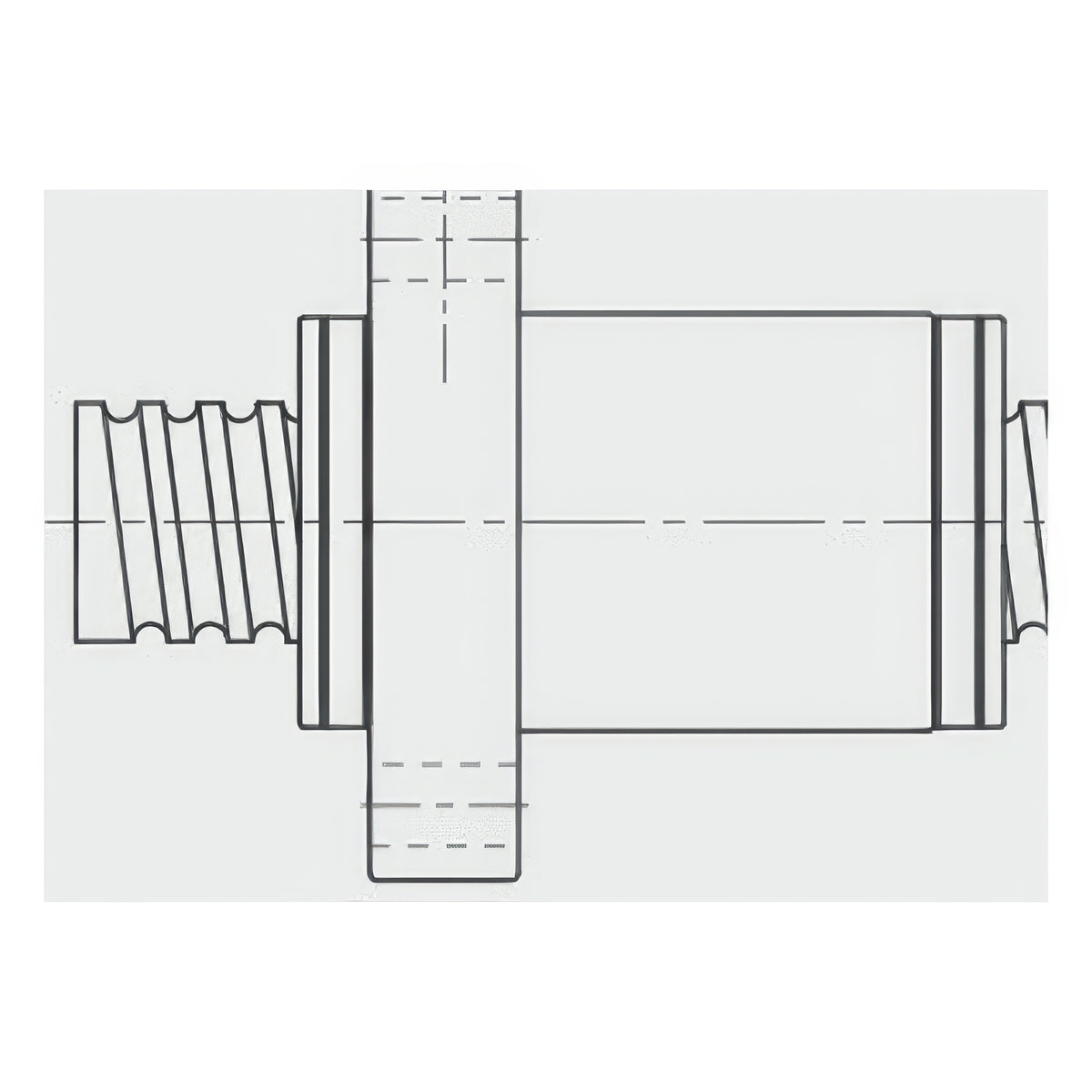

TBI MOTION SFJ Low-Noise Ground Ball Screw Flange Nut

TBI MOTION SFJ Low-Noise Ground Ball Screw Flange Nut

SFJ is a precision ground ball screw flange nut designed for low noise with strong dust-proof sealing.

Key features

  • It uses a DIN-style round flange and covers 6 to 25 mm screw diameter with leads from 5 to 25 mm
  • It suits quiet slide tables, medical equipment and indoor automation
  • Dimensions and load ratings should be confirmed with the maker catalog

Specifications

Nut type J low-noise, strong dust-proof DIN flange nut
SFJ00606-1.8 Nominal screw diameter: 6 mm | Lead: 6 mm | Circuit code: 1.8 | Nut weight: 0.019 kg | Screw shaft weight: 0.2 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
SFJ00808-1.8 Nominal screw diameter: 8 mm | Lead: 8 mm | Circuit code: 1.8 | Nut weight: 0.036 kg | Screw shaft weight: 0.405 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
SFJ01205-2.8 Nominal screw diameter: 12 mm | Lead: 5 mm | Circuit code: 2.8 | Nut weight: 0.09 kg | Screw shaft weight: 0.87 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
SFJ01210-2.8 Nominal screw diameter: 12 mm | Lead: 10 mm | Circuit code: 2.8 | Nut weight: 0.13 kg | Screw shaft weight: 0.87 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
SFJ01605-3.8 Nominal screw diameter: 16 mm | Lead: 5 mm | Circuit code: 3.8 | Nut weight: 0.15 kg | Screw shaft weight: 1.37 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
SFJ01610-2.8 Nominal screw diameter: 16 mm | Lead: 10 mm | Circuit code: 2.8 | Nut weight: 0.18 kg | Screw shaft weight: 1.37 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
SFJ01616-1.8 Nominal screw diameter: 16 mm | Lead: 16 mm | Circuit code: 1.8 | Nut weight: 0.178 kg | Screw shaft weight: 1.37 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
SFJ01620-1.8 Nominal screw diameter: 16 mm | Lead: 20 mm | Circuit code: 1.8 | Nut weight: 0.27 kg | Screw shaft weight: 1.37 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
SFJ02005-3.8 Nominal screw diameter: 20 mm | Lead: 5 mm | Circuit code: 3.8 | Nut weight: 0.201 kg | Screw shaft weight: 2.45 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
SFJ02010-3.8 Nominal screw diameter: 20 mm | Lead: 10 mm | Circuit code: 3.8 | Nut weight: 0.304 kg | Screw shaft weight: 2.45 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
SFJ02020-1.8 Nominal screw diameter: 20 mm | Lead: 20 mm | Circuit code: 1.8 | Nut weight: 0.306 kg | Screw shaft weight: 2.45 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
SFJ02505-3.8 Nominal screw diameter: 25 mm | Lead: 5 mm | Circuit code: 3.8 | Nut weight: 0.219 kg | Screw shaft weight: 3.83 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
SFJ02510-3.8 Nominal screw diameter: 25 mm | Lead: 10 mm | Circuit code: 3.8 | Nut weight: 0.355 kg | Screw shaft weight: 3.83 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
SFJ02525-1.8 Nominal screw diameter: 25 mm | Lead: 25 mm | Circuit code: 1.8 | Nut weight: 0.398 kg | Screw shaft weight: 3.83 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
Ball ScrewsTBI MOTION
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TBI MOTION SFJ Low-Noise Ground Ball Screw Flange Nut

Brand TBI MOTION·Ball Screws

Available part numbers (14)

SFJ00606-1.8, SFJ00808-1.8, SFJ01205-2.8, SFJ01210-2.8, SFJ01605-3.8, SFJ01610-2.8, SFJ01616-1.8, SFJ01620-1.8, SFJ02005-3.8, SFJ02010-3.8 + 4 more — see full table ↓

How to order

Send the TBI MOTION part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SFJ00606-1.8Nominal screw diameter: 6 mm | Lead: 6 mm | Circuit code: 1.8 | Nut weight: 0.019 kg | Screw shaft weight: 0.2 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
SFJ00808-1.8Nominal screw diameter: 8 mm | Lead: 8 mm | Circuit code: 1.8 | Nut weight: 0.036 kg | Screw shaft weight: 0.405 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
SFJ01205-2.8Nominal screw diameter: 12 mm | Lead: 5 mm | Circuit code: 2.8 | Nut weight: 0.09 kg | Screw shaft weight: 0.87 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
SFJ01210-2.8Nominal screw diameter: 12 mm | Lead: 10 mm | Circuit code: 2.8 | Nut weight: 0.13 kg | Screw shaft weight: 0.87 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
SFJ01605-3.8Nominal screw diameter: 16 mm | Lead: 5 mm | Circuit code: 3.8 | Nut weight: 0.15 kg | Screw shaft weight: 1.37 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
SFJ01610-2.8Nominal screw diameter: 16 mm | Lead: 10 mm | Circuit code: 2.8 | Nut weight: 0.18 kg | Screw shaft weight: 1.37 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
SFJ01616-1.8Nominal screw diameter: 16 mm | Lead: 16 mm | Circuit code: 1.8 | Nut weight: 0.178 kg | Screw shaft weight: 1.37 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
SFJ01620-1.8Nominal screw diameter: 16 mm | Lead: 20 mm | Circuit code: 1.8 | Nut weight: 0.27 kg | Screw shaft weight: 1.37 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
SFJ02005-3.8Nominal screw diameter: 20 mm | Lead: 5 mm | Circuit code: 3.8 | Nut weight: 0.201 kg | Screw shaft weight: 2.45 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
SFJ02010-3.8Nominal screw diameter: 20 mm | Lead: 10 mm | Circuit code: 3.8 | Nut weight: 0.304 kg | Screw shaft weight: 2.45 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
SFJ02020-1.8Nominal screw diameter: 20 mm | Lead: 20 mm | Circuit code: 1.8 | Nut weight: 0.306 kg | Screw shaft weight: 2.45 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
SFJ02505-3.8Nominal screw diameter: 25 mm | Lead: 5 mm | Circuit code: 3.8 | Nut weight: 0.219 kg | Screw shaft weight: 3.83 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
SFJ02510-3.8Nominal screw diameter: 25 mm | Lead: 10 mm | Circuit code: 3.8 | Nut weight: 0.355 kg | Screw shaft weight: 3.83 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
SFJ02525-1.8Nominal screw diameter: 25 mm | Lead: 25 mm | Circuit code: 1.8 | Nut weight: 0.398 kg | Screw shaft weight: 3.83 kg/m | Nut type: J low-noise, strong dust-proof DIN flange nut
