TBI MOTION XCYAR Cylindrical High-Lead Ball Screw Nut

TBI MOTION XCYAR Cylindrical High-Lead Ball Screw Nut

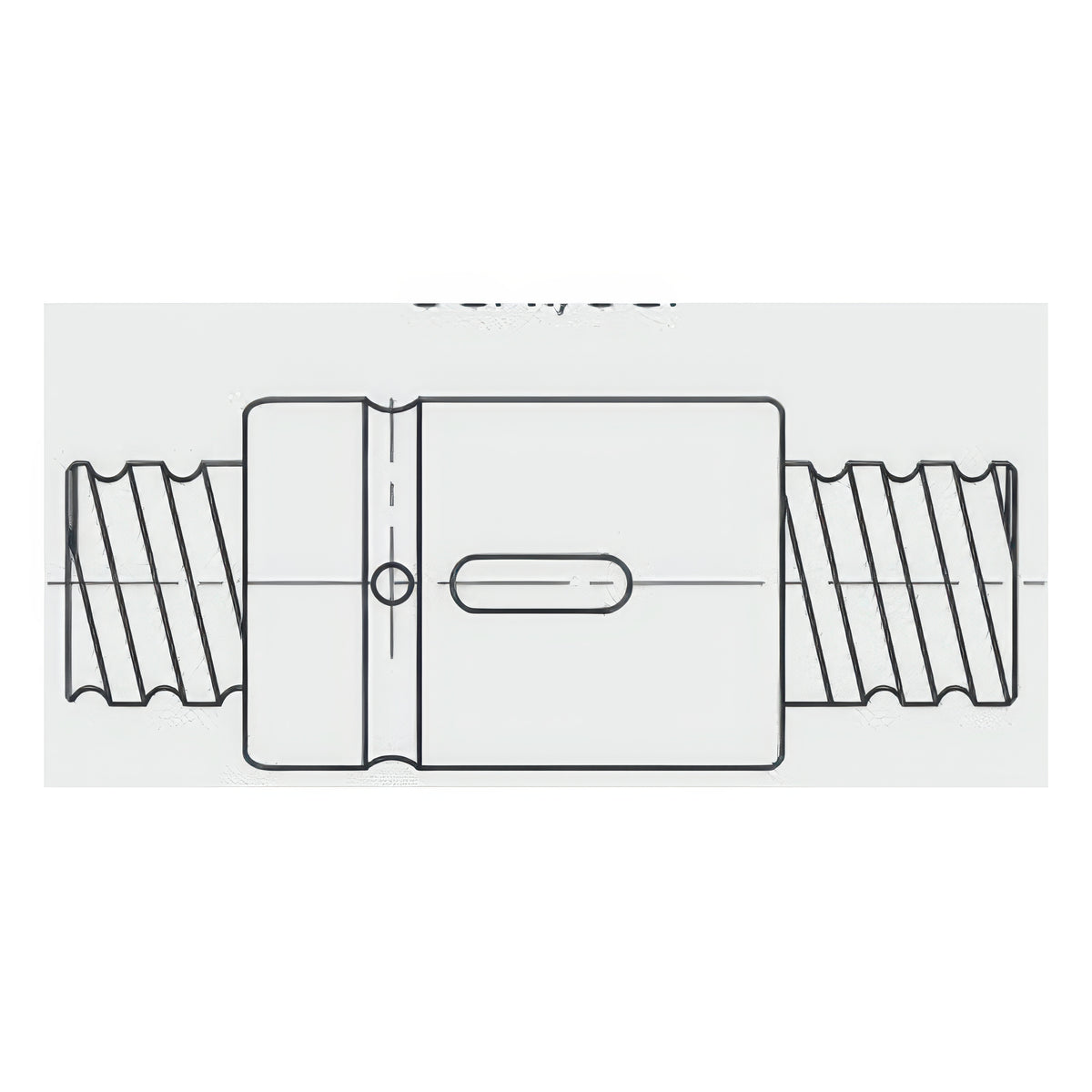

XCYAR01220A2-00 is a cylindrical (flangeless) high-lead ball screw nut for a 12 mm screw with 20 mm lead.

Key features

  • It uses two-start circuits and mounts in a housing bore
  • It suits compact high-speed axes where a flange cannot be used

Specifications

Nominal screw diameter 12 mm
Lead 20 mm
Ball diameter 2.5 mm
Circuits 1.8x2
Nut OD D 24 mm
Nut length 50 mm
Dynamic load rating Ca 777 kgf
Static load rating C0a 1718 kgf
Stiffness 13 kgf/um
XCYAR01220A2-00 Nominal screw diameter: 12 mm | Lead: 20 mm | Ball diameter: 2.5 mm | Circuits: 1.8x2 | Nut OD D: 24 mm | Nut length: 50 mm | Dynamic load rating Ca: 777 kgf | Static load rating C0a: 1718 kgf | Stiffness: 13 kgf/um
Ball ScrewsTBI MOTION
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TBI MOTION XCYAR Cylindrical High-Lead Ball Screw Nut

Brand TBI MOTION·Ball Screws

Available part numbers (1)

XCYAR01220A2-00

How to order

Send the TBI MOTION part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XCYAR01220A2-00Nominal screw diameter: 12 mm | Lead: 20 mm | Ball diameter: 2.5 mm | Circuits: 1.8x2 | Nut OD D: 24 mm | Nut length: 50 mm | Dynamic load rating Ca: 777 kgf | Static load rating C0a: 1718 kgf | Stiffness: 13 kgf/um
