TBI MOTION XSUR Miniature Ball Screw Flange Nut

TBI MOTION XSUR Miniature Ball Screw Flange Nut

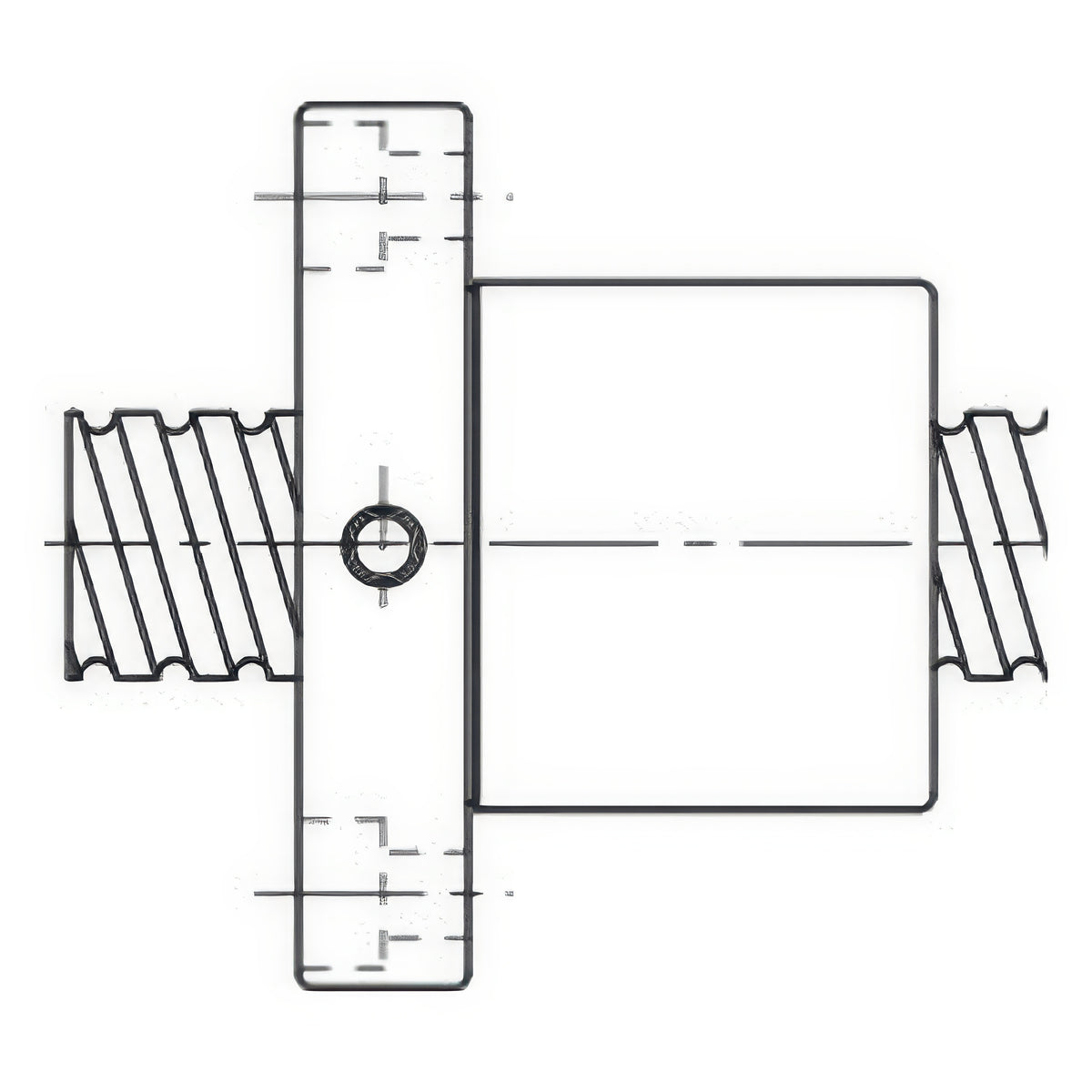

XSUR01204T3D-02 is a miniature ball screw flange nut for a 12 mm screw with 4 mm lead.

Key features

  • It has a double-cut flange and three load circuits in a compact body
  • It is listed alongside the SFK miniature series for small automation and positioning stages

Specifications

Nominal screw diameter 12 mm
Lead 4 mm
Ball diameter 2.5 mm
Circuits 1x3
Nut OD D 24 mm
Flange OD A 40 mm
Flange thickness B 6 mm
Nut length L 28 mm
Bolt PCD W 32 mm
Flange width H 25 mm
Mounting hole X 3.5 mm
Dynamic load rating Ca 704 kgf
XSUR01204T3D-02 Nominal screw diameter: 12 mm | Lead: 4 mm | Ball diameter: 2.5 mm | Circuits: 1x3 | Nut OD D: 24 mm | Flange OD A: 40 mm | Flange thickness B: 6 mm | Nut length L: 28 mm | Bolt PCD W: 32 mm | Flange width H: 25 mm | Mounting hole X: 3.5 mm | Dynamic load rating Ca: 704 kgf | Static load rating C0a: 1413 kgf
