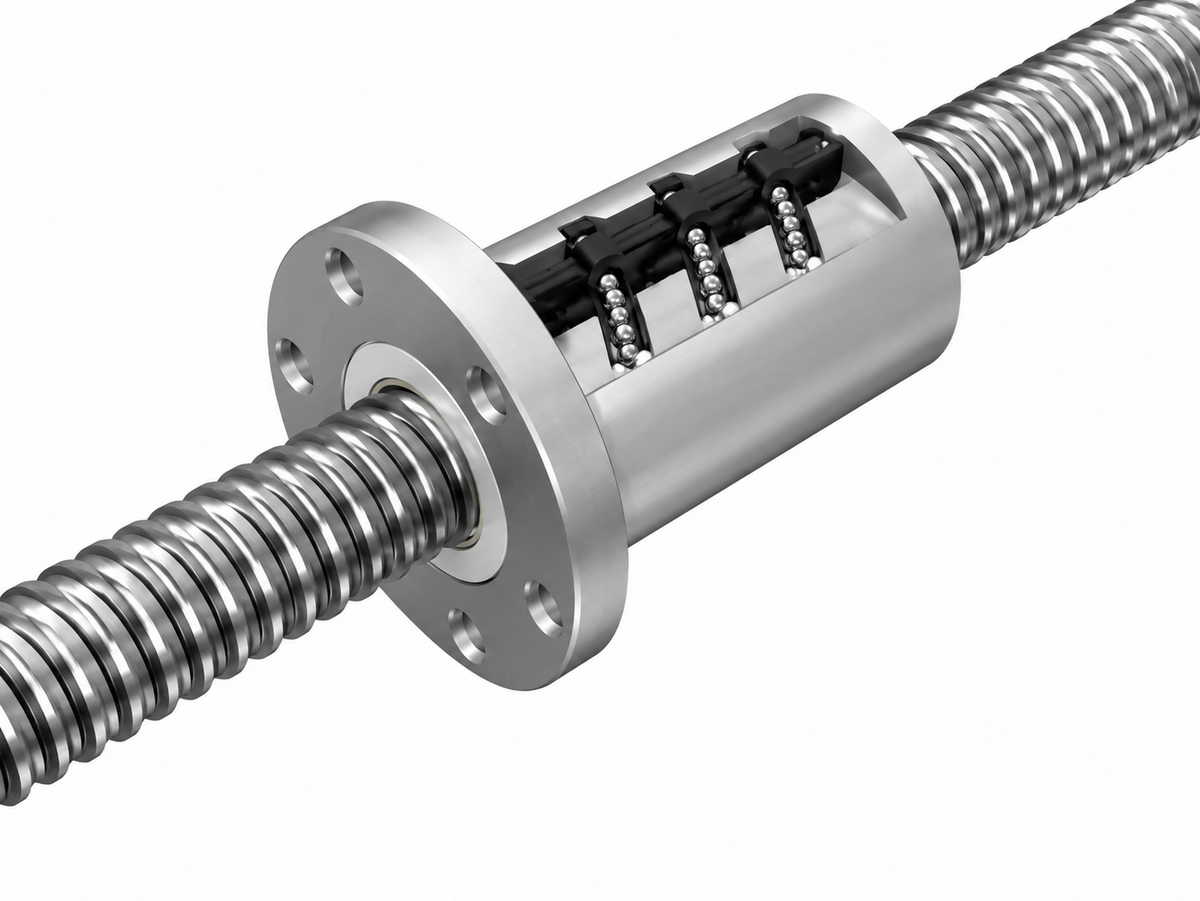

THK BIF Ball Screw (Offset Preload Nut, Shaft φ28)

THK BIF Ball Screw (Offset Preload Nut, Shaft φ28)

THK BIF Series Precision Ball Screw with Offset Preload Nut.

Key features

  • Phase-shifted left/right threads eliminate axial clearance (preloaded)
  • Compact design with smooth motion
  • Unfinished shaft end — easy additional machining
  • Shaft diameter φ28mm

Specifications

Shaft Diameter φ28mm
Lead 6mm
Nut OD D 55mm
Flange D1 85mm
PCD 69mm
Type Offset Preload Nut, Unfinished Shaft End (BIF)
BIF2806-5 THK BIF2806-5, φ28 Lead6, Ca=9.6kN | Shaft Diameter: φ28mm | Lead: 6mm | Ca: 9.6kN | C0a: 24.6kN | Nut OD D: 55mm | Flange D1: 85mm | Nut Length L1: 68mm | PCD: 69mm | Type: Offset Preload Nut, Unfinished Shaft End (BIF)
BIF2806-10 THK BIF2806-10, φ28 Lead6, Ca=17.5kN | Shaft Diameter: φ28mm | Lead: 6mm | Ca: 17.5kN | C0a: 49.4kN | Nut OD D: 55mm | Flange D1: 85mm | Nut Length L1: 104mm | PCD: 69mm | Type: Offset Preload Nut, Unfinished Shaft End (BIF)
Ball ScrewsTHK
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK BIF Ball Screw (Offset Preload Nut, Shaft φ28)

Brand THK·Ball Screws

Available part numbers (2)

BIF2806-5, BIF2806-10

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BIF2806-5THK BIF2806-5, φ28 Lead6, Ca=9.6kN | Shaft Diameter: φ28mm | Lead: 6mm | Ca: 9.6kN | C0a: 24.6kN | Nut OD D: 55mm | Flange D1: 85mm | Nut Length L1: 68mm | PCD: 69mm | Type: Offset Preload Nut, Unfinished Shaft End (BIF)
BIF2806-10THK BIF2806-10, φ28 Lead6, Ca=17.5kN | Shaft Diameter: φ28mm | Lead: 6mm | Ca: 17.5kN | C0a: 49.4kN | Nut OD D: 55mm | Flange D1: 85mm | Nut Length L1: 104mm | PCD: 69mm | Type: Offset Preload Nut, Unfinished Shaft End (BIF)
