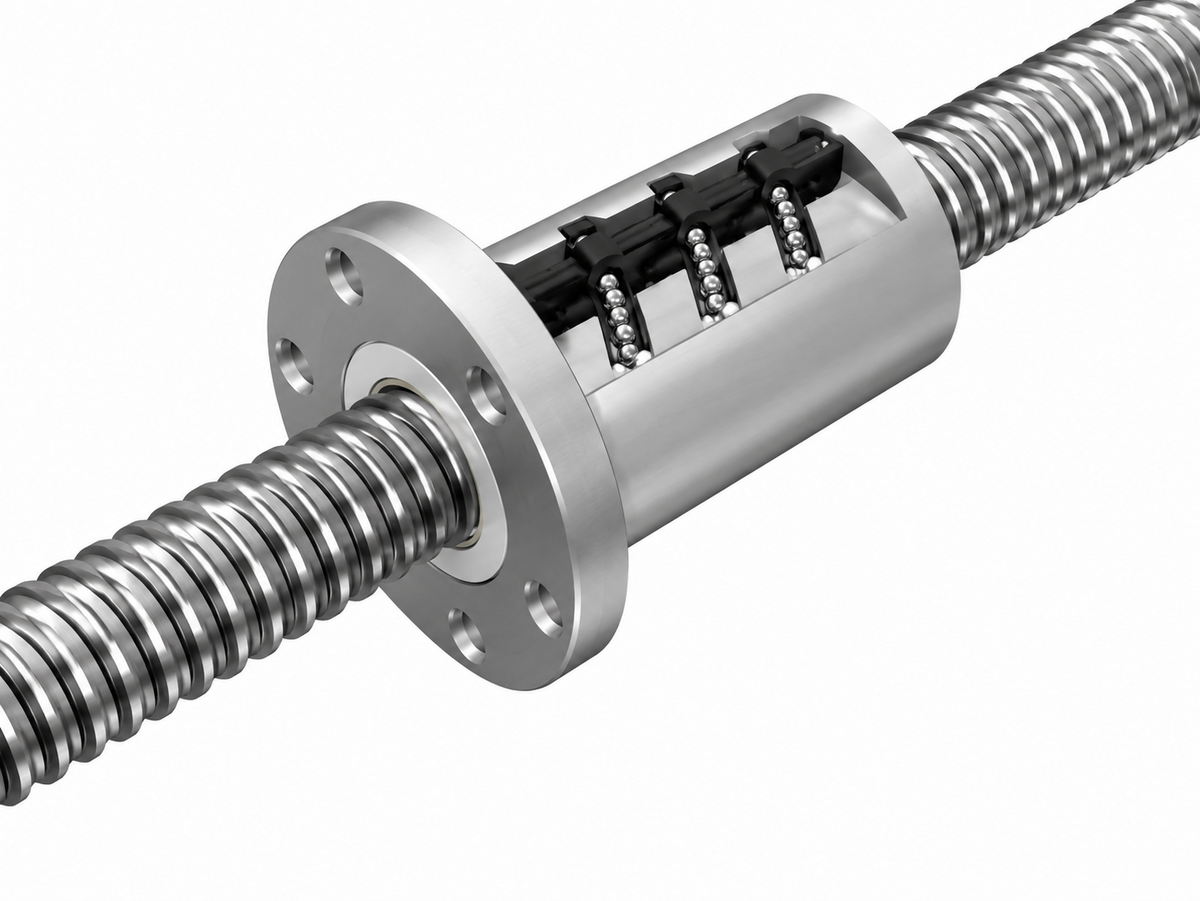

THK BIF Ball Screw (Offset Preload Nut, Shaft φ40)

THK BIF Ball Screw (Offset Preload Nut, Shaft φ40)

THK BIF Series Precision Ball Screw with Offset Preload Nut.

Key features

  • Phase-shifted left/right threads eliminate axial clearance (preloaded)
  • Compact design with smooth motion
  • Unfinished shaft end — easy additional machining
  • Shaft diameter φ40mm

Specifications

Shaft Diameter φ40mm
Type Offset Preload Nut, Unfinished Shaft End (BIF)
BIF4010-5 THK BIF4010-5, φ40 Lead10, Ca=29.0kN | Shaft Diameter: φ40mm | Lead: 10mm | Ca: 29.0kN | C0a: 70.4kN | Nut OD D: 82mm | Flange D1: 124mm | Nut Length L1: 103mm | PCD: 102mm | Type: Offset Preload Nut, Unfinished Shaft End (BIF)
BIF4010-10 THK BIF4010-10, φ40 Lead10, Ca=52.7kN | Shaft Diameter: φ40mm | Lead: 10mm | Ca: 52.7kN | C0a: 141.1kN | Nut OD D: 82mm | Flange D1: 124mm | Nut Length L1: 163mm | PCD: 102mm | Type: Offset Preload Nut, Unfinished Shaft End (BIF)
BIF4012-5 THK BIF4012-5, φ40 Lead12, Ca=33.9kN | Shaft Diameter: φ40mm | Lead: 12mm | Ca: 33.9kN | C0a: 79.2kN | Nut OD D: 84mm | Flange D1: 126mm | Nut Length L1: 119mm | PCD: 104mm | Type: Offset Preload Nut, Unfinished Shaft End (BIF)
BIF4012-10 THK BIF4012-10, φ40 Lead12, Ca=61.6kN | Shaft Diameter: φ40mm | Lead: 12mm | Ca: 61.6kN | C0a: 158.8kN | Nut OD D: 84mm | Flange D1: 126mm | Nut Length L1: 191mm | PCD: 104mm | Type: Offset Preload Nut, Unfinished Shaft End (BIF)
Ball ScrewsTHK
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK BIF Ball Screw (Offset Preload Nut, Shaft φ40)

Brand THK·Ball Screws

Available part numbers (4)

BIF4010-5, BIF4010-10, BIF4012-5, BIF4012-10

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BIF4010-5THK BIF4010-5, φ40 Lead10, Ca=29.0kN | Shaft Diameter: φ40mm | Lead: 10mm | Ca: 29.0kN | C0a: 70.4kN | Nut OD D: 82mm | Flange D1: 124mm | Nut Length L1: 103mm | PCD: 102mm | Type: Offset Preload Nut, Unfinished Shaft End (BIF)
BIF4010-10THK BIF4010-10, φ40 Lead10, Ca=52.7kN | Shaft Diameter: φ40mm | Lead: 10mm | Ca: 52.7kN | C0a: 141.1kN | Nut OD D: 82mm | Flange D1: 124mm | Nut Length L1: 163mm | PCD: 102mm | Type: Offset Preload Nut, Unfinished Shaft End (BIF)
BIF4012-5THK BIF4012-5, φ40 Lead12, Ca=33.9kN | Shaft Diameter: φ40mm | Lead: 12mm | Ca: 33.9kN | C0a: 79.2kN | Nut OD D: 84mm | Flange D1: 126mm | Nut Length L1: 119mm | PCD: 104mm | Type: Offset Preload Nut, Unfinished Shaft End (BIF)
BIF4012-10THK BIF4012-10, φ40 Lead12, Ca=61.6kN | Shaft Diameter: φ40mm | Lead: 12mm | Ca: 61.6kN | C0a: 158.8kN | Nut OD D: 84mm | Flange D1: 126mm | Nut Length L1: 191mm | PCD: 104mm | Type: Offset Preload Nut, Unfinished Shaft End (BIF)
