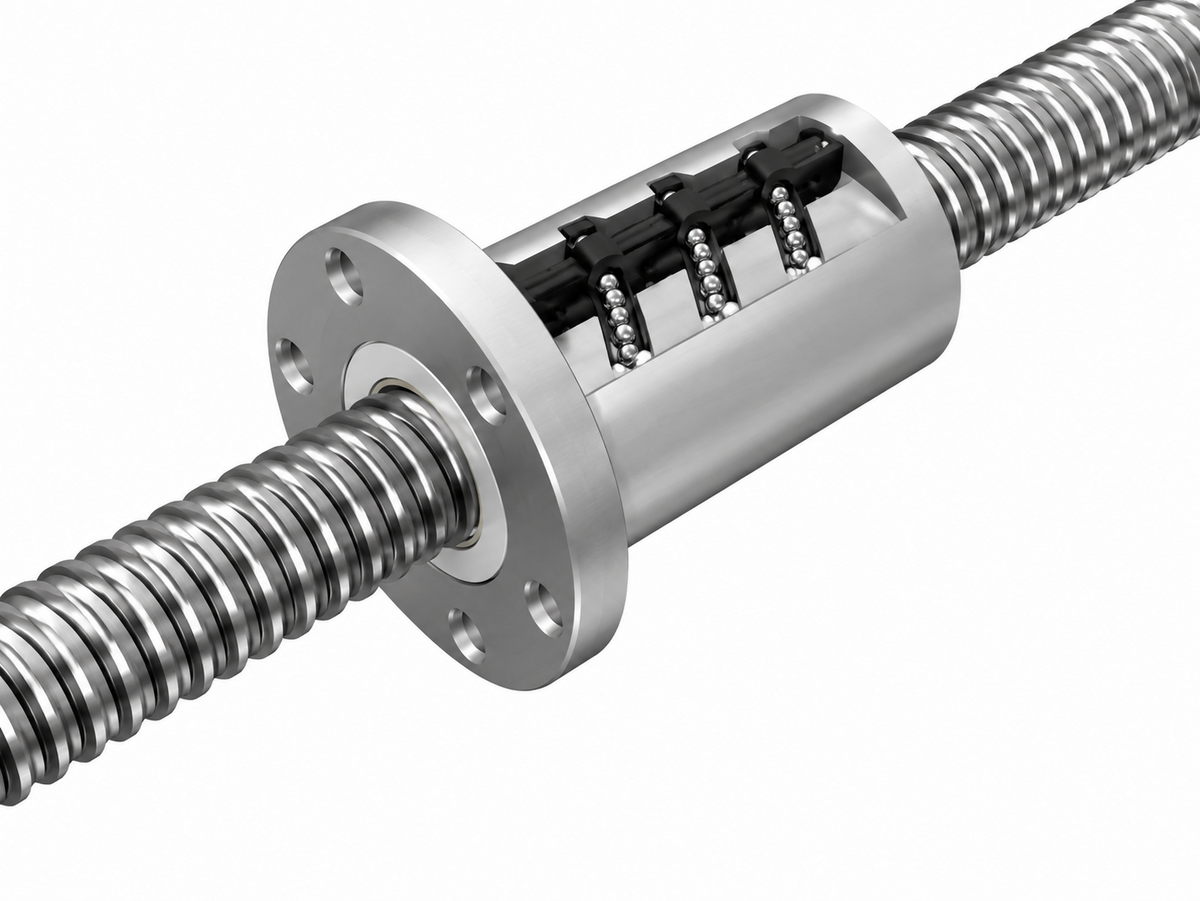

THK BIF Ball Screw (Offset Preload Nut, Shaft φ50)

THK BIF Ball Screw (Offset Preload Nut, Shaft φ50)

THK BIF Series Precision Ball Screw with Offset Preload Nut.

Key features

  • Phase-shifted left/right threads eliminate axial clearance (preloaded)
  • Compact design with smooth motion
  • Unfinished shaft end — easy additional machining
  • Shaft diameter φ50mm

Specifications

Shaft Diameter φ50mm
Lead 10mm
Nut OD D 93mm
Flange D1 135mm
PCD 113mm
Type Offset Preload Nut, Unfinished Shaft End (BIF)
BIF5010-5 THK BIF5010-5, φ50 Lead10, Ca=32.0kN | Shaft Diameter: φ50mm | Lead: 10mm | Ca: 32.0kN | C0a: 88.2kN | Nut OD D: 93mm | Flange D1: 135mm | Nut Length L1: 103mm | PCD: 113mm | Type: Offset Preload Nut, Unfinished Shaft End (BIF)
BIF5010-10 THK BIF5010-10, φ50 Lead10, Ca=58.2kN | Shaft Diameter: φ50mm | Lead: 10mm | Ca: 58.2kN | C0a: 176.4kN | Nut OD D: 93mm | Flange D1: 135mm | Nut Length L1: 163mm | PCD: 113mm | Type: Offset Preload Nut, Unfinished Shaft End (BIF)
Ball ScrewsTHK
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK BIF Ball Screw (Offset Preload Nut, Shaft φ50)

Brand THK·Ball Screws

Available part numbers (2)

BIF5010-5, BIF5010-10

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BIF5010-5THK BIF5010-5, φ50 Lead10, Ca=32.0kN | Shaft Diameter: φ50mm | Lead: 10mm | Ca: 32.0kN | C0a: 88.2kN | Nut OD D: 93mm | Flange D1: 135mm | Nut Length L1: 103mm | PCD: 113mm | Type: Offset Preload Nut, Unfinished Shaft End (BIF)
BIF5010-10THK BIF5010-10, φ50 Lead10, Ca=58.2kN | Shaft Diameter: φ50mm | Lead: 10mm | Ca: 58.2kN | C0a: 176.4kN | Nut OD D: 93mm | Flange D1: 135mm | Nut Length L1: 163mm | PCD: 113mm | Type: Offset Preload Nut, Unfinished Shaft End (BIF)
