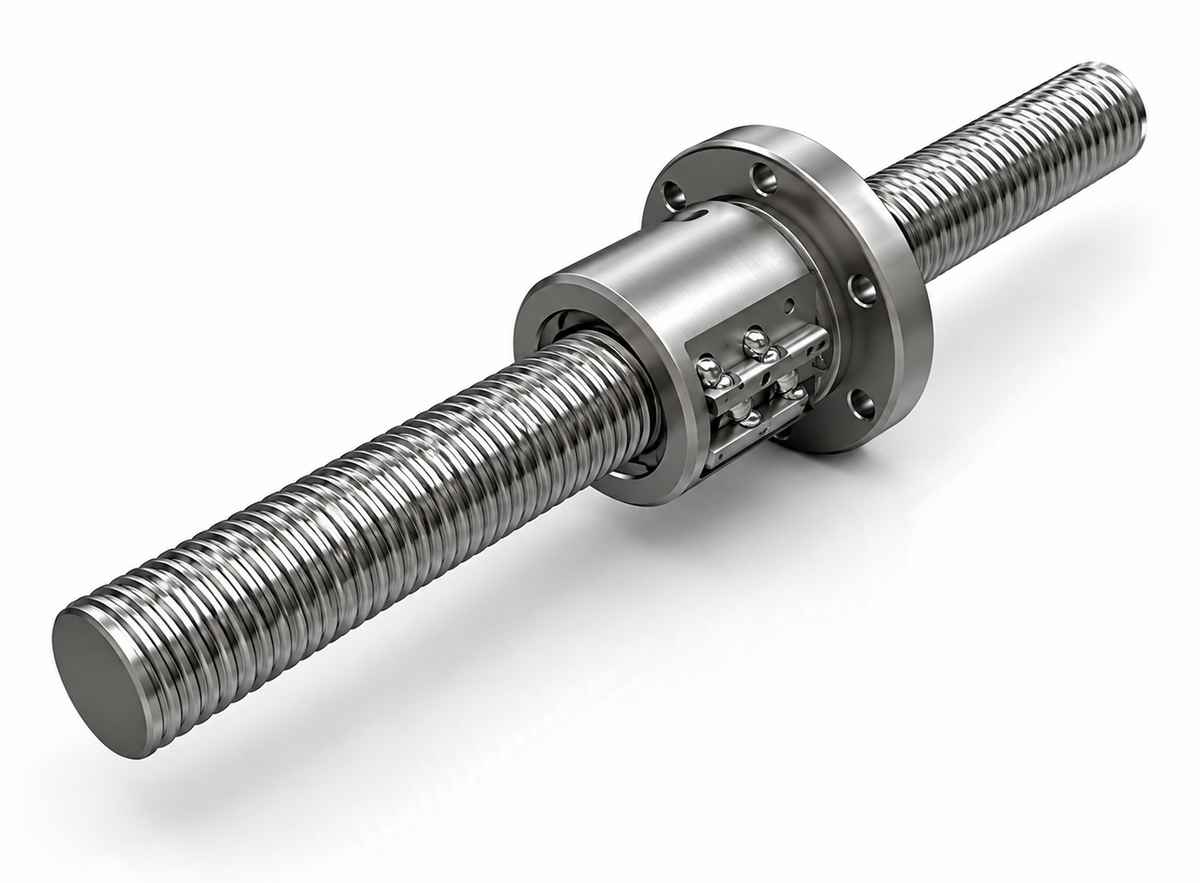

THK BIF2806V-10 Ball Screw Nut Unit (Small, Shaft φ28, Lead 6mm)

THK BIF2806V-10 Ball Screw Nut Unit (Small, Shaft φ28, Lead 6mm)

THK BIF-V Series Precision Ground Ball Screw Nut Unit (Small type, preloaded).

Key features

  • Shaft diameter φ28mm, lead 6mm. 2×2.5 ball circuit
  • Unfinished shaft end (BIF-V type)
  • DN value 100,000
  • Flanged nut, basic dynamic load rating Ca=17.5kN, static C0a=49.2kN, rigidity K=1000N/μm

Specifications

Shaft Diameter φ28mm
Lead 6mm
Nut Length L1 104mm
Ball Circuit 2×2.5
Ca 17.5kN
C0a 49.2kN
K 1000N/μm
Nut OD D 55mm
Flange D1 85mm
Type Preloaded, Unfinished Shaft End
BIF2806V-10+720 THK BIF2806V-10, φ28 Lead6, L=720mm | Shaft Diameter: φ28mm | Lead: 6mm | Shaft Total Length L: 720mm | Nut Length L1: 104mm | Ball Circuit: 2×2.5 | Ca: 17.5kN | C0a: 49.2kN | K: 1000N/μm | Nut OD D: 55mm | Flange D1: 85mm | Type: Preloaded, Unfinished Shaft End
BIF2806V-10+1020 THK BIF2806V-10, φ28 Lead6, L=1020mm | Shaft Diameter: φ28mm | Lead: 6mm | Shaft Total Length L: 1020mm | Nut Length L1: 104mm | Ball Circuit: 2×2.5 | Ca: 17.5kN | C0a: 49.2kN | K: 1000N/μm | Nut OD D: 55mm | Flange D1: 85mm | Type: Preloaded, Unfinished Shaft End
BIF2806V-10+1420 THK BIF2806V-10, φ28 Lead6, L=1420mm | Shaft Diameter: φ28mm | Lead: 6mm | Shaft Total Length L: 1420mm | Nut Length L1: 104mm | Ball Circuit: 2×2.5 | Ca: 17.5kN | C0a: 49.2kN | K: 1000N/μm | Nut OD D: 55mm | Flange D1: 85mm | Type: Preloaded, Unfinished Shaft End
Ball ScrewsTHK
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK BIF2806V-10 Ball Screw Nut Unit (Small, Shaft φ28, Lead 6mm)

Brand THK·Ball Screws

Available part numbers (3)

BIF2806V-10+720, BIF2806V-10+1020, BIF2806V-10+1420

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BIF2806V-10+720THK BIF2806V-10, φ28 Lead6, L=720mm | Shaft Diameter: φ28mm | Lead: 6mm | Shaft Total Length L: 720mm | Nut Length L1: 104mm | Ball Circuit: 2×2.5 | Ca: 17.5kN | C0a: 49.2kN | K: 1000N/μm | Nut OD D: 55mm | Flange D1: 85mm | Type: Preloaded, Unfinished Shaft End
BIF2806V-10+1020THK BIF2806V-10, φ28 Lead6, L=1020mm | Shaft Diameter: φ28mm | Lead: 6mm | Shaft Total Length L: 1020mm | Nut Length L1: 104mm | Ball Circuit: 2×2.5 | Ca: 17.5kN | C0a: 49.2kN | K: 1000N/μm | Nut OD D: 55mm | Flange D1: 85mm | Type: Preloaded, Unfinished Shaft End
BIF2806V-10+1420THK BIF2806V-10, φ28 Lead6, L=1420mm | Shaft Diameter: φ28mm | Lead: 6mm | Shaft Total Length L: 1420mm | Nut Length L1: 104mm | Ball Circuit: 2×2.5 | Ca: 17.5kN | C0a: 49.2kN | K: 1000N/μm | Nut OD D: 55mm | Flange D1: 85mm | Type: Preloaded, Unfinished Shaft End
