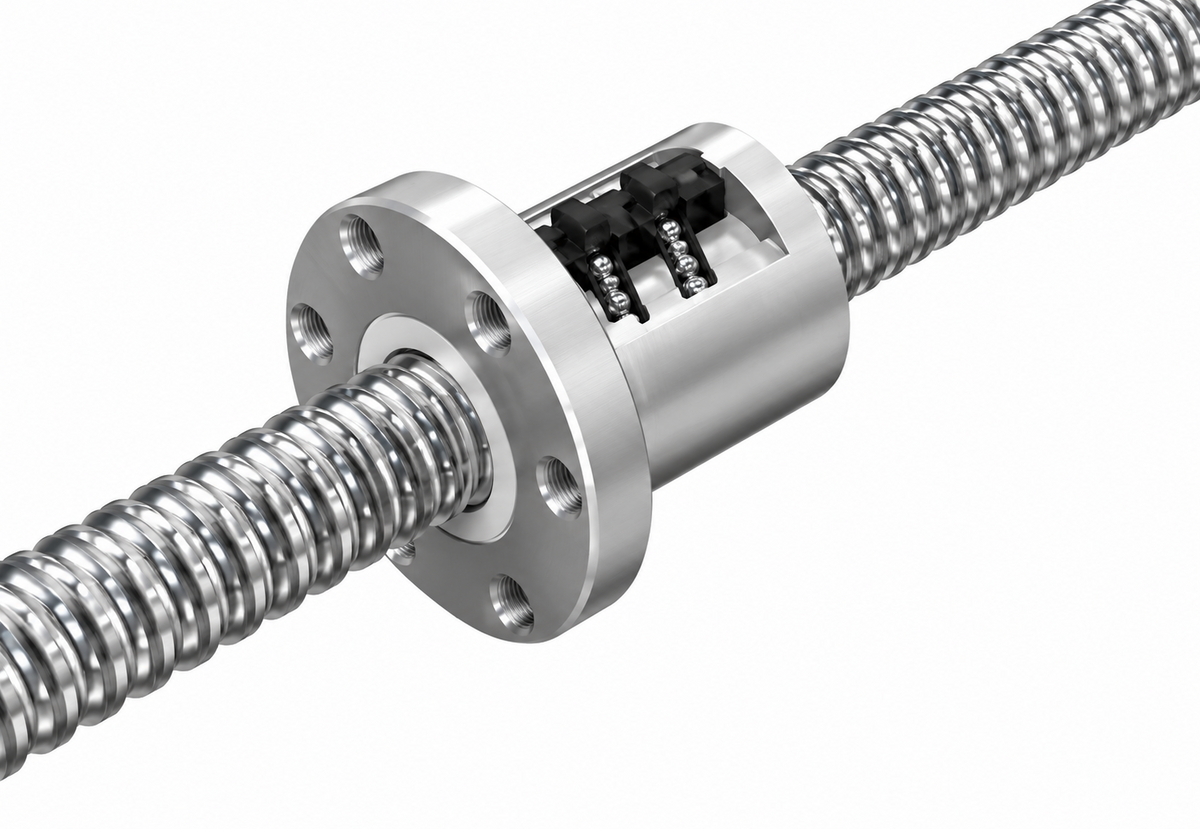

THK BNF Ball Screw (Single Nut, Shaft φ36)

THK BNF Ball Screw (Single Nut, Shaft φ36)

THK BNF Series Precision Ball Screw with Single Flanged Nut.

Key features

  • Simplest single-nut configuration — mounted via bolt holes on flange
  • Unfinished shaft end for easy additional machining
  • Shaft diameter φ36mm

Specifications

Shaft Diameter φ36mm
Lead 10mm
Ca 50.1kN
C0a 126.4kN
Nut OD D 75mm
Flange D1 120mm
Nut Length L1 111mm
PCD 98mm
Type Single Nut, Flanged, Unfinished Shaft End (BNF)
BNF3610-5 THK BNF3610-5, φ36 Lead10, Ca=50.1kN | Shaft Diameter: φ36mm | Lead: 10mm | Ca: 50.1kN | C0a: 126.4kN | Nut OD D: 75mm | Flange D1: 120mm | Nut Length L1: 111mm | PCD: 98mm | Type: Single Nut, Flanged, Unfinished Shaft End (BNF)
Ball ScrewsTHK
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK BNF Ball Screw (Single Nut, Shaft φ36)

Brand THK·Ball Screws

Available part numbers (1)

BNF3610-5

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BNF3610-5THK BNF3610-5, φ36 Lead10, Ca=50.1kN | Shaft Diameter: φ36mm | Lead: 10mm | Ca: 50.1kN | C0a: 126.4kN | Nut OD D: 75mm | Flange D1: 120mm | Nut Length L1: 111mm | PCD: 98mm | Type: Single Nut, Flanged, Unfinished Shaft End (BNF)
