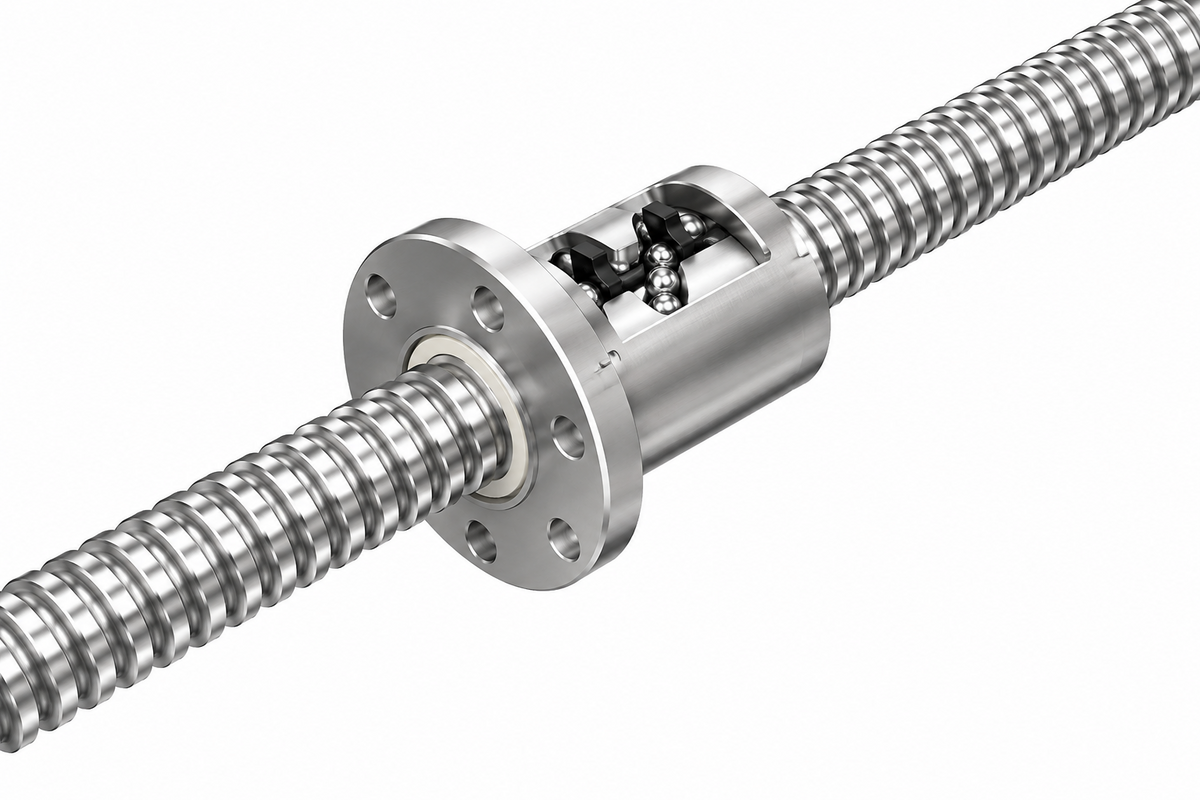

THK BNF-V Ball Screw (Single Nut Flanged, Shaft φ36, Medium)

THK BNF Series Precision Ball Screw with Single Flanged Nut.

Key features

Simplest single-nut configuration — mounted via bolt holes on flange
Shaft diameter φ36mm

Specifications

Type	Single Nut, Flanged (BNF)

BNF3610V-7.5		THK BNF3610V-7.5, φ36 Lead10, Ca=71.0kN \| Shaft Diameter: φ36mm \| Lead: 10mm \| Ca: 71.0kN \| C0a: 189.8kN \| Nut OD D: 75mm \| Flange D1: 120mm \| Nut Length L1: 141mm \| Type: Single Nut, Flanged (BNF)
BNF3612V-2.5		THK BNF3612V-2.5, φ36 Lead12, Ca=32.2kN \| Shaft Diameter: φ36mm \| Lead: 12mm \| Ca: 32.2kN \| C0a: 71.2kN \| Nut OD D: 78mm \| Flange D1: 123mm \| Nut Length L1: 87mm \| Type: Single Nut, Flanged (BNF)
BNF3612V-5		THK BNF3612V-5, φ36 Lead12, Ca=58.4kN \| Shaft Diameter: φ36mm \| Lead: 12mm \| Ca: 58.4kN \| C0a: 142.3kN \| Nut OD D: 78mm \| Flange D1: 123mm \| Nut Length L1: 123mm \| Type: Single Nut, Flanged (BNF)
BNF3616V-2.5		THK BNF3616V-2.5, φ36 Lead16, Ca=32.1kN \| Shaft Diameter: φ36mm \| Lead: 16mm \| Ca: 32.1kN \| C0a: 71.5kN \| Nut OD D: 78mm \| Flange D1: 123mm \| Nut Length L1: 92mm \| Type: Single Nut, Flanged (BNF)
BNF3620V-1.5		THK BNF3620V-1.5, φ36 Lead20, Ca=17.7kN \| Shaft Diameter: φ36mm \| Lead: 20mm \| Ca: 17.7kN \| C0a: 38.4kN \| Nut OD D: 75mm \| Flange D1: 114mm \| Nut Length L1: 82mm \| Type: Single Nut, Flanged (BNF)
BNF4010V-2.5		THK BNF4010V-2.5, φ40 Lead10, Ca=29.0kN \| Shaft Diameter: φ40mm \| Lead: 10mm \| Ca: 29.0kN \| C0a: 70.4kN \| Nut OD D: 82mm \| Flange D1: 124mm \| Nut Length L1: 73mm \| Type: Single Nut, Flanged (BNF)
BNF4010V-3.5		THK BNF4010V-3.5, φ40 Lead10, Ca=38.8kN \| Shaft Diameter: φ40mm \| Lead: 10mm \| Ca: 38.8kN \| C0a: 98.5kN \| Nut OD D: 82mm \| Flange D1: 124mm \| Nut Length L1: 83mm \| Type: Single Nut, Flanged (BNF)
BNF4010V-5		THK BNF4010V-5, φ40 Lead10, Ca=52.7kN \| Shaft Diameter: φ40mm \| Lead: 10mm \| Ca: 52.7kN \| C0a: 140.7kN \| Nut OD D: 82mm \| Flange D1: 124mm \| Nut Length L1: 103mm \| Type: Single Nut, Flanged (BNF)
BNF4012V-2.5		THK BNF4012V-2.5, φ40 Lead12, Ca=33.9kN \| Shaft Diameter: φ40mm \| Lead: 12mm \| Ca: 33.9kN \| C0a: 79.2kN \| Nut OD D: 84mm \| Flange D1: 126mm \| Nut Length L1: 83mm \| Type: Single Nut, Flanged (BNF)
BNF4012V-3.5		THK BNF4012V-3.5, φ40 Lead12, Ca=45.3kN \| Shaft Diameter: φ40mm \| Lead: 12mm \| Ca: 45.3kN \| C0a: 110.8kN \| Nut OD D: 84mm \| Flange D1: 126mm \| Nut Length L1: 95mm \| Type: Single Nut, Flanged (BNF)
BNF4012V-5		THK BNF4012V-5, φ40 Lead12, Ca=61.6kN \| Shaft Diameter: φ40mm \| Lead: 12mm \| Ca: 61.6kN \| C0a: 158.3kN \| Nut OD D: 84mm \| Flange D1: 126mm \| Nut Length L1: 119mm \| Type: Single Nut, Flanged (BNF)
BNF4016V-5		THK BNF4016V-5, φ40 Lead16, Ca=61.5kN \| Shaft Diameter: φ40mm \| Lead: 16mm \| Ca: 61.5kN \| C0a: 158.8kN \| Nut OD D: 84mm \| Flange D1: 126mm \| Nut Length L1: 144mm \| Type: Single Nut, Flanged (BNF)
BNF4020V-5		THK BNF4020V-5, φ40 Lead20, Ca=52.4kN \| Shaft Diameter: φ40mm \| Lead: 20mm \| Ca: 52.4kN \| C0a: 142.0kN \| Nut OD D: 82mm \| Flange D1: 126mm \| Nut Length L1: 162mm \| Type: Single Nut, Flanged (BNF)
BNF4510V-2.5		THK BNF4510V-2.5, φ45 Lead10, Ca=30.6kN \| Shaft Diameter: φ45mm \| Lead: 10mm \| Ca: 30.6kN \| C0a: 79.3kN \| Nut OD D: 88mm \| Flange D1: 132mm \| Nut Length L1: 81mm \| Type: Single Nut, Flanged (BNF)
BNF4510V-3		THK BNF4510V-3, φ45 Lead10, Ca=35.8kN \| Shaft Diameter: φ45mm \| Lead: 10mm \| Ca: 35.8kN \| C0a: 95.1kN \| Nut OD D: 88mm \| Flange D1: 132mm \| Nut Length L1: 94mm \| Type: Single Nut, Flanged (BNF)
BNF4510V-5		THK BNF4510V-5, φ45 Lead10, Ca=55.6kN \| Shaft Diameter: φ45mm \| Lead: 10mm \| Ca: 55.6kN \| C0a: 158.5kN \| Nut OD D: 88mm \| Flange D1: 132mm \| Nut Length L1: 111mm \| Type: Single Nut, Flanged (BNF)

Ball ScrewsTHK

16 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK BNF-V Ball Screw (Single Nut Flanged, Shaft φ36, Medium)

Brand THK·Ball Screws

Available part numbers (16)

BNF3610V-7.5, BNF3612V-2.5, BNF3612V-5, BNF3616V-2.5, BNF3620V-1.5, BNF4010V-2.5, BNF4010V-3.5, BNF4010V-5, BNF4012V-2.5, BNF4012V-3.5 + 6 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	BNF3610V-7.5	THK BNF3610V-7.5, φ36 Lead10, Ca=71.0kN \| Shaft Diameter: φ36mm \| Lead: 10mm \| Ca: 71.0kN \| C0a: 189.8kN \| Nut OD D: 75mm \| Flange D1: 120mm \| Nut Length L1: 141mm \| Type: Single Nut, Flanged (BNF)
	BNF3612V-2.5	THK BNF3612V-2.5, φ36 Lead12, Ca=32.2kN \| Shaft Diameter: φ36mm \| Lead: 12mm \| Ca: 32.2kN \| C0a: 71.2kN \| Nut OD D: 78mm \| Flange D1: 123mm \| Nut Length L1: 87mm \| Type: Single Nut, Flanged (BNF)
	BNF3612V-5	THK BNF3612V-5, φ36 Lead12, Ca=58.4kN \| Shaft Diameter: φ36mm \| Lead: 12mm \| Ca: 58.4kN \| C0a: 142.3kN \| Nut OD D: 78mm \| Flange D1: 123mm \| Nut Length L1: 123mm \| Type: Single Nut, Flanged (BNF)
	BNF3616V-2.5	THK BNF3616V-2.5, φ36 Lead16, Ca=32.1kN \| Shaft Diameter: φ36mm \| Lead: 16mm \| Ca: 32.1kN \| C0a: 71.5kN \| Nut OD D: 78mm \| Flange D1: 123mm \| Nut Length L1: 92mm \| Type: Single Nut, Flanged (BNF)
	BNF3620V-1.5	THK BNF3620V-1.5, φ36 Lead20, Ca=17.7kN \| Shaft Diameter: φ36mm \| Lead: 20mm \| Ca: 17.7kN \| C0a: 38.4kN \| Nut OD D: 75mm \| Flange D1: 114mm \| Nut Length L1: 82mm \| Type: Single Nut, Flanged (BNF)
	BNF4010V-2.5	THK BNF4010V-2.5, φ40 Lead10, Ca=29.0kN \| Shaft Diameter: φ40mm \| Lead: 10mm \| Ca: 29.0kN \| C0a: 70.4kN \| Nut OD D: 82mm \| Flange D1: 124mm \| Nut Length L1: 73mm \| Type: Single Nut, Flanged (BNF)
	BNF4010V-3.5	THK BNF4010V-3.5, φ40 Lead10, Ca=38.8kN \| Shaft Diameter: φ40mm \| Lead: 10mm \| Ca: 38.8kN \| C0a: 98.5kN \| Nut OD D: 82mm \| Flange D1: 124mm \| Nut Length L1: 83mm \| Type: Single Nut, Flanged (BNF)
	BNF4010V-5	THK BNF4010V-5, φ40 Lead10, Ca=52.7kN \| Shaft Diameter: φ40mm \| Lead: 10mm \| Ca: 52.7kN \| C0a: 140.7kN \| Nut OD D: 82mm \| Flange D1: 124mm \| Nut Length L1: 103mm \| Type: Single Nut, Flanged (BNF)
	BNF4012V-2.5	THK BNF4012V-2.5, φ40 Lead12, Ca=33.9kN \| Shaft Diameter: φ40mm \| Lead: 12mm \| Ca: 33.9kN \| C0a: 79.2kN \| Nut OD D: 84mm \| Flange D1: 126mm \| Nut Length L1: 83mm \| Type: Single Nut, Flanged (BNF)
	BNF4012V-3.5	THK BNF4012V-3.5, φ40 Lead12, Ca=45.3kN \| Shaft Diameter: φ40mm \| Lead: 12mm \| Ca: 45.3kN \| C0a: 110.8kN \| Nut OD D: 84mm \| Flange D1: 126mm \| Nut Length L1: 95mm \| Type: Single Nut, Flanged (BNF)
	BNF4012V-5	THK BNF4012V-5, φ40 Lead12, Ca=61.6kN \| Shaft Diameter: φ40mm \| Lead: 12mm \| Ca: 61.6kN \| C0a: 158.3kN \| Nut OD D: 84mm \| Flange D1: 126mm \| Nut Length L1: 119mm \| Type: Single Nut, Flanged (BNF)
	BNF4016V-5	THK BNF4016V-5, φ40 Lead16, Ca=61.5kN \| Shaft Diameter: φ40mm \| Lead: 16mm \| Ca: 61.5kN \| C0a: 158.8kN \| Nut OD D: 84mm \| Flange D1: 126mm \| Nut Length L1: 144mm \| Type: Single Nut, Flanged (BNF)
	BNF4020V-5	THK BNF4020V-5, φ40 Lead20, Ca=52.4kN \| Shaft Diameter: φ40mm \| Lead: 20mm \| Ca: 52.4kN \| C0a: 142.0kN \| Nut OD D: 82mm \| Flange D1: 126mm \| Nut Length L1: 162mm \| Type: Single Nut, Flanged (BNF)
	BNF4510V-2.5	THK BNF4510V-2.5, φ45 Lead10, Ca=30.6kN \| Shaft Diameter: φ45mm \| Lead: 10mm \| Ca: 30.6kN \| C0a: 79.3kN \| Nut OD D: 88mm \| Flange D1: 132mm \| Nut Length L1: 81mm \| Type: Single Nut, Flanged (BNF)
	BNF4510V-3	THK BNF4510V-3, φ45 Lead10, Ca=35.8kN \| Shaft Diameter: φ45mm \| Lead: 10mm \| Ca: 35.8kN \| C0a: 95.1kN \| Nut OD D: 88mm \| Flange D1: 132mm \| Nut Length L1: 94mm \| Type: Single Nut, Flanged (BNF)
	BNF4510V-5	THK BNF4510V-5, φ45 Lead10, Ca=55.6kN \| Shaft Diameter: φ45mm \| Lead: 10mm \| Ca: 55.6kN \| C0a: 158.5kN \| Nut OD D: 88mm \| Flange D1: 132mm \| Nut Length L1: 111mm \| Type: Single Nut, Flanged (BNF)
