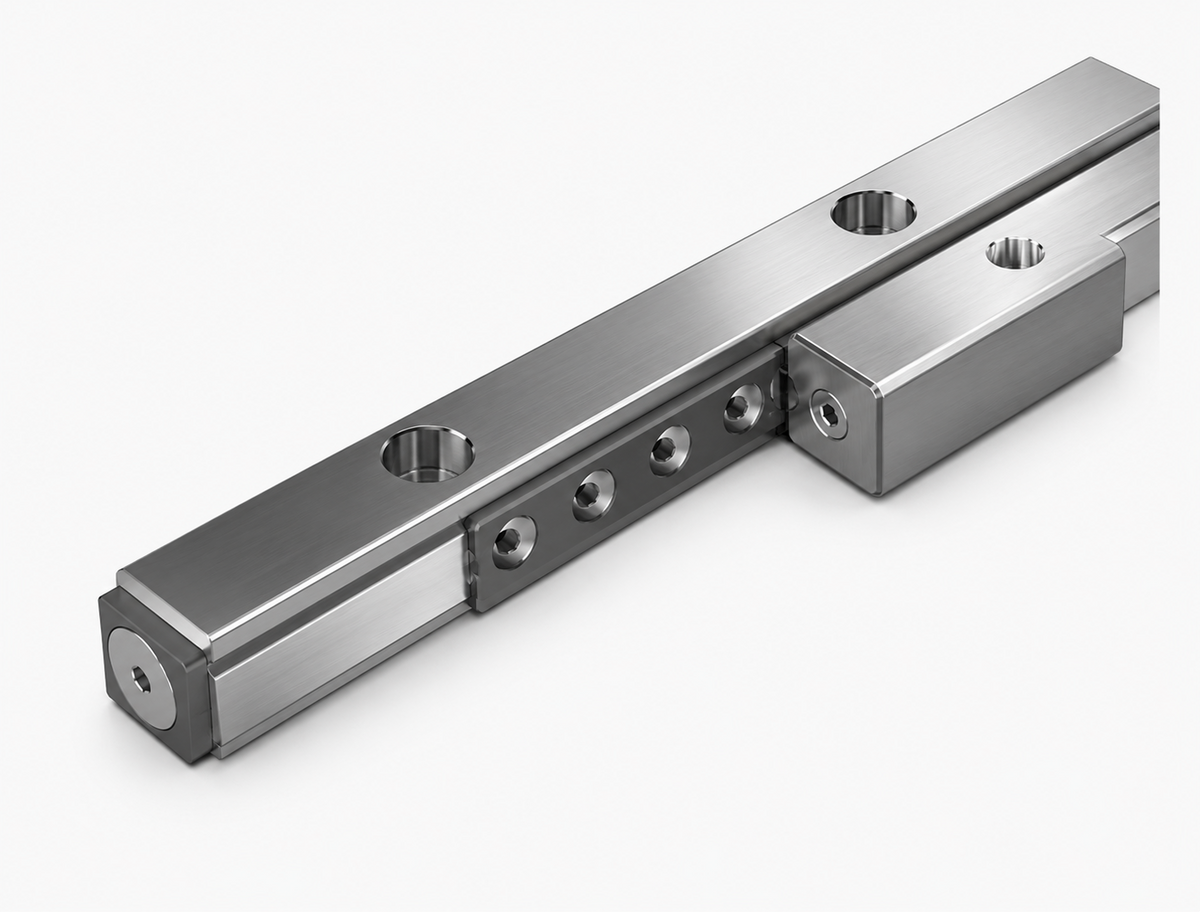

Cross Roller Guide VR9 type.

Key features

  • Rail length 200~1200mm, 10~60 rollers per set
  • Basic dynamic load rating C_Z = 9.53 kN per roller; static C0Z = 9.48 kN per roller. 4-rail + 2-cage assembly (1 set)
  • Roller diameter 9.525 mm (cross arrangement)
  • Stainless type (VR9M) available on request

Specifications

Roller Diameter 9.525 mm (cross roller)
Basic Dynamic Load Rating C_Z 9.53 kN (per roller)
Basic Static Load Rating C0Z 9.48 kN (per roller)
Rail Mass 3.2 kg/m (rail)
Assembly 4 rails + 2 cages (1 set)
Stainless Type VR9M (order basis)
VR9-200x10Z THK Cross Roller Guide VR9, Rail 200mm, 10 rollers, max stroke 118mm | Rail Length: 200 mm | Rollers (Z): 10 | Max Stroke: 118 mm | Roller Diameter: 9.525 mm (cross roller) | Basic Dynamic Load Rating C_Z: 9.53 kN (per roller) | Basic Static Load Rating C0Z: 9.48 kN (per roller) | Rail Mass: 3.2 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR9M (order basis)
VR9-300x15Z THK Cross Roller Guide VR9, Rail 300mm, 15 rollers, max stroke 178mm | Rail Length: 300 mm | Rollers (Z): 15 | Max Stroke: 178 mm | Roller Diameter: 9.525 mm (cross roller) | Basic Dynamic Load Rating C_Z: 9.53 kN (per roller) | Basic Static Load Rating C0Z: 9.48 kN (per roller) | Rail Mass: 3.2 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR9M (order basis)
VR9-400x20Z THK Cross Roller Guide VR9, Rail 400mm, 20 rollers, max stroke 238mm | Rail Length: 400 mm | Rollers (Z): 20 | Max Stroke: 238 mm | Roller Diameter: 9.525 mm (cross roller) | Basic Dynamic Load Rating C_Z: 9.53 kN (per roller) | Basic Static Load Rating C0Z: 9.48 kN (per roller) | Rail Mass: 3.2 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR9M (order basis)
VR9-500x25Z THK Cross Roller Guide VR9, Rail 500mm, 25 rollers, max stroke 298mm | Rail Length: 500 mm | Rollers (Z): 25 | Max Stroke: 298 mm | Roller Diameter: 9.525 mm (cross roller) | Basic Dynamic Load Rating C_Z: 9.53 kN (per roller) | Basic Static Load Rating C0Z: 9.48 kN (per roller) | Rail Mass: 3.2 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR9M (order basis)
VR9-600x30Z THK Cross Roller Guide VR9, Rail 600mm, 30 rollers, max stroke 358mm | Rail Length: 600 mm | Rollers (Z): 30 | Max Stroke: 358 mm | Roller Diameter: 9.525 mm (cross roller) | Basic Dynamic Load Rating C_Z: 9.53 kN (per roller) | Basic Static Load Rating C0Z: 9.48 kN (per roller) | Rail Mass: 3.2 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR9M (order basis)
VR9-700x35Z THK Cross Roller Guide VR9, Rail 700mm, 35 rollers, max stroke 418mm | Rail Length: 700 mm | Rollers (Z): 35 | Max Stroke: 418 mm | Roller Diameter: 9.525 mm (cross roller) | Basic Dynamic Load Rating C_Z: 9.53 kN (per roller) | Basic Static Load Rating C0Z: 9.48 kN (per roller) | Rail Mass: 3.2 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR9M (order basis)
VR9-800x40Z THK Cross Roller Guide VR9, Rail 800mm, 40 rollers, max stroke 478mm | Rail Length: 800 mm | Rollers (Z): 40 | Max Stroke: 478 mm | Roller Diameter: 9.525 mm (cross roller) | Basic Dynamic Load Rating C_Z: 9.53 kN (per roller) | Basic Static Load Rating C0Z: 9.48 kN (per roller) | Rail Mass: 3.2 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR9M (order basis)
VR9-900x45Z THK Cross Roller Guide VR9, Rail 900mm, 45 rollers, max stroke 538mm | Rail Length: 900 mm | Rollers (Z): 45 | Max Stroke: 538 mm | Roller Diameter: 9.525 mm (cross roller) | Basic Dynamic Load Rating C_Z: 9.53 kN (per roller) | Basic Static Load Rating C0Z: 9.48 kN (per roller) | Rail Mass: 3.2 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR9M (order basis)
VR9-1000x50Z THK Cross Roller Guide VR9, Rail 1000mm, 50 rollers, max stroke 598mm | Rail Length: 1000 mm | Rollers (Z): 50 | Max Stroke: 598 mm | Roller Diameter: 9.525 mm (cross roller) | Basic Dynamic Load Rating C_Z: 9.53 kN (per roller) | Basic Static Load Rating C0Z: 9.48 kN (per roller) | Rail Mass: 3.2 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR9M (order basis)
VR9-1100x55Z THK Cross Roller Guide VR9, Rail 1100mm, 55 rollers, max stroke 658mm | Rail Length: 1100 mm | Rollers (Z): 55 | Max Stroke: 658 mm | Roller Diameter: 9.525 mm (cross roller) | Basic Dynamic Load Rating C_Z: 9.53 kN (per roller) | Basic Static Load Rating C0Z: 9.48 kN (per roller) | Rail Mass: 3.2 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR9M (order basis)
VR9-1200x60Z THK Cross Roller Guide VR9, Rail 1200mm, 60 rollers, max stroke 718mm | Rail Length: 1200 mm | Rollers (Z): 60 | Max Stroke: 718 mm | Roller Diameter: 9.525 mm (cross roller) | Basic Dynamic Load Rating C_Z: 9.53 kN (per roller) | Basic Static Load Rating C0Z: 9.48 kN (per roller) | Rail Mass: 3.2 kg/m (rail) | Assembly: 4 rails + 2 cages (1 set) | Stainless Type: VR9M (order basis)
