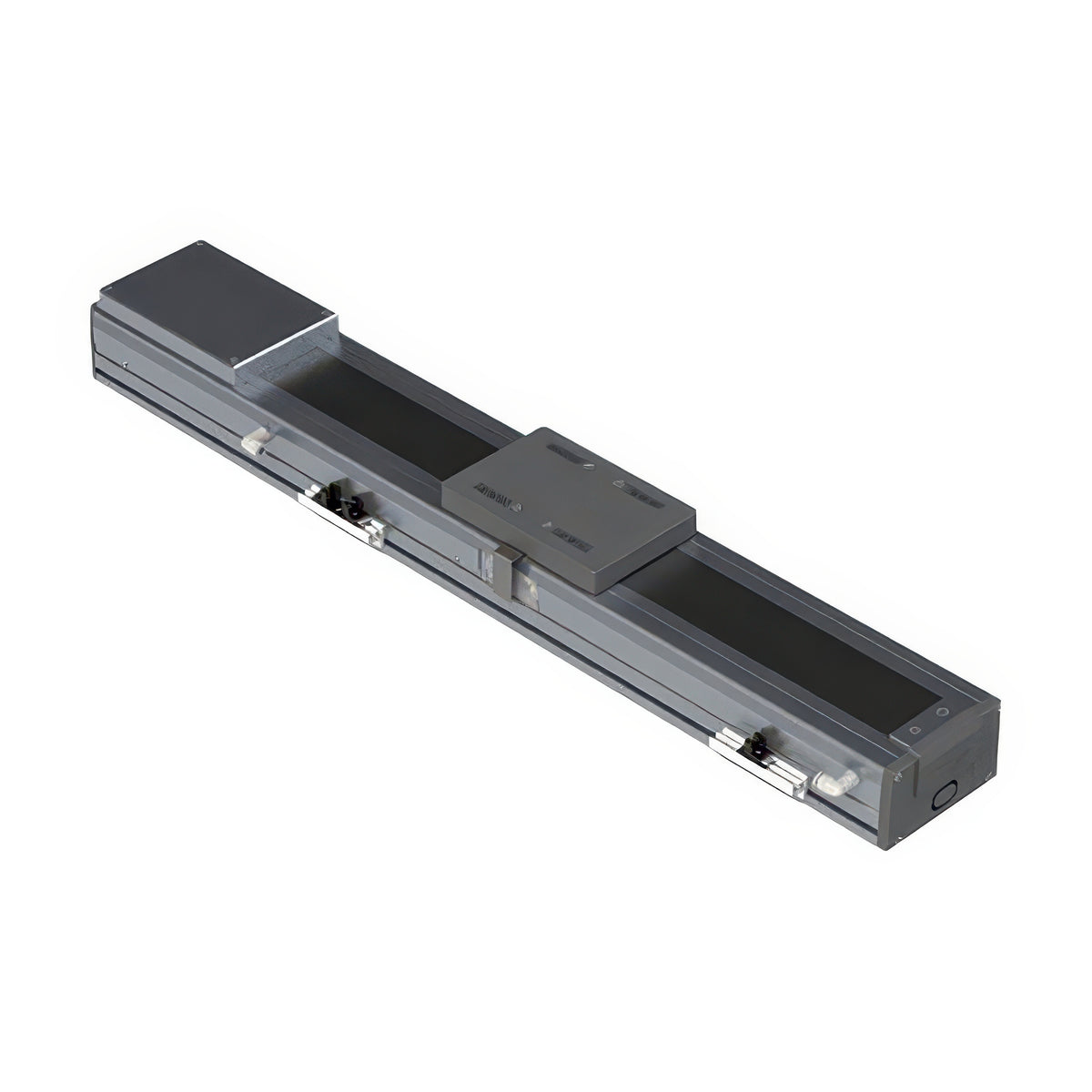

TPC Mechatronics NCS Series Clean-Type Ball Screw Linear Actuator

TPC Mechatronics NCS Series Clean-Type Ball Screw Linear Actuator

The NCS series is a clean-room type single-axis linear actuator combining an LM guide and ball screw, in 45, 65, 90, 120, 160, 180 and 210 mm body widths.

Key features

  • A steel-band cover and vacuum suction port support Class 100 clean environments
  • The compact, high-rigidity structure suits multi-axis combinations, and grease nipples make maintenance easy
  • Motors can be direct-coupled, built-in or mounted in parallel on the left, right or bottom, with 100 to 750 W servo motors
  • Repeatability is +/-0.02 mm, with maximum speed up to 1000 mm/s and strokes up to 1400 mm depending on size

Specifications

Repeatability +/-0.02 mm
Clean type Class 100 (with vacuum suction)
TPC Mechatronics NCS Series Clean-Type Ball Screw Linear Actuator reference 2
NCS45-E Size: NCS45 | Motor mounting: Direct coupled motor (E) | Stroke: 100-500 mm | Ball screw lead: 5 / 10 mm | Max. speed: 250 / 500 mm/s | Motor: 100 W | Max. payload horizontal / vertical: 10 / 4 kg (lead 5), 7 / 3 kg (lead 10) | Repeatability: +/-0.02 mm | LM guide No.12W, 1 rail 1 block | Clean type: Class 100 (with vacuum suction)
NCS45-PL Size: NCS45 | Motor mounting: Parallel motor, left (PL) | Stroke: 100-500 mm | Ball screw lead: 5 / 10 mm | Max. speed: 250 / 500 mm/s | Motor: 100 W | Max. payload horizontal / vertical: 10 / 4 kg (lead 5), 7 / 3 kg (lead 10) | Repeatability: +/-0.02 mm | LM guide No.12W, 1 rail 1 block | Clean type: Class 100 (with vacuum suction)
NCS45-PR Size: NCS45 | Motor mounting: Parallel motor, right (PR) | Stroke: 100-500 mm | Ball screw lead: 5 / 10 mm | Max. speed: 250 / 500 mm/s | Motor: 100 W | Max. payload horizontal / vertical: 10 / 4 kg (lead 5), 7 / 3 kg (lead 10) | Repeatability: +/-0.02 mm | LM guide No.12W, 1 rail 1 block | Clean type: Class 100 (with vacuum suction)
NCS45-PB Size: NCS45 | Motor mounting: Parallel motor, bottom (PB) | Stroke: 100-500 mm | Ball screw lead: 5 / 10 mm | Max. speed: 250 / 500 mm/s | Motor: 100 W | Max. payload horizontal / vertical: 10 / 4 kg (lead 5), 7 / 3 kg (lead 10) | Repeatability: +/-0.02 mm | LM guide No.12W, 1 rail 1 block | Clean type: Class 100 (with vacuum suction)
NCS65-E Size: NCS65 | Motor mounting: Direct coupled motor (E) | Stroke: 100-600 mm | Ball screw lead: 5 / 10 mm | Max. speed: 250 / 500 mm/s | Motor: 100 W (lead 5) / 200 W (lead 10) | Max. payload horizontal / vertical: 20 / 8 kg (lead 5), 20 / 6 kg (lead 10) | Repeatability: +/-0.02 mm | LM guide No.15W, 1 rail 1 block | Clean type: Class 100 (with vacuum suction)
NCS65-PL Size: NCS65 | Motor mounting: Parallel motor, left (PL) | Stroke: 100-600 mm | Ball screw lead: 5 / 10 mm | Max. speed: 250 / 500 mm/s | Motor: 100 W (lead 5) / 200 W (lead 10) | Max. payload horizontal / vertical: 20 / 8 kg (lead 5), 20 / 6 kg (lead 10) | Repeatability: +/-0.02 mm | LM guide No.15W, 1 rail 1 block | Clean type: Class 100 (with vacuum suction)
NCS65-PR Size: NCS65 | Motor mounting: Parallel motor, right (PR) | Stroke: 100-600 mm | Ball screw lead: 5 / 10 mm | Max. speed: 250 / 500 mm/s | Motor: 100 W (lead 5) / 200 W (lead 10) | Max. payload horizontal / vertical: 20 / 8 kg (lead 5), 20 / 6 kg (lead 10) | Repeatability: +/-0.02 mm | LM guide No.15W, 1 rail 1 block | Clean type: Class 100 (with vacuum suction)
NCS65-PB Size: NCS65 | Motor mounting: Parallel motor, bottom (PB) | Stroke: 100-600 mm | Ball screw lead: 5 / 10 mm | Max. speed: 250 / 500 mm/s | Motor: 100 W (lead 5) / 200 W (lead 10) | Max. payload horizontal / vertical: 20 / 8 kg (lead 5), 20 / 6 kg (lead 10) | Repeatability: +/-0.02 mm | LM guide No.15W, 1 rail 1 block | Clean type: Class 100 (with vacuum suction)
NCS90-M Size: NCS90 | Motor mounting: Motor built-in, coupled (M) | Stroke: 100-940 mm | Ball screw lead: 10 / 20 mm | Max. speed: 500 / 1000 mm/s | Motor: 200 W | Max. payload horizontal / vertical: 20 / 10 kg (lead 10), 15 / 8 kg (lead 20) | Repeatability: +/-0.02 mm | LM guide No.20, 1 rail 2 blocks | Clean type: Class 100 (with vacuum suction)
NCS90-PL Size: NCS90 | Motor mounting: Parallel motor, left (PL) | Stroke: 100-940 mm | Ball screw lead: 10 / 20 mm | Max. speed: 500 / 1000 mm/s | Motor: 200 W | Max. payload horizontal / vertical: 20 / 10 kg (lead 10), 15 / 8 kg (lead 20) | Repeatability: +/-0.02 mm | LM guide No.20, 1 rail 2 blocks | Clean type: Class 100 (with vacuum suction)
NCS90-PR Size: NCS90 | Motor mounting: Parallel motor, right (PR) | Stroke: 100-940 mm | Ball screw lead: 10 / 20 mm | Max. speed: 500 / 1000 mm/s | Motor: 200 W | Max. payload horizontal / vertical: 20 / 10 kg (lead 10), 15 / 8 kg (lead 20) | Repeatability: +/-0.02 mm | LM guide No.20, 1 rail 2 blocks | Clean type: Class 100 (with vacuum suction)
NCS90-PB Size: NCS90 | Motor mounting: Parallel motor, bottom (PB) | Stroke: 100-940 mm | Ball screw lead: 10 / 20 mm | Max. speed: 500 / 1000 mm/s | Motor: 200 W | Max. payload horizontal / vertical: 20 / 10 kg (lead 10), 15 / 8 kg (lead 20) | Repeatability: +/-0.02 mm | LM guide No.20, 1 rail 2 blocks | Clean type: Class 100 (with vacuum suction)
NCS120-M Size: NCS120 | Motor mounting: Motor built-in, coupled (M) | Stroke: 100-940 mm | Ball screw lead: 10 / 20 mm | Max. speed: 500 / 1000 mm/s | Motor: 200 W (lead 10) / 400 W (lead 20) | Max. payload horizontal / vertical: 80 / 20 kg (lead 10), 40 / 15 kg (lead 20) | Repeatability: +/-0.02 mm | LM guide No.15, 2 rails 4 blocks | Clean type: Class 100 (with vacuum suction)
NCS120-PL Size: NCS120 | Motor mounting: Parallel motor, left (PL) | Stroke: 100-940 mm | Ball screw lead: 10 / 20 mm | Max. speed: 500 / 1000 mm/s | Motor: 200 W (lead 10) / 400 W (lead 20) | Max. payload horizontal / vertical: 80 / 20 kg (lead 10), 40 / 15 kg (lead 20) | Repeatability: +/-0.02 mm | LM guide No.15, 2 rails 4 blocks | Clean type: Class 100 (with vacuum suction)
NCS120-PR Size: NCS120 | Motor mounting: Parallel motor, right (PR) | Stroke: 100-940 mm | Ball screw lead: 10 / 20 mm | Max. speed: 500 / 1000 mm/s | Motor: 200 W (lead 10) / 400 W (lead 20) | Max. payload horizontal / vertical: 80 / 20 kg (lead 10), 40 / 15 kg (lead 20) | Repeatability: +/-0.02 mm | LM guide No.15, 2 rails 4 blocks | Clean type: Class 100 (with vacuum suction)
NCS120-PB Size: NCS120 | Motor mounting: Parallel motor, bottom (PB) | Stroke: 100-940 mm | Ball screw lead: 10 / 20 mm | Max. speed: 500 / 1000 mm/s | Motor: 200 W (lead 10) / 400 W (lead 20) | Max. payload horizontal / vertical: 80 / 20 kg (lead 10), 40 / 15 kg (lead 20) | Repeatability: +/-0.02 mm | LM guide No.15, 2 rails 4 blocks | Clean type: Class 100 (with vacuum suction)
NCS160-M Size: NCS160 | Motor mounting: Motor built-in, coupled (M) | Stroke: 50-1200 mm | Ball screw lead: 10 / 20 mm | Max. speed: 500 / 1000 mm/s | Motor: 400 W / 750 W | Max. payload horizontal / vertical: 80 / 40 kg (lead 10, 400 W), 35 / 20 kg (lead 20, 400 W), 70 / 30 kg (lead 20, 750 W) | Repeatability: +/-0.02 mm | LM guide No.20, 2 rails 4 blocks | Clean type: Class 100 (with vacuum suction)
NCS160-PL Size: NCS160 | Motor mounting: Parallel motor, left (PL) | Stroke: 50-1200 mm | Ball screw lead: 10 / 20 mm | Max. speed: 500 / 1000 mm/s | Motor: 400 W / 750 W | Max. payload horizontal / vertical: 80 / 40 kg (lead 10, 400 W), 35 / 20 kg (lead 20, 400 W), 70 / 30 kg (lead 20, 750 W) | Repeatability: +/-0.02 mm | LM guide No.20, 2 rails 4 blocks | Clean type: Class 100 (with vacuum suction)
NCS160-PR Size: NCS160 | Motor mounting: Parallel motor, right (PR) | Stroke: 50-1200 mm | Ball screw lead: 10 / 20 mm | Max. speed: 500 / 1000 mm/s | Motor: 400 W / 750 W | Max. payload horizontal / vertical: 80 / 40 kg (lead 10, 400 W), 35 / 20 kg (lead 20, 400 W), 70 / 30 kg (lead 20, 750 W) | Repeatability: +/-0.02 mm | LM guide No.20, 2 rails 4 blocks | Clean type: Class 100 (with vacuum suction)
NCS160-PB Size: NCS160 | Motor mounting: Parallel motor, bottom (PB) | Stroke: 50-1200 mm | Ball screw lead: 10 / 20 mm | Max. speed: 500 / 1000 mm/s | Motor: 400 W / 750 W | Max. payload horizontal / vertical: 80 / 40 kg (lead 10, 400 W), 35 / 20 kg (lead 20, 400 W), 70 / 30 kg (lead 20, 750 W) | Repeatability: +/-0.02 mm | LM guide No.20, 2 rails 4 blocks | Clean type: Class 100 (with vacuum suction)
NCS180-M Size: NCS180 | Motor mounting: Motor built-in, coupled (M) | Stroke: 100-1160 mm | Ball screw lead: 10 / 20 mm | Max. speed: 500 / 1000 mm/s | Motor: 400 W / 750 W | Max. payload horizontal / vertical: 120 / 30 kg (lead 10, 400 W), 60 / 12 kg (lead 20, 400 W), 100 / 23 kg (lead 20, 750 W) | Repeatability: +/-0.02 mm | LM guide No.20, 2 rails 4 blocks | Clean type: Class 100 (with vacuum suction)
NCS180-PL Size: NCS180 | Motor mounting: Parallel motor, left (PL) | Stroke: 100-1160 mm | Ball screw lead: 10 / 20 mm | Max. speed: 500 / 1000 mm/s | Motor: 400 W / 750 W | Max. payload horizontal / vertical: 120 / 30 kg (lead 10, 400 W), 60 / 12 kg (lead 20, 400 W), 100 / 23 kg (lead 20, 750 W) | Repeatability: +/-0.02 mm | LM guide No.20, 2 rails 4 blocks | Clean type: Class 100 (with vacuum suction)
NCS180-PR Size: NCS180 | Motor mounting: Parallel motor, right (PR) | Stroke: 100-1160 mm | Ball screw lead: 10 / 20 mm | Max. speed: 500 / 1000 mm/s | Motor: 400 W / 750 W | Max. payload horizontal / vertical: 120 / 30 kg (lead 10, 400 W), 60 / 12 kg (lead 20, 400 W), 100 / 23 kg (lead 20, 750 W) | Repeatability: +/-0.02 mm | LM guide No.20, 2 rails 4 blocks | Clean type: Class 100 (with vacuum suction)
NCS180-PB Size: NCS180 | Motor mounting: Parallel motor, bottom (PB) | Stroke: 100-1160 mm | Ball screw lead: 10 / 20 mm | Max. speed: 500 / 1000 mm/s | Motor: 400 W / 750 W | Max. payload horizontal / vertical: 120 / 30 kg (lead 10, 400 W), 60 / 12 kg (lead 20, 400 W), 100 / 23 kg (lead 20, 750 W) | Repeatability: +/-0.02 mm | LM guide No.20, 2 rails 4 blocks | Clean type: Class 100 (with vacuum suction)
NCS210-M Size: NCS210 | Motor mounting: Motor built-in, coupled (M) | Stroke: 100-1160 mm | Ball screw lead: 10 / 20 mm | Max. speed: 500 / 1000 mm/s | Motor: 750 W | Max. payload horizontal / vertical: 170 / 80 kg (lead 10), 120 / 35 kg (lead 20) | Repeatability: +/-0.02 mm | LM guide No.25, 2 rails 4 blocks | Clean type: Class 100 (with vacuum suction)
NCS210-PL Size: NCS210 | Motor mounting: Parallel motor, left (PL) | Stroke: 100-1160 mm | Ball screw lead: 10 / 20 mm | Max. speed: 500 / 1000 mm/s | Motor: 750 W | Max. payload horizontal / vertical: 170 / 80 kg (lead 10), 120 / 35 kg (lead 20) | Repeatability: +/-0.02 mm | LM guide No.25, 2 rails 4 blocks | Clean type: Class 100 (with vacuum suction)
NCS210-PR Size: NCS210 | Motor mounting: Parallel motor, right (PR) | Stroke: 100-1160 mm | Ball screw lead: 10 / 20 mm | Max. speed: 500 / 1000 mm/s | Motor: 750 W | Max. payload horizontal / vertical: 170 / 80 kg (lead 10), 120 / 35 kg (lead 20) | Repeatability: +/-0.02 mm | LM guide No.25, 2 rails 4 blocks | Clean type: Class 100 (with vacuum suction)
NCS210-PB Size: NCS210 | Motor mounting: Parallel motor, bottom (PB) | Stroke: 100-1160 mm | Ball screw lead: 10 / 20 mm | Max. speed: 500 / 1000 mm/s | Motor: 750 W | Max. payload horizontal / vertical: 170 / 80 kg (lead 10), 120 / 35 kg (lead 20) | Repeatability: +/-0.02 mm | LM guide No.25, 2 rails 4 blocks | Clean type: Class 100 (with vacuum suction)
