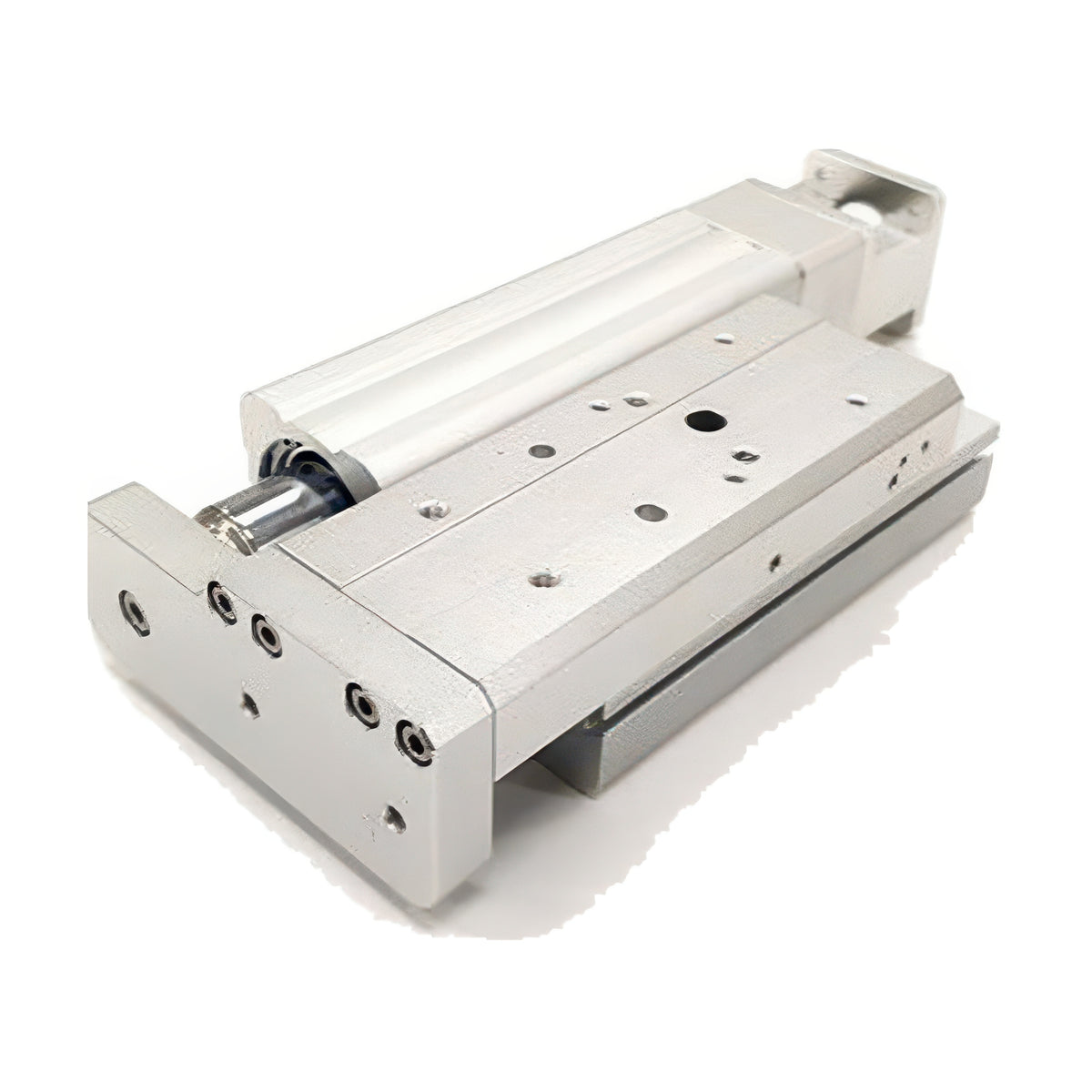

TPC Mechatronics ESL Series Compact Table Servo Actuator (LM Guide)

TPC Mechatronics ESL Series Compact Table Servo Actuator (LM Guide)

The ESL is a compact ball-screw table actuator with an LM guide, recommended for light loads at high speed (1500 rpm or more).

Key features

  • Ball screws (C7, up to 10 mm lead) are standard, and the table position can be selected as standard or symmetric
  • Motors are mounted in-line via coupling or in parallel via timing belt, using the standard stepper motor or a customer-specified stepper or servo motor
  • A photo sensor (PN4X, NPN 4-wire) with proximity dog can be fitted
  • Repeatability is +/-0.02 mm

Specifications

Repeatability +/-0.02 mm
Guide LM guide
ESL35D-1-30-R Size: 35.5 mm table height | Motor mounting: In-line (coupling) | Stroke: 30 mm | Table position: Standard (right) | Ball screw: dia. 10 mm, pitch 2 mm | Max. payload: 6.8 kg horizontal, 1.6 kg vertical | Max. speed: 100 mm/s | Motor size: 28 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL35D-1-30-L Size: 35.5 mm table height | Motor mounting: In-line (coupling) | Stroke: 30 mm | Table position: Symmetric (left) | Ball screw: dia. 10 mm, pitch 2 mm | Max. payload: 6.8 kg horizontal, 1.6 kg vertical | Max. speed: 100 mm/s | Motor size: 28 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL35P-1-30-R Size: 35.5 mm table height | Motor mounting: Parallel (timing belt) | Stroke: 30 mm | Table position: Standard (right) | Ball screw: dia. 10 mm, pitch 2 mm | Max. payload: 6.8 kg horizontal, 1.6 kg vertical | Max. speed: 100 mm/s | Motor size: 28 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL35P-1-30-L Size: 35.5 mm table height | Motor mounting: Parallel (timing belt) | Stroke: 30 mm | Table position: Symmetric (left) | Ball screw: dia. 10 mm, pitch 2 mm | Max. payload: 6.8 kg horizontal, 1.6 kg vertical | Max. speed: 100 mm/s | Motor size: 28 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL35D-1-50-R Size: 35.5 mm table height | Motor mounting: In-line (coupling) | Stroke: 50 mm | Table position: Standard (right) | Ball screw: dia. 10 mm, pitch 2 mm | Max. payload: 6.8 kg horizontal, 1.6 kg vertical | Max. speed: 100 mm/s | Motor size: 28 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL35D-1-50-L Size: 35.5 mm table height | Motor mounting: In-line (coupling) | Stroke: 50 mm | Table position: Symmetric (left) | Ball screw: dia. 10 mm, pitch 2 mm | Max. payload: 6.8 kg horizontal, 1.6 kg vertical | Max. speed: 100 mm/s | Motor size: 28 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL35P-1-50-R Size: 35.5 mm table height | Motor mounting: Parallel (timing belt) | Stroke: 50 mm | Table position: Standard (right) | Ball screw: dia. 10 mm, pitch 2 mm | Max. payload: 6.8 kg horizontal, 1.6 kg vertical | Max. speed: 100 mm/s | Motor size: 28 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL35P-1-50-L Size: 35.5 mm table height | Motor mounting: Parallel (timing belt) | Stroke: 50 mm | Table position: Symmetric (left) | Ball screw: dia. 10 mm, pitch 2 mm | Max. payload: 6.8 kg horizontal, 1.6 kg vertical | Max. speed: 100 mm/s | Motor size: 28 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL35D-1-75-R Size: 35.5 mm table height | Motor mounting: In-line (coupling) | Stroke: 75 mm | Table position: Standard (right) | Ball screw: dia. 10 mm, pitch 2 mm | Max. payload: 6.8 kg horizontal, 1.6 kg vertical | Max. speed: 100 mm/s | Motor size: 28 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL35D-1-75-L Size: 35.5 mm table height | Motor mounting: In-line (coupling) | Stroke: 75 mm | Table position: Symmetric (left) | Ball screw: dia. 10 mm, pitch 2 mm | Max. payload: 6.8 kg horizontal, 1.6 kg vertical | Max. speed: 100 mm/s | Motor size: 28 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL35P-1-75-R Size: 35.5 mm table height | Motor mounting: Parallel (timing belt) | Stroke: 75 mm | Table position: Standard (right) | Ball screw: dia. 10 mm, pitch 2 mm | Max. payload: 6.8 kg horizontal, 1.6 kg vertical | Max. speed: 100 mm/s | Motor size: 28 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL35P-1-75-L Size: 35.5 mm table height | Motor mounting: Parallel (timing belt) | Stroke: 75 mm | Table position: Symmetric (left) | Ball screw: dia. 10 mm, pitch 2 mm | Max. payload: 6.8 kg horizontal, 1.6 kg vertical | Max. speed: 100 mm/s | Motor size: 28 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL49D-1-50-R Size: 49 mm table height | Motor mounting: In-line (coupling) | Stroke: 50 mm | Table position: Standard (right) | Ball screw: dia. 12 mm, pitch 5 mm | Max. payload: 11.4 kg horizontal, 3.4 kg vertical | Max. speed: 250 mm/s | Motor size: 42 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL49D-1-50-L Size: 49 mm table height | Motor mounting: In-line (coupling) | Stroke: 50 mm | Table position: Symmetric (left) | Ball screw: dia. 12 mm, pitch 5 mm | Max. payload: 11.4 kg horizontal, 3.4 kg vertical | Max. speed: 250 mm/s | Motor size: 42 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL49D-2-50-R Size: 49 mm table height | Motor mounting: In-line (coupling) | Stroke: 50 mm | Table position: Standard (right) | Ball screw: dia. 12 mm, pitch 10 mm | Max. payload: 5.7 kg horizontal, 1.6 kg vertical | Max. speed: 500 mm/s | Motor size: 42 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL49D-2-50-L Size: 49 mm table height | Motor mounting: In-line (coupling) | Stroke: 50 mm | Table position: Symmetric (left) | Ball screw: dia. 12 mm, pitch 10 mm | Max. payload: 5.7 kg horizontal, 1.6 kg vertical | Max. speed: 500 mm/s | Motor size: 42 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL49P-1-50-R Size: 49 mm table height | Motor mounting: Parallel (timing belt) | Stroke: 50 mm | Table position: Standard (right) | Ball screw: dia. 12 mm, pitch 5 mm | Max. payload: 11.4 kg horizontal, 3.4 kg vertical | Max. speed: 250 mm/s | Motor size: 42 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL49P-1-50-L Size: 49 mm table height | Motor mounting: Parallel (timing belt) | Stroke: 50 mm | Table position: Symmetric (left) | Ball screw: dia. 12 mm, pitch 5 mm | Max. payload: 11.4 kg horizontal, 3.4 kg vertical | Max. speed: 250 mm/s | Motor size: 42 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL49P-2-50-R Size: 49 mm table height | Motor mounting: Parallel (timing belt) | Stroke: 50 mm | Table position: Standard (right) | Ball screw: dia. 12 mm, pitch 10 mm | Max. payload: 5.7 kg horizontal, 1.6 kg vertical | Max. speed: 500 mm/s | Motor size: 42 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL49P-2-50-L Size: 49 mm table height | Motor mounting: Parallel (timing belt) | Stroke: 50 mm | Table position: Symmetric (left) | Ball screw: dia. 12 mm, pitch 10 mm | Max. payload: 5.7 kg horizontal, 1.6 kg vertical | Max. speed: 500 mm/s | Motor size: 42 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL49D-1-75-R Size: 49 mm table height | Motor mounting: In-line (coupling) | Stroke: 75 mm | Table position: Standard (right) | Ball screw: dia. 12 mm, pitch 5 mm | Max. payload: 11.4 kg horizontal, 3.4 kg vertical | Max. speed: 250 mm/s | Motor size: 42 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL49D-1-75-L Size: 49 mm table height | Motor mounting: In-line (coupling) | Stroke: 75 mm | Table position: Symmetric (left) | Ball screw: dia. 12 mm, pitch 5 mm | Max. payload: 11.4 kg horizontal, 3.4 kg vertical | Max. speed: 250 mm/s | Motor size: 42 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL49D-2-75-R Size: 49 mm table height | Motor mounting: In-line (coupling) | Stroke: 75 mm | Table position: Standard (right) | Ball screw: dia. 12 mm, pitch 10 mm | Max. payload: 5.7 kg horizontal, 1.6 kg vertical | Max. speed: 500 mm/s | Motor size: 42 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL49D-2-75-L Size: 49 mm table height | Motor mounting: In-line (coupling) | Stroke: 75 mm | Table position: Symmetric (left) | Ball screw: dia. 12 mm, pitch 10 mm | Max. payload: 5.7 kg horizontal, 1.6 kg vertical | Max. speed: 500 mm/s | Motor size: 42 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL49P-1-75-R Size: 49 mm table height | Motor mounting: Parallel (timing belt) | Stroke: 75 mm | Table position: Standard (right) | Ball screw: dia. 12 mm, pitch 5 mm | Max. payload: 11.4 kg horizontal, 3.4 kg vertical | Max. speed: 250 mm/s | Motor size: 42 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL49P-1-75-L Size: 49 mm table height | Motor mounting: Parallel (timing belt) | Stroke: 75 mm | Table position: Symmetric (left) | Ball screw: dia. 12 mm, pitch 5 mm | Max. payload: 11.4 kg horizontal, 3.4 kg vertical | Max. speed: 250 mm/s | Motor size: 42 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL49P-2-75-R Size: 49 mm table height | Motor mounting: Parallel (timing belt) | Stroke: 75 mm | Table position: Standard (right) | Ball screw: dia. 12 mm, pitch 10 mm | Max. payload: 5.7 kg horizontal, 1.6 kg vertical | Max. speed: 500 mm/s | Motor size: 42 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL49P-2-75-L Size: 49 mm table height | Motor mounting: Parallel (timing belt) | Stroke: 75 mm | Table position: Symmetric (left) | Ball screw: dia. 12 mm, pitch 10 mm | Max. payload: 5.7 kg horizontal, 1.6 kg vertical | Max. speed: 500 mm/s | Motor size: 42 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL49D-1-100-R Size: 49 mm table height | Motor mounting: In-line (coupling) | Stroke: 100 mm | Table position: Standard (right) | Ball screw: dia. 12 mm, pitch 5 mm | Max. payload: 11.4 kg horizontal, 3.4 kg vertical | Max. speed: 250 mm/s | Motor size: 42 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL49D-1-100-L Size: 49 mm table height | Motor mounting: In-line (coupling) | Stroke: 100 mm | Table position: Symmetric (left) | Ball screw: dia. 12 mm, pitch 5 mm | Max. payload: 11.4 kg horizontal, 3.4 kg vertical | Max. speed: 250 mm/s | Motor size: 42 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL49D-2-100-R Size: 49 mm table height | Motor mounting: In-line (coupling) | Stroke: 100 mm | Table position: Standard (right) | Ball screw: dia. 12 mm, pitch 10 mm | Max. payload: 5.7 kg horizontal, 1.6 kg vertical | Max. speed: 500 mm/s | Motor size: 42 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL49D-2-100-L Size: 49 mm table height | Motor mounting: In-line (coupling) | Stroke: 100 mm | Table position: Symmetric (left) | Ball screw: dia. 12 mm, pitch 10 mm | Max. payload: 5.7 kg horizontal, 1.6 kg vertical | Max. speed: 500 mm/s | Motor size: 42 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL49P-1-100-R Size: 49 mm table height | Motor mounting: Parallel (timing belt) | Stroke: 100 mm | Table position: Standard (right) | Ball screw: dia. 12 mm, pitch 5 mm | Max. payload: 11.4 kg horizontal, 3.4 kg vertical | Max. speed: 250 mm/s | Motor size: 42 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL49P-1-100-L Size: 49 mm table height | Motor mounting: Parallel (timing belt) | Stroke: 100 mm | Table position: Symmetric (left) | Ball screw: dia. 12 mm, pitch 5 mm | Max. payload: 11.4 kg horizontal, 3.4 kg vertical | Max. speed: 250 mm/s | Motor size: 42 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL49P-2-100-R Size: 49 mm table height | Motor mounting: Parallel (timing belt) | Stroke: 100 mm | Table position: Standard (right) | Ball screw: dia. 12 mm, pitch 10 mm | Max. payload: 5.7 kg horizontal, 1.6 kg vertical | Max. speed: 500 mm/s | Motor size: 42 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
ESL49P-2-100-L Size: 49 mm table height | Motor mounting: Parallel (timing belt) | Stroke: 100 mm | Table position: Symmetric (left) | Ball screw: dia. 12 mm, pitch 10 mm | Max. payload: 5.7 kg horizontal, 1.6 kg vertical | Max. speed: 500 mm/s | Motor size: 42 mm square | Repeatability: +/-0.02 mm | Guide: LM guide
