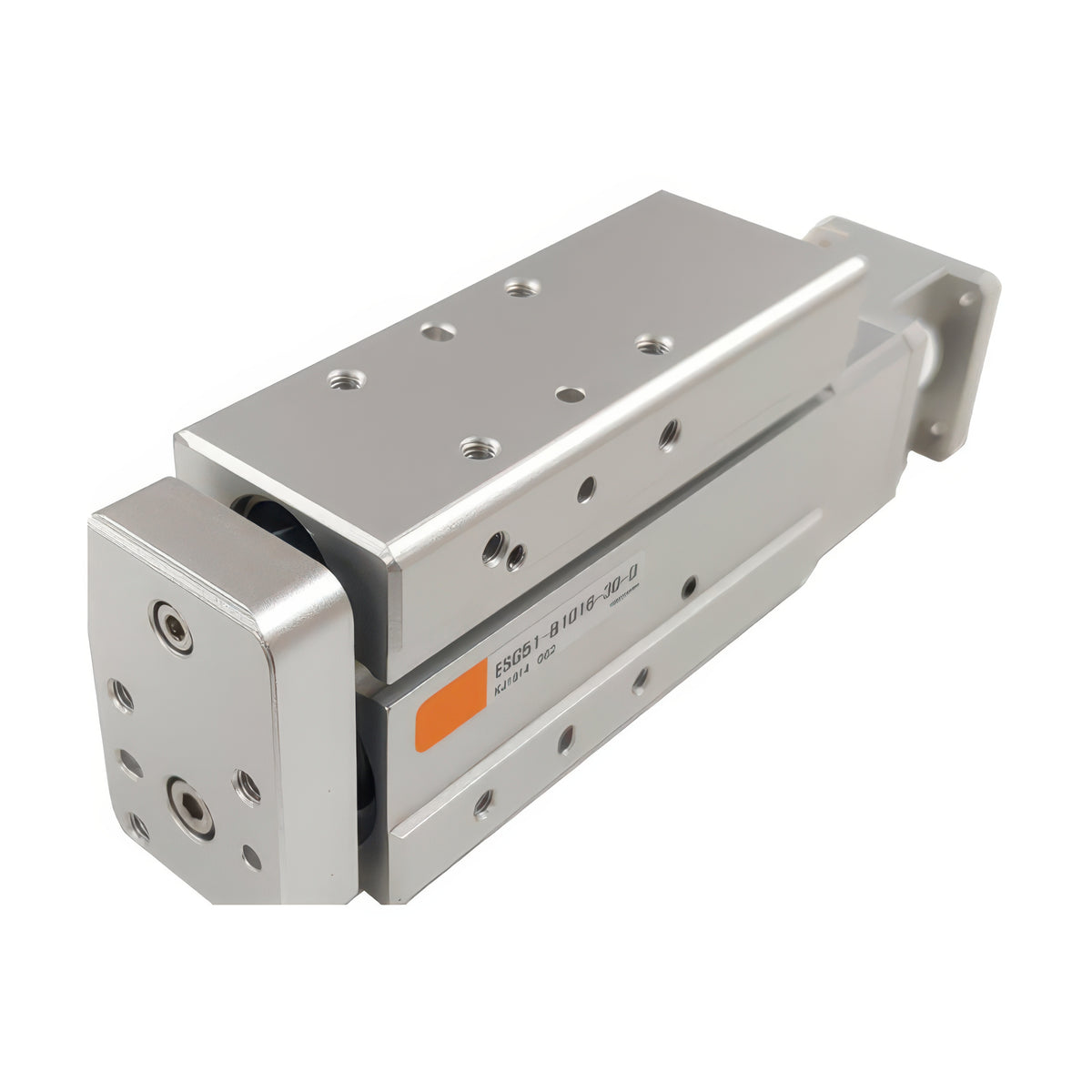

TPC Mechatronics ESG Series Single Guide Servo Actuator (Rod Type)

TPC Mechatronics ESG Series Single Guide Servo Actuator (Rod Type)

The ESG is a compact front-table type electric actuator with a single rotation-preventing ball spline guide.

Key features

  • A lead screw is standard and a ball screw can be selected
  • The motor can be mounted in-line via coupling or in parallel via timing belt (parallel not available for size 34 per the ordering chart)
  • Magnetic contactless auto switches (NPN, 3-wire) can be fitted
  • Repeatability is +/-0.02 mm with ball screw

Specifications

Guide Ball spline
Operating temperature 7-55 C
ESG34D-1-30 Size: 34 x 51 mm | Motor mounting: In-line (coupling) | Stroke: 30 mm | Screw: ball screw dia. 10 mm, pitch 2 mm (B1002) | Max. payload: 0.8 kg horizontal, 2 kg vertical | Max. thrust: 126 N | Max. speed: 100 mm/s | Repeatability: +/-0.02 mm | Motor size: 28 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG34D-3-30 Size: 34 x 51 mm | Motor mounting: In-line (coupling) | Stroke: 30 mm | Screw: lead screw dia. 10 mm, pitch 16 mm (T1016) | Max. payload: 0.4 kg horizontal, 0.6 kg vertical | Max. thrust: 8 N | Max. speed: 800 mm/s | Repeatability: +/-0.05 mm | Motor size: 28 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG34D-1-50 Size: 34 x 51 mm | Motor mounting: In-line (coupling) | Stroke: 50 mm | Screw: ball screw dia. 10 mm, pitch 2 mm (B1002) | Max. payload: 0.8 kg horizontal, 2 kg vertical | Max. thrust: 126 N | Max. speed: 100 mm/s | Repeatability: +/-0.02 mm | Motor size: 28 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG34D-3-50 Size: 34 x 51 mm | Motor mounting: In-line (coupling) | Stroke: 50 mm | Screw: lead screw dia. 10 mm, pitch 16 mm (T1016) | Max. payload: 0.4 kg horizontal, 0.6 kg vertical | Max. thrust: 8 N | Max. speed: 800 mm/s | Repeatability: +/-0.05 mm | Motor size: 28 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG34P-1-30 Size: 34 x 51 mm | Motor mounting: Parallel (timing belt) | Stroke: 30 mm | Screw: ball screw dia. 10 mm, pitch 2 mm (B1002) | Max. payload: 0.8 kg horizontal, 2 kg vertical | Max. thrust: 126 N | Max. speed: 100 mm/s | Repeatability: +/-0.02 mm | Motor size: 28 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG34P-3-30 Size: 34 x 51 mm | Motor mounting: Parallel (timing belt) | Stroke: 30 mm | Screw: lead screw dia. 10 mm, pitch 16 mm (T1016) | Max. payload: 0.4 kg horizontal, 0.6 kg vertical | Max. thrust: 8 N | Max. speed: 800 mm/s | Repeatability: +/-0.05 mm | Motor size: 28 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG34P-1-50 Size: 34 x 51 mm | Motor mounting: Parallel (timing belt) | Stroke: 50 mm | Screw: ball screw dia. 10 mm, pitch 2 mm (B1002) | Max. payload: 0.8 kg horizontal, 2 kg vertical | Max. thrust: 126 N | Max. speed: 100 mm/s | Repeatability: +/-0.02 mm | Motor size: 28 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG34P-3-50 Size: 34 x 51 mm | Motor mounting: Parallel (timing belt) | Stroke: 50 mm | Screw: lead screw dia. 10 mm, pitch 16 mm (T1016) | Max. payload: 0.4 kg horizontal, 0.6 kg vertical | Max. thrust: 8 N | Max. speed: 800 mm/s | Repeatability: +/-0.05 mm | Motor size: 28 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46D-1-50 Size: 46 x 68 mm | Motor mounting: In-line (coupling) | Stroke: 50 mm | Screw: ball screw dia. 12 mm, pitch 5 mm (B1205) | Max. payload: 1.6 kg horizontal, 4 kg vertical | Max. thrust: 204 N | Max. speed: 250 mm/s | Repeatability: +/-0.02 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46D-2-50 Size: 46 x 68 mm | Motor mounting: In-line (coupling) | Stroke: 50 mm | Screw: ball screw dia. 12 mm, pitch 10 mm (B1210) | Max. payload: 0.8 kg horizontal, 2 kg vertical | Max. thrust: 102 N | Max. speed: 500 mm/s | Repeatability: +/-0.02 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46D-3-50 Size: 46 x 68 mm | Motor mounting: In-line (coupling) | Stroke: 50 mm | Screw: lead screw dia. 12 mm, pitch 20 mm (T1220) | Max. payload: 0.6 kg horizontal, 1 kg vertical | Max. thrust: 25 N | Max. speed: 1000 mm/s | Repeatability: +/-0.05 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46D-4-50 Size: 46 x 68 mm | Motor mounting: In-line (coupling) | Stroke: 50 mm | Screw: pitch 30 mm (B1230) | Max. payload: 0.4 kg horizontal, 0.6 kg vertical | Max. thrust: 17 N | Max. speed: 1500 mm/s | Repeatability: +/-0.05 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46D-1-75 Size: 46 x 68 mm | Motor mounting: In-line (coupling) | Stroke: 75 mm | Screw: ball screw dia. 12 mm, pitch 5 mm (B1205) | Max. payload: 1.6 kg horizontal, 4 kg vertical | Max. thrust: 204 N | Max. speed: 250 mm/s | Repeatability: +/-0.02 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46D-2-75 Size: 46 x 68 mm | Motor mounting: In-line (coupling) | Stroke: 75 mm | Screw: ball screw dia. 12 mm, pitch 10 mm (B1210) | Max. payload: 0.8 kg horizontal, 2 kg vertical | Max. thrust: 102 N | Max. speed: 500 mm/s | Repeatability: +/-0.02 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46D-3-75 Size: 46 x 68 mm | Motor mounting: In-line (coupling) | Stroke: 75 mm | Screw: lead screw dia. 12 mm, pitch 20 mm (T1220) | Max. payload: 0.6 kg horizontal, 1 kg vertical | Max. thrust: 25 N | Max. speed: 1000 mm/s | Repeatability: +/-0.05 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46D-4-75 Size: 46 x 68 mm | Motor mounting: In-line (coupling) | Stroke: 75 mm | Screw: pitch 30 mm (B1230) | Max. payload: 0.4 kg horizontal, 0.6 kg vertical | Max. thrust: 17 N | Max. speed: 1500 mm/s | Repeatability: +/-0.05 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46P-1-50 Size: 46 x 68 mm | Motor mounting: Parallel (timing belt) | Stroke: 50 mm | Screw: ball screw dia. 12 mm, pitch 5 mm (B1205) | Max. payload: 1.6 kg horizontal, 4 kg vertical | Max. thrust: 204 N | Max. speed: 250 mm/s | Repeatability: +/-0.02 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46P-2-50 Size: 46 x 68 mm | Motor mounting: Parallel (timing belt) | Stroke: 50 mm | Screw: ball screw dia. 12 mm, pitch 10 mm (B1210) | Max. payload: 0.8 kg horizontal, 2 kg vertical | Max. thrust: 102 N | Max. speed: 500 mm/s | Repeatability: +/-0.02 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46P-3-50 Size: 46 x 68 mm | Motor mounting: Parallel (timing belt) | Stroke: 50 mm | Screw: lead screw dia. 12 mm, pitch 20 mm (T1220) | Max. payload: 0.6 kg horizontal, 1 kg vertical | Max. thrust: 25 N | Max. speed: 1000 mm/s | Repeatability: +/-0.05 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46P-4-50 Size: 46 x 68 mm | Motor mounting: Parallel (timing belt) | Stroke: 50 mm | Screw: pitch 30 mm (B1230) | Max. payload: 0.4 kg horizontal, 0.6 kg vertical | Max. thrust: 17 N | Max. speed: 1500 mm/s | Repeatability: +/-0.05 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46P-1-75 Size: 46 x 68 mm | Motor mounting: Parallel (timing belt) | Stroke: 75 mm | Screw: ball screw dia. 12 mm, pitch 5 mm (B1205) | Max. payload: 1.6 kg horizontal, 4 kg vertical | Max. thrust: 204 N | Max. speed: 250 mm/s | Repeatability: +/-0.02 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46P-2-75 Size: 46 x 68 mm | Motor mounting: Parallel (timing belt) | Stroke: 75 mm | Screw: ball screw dia. 12 mm, pitch 10 mm (B1210) | Max. payload: 0.8 kg horizontal, 2 kg vertical | Max. thrust: 102 N | Max. speed: 500 mm/s | Repeatability: +/-0.02 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46P-3-75 Size: 46 x 68 mm | Motor mounting: Parallel (timing belt) | Stroke: 75 mm | Screw: lead screw dia. 12 mm, pitch 20 mm (T1220) | Max. payload: 0.6 kg horizontal, 1 kg vertical | Max. thrust: 25 N | Max. speed: 1000 mm/s | Repeatability: +/-0.05 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46P-4-75 Size: 46 x 68 mm | Motor mounting: Parallel (timing belt) | Stroke: 75 mm | Screw: pitch 30 mm (B1230) | Max. payload: 0.4 kg horizontal, 0.6 kg vertical | Max. thrust: 17 N | Max. speed: 1500 mm/s | Repeatability: +/-0.05 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
Electric ActuatorsTPC Mechatronics
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics ESG Series Single Guide Servo Actuator (Rod Type)

Brand TPC Mechatronics·Electric Actuators

Available part numbers (24)

ESG34D-1-30, ESG34D-3-30, ESG34D-1-50, ESG34D-3-50, ESG34P-1-30, ESG34P-3-30, ESG34P-1-50, ESG34P-3-50, ESG46D-1-50, ESG46D-2-50 + 14 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ESG34D-1-30Size: 34 x 51 mm | Motor mounting: In-line (coupling) | Stroke: 30 mm | Screw: ball screw dia. 10 mm, pitch 2 mm (B1002) | Max. payload: 0.8 kg horizontal, 2 kg vertical | Max. thrust: 126 N | Max. speed: 100 mm/s | Repeatability: +/-0.02 mm | Motor size: 28 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG34D-3-30Size: 34 x 51 mm | Motor mounting: In-line (coupling) | Stroke: 30 mm | Screw: lead screw dia. 10 mm, pitch 16 mm (T1016) | Max. payload: 0.4 kg horizontal, 0.6 kg vertical | Max. thrust: 8 N | Max. speed: 800 mm/s | Repeatability: +/-0.05 mm | Motor size: 28 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG34D-1-50Size: 34 x 51 mm | Motor mounting: In-line (coupling) | Stroke: 50 mm | Screw: ball screw dia. 10 mm, pitch 2 mm (B1002) | Max. payload: 0.8 kg horizontal, 2 kg vertical | Max. thrust: 126 N | Max. speed: 100 mm/s | Repeatability: +/-0.02 mm | Motor size: 28 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG34D-3-50Size: 34 x 51 mm | Motor mounting: In-line (coupling) | Stroke: 50 mm | Screw: lead screw dia. 10 mm, pitch 16 mm (T1016) | Max. payload: 0.4 kg horizontal, 0.6 kg vertical | Max. thrust: 8 N | Max. speed: 800 mm/s | Repeatability: +/-0.05 mm | Motor size: 28 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG34P-1-30Size: 34 x 51 mm | Motor mounting: Parallel (timing belt) | Stroke: 30 mm | Screw: ball screw dia. 10 mm, pitch 2 mm (B1002) | Max. payload: 0.8 kg horizontal, 2 kg vertical | Max. thrust: 126 N | Max. speed: 100 mm/s | Repeatability: +/-0.02 mm | Motor size: 28 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG34P-3-30Size: 34 x 51 mm | Motor mounting: Parallel (timing belt) | Stroke: 30 mm | Screw: lead screw dia. 10 mm, pitch 16 mm (T1016) | Max. payload: 0.4 kg horizontal, 0.6 kg vertical | Max. thrust: 8 N | Max. speed: 800 mm/s | Repeatability: +/-0.05 mm | Motor size: 28 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG34P-1-50Size: 34 x 51 mm | Motor mounting: Parallel (timing belt) | Stroke: 50 mm | Screw: ball screw dia. 10 mm, pitch 2 mm (B1002) | Max. payload: 0.8 kg horizontal, 2 kg vertical | Max. thrust: 126 N | Max. speed: 100 mm/s | Repeatability: +/-0.02 mm | Motor size: 28 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG34P-3-50Size: 34 x 51 mm | Motor mounting: Parallel (timing belt) | Stroke: 50 mm | Screw: lead screw dia. 10 mm, pitch 16 mm (T1016) | Max. payload: 0.4 kg horizontal, 0.6 kg vertical | Max. thrust: 8 N | Max. speed: 800 mm/s | Repeatability: +/-0.05 mm | Motor size: 28 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46D-1-50Size: 46 x 68 mm | Motor mounting: In-line (coupling) | Stroke: 50 mm | Screw: ball screw dia. 12 mm, pitch 5 mm (B1205) | Max. payload: 1.6 kg horizontal, 4 kg vertical | Max. thrust: 204 N | Max. speed: 250 mm/s | Repeatability: +/-0.02 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46D-2-50Size: 46 x 68 mm | Motor mounting: In-line (coupling) | Stroke: 50 mm | Screw: ball screw dia. 12 mm, pitch 10 mm (B1210) | Max. payload: 0.8 kg horizontal, 2 kg vertical | Max. thrust: 102 N | Max. speed: 500 mm/s | Repeatability: +/-0.02 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46D-3-50Size: 46 x 68 mm | Motor mounting: In-line (coupling) | Stroke: 50 mm | Screw: lead screw dia. 12 mm, pitch 20 mm (T1220) | Max. payload: 0.6 kg horizontal, 1 kg vertical | Max. thrust: 25 N | Max. speed: 1000 mm/s | Repeatability: +/-0.05 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46D-4-50Size: 46 x 68 mm | Motor mounting: In-line (coupling) | Stroke: 50 mm | Screw: pitch 30 mm (B1230) | Max. payload: 0.4 kg horizontal, 0.6 kg vertical | Max. thrust: 17 N | Max. speed: 1500 mm/s | Repeatability: +/-0.05 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46D-1-75Size: 46 x 68 mm | Motor mounting: In-line (coupling) | Stroke: 75 mm | Screw: ball screw dia. 12 mm, pitch 5 mm (B1205) | Max. payload: 1.6 kg horizontal, 4 kg vertical | Max. thrust: 204 N | Max. speed: 250 mm/s | Repeatability: +/-0.02 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46D-2-75Size: 46 x 68 mm | Motor mounting: In-line (coupling) | Stroke: 75 mm | Screw: ball screw dia. 12 mm, pitch 10 mm (B1210) | Max. payload: 0.8 kg horizontal, 2 kg vertical | Max. thrust: 102 N | Max. speed: 500 mm/s | Repeatability: +/-0.02 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46D-3-75Size: 46 x 68 mm | Motor mounting: In-line (coupling) | Stroke: 75 mm | Screw: lead screw dia. 12 mm, pitch 20 mm (T1220) | Max. payload: 0.6 kg horizontal, 1 kg vertical | Max. thrust: 25 N | Max. speed: 1000 mm/s | Repeatability: +/-0.05 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46D-4-75Size: 46 x 68 mm | Motor mounting: In-line (coupling) | Stroke: 75 mm | Screw: pitch 30 mm (B1230) | Max. payload: 0.4 kg horizontal, 0.6 kg vertical | Max. thrust: 17 N | Max. speed: 1500 mm/s | Repeatability: +/-0.05 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46P-1-50Size: 46 x 68 mm | Motor mounting: Parallel (timing belt) | Stroke: 50 mm | Screw: ball screw dia. 12 mm, pitch 5 mm (B1205) | Max. payload: 1.6 kg horizontal, 4 kg vertical | Max. thrust: 204 N | Max. speed: 250 mm/s | Repeatability: +/-0.02 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46P-2-50Size: 46 x 68 mm | Motor mounting: Parallel (timing belt) | Stroke: 50 mm | Screw: ball screw dia. 12 mm, pitch 10 mm (B1210) | Max. payload: 0.8 kg horizontal, 2 kg vertical | Max. thrust: 102 N | Max. speed: 500 mm/s | Repeatability: +/-0.02 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46P-3-50Size: 46 x 68 mm | Motor mounting: Parallel (timing belt) | Stroke: 50 mm | Screw: lead screw dia. 12 mm, pitch 20 mm (T1220) | Max. payload: 0.6 kg horizontal, 1 kg vertical | Max. thrust: 25 N | Max. speed: 1000 mm/s | Repeatability: +/-0.05 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46P-4-50Size: 46 x 68 mm | Motor mounting: Parallel (timing belt) | Stroke: 50 mm | Screw: pitch 30 mm (B1230) | Max. payload: 0.4 kg horizontal, 0.6 kg vertical | Max. thrust: 17 N | Max. speed: 1500 mm/s | Repeatability: +/-0.05 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46P-1-75Size: 46 x 68 mm | Motor mounting: Parallel (timing belt) | Stroke: 75 mm | Screw: ball screw dia. 12 mm, pitch 5 mm (B1205) | Max. payload: 1.6 kg horizontal, 4 kg vertical | Max. thrust: 204 N | Max. speed: 250 mm/s | Repeatability: +/-0.02 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46P-2-75Size: 46 x 68 mm | Motor mounting: Parallel (timing belt) | Stroke: 75 mm | Screw: ball screw dia. 12 mm, pitch 10 mm (B1210) | Max. payload: 0.8 kg horizontal, 2 kg vertical | Max. thrust: 102 N | Max. speed: 500 mm/s | Repeatability: +/-0.02 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46P-3-75Size: 46 x 68 mm | Motor mounting: Parallel (timing belt) | Stroke: 75 mm | Screw: lead screw dia. 12 mm, pitch 20 mm (T1220) | Max. payload: 0.6 kg horizontal, 1 kg vertical | Max. thrust: 25 N | Max. speed: 1000 mm/s | Repeatability: +/-0.05 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
ESG46P-4-75Size: 46 x 68 mm | Motor mounting: Parallel (timing belt) | Stroke: 75 mm | Screw: pitch 30 mm (B1230) | Max. payload: 0.4 kg horizontal, 0.6 kg vertical | Max. thrust: 17 N | Max. speed: 1500 mm/s | Repeatability: +/-0.05 mm | Motor size: 42 mm square | Guide: Ball spline | Operating temperature: 7-55 C
