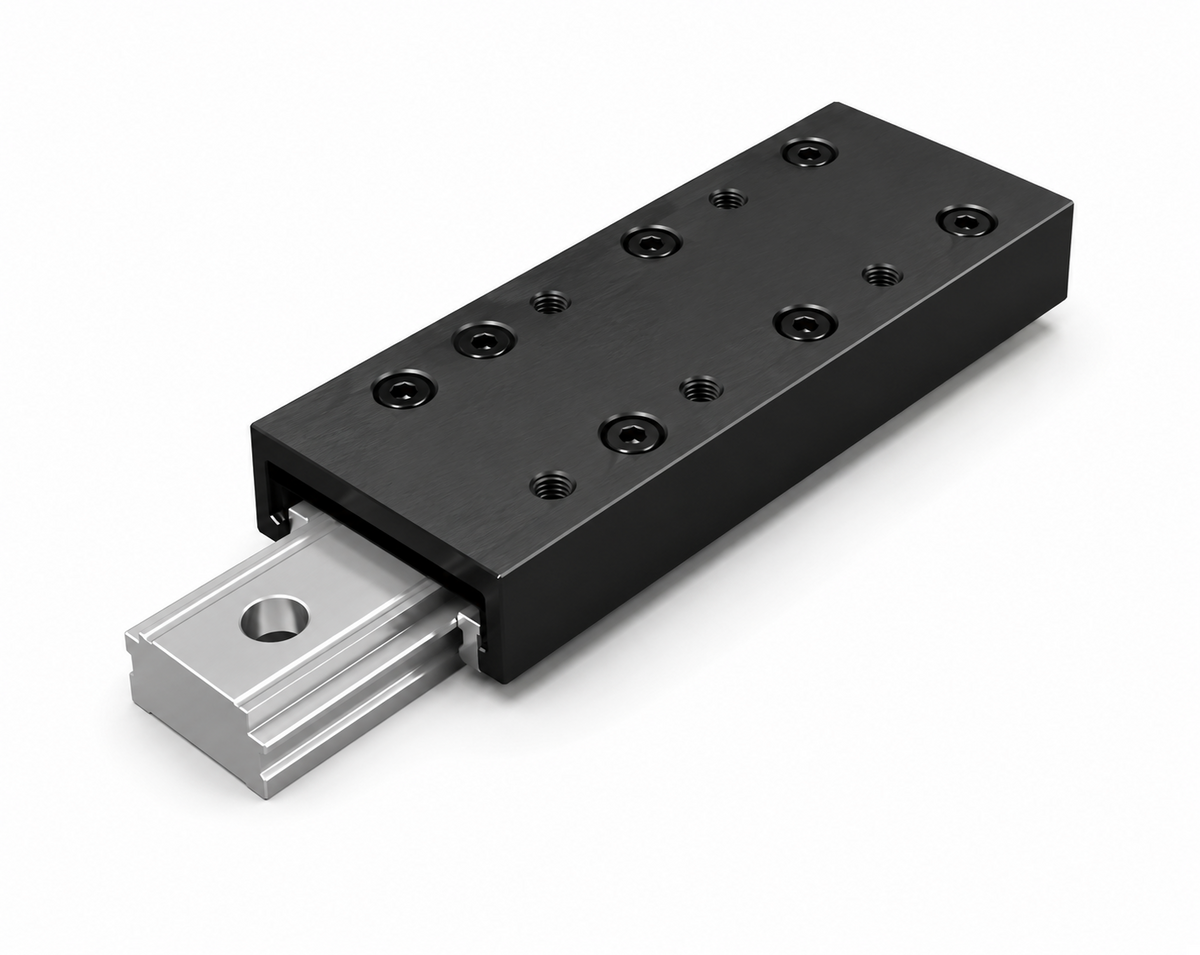

THK Cross Roller Table VRT1-A (W20×H8, base hole type)

THK Cross Roller Table VRT1-A (W20×H8, base hole type)

THK VRT-A Miniature Cross Roller Table, VRT1-A frame.

Key features

  • Base mounting through-hole type (d×D×h = 2.5×4.1×2.2mm)
  • Table width W=20mm, height M=8mm
  • Stroke range 12~50mm
  • Same load ratings as VRT tab type; base through-hole mounting for improved rigidity
  • Full stainless steel type available on request

Specifications

Frame VRT1-A
Type Base Through-Hole
Mounting Hole (d×D×h) 2.5×4.1×2.2 mm
Table Width (W) 20 mm
Height (M) 8 mm
Full Stainless Type available on request
VRT1025A THK Cross Roller Table VRT1025A, stroke 12mm, 5 rollers, 23g | Frame: VRT1-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 2.5×4.1×2.2 mm | Table Width (W): 20 mm | Height (M): 8 mm | Stroke: 12 mm | Rollers (Z): 5 | Mass: 23 g | Basic Dynamic Load Rating C: 0.46 kN | Basic Static Load Rating C0: 0.61 kN | Static Allowable Moment MA: 1.52 N·m | Static Allowable Moment MB: 1.25 N·m | Static Allowable Moment MC: 2.29 N·m | Full Stainless Type: available on request
VRT1035A THK Cross Roller Table VRT1035A, stroke 18mm, 7 rollers, 32g | Frame: VRT1-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 2.5×4.1×2.2 mm | Table Width (W): 20 mm | Height (M): 8 mm | Stroke: 18 mm | Rollers (Z): 7 | Mass: 32 g | Basic Dynamic Load Rating C: 0.63 kN | Basic Static Load Rating C0: 0.92 kN | Static Allowable Moment MA: 2.62 N·m | Static Allowable Moment MB: 2.32 N·m | Static Allowable Moment MC: 3.44 N·m | Full Stainless Type: available on request
VRT1045A THK Cross Roller Table VRT1045A, stroke 25mm, 10 rollers, 42g | Frame: VRT1-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 2.5×4.1×2.2 mm | Table Width (W): 20 mm | Height (M): 8 mm | Stroke: 25 mm | Rollers (Z): 10 | Mass: 42 g | Basic Dynamic Load Rating C: 0.95 kN | Basic Static Load Rating C0: 1.53 kN | Static Allowable Moment MA: 4.14 N·m | Static Allowable Moment MB: 4.53 N·m | Static Allowable Moment MC: 5.73 N·m | Full Stainless Type: available on request
VRT1055A THK Cross Roller Table VRT1055A, stroke 32mm, 12 rollers, 52g | Frame: VRT1-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 2.5×4.1×2.2 mm | Table Width (W): 20 mm | Height (M): 8 mm | Stroke: 32 mm | Rollers (Z): 12 | Mass: 52 g | Basic Dynamic Load Rating C: 1.09 kN | Basic Static Load Rating C0: 1.83 kN | Static Allowable Moment MA: 5.92 N·m | Static Allowable Moment MB: 6.41 N·m | Static Allowable Moment MC: 6.87 N·m | Full Stainless Type: available on request
VRT1065A THK Cross Roller Table VRT1065A, stroke 40mm, 14 rollers, 62g | Frame: VRT1-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 2.5×4.1×2.2 mm | Table Width (W): 20 mm | Height (M): 8 mm | Stroke: 40 mm | Rollers (Z): 14 | Mass: 62 g | Basic Dynamic Load Rating C: 1.23 kN | Basic Static Load Rating C0: 2.14 kN | Static Allowable Moment MA: 8.08 N·m | Static Allowable Moment MB: 8.62 N·m | Static Allowable Moment MC: 8.02 N·m | Full Stainless Type: available on request
VRT1075A THK Cross Roller Table VRT1075A, stroke 45mm, 18 rollers, 72g | Frame: VRT1-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 2.5×4.1×2.2 mm | Table Width (W): 20 mm | Height (M): 8 mm | Stroke: 45 mm | Rollers (Z): 18 | Mass: 72 g | Basic Dynamic Load Rating C: 1.5 kN | Basic Static Load Rating C0: 2.75 kN | Static Allowable Moment MA: 13.3 N·m | Static Allowable Moment MB: 14.0 N·m | Static Allowable Moment MC: 10.3 N·m | Full Stainless Type: available on request
VRT1085A THK Cross Roller Table VRT1085A, stroke 50mm, 20 rollers, 82g | Frame: VRT1-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 2.5×4.1×2.2 mm | Table Width (W): 20 mm | Height (M): 8 mm | Stroke: 50 mm | Rollers (Z): 20 | Mass: 82 g | Basic Dynamic Load Rating C: 1.63 kN | Basic Static Load Rating C0: 3.05 kN | Static Allowable Moment MA: 16.4 N·m | Static Allowable Moment MB: 17.2 N·m | Static Allowable Moment MC: 11.5 N·m | Full Stainless Type: available on request
Roller GuidesTHK
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK Cross Roller Table VRT1-A (W20×H8, base hole type)

Brand THK·Roller Guides

Available part numbers (7)

VRT1025A, VRT1035A, VRT1045A, VRT1055A, VRT1065A, VRT1075A, VRT1085A

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VRT1025ATHK Cross Roller Table VRT1025A, stroke 12mm, 5 rollers, 23g | Frame: VRT1-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 2.5×4.1×2.2 mm | Table Width (W): 20 mm | Height (M): 8 mm | Stroke: 12 mm | Rollers (Z): 5 | Mass: 23 g | Basic Dynamic Load Rating C: 0.46 kN | Basic Static Load Rating C0: 0.61 kN | Static Allowable Moment MA: 1.52 N·m | Static Allowable Moment MB: 1.25 N·m | Static Allowable Moment MC: 2.29 N·m | Full Stainless Type: available on request
VRT1035ATHK Cross Roller Table VRT1035A, stroke 18mm, 7 rollers, 32g | Frame: VRT1-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 2.5×4.1×2.2 mm | Table Width (W): 20 mm | Height (M): 8 mm | Stroke: 18 mm | Rollers (Z): 7 | Mass: 32 g | Basic Dynamic Load Rating C: 0.63 kN | Basic Static Load Rating C0: 0.92 kN | Static Allowable Moment MA: 2.62 N·m | Static Allowable Moment MB: 2.32 N·m | Static Allowable Moment MC: 3.44 N·m | Full Stainless Type: available on request
VRT1045ATHK Cross Roller Table VRT1045A, stroke 25mm, 10 rollers, 42g | Frame: VRT1-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 2.5×4.1×2.2 mm | Table Width (W): 20 mm | Height (M): 8 mm | Stroke: 25 mm | Rollers (Z): 10 | Mass: 42 g | Basic Dynamic Load Rating C: 0.95 kN | Basic Static Load Rating C0: 1.53 kN | Static Allowable Moment MA: 4.14 N·m | Static Allowable Moment MB: 4.53 N·m | Static Allowable Moment MC: 5.73 N·m | Full Stainless Type: available on request
VRT1055ATHK Cross Roller Table VRT1055A, stroke 32mm, 12 rollers, 52g | Frame: VRT1-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 2.5×4.1×2.2 mm | Table Width (W): 20 mm | Height (M): 8 mm | Stroke: 32 mm | Rollers (Z): 12 | Mass: 52 g | Basic Dynamic Load Rating C: 1.09 kN | Basic Static Load Rating C0: 1.83 kN | Static Allowable Moment MA: 5.92 N·m | Static Allowable Moment MB: 6.41 N·m | Static Allowable Moment MC: 6.87 N·m | Full Stainless Type: available on request
VRT1065ATHK Cross Roller Table VRT1065A, stroke 40mm, 14 rollers, 62g | Frame: VRT1-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 2.5×4.1×2.2 mm | Table Width (W): 20 mm | Height (M): 8 mm | Stroke: 40 mm | Rollers (Z): 14 | Mass: 62 g | Basic Dynamic Load Rating C: 1.23 kN | Basic Static Load Rating C0: 2.14 kN | Static Allowable Moment MA: 8.08 N·m | Static Allowable Moment MB: 8.62 N·m | Static Allowable Moment MC: 8.02 N·m | Full Stainless Type: available on request
VRT1075ATHK Cross Roller Table VRT1075A, stroke 45mm, 18 rollers, 72g | Frame: VRT1-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 2.5×4.1×2.2 mm | Table Width (W): 20 mm | Height (M): 8 mm | Stroke: 45 mm | Rollers (Z): 18 | Mass: 72 g | Basic Dynamic Load Rating C: 1.5 kN | Basic Static Load Rating C0: 2.75 kN | Static Allowable Moment MA: 13.3 N·m | Static Allowable Moment MB: 14.0 N·m | Static Allowable Moment MC: 10.3 N·m | Full Stainless Type: available on request
VRT1085ATHK Cross Roller Table VRT1085A, stroke 50mm, 20 rollers, 82g | Frame: VRT1-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 2.5×4.1×2.2 mm | Table Width (W): 20 mm | Height (M): 8 mm | Stroke: 50 mm | Rollers (Z): 20 | Mass: 82 g | Basic Dynamic Load Rating C: 1.63 kN | Basic Static Load Rating C0: 3.05 kN | Static Allowable Moment MA: 16.4 N·m | Static Allowable Moment MB: 17.2 N·m | Static Allowable Moment MC: 11.5 N·m | Full Stainless Type: available on request
