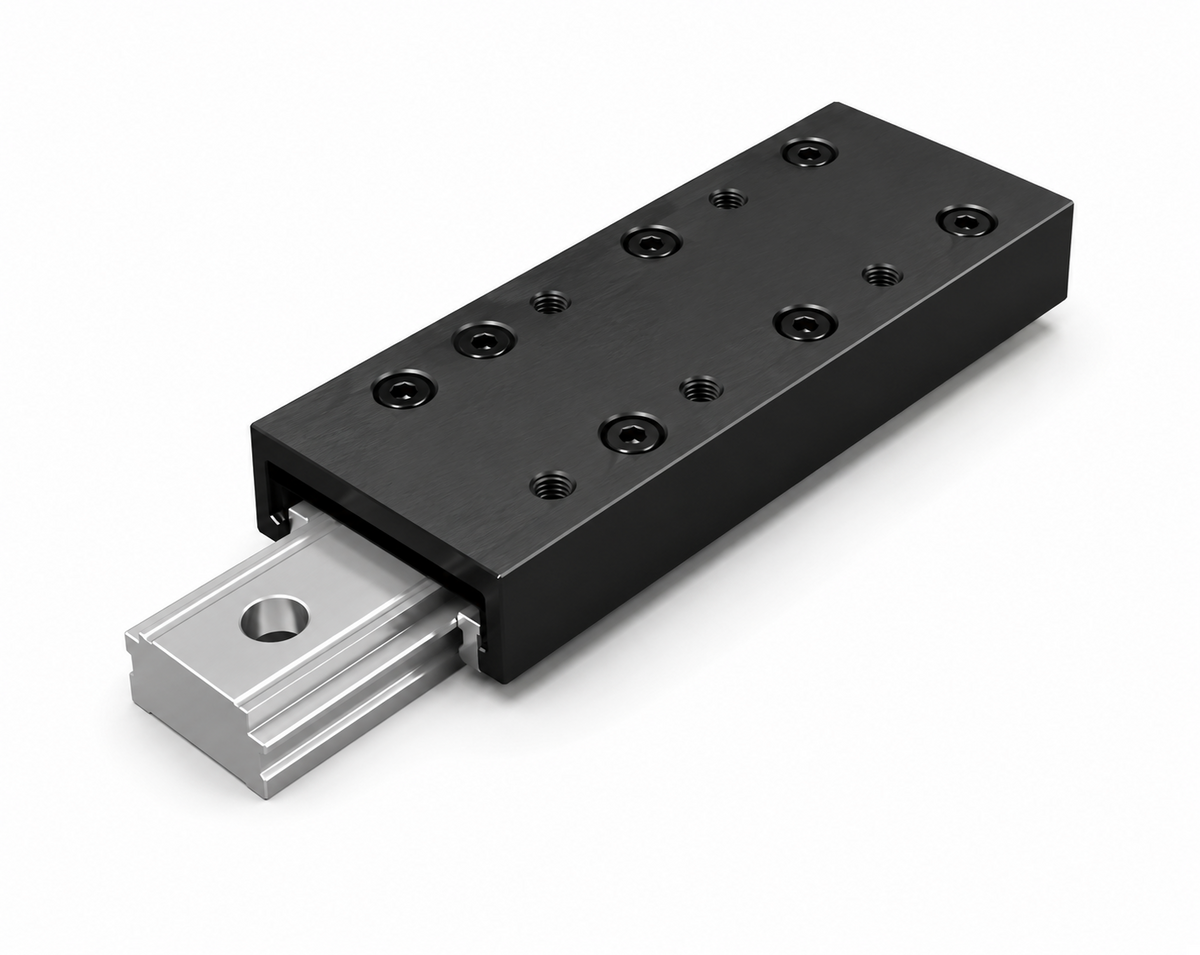

THK Cross Roller Table VRT2-A (W30×H12, base hole type)

THK Cross Roller Table VRT2-A (W30×H12, base hole type)

THK VRT-A Miniature Cross Roller Table, VRT2-A frame.

Key features

  • Base mounting through-hole type (d×D×h = 3.5×6×3.2mm)
  • Table width W=30mm, height M=12mm
  • Stroke range 18~80mm
  • Same load ratings as VRT tab type; base through-hole mounting for improved rigidity
  • Full stainless steel type available on request

Specifications

Frame VRT2-A
Type Base Through-Hole
Mounting Hole (d×D×h) 3.5×6×3.2 mm
Table Width (W) 30 mm
Height (M) 12 mm
Full Stainless Type available on request
VRT2035A THK Cross Roller Table VRT2035A, stroke 18mm, 5 rollers, 78g | Frame: VRT2-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 3.5×6×3.2 mm | Table Width (W): 30 mm | Height (M): 12 mm | Stroke: 18 mm | Rollers (Z): 5 | Mass: 78 g | Basic Dynamic Load Rating C: 0.84 kN | Basic Static Load Rating C0: 1.09 kN | Static Allowable Moment MA: 4.32 N·m | Static Allowable Moment MB: 3.55 N·m | Static Allowable Moment MC: 7.06 N·m | Full Stainless Type: available on request
VRT2050A THK Cross Roller Table VRT2050A, stroke 30mm, 7 rollers, 113g | Frame: VRT2-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 3.5×6×3.2 mm | Table Width (W): 30 mm | Height (M): 12 mm | Stroke: 30 mm | Rollers (Z): 7 | Mass: 113 g | Basic Dynamic Load Rating C: 1.16 kN | Basic Static Load Rating C0: 1.63 kN | Static Allowable Moment MA: 7.45 N·m | Static Allowable Moment MB: 6.59 N·m | Static Allowable Moment MC: 10.6 N·m | Full Stainless Type: available on request
VRT2065A THK Cross Roller Table VRT2065A, stroke 40mm, 9 rollers, 147g | Frame: VRT2-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 3.5×6×3.2 mm | Table Width (W): 30 mm | Height (M): 12 mm | Stroke: 40 mm | Rollers (Z): 9 | Mass: 147 g | Basic Dynamic Load Rating C: 1.46 kN | Basic Static Load Rating C0: 2.17 kN | Static Allowable Moment MA: 11.8 N·m | Static Allowable Moment MB: 10.5 N·m | Static Allowable Moment MC: 14.1 N·m | Full Stainless Type: available on request
VRT2080A THK Cross Roller Table VRT2080A, stroke 50mm, 12 rollers, 181g | Frame: VRT2-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 3.5×6×3.2 mm | Table Width (W): 30 mm | Height (M): 12 mm | Stroke: 50 mm | Rollers (Z): 12 | Mass: 181 g | Basic Dynamic Load Rating C: 2.01 kN | Basic Static Load Rating C0: 3.26 kN | Static Allowable Moment MA: 16.8 N·m | Static Allowable Moment MB: 18.2 N·m | Static Allowable Moment MC: 21.2 N·m | Full Stainless Type: available on request
VRT2095A THK Cross Roller Table VRT2095A, stroke 60mm, 14 rollers, 217g | Frame: VRT2-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 3.5×6×3.2 mm | Table Width (W): 30 mm | Height (M): 12 mm | Stroke: 60 mm | Rollers (Z): 14 | Mass: 217 g | Basic Dynamic Load Rating C: 2.26 kN | Basic Static Load Rating C0: 3.8 kN | Static Allowable Moment MA: 23.0 N·m | Static Allowable Moment MB: 24.5 N·m | Static Allowable Moment MC: 24.7 N·m | Full Stainless Type: available on request
VRT2110A THK Cross Roller Table VRT2110A, stroke 70mm, 17 rollers, 254g | Frame: VRT2-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 3.5×6×3.2 mm | Table Width (W): 30 mm | Height (M): 12 mm | Stroke: 70 mm | Rollers (Z): 17 | Mass: 254 g | Basic Dynamic Load Rating C: 2.51 kN | Basic Static Load Rating C0: 4.34 kN | Static Allowable Moment MA: 37.9 N·m | Static Allowable Moment MB: 35.7 N·m | Static Allowable Moment MC: 28.2 N·m | Full Stainless Type: available on request
VRT2125A THK Cross Roller Table VRT2125A, stroke 80mm, 19 rollers, 287g | Frame: VRT2-A | Type: Base Through-Hole | Mounting Hole (d×D×h): 3.5×6×3.2 mm | Table Width (W): 30 mm | Height (M): 12 mm | Stroke: 80 mm | Rollers (Z): 19 | Mass: 287 g | Basic Dynamic Load Rating C: 2.76 kN | Basic Static Load Rating C0: 4.89 kN | Static Allowable Moment MA: 46.7 N·m | Static Allowable Moment MB: 44.3 N·m | Static Allowable Moment MC: 31.8 N·m | Full Stainless Type: available on request
Roller GuidesTHK
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK Cross Roller Table VRT2-A (W30×H12, base hole type)

Brand THK·Roller Guides

Available part numbers (7)

VRT2035A, VRT2050A, VRT2065A, VRT2080A, VRT2095A, VRT2110A, VRT2125A

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
