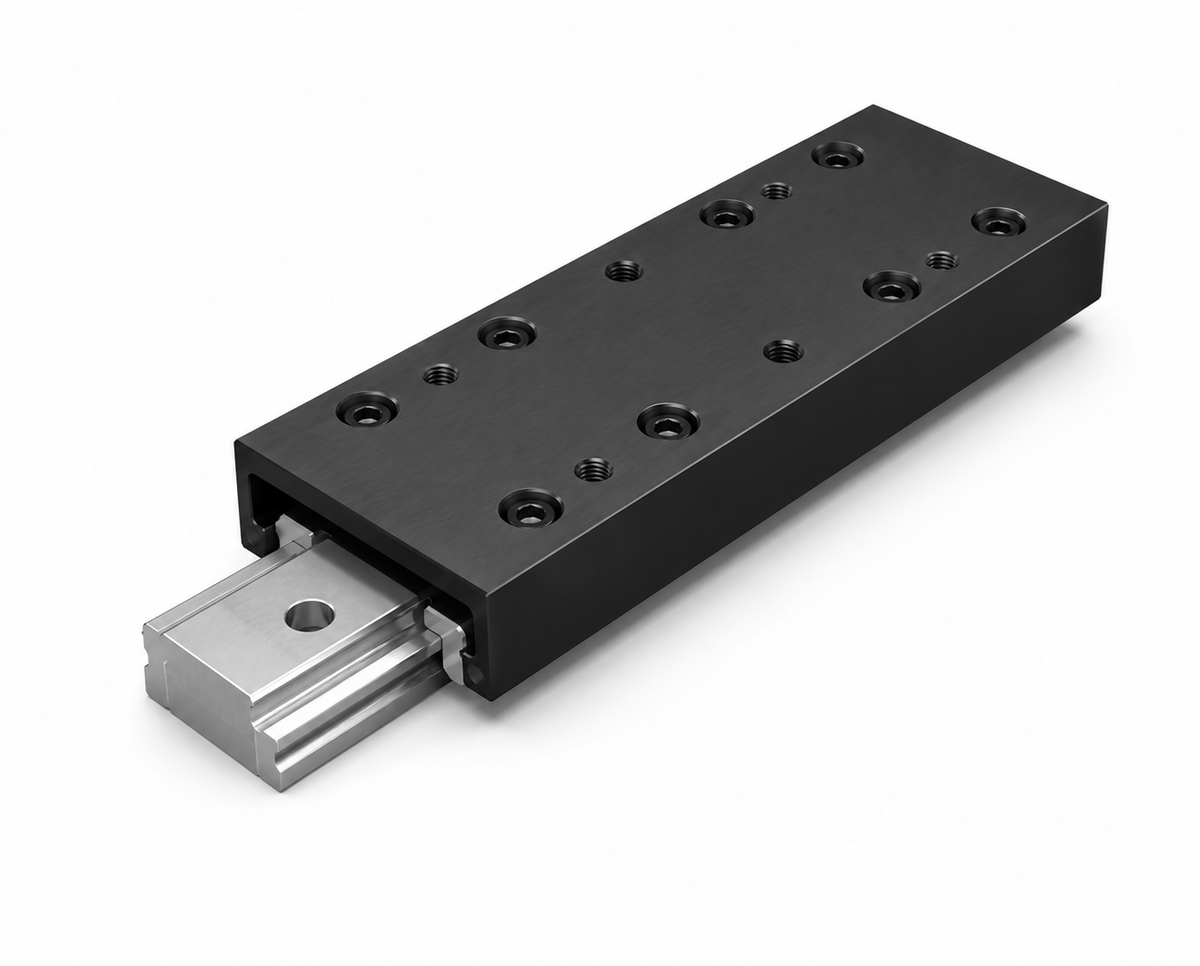

THK Cross Roller Table VRT3 (W40×H16, M4)

THK Cross Roller Table VRT3 (W40×H16, M4)

THK VRT Miniature Cross Roller Table, VRT3 frame.

Key features

  • Table width W=40mm, height M=16mm, mounting tap M4
  • Stroke range 30~130mm
  • Cross roller construction for high rigidity and precision linear motion
  • Full stainless steel type available on request

Specifications

Frame VRT3
Table Width (W) 40 mm
Height (M) 16 mm
Mounting Tap M4
Full Stainless Type available on request
VRT3055 THK Cross Roller Table VRT3055, stroke 30mm, 6 rollers, 229g | Frame: VRT3 | Table Width (W): 40 mm | Height (M): 16 mm | Stroke: 30 mm | Rollers (Z): 6 | Mass: 229 g | Basic Dynamic Load Rating C: 2.71 kN | Basic Static Load Rating C0: 3.67 kN | Static Allowable Moment MA: 12.2 N·m | Static Allowable Moment MB: 13.9 N·m | Static Allowable Moment MC: 31.9 N·m | Mounting Tap: M4 | Full Stainless Type: available on request
VRT3080 THK Cross Roller Table VRT3080, stroke 45mm, 10 rollers, 336g | Frame: VRT3 | Table Width (W): 40 mm | Height (M): 16 mm | Stroke: 45 mm | Rollers (Z): 10 | Mass: 336 g | Basic Dynamic Load Rating C: 4.06 kN | Basic Static Load Rating C0: 6.11 kN | Static Allowable Moment MA: 33.1 N·m | Static Allowable Moment MB: 36.2 N·m | Static Allowable Moment MC: 53.1 N·m | Mounting Tap: M4 | Full Stainless Type: available on request
VRT3105 THK Cross Roller Table VRT3105, stroke 60mm, 13 rollers, 442g | Frame: VRT3 | Table Width (W): 40 mm | Height (M): 16 mm | Stroke: 60 mm | Rollers (Z): 13 | Mass: 442 g | Basic Dynamic Load Rating C: 4.68 kN | Basic Static Load Rating C0: 7.33 kN | Static Allowable Moment MA: 64.6 N·m | Static Allowable Moment MB: 59.8 N·m | Static Allowable Moment MC: 63.8 N·m | Mounting Tap: M4 | Full Stainless Type: available on request
VRT3130 THK Cross Roller Table VRT3130, stroke 75mm, 17 rollers, 551g | Frame: VRT3 | Table Width (W): 40 mm | Height (M): 16 mm | Stroke: 75 mm | Rollers (Z): 17 | Mass: 551 g | Basic Dynamic Load Rating C: 5.87 kN | Basic Static Load Rating C0: 9.77 kN | Static Allowable Moment MA: 107.0 N·m | Static Allowable Moment MB: 100.0 N·m | Static Allowable Moment MC: 85.0 N·m | Mounting Tap: M4 | Full Stainless Type: available on request
VRT3155 THK Cross Roller Table VRT3155, stroke 90mm, 20 rollers, 657g | Frame: VRT3 | Table Width (W): 40 mm | Height (M): 16 mm | Stroke: 90 mm | Rollers (Z): 20 | Mass: 657 g | Basic Dynamic Load Rating C: 6.98 kN | Basic Static Load Rating C0: 12.2 kN | Static Allowable Moment MA: 131.0 N·m | Static Allowable Moment MB: 138.0 N·m | Static Allowable Moment MC: 106.0 N·m | Mounting Tap: M4 | Full Stainless Type: available on request
VRT3180 THK Cross Roller Table VRT3180, stroke 105mm, 24 rollers, 766g | Frame: VRT3 | Table Width (W): 40 mm | Height (M): 16 mm | Stroke: 105 mm | Rollers (Z): 24 | Mass: 766 g | Basic Dynamic Load Rating C: 8.05 kN | Basic Static Load Rating C0: 14.7 kN | Static Allowable Moment MA: 189.0 N·m | Static Allowable Moment MB: 196.0 N·m | Static Allowable Moment MC: 128.0 N·m | Mounting Tap: M4 | Full Stainless Type: available on request
VRT3205 THK Cross Roller Table VRT3205, stroke 130mm, 26 rollers, 871g | Frame: VRT3 | Table Width (W): 40 mm | Height (M): 16 mm | Stroke: 130 mm | Rollers (Z): 26 | Mass: 871 g | Basic Dynamic Load Rating C: 8.57 kN | Basic Static Load Rating C0: 15.9 kN | Static Allowable Moment MA: 222.0 N·m | Static Allowable Moment MB: 230.0 N·m | Static Allowable Moment MC: 138.0 N·m | Mounting Tap: M4 | Full Stainless Type: available on request
Roller GuidesTHK
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK Cross Roller Table VRT3 (W40×H16, M4)

Brand THK·Roller Guides

Available part numbers (7)

VRT3055, VRT3080, VRT3105, VRT3130, VRT3155, VRT3180, VRT3205

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
