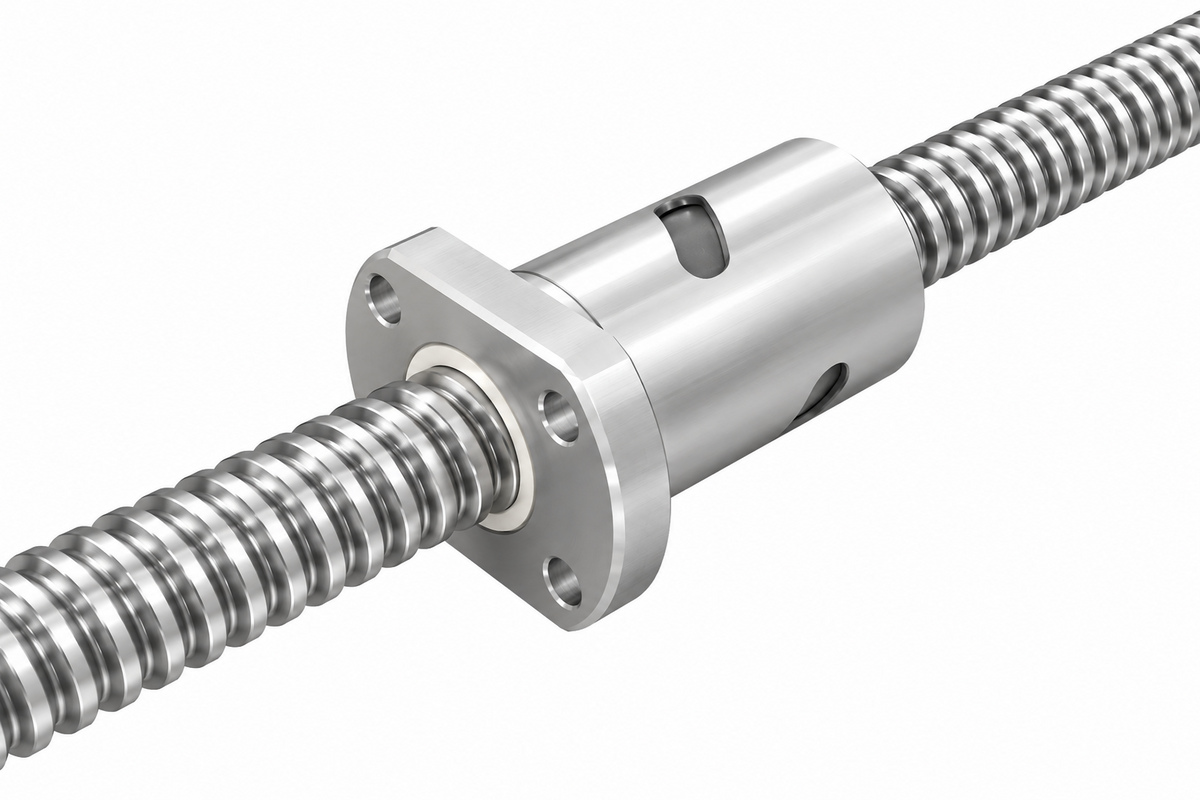

THK DIK Ball Screw (Offset Preload Single Nut, Shaft φ14~25)

THK DIK Ball Screw (Offset Preload Single Nut, Shaft φ14~25)

THK DIK Series Precision Ball Screw with Offset Preload Single Nut.

Key features

  • Phase-shifted left/right threads in a single nut eliminate axial clearance (preloaded)
  • Compact and smooth motion
  • Shaft diameter φ14~25mm

Specifications

Type Offset Preload, Single Nut (DIK)
DIK1404-4 THK DIK1404-4, φ14 Lead4, Ca=3.0kN | Shaft Diameter: φ14mm | Lead: 4mm | Ca: 3.0kN | C0a: 5.1kN | Nut OD D: 26mm | Flange D1: 45mm | Nut Length L1: 48mm | Type: Offset Preload, Single Nut (DIK)
DIK1404-6 THK DIK1404-6, φ14 Lead4, Ca=4.2kN | Shaft Diameter: φ14mm | Lead: 4mm | Ca: 4.2kN | C0a: 7.7kN | Nut OD D: 26mm | Flange D1: 45mm | Nut Length L1: 60mm | Type: Offset Preload, Single Nut (DIK)
DIK1605-6 THK DIK1605-6, φ16 Lead5, Ca=7.4kN | Shaft Diameter: φ16mm | Lead: 5mm | Ca: 7.4kN | C0a: 13.0kN | Nut OD D: 30mm | Flange D1: 49mm | Nut Length L1: 60mm | Type: Offset Preload, Single Nut (DIK)
DIK2004-6 THK DIK2004-6, φ20 Lead4, Ca=5.2kN | Shaft Diameter: φ20mm | Lead: 4mm | Ca: 5.2kN | C0a: 11.6kN | Nut OD D: 32mm | Flange D1: 56mm | Nut Length L1: 62mm | Type: Offset Preload, Single Nut (DIK)
DIK2004-8 THK DIK2004-8, φ20 Lead4, Ca=6.6kN | Shaft Diameter: φ20mm | Lead: 4mm | Ca: 6.6kN | C0a: 15.5kN | Nut OD D: 32mm | Flange D1: 56mm | Nut Length L1: 70mm | Type: Offset Preload, Single Nut (DIK)
DIK2005-6 THK DIK2005-6, φ20 Lead5, Ca=8.5kN | Shaft Diameter: φ20mm | Lead: 5mm | Ca: 8.5kN | C0a: 17.3kN | Nut OD D: 34mm | Flange D1: 58mm | Nut Length L1: 61mm | Type: Offset Preload, Single Nut (DIK)
DIK2006-6 THK DIK2006-6, φ20 Lead6, Ca=11.4kN | Shaft Diameter: φ20mm | Lead: 6mm | Ca: 11.4kN | C0a: 21.5kN | Nut OD D: 35mm | Flange D1: 58mm | Nut Length L1: 76mm | Type: Offset Preload, Single Nut (DIK)
DIK2008-4 THK DIK2008-4, φ20 Lead8, Ca=8.1kN | Shaft Diameter: φ20mm | Lead: 8mm | Ca: 8.1kN | C0a: 14.4kN | Nut OD D: 35mm | Flange D1: 58mm | Nut Length L1: 69mm | Type: Offset Preload, Single Nut (DIK)
DIK2504-6 THK DIK2504-6, φ25 Lead4, Ca=5.7kN | Shaft Diameter: φ25mm | Lead: 4mm | Ca: 5.7kN | C0a: 15.0kN | Nut OD D: 38mm | Flange D1: 63mm | Nut Length L1: 63mm | Type: Offset Preload, Single Nut (DIK)
DIK2504-8 THK DIK2504-8, φ25 Lead4, Ca=7.4kN | Shaft Diameter: φ25mm | Lead: 4mm | Ca: 7.4kN | C0a: 19.9kN | Nut OD D: 38mm | Flange D1: 63mm | Nut Length L1: 71mm | Type: Offset Preload, Single Nut (DIK)
DIK2505-6 THK DIK2505-6, φ25 Lead5, Ca=9.7kN | Shaft Diameter: φ25mm | Lead: 5mm | Ca: 9.7kN | C0a: 22.6kN | Nut OD D: 40mm | Flange D1: 63mm | Nut Length L1: 61mm | Type: Offset Preload, Single Nut (DIK)
DIK2506-4 THK DIK2506-4, φ25 Lead6, Ca=9.1kN | Shaft Diameter: φ25mm | Lead: 6mm | Ca: 9.1kN | C0a: 18.0kN | Nut OD D: 40mm | Flange D1: 63mm | Nut Length L1: 60mm | Type: Offset Preload, Single Nut (DIK)
DIK2506-6 THK DIK2506-6, φ25 Lead6, Ca=12.8kN | Shaft Diameter: φ25mm | Lead: 6mm | Ca: 12.8kN | C0a: 27.0kN | Nut OD D: 40mm | Flange D1: 63mm | Nut Length L1: 72mm | Type: Offset Preload, Single Nut (DIK)
DIK2508-4 THK DIK2508-4, φ25 Lead8, Ca=9.2kN | Shaft Diameter: φ25mm | Lead: 8mm | Ca: 9.2kN | C0a: 18.8kN | Nut OD D: 40mm | Flange D1: 63mm | Nut Length L1: 71mm | Type: Offset Preload, Single Nut (DIK)
DIK2508-6 THK DIK2508-6, φ25 Lead8, Ca=13.1kN | Shaft Diameter: φ25mm | Lead: 8mm | Ca: 13.1kN | C0a: 28.1kN | Nut OD D: 40mm | Flange D1: 63mm | Nut Length L1: 94mm | Type: Offset Preload, Single Nut (DIK)
DIK2510-4 THK DIK2510-4, φ25 Lead10, Ca=9.0kN | Shaft Diameter: φ25mm | Lead: 10mm | Ca: 9.0kN | C0a: 18.0kN | Nut OD D: 40mm | Flange D1: 63mm | Nut Length L1: 85mm | Type: Offset Preload, Single Nut (DIK)
Ball ScrewsTHK
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK DIK Ball Screw (Offset Preload Single Nut, Shaft φ14~25)

Brand THK·Ball Screws

Available part numbers (16)

DIK1404-4, DIK1404-6, DIK1605-6, DIK2004-6, DIK2004-8, DIK2005-6, DIK2006-6, DIK2008-4, DIK2504-6, DIK2504-8 + 6 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DIK1404-4THK DIK1404-4, φ14 Lead4, Ca=3.0kN | Shaft Diameter: φ14mm | Lead: 4mm | Ca: 3.0kN | C0a: 5.1kN | Nut OD D: 26mm | Flange D1: 45mm | Nut Length L1: 48mm | Type: Offset Preload, Single Nut (DIK)
DIK1404-6THK DIK1404-6, φ14 Lead4, Ca=4.2kN | Shaft Diameter: φ14mm | Lead: 4mm | Ca: 4.2kN | C0a: 7.7kN | Nut OD D: 26mm | Flange D1: 45mm | Nut Length L1: 60mm | Type: Offset Preload, Single Nut (DIK)
DIK1605-6THK DIK1605-6, φ16 Lead5, Ca=7.4kN | Shaft Diameter: φ16mm | Lead: 5mm | Ca: 7.4kN | C0a: 13.0kN | Nut OD D: 30mm | Flange D1: 49mm | Nut Length L1: 60mm | Type: Offset Preload, Single Nut (DIK)
DIK2004-6THK DIK2004-6, φ20 Lead4, Ca=5.2kN | Shaft Diameter: φ20mm | Lead: 4mm | Ca: 5.2kN | C0a: 11.6kN | Nut OD D: 32mm | Flange D1: 56mm | Nut Length L1: 62mm | Type: Offset Preload, Single Nut (DIK)
DIK2004-8THK DIK2004-8, φ20 Lead4, Ca=6.6kN | Shaft Diameter: φ20mm | Lead: 4mm | Ca: 6.6kN | C0a: 15.5kN | Nut OD D: 32mm | Flange D1: 56mm | Nut Length L1: 70mm | Type: Offset Preload, Single Nut (DIK)
DIK2005-6THK DIK2005-6, φ20 Lead5, Ca=8.5kN | Shaft Diameter: φ20mm | Lead: 5mm | Ca: 8.5kN | C0a: 17.3kN | Nut OD D: 34mm | Flange D1: 58mm | Nut Length L1: 61mm | Type: Offset Preload, Single Nut (DIK)
DIK2006-6THK DIK2006-6, φ20 Lead6, Ca=11.4kN | Shaft Diameter: φ20mm | Lead: 6mm | Ca: 11.4kN | C0a: 21.5kN | Nut OD D: 35mm | Flange D1: 58mm | Nut Length L1: 76mm | Type: Offset Preload, Single Nut (DIK)
DIK2008-4THK DIK2008-4, φ20 Lead8, Ca=8.1kN | Shaft Diameter: φ20mm | Lead: 8mm | Ca: 8.1kN | C0a: 14.4kN | Nut OD D: 35mm | Flange D1: 58mm | Nut Length L1: 69mm | Type: Offset Preload, Single Nut (DIK)
DIK2504-6THK DIK2504-6, φ25 Lead4, Ca=5.7kN | Shaft Diameter: φ25mm | Lead: 4mm | Ca: 5.7kN | C0a: 15.0kN | Nut OD D: 38mm | Flange D1: 63mm | Nut Length L1: 63mm | Type: Offset Preload, Single Nut (DIK)
DIK2504-8THK DIK2504-8, φ25 Lead4, Ca=7.4kN | Shaft Diameter: φ25mm | Lead: 4mm | Ca: 7.4kN | C0a: 19.9kN | Nut OD D: 38mm | Flange D1: 63mm | Nut Length L1: 71mm | Type: Offset Preload, Single Nut (DIK)
DIK2505-6THK DIK2505-6, φ25 Lead5, Ca=9.7kN | Shaft Diameter: φ25mm | Lead: 5mm | Ca: 9.7kN | C0a: 22.6kN | Nut OD D: 40mm | Flange D1: 63mm | Nut Length L1: 61mm | Type: Offset Preload, Single Nut (DIK)
DIK2506-4THK DIK2506-4, φ25 Lead6, Ca=9.1kN | Shaft Diameter: φ25mm | Lead: 6mm | Ca: 9.1kN | C0a: 18.0kN | Nut OD D: 40mm | Flange D1: 63mm | Nut Length L1: 60mm | Type: Offset Preload, Single Nut (DIK)
DIK2506-6THK DIK2506-6, φ25 Lead6, Ca=12.8kN | Shaft Diameter: φ25mm | Lead: 6mm | Ca: 12.8kN | C0a: 27.0kN | Nut OD D: 40mm | Flange D1: 63mm | Nut Length L1: 72mm | Type: Offset Preload, Single Nut (DIK)
DIK2508-4THK DIK2508-4, φ25 Lead8, Ca=9.2kN | Shaft Diameter: φ25mm | Lead: 8mm | Ca: 9.2kN | C0a: 18.8kN | Nut OD D: 40mm | Flange D1: 63mm | Nut Length L1: 71mm | Type: Offset Preload, Single Nut (DIK)
DIK2508-6THK DIK2508-6, φ25 Lead8, Ca=13.1kN | Shaft Diameter: φ25mm | Lead: 8mm | Ca: 13.1kN | C0a: 28.1kN | Nut OD D: 40mm | Flange D1: 63mm | Nut Length L1: 94mm | Type: Offset Preload, Single Nut (DIK)
DIK2510-4THK DIK2510-4, φ25 Lead10, Ca=9.0kN | Shaft Diameter: φ25mm | Lead: 10mm | Ca: 9.0kN | C0a: 18.0kN | Nut OD D: 40mm | Flange D1: 63mm | Nut Length L1: 85mm | Type: Offset Preload, Single Nut (DIK)
