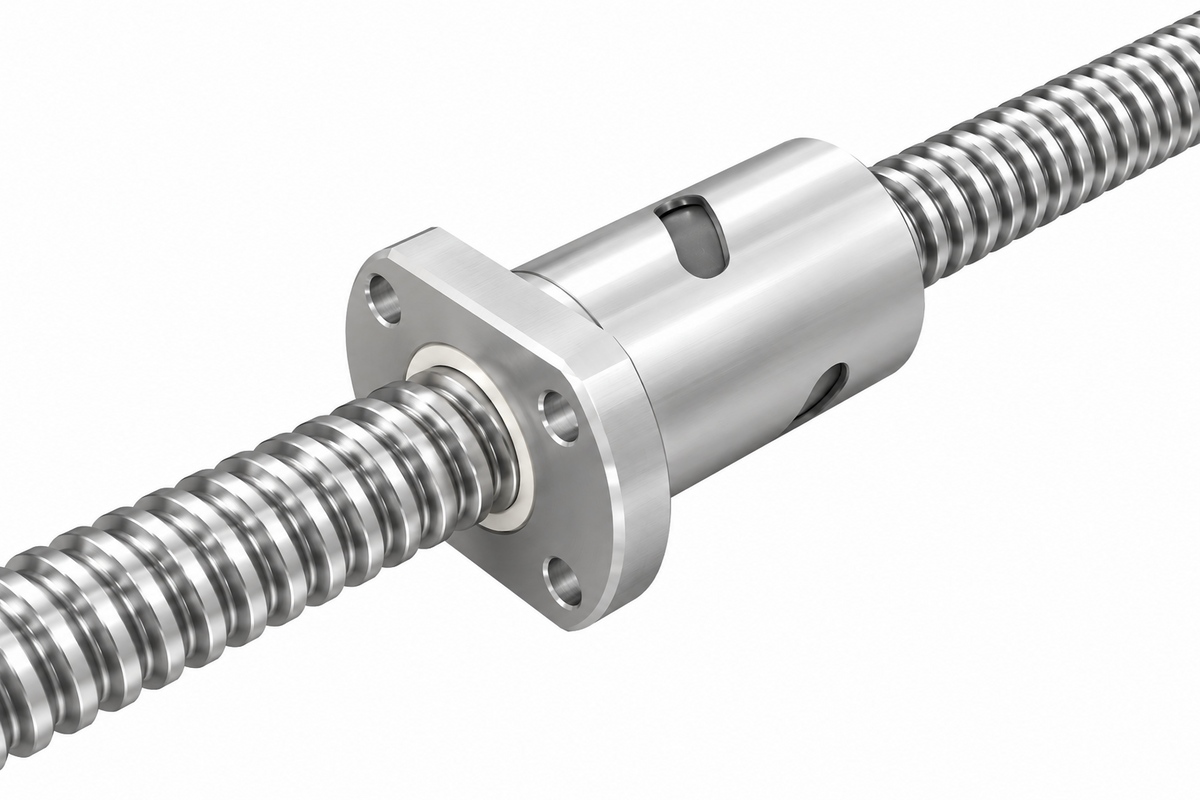

THK DIK Ball Screw (Offset Preload Single Nut, Shaft φ28~32)

THK DIK Ball Screw (Offset Preload Single Nut, Shaft φ28~32)

THK DIK Series Precision Ball Screw with Offset Preload Single Nut.

Key features

  • Phase-shifted left/right threads in a single nut eliminate axial clearance (preloaded)
  • Compact and smooth motion
  • Shaft diameter φ28~32mm

Specifications

Type Offset Preload, Single Nut (DIK)
DIK2805-6 THK DIK2805-6, φ28 Lead5, Ca=10.5kN | Shaft Diameter: φ28mm | Lead: 5mm | Ca: 10.5kN | C0a: 26.4kN | Nut OD D: 43mm | Flange D1: 71mm | Nut Length L1: 69mm | Type: Offset Preload, Single Nut (DIK)
DIK2805-8 THK DIK2805-8, φ28 Lead5, Ca=13.4kN | Shaft Diameter: φ28mm | Lead: 5mm | Ca: 13.4kN | C0a: 35.2kN | Nut OD D: 43mm | Flange D1: 71mm | Nut Length L1: 79mm | Type: Offset Preload, Single Nut (DIK)
DIK2806-6 THK DIK2806-6, φ28 Lead6, Ca=14.0kN | Shaft Diameter: φ28mm | Lead: 6mm | Ca: 14.0kN | C0a: 32.0kN | Nut OD D: 43mm | Flange D1: 71mm | Nut Length L1: 73mm | Type: Offset Preload, Single Nut (DIK)
DIK2810-4 THK DIK2810-4, φ28 Lead10, Ca=12.3kN | Shaft Diameter: φ28mm | Lead: 10mm | Ca: 12.3kN | C0a: 25.0kN | Nut OD D: 45mm | Flange D1: 71mm | Nut Length L1: 84mm | Type: Offset Preload, Single Nut (DIK)
DIK3204-6 THK DIK3204-6, φ32 Lead4, Ca=6.4kN | Shaft Diameter: φ32mm | Lead: 4mm | Ca: 6.4kN | C0a: 19.6kN | Nut OD D: 45mm | Flange D1: 76mm | Nut Length L1: 64mm | Type: Offset Preload, Single Nut (DIK)
DIK3204-8 THK DIK3204-8, φ32 Lead4, Ca=8.2kN | Shaft Diameter: φ32mm | Lead: 4mm | Ca: 8.2kN | C0a: 26.1kN | Nut OD D: 45mm | Flange D1: 76mm | Nut Length L1: 72mm | Type: Offset Preload, Single Nut (DIK)
DIK3204-10 THK DIK3204-10, φ32 Lead4, Ca=10.0kN | Shaft Diameter: φ32mm | Lead: 4mm | Ca: 10.0kN | C0a: 32.7kN | Nut OD D: 45mm | Flange D1: 76mm | Nut Length L1: 80mm | Type: Offset Preload, Single Nut (DIK)
DIK3205-6 THK DIK3205-6, φ32 Lead5, Ca=11.1kN | Shaft Diameter: φ32mm | Lead: 5mm | Ca: 11.1kN | C0a: 30.2kN | Nut OD D: 46mm | Flange D1: 76mm | Nut Length L1: 62mm | Type: Offset Preload, Single Nut (DIK)
DIK3205-8 THK DIK3205-8, φ32 Lead5, Ca=14.2kN | Shaft Diameter: φ32mm | Lead: 5mm | Ca: 14.2kN | C0a: 40.3kN | Nut OD D: 46mm | Flange D1: 76mm | Nut Length L1: 73mm | Type: Offset Preload, Single Nut (DIK)
DIK3206-6 THK DIK3206-6, φ32 Lead6, Ca=14.9kN | Shaft Diameter: φ32mm | Lead: 6mm | Ca: 14.9kN | C0a: 37.1kN | Nut OD D: 48mm | Flange D1: 76mm | Nut Length L1: 73mm | Type: Offset Preload, Single Nut (DIK)
DIK3206-8 THK DIK3206-8, φ32 Lead6, Ca=19.1kN | Shaft Diameter: φ32mm | Lead: 6mm | Ca: 19.1kN | C0a: 49.5kN | Nut OD D: 48mm | Flange D1: 76mm | Nut Length L1: 87mm | Type: Offset Preload, Single Nut (DIK)
DIK3210-6 THK DIK3210-6, φ32 Lead10, Ca=25.7kN | Shaft Diameter: φ32mm | Lead: 10mm | Ca: 25.7kN | C0a: 52.2kN | Nut OD D: 54mm | Flange D1: 87mm | Nut Length L1: 110mm | Type: Offset Preload, Single Nut (DIK)
DIK3212-4 THK DIK3212-4, φ32 Lead12, Ca=18.8kN | Shaft Diameter: φ32mm | Lead: 12mm | Ca: 18.8kN | C0a: 37.0kN | Nut OD D: 54mm | Flange D1: 87mm | Nut Length L1: 98mm | Type: Offset Preload, Single Nut (DIK)
Ball ScrewsTHK
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK DIK Ball Screw (Offset Preload Single Nut, Shaft φ28~32)

Brand THK·Ball Screws

Available part numbers (13)

DIK2805-6, DIK2805-8, DIK2806-6, DIK2810-4, DIK3204-6, DIK3204-8, DIK3204-10, DIK3205-6, DIK3205-8, DIK3206-6 + 3 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DIK2805-6THK DIK2805-6, φ28 Lead5, Ca=10.5kN | Shaft Diameter: φ28mm | Lead: 5mm | Ca: 10.5kN | C0a: 26.4kN | Nut OD D: 43mm | Flange D1: 71mm | Nut Length L1: 69mm | Type: Offset Preload, Single Nut (DIK)
DIK2805-8THK DIK2805-8, φ28 Lead5, Ca=13.4kN | Shaft Diameter: φ28mm | Lead: 5mm | Ca: 13.4kN | C0a: 35.2kN | Nut OD D: 43mm | Flange D1: 71mm | Nut Length L1: 79mm | Type: Offset Preload, Single Nut (DIK)
DIK2806-6THK DIK2806-6, φ28 Lead6, Ca=14.0kN | Shaft Diameter: φ28mm | Lead: 6mm | Ca: 14.0kN | C0a: 32.0kN | Nut OD D: 43mm | Flange D1: 71mm | Nut Length L1: 73mm | Type: Offset Preload, Single Nut (DIK)
DIK2810-4THK DIK2810-4, φ28 Lead10, Ca=12.3kN | Shaft Diameter: φ28mm | Lead: 10mm | Ca: 12.3kN | C0a: 25.0kN | Nut OD D: 45mm | Flange D1: 71mm | Nut Length L1: 84mm | Type: Offset Preload, Single Nut (DIK)
DIK3204-6THK DIK3204-6, φ32 Lead4, Ca=6.4kN | Shaft Diameter: φ32mm | Lead: 4mm | Ca: 6.4kN | C0a: 19.6kN | Nut OD D: 45mm | Flange D1: 76mm | Nut Length L1: 64mm | Type: Offset Preload, Single Nut (DIK)
DIK3204-8THK DIK3204-8, φ32 Lead4, Ca=8.2kN | Shaft Diameter: φ32mm | Lead: 4mm | Ca: 8.2kN | C0a: 26.1kN | Nut OD D: 45mm | Flange D1: 76mm | Nut Length L1: 72mm | Type: Offset Preload, Single Nut (DIK)
DIK3204-10THK DIK3204-10, φ32 Lead4, Ca=10.0kN | Shaft Diameter: φ32mm | Lead: 4mm | Ca: 10.0kN | C0a: 32.7kN | Nut OD D: 45mm | Flange D1: 76mm | Nut Length L1: 80mm | Type: Offset Preload, Single Nut (DIK)
DIK3205-6THK DIK3205-6, φ32 Lead5, Ca=11.1kN | Shaft Diameter: φ32mm | Lead: 5mm | Ca: 11.1kN | C0a: 30.2kN | Nut OD D: 46mm | Flange D1: 76mm | Nut Length L1: 62mm | Type: Offset Preload, Single Nut (DIK)
DIK3205-8THK DIK3205-8, φ32 Lead5, Ca=14.2kN | Shaft Diameter: φ32mm | Lead: 5mm | Ca: 14.2kN | C0a: 40.3kN | Nut OD D: 46mm | Flange D1: 76mm | Nut Length L1: 73mm | Type: Offset Preload, Single Nut (DIK)
DIK3206-6THK DIK3206-6, φ32 Lead6, Ca=14.9kN | Shaft Diameter: φ32mm | Lead: 6mm | Ca: 14.9kN | C0a: 37.1kN | Nut OD D: 48mm | Flange D1: 76mm | Nut Length L1: 73mm | Type: Offset Preload, Single Nut (DIK)
DIK3206-8THK DIK3206-8, φ32 Lead6, Ca=19.1kN | Shaft Diameter: φ32mm | Lead: 6mm | Ca: 19.1kN | C0a: 49.5kN | Nut OD D: 48mm | Flange D1: 76mm | Nut Length L1: 87mm | Type: Offset Preload, Single Nut (DIK)
DIK3210-6THK DIK3210-6, φ32 Lead10, Ca=25.7kN | Shaft Diameter: φ32mm | Lead: 10mm | Ca: 25.7kN | C0a: 52.2kN | Nut OD D: 54mm | Flange D1: 87mm | Nut Length L1: 110mm | Type: Offset Preload, Single Nut (DIK)
DIK3212-4THK DIK3212-4, φ32 Lead12, Ca=18.8kN | Shaft Diameter: φ32mm | Lead: 12mm | Ca: 18.8kN | C0a: 37.0kN | Nut OD D: 54mm | Flange D1: 87mm | Nut Length L1: 98mm | Type: Offset Preload, Single Nut (DIK)
