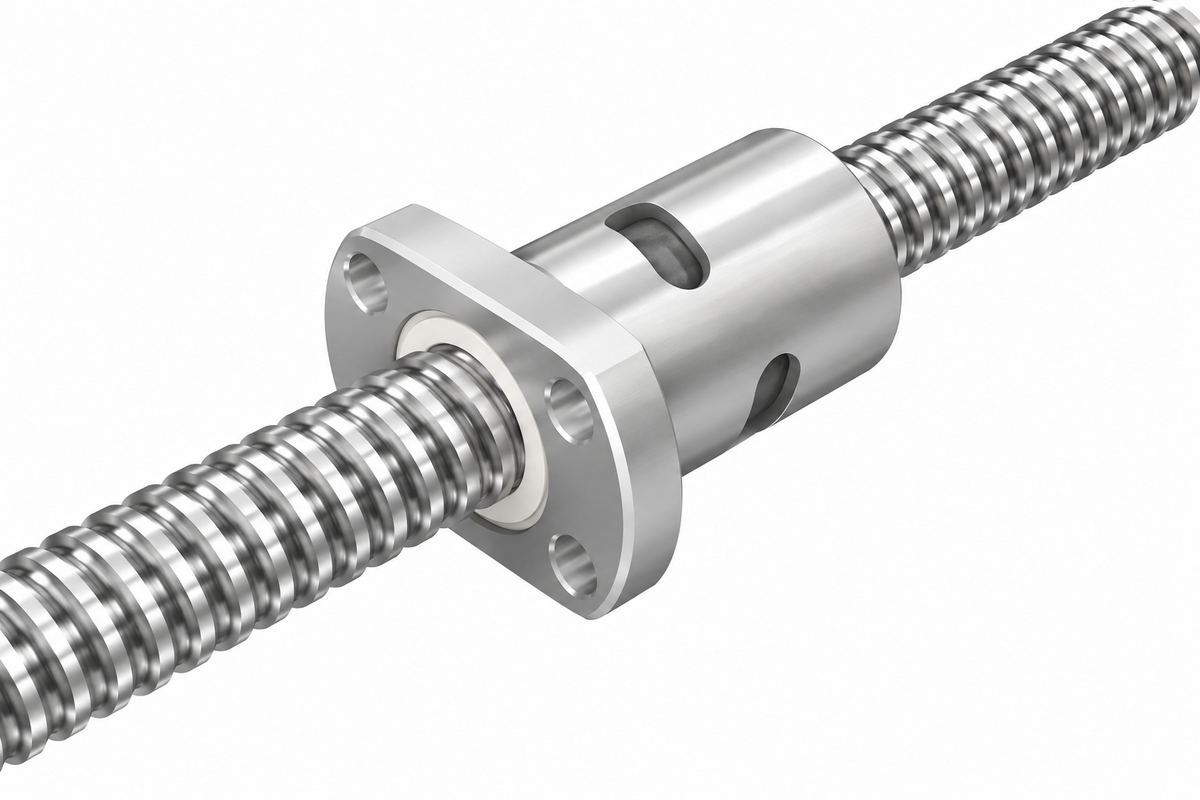

THK DK Ball Screw (Compact Single Nut, Shaft φ36~40)

THK DK Ball Screw (Compact Single Nut, Shaft φ36~40)

THK DK Series Compact Precision Ball Screw.

Key features

  • Most compact design — nut OD is 70~80% of return pipe type
  • Deflector return type for space-saving installation
  • Shaft diameter φ36~40mm

Specifications

Type Compact Single Nut, Deflector Return (DK)
DK3610-4 THK DK3610-4, φ36 Lead10, Ca=36.8kN | Shaft Diameter: φ36mm | Lead: 10mm | Ca: 36.8kN | C0a: 85.0kN | Nut OD D: 58mm | Flange D1: 98mm | Nut Length L1: 93mm | PCD: 77mm | Type: Compact Single Nut, Deflector Return (DK)
DK4010-3 THK DK4010-3, φ40 Lead10, Ca=29.8kN | Shaft Diameter: φ40mm | Lead: 10mm | Ca: 29.8kN | C0a: 69.3kN | Nut OD D: 62mm | Flange D1: 104mm | Nut Length L1: 83mm | PCD: 82mm | Type: Compact Single Nut, Deflector Return (DK)
DK4010-4 THK DK4010-4, φ40 Lead10, Ca=38.1kN | Shaft Diameter: φ40mm | Lead: 10mm | Ca: 38.1kN | C0a: 92.4kN | Nut OD D: 62mm | Flange D1: 104mm | Nut Length L1: 93mm | PCD: 82mm | Type: Compact Single Nut, Deflector Return (DK)
DK4012-3 THK DK4012-3, φ40 Lead12, Ca=30.6kN | Shaft Diameter: φ40mm | Lead: 12mm | Ca: 30.6kN | C0a: 72.3kN | Nut OD D: 62mm | Flange D1: 104mm | Nut Length L1: 90mm | PCD: 82mm | Type: Compact Single Nut, Deflector Return (DK)
DK4012-4 THK DK4012-4, φ40 Lead12, Ca=39.2kN | Shaft Diameter: φ40mm | Lead: 12mm | Ca: 39.2kN | C0a: 96.4kN | Nut OD D: 62mm | Flange D1: 104mm | Nut Length L1: 103mm | PCD: 82mm | Type: Compact Single Nut, Deflector Return (DK)
DK4016-4 THK DK4016-4, φ40 Lead16, Ca=39.1kN | Shaft Diameter: φ40mm | Lead: 16mm | Ca: 39.1kN | C0a: 96.8kN | Nut OD D: 62mm | Flange D1: 104mm | Nut Length L1: 120mm | PCD: 82mm | Type: Compact Single Nut, Deflector Return (DK)
DK4020-3 THK DK4020-3, φ40 Lead20, Ca=29.4kN | Shaft Diameter: φ40mm | Lead: 20mm | Ca: 29.4kN | C0a: 69.3kN | Nut OD D: 62mm | Flange D1: 104mm | Nut Length L1: 123mm | PCD: 82mm | Type: Compact Single Nut, Deflector Return (DK)
Ball ScrewsTHK
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK DK Ball Screw (Compact Single Nut, Shaft φ36~40)

Brand THK·Ball Screws

Available part numbers (7)

DK3610-4, DK4010-3, DK4010-4, DK4012-3, DK4012-4, DK4016-4, DK4020-3

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DK3610-4THK DK3610-4, φ36 Lead10, Ca=36.8kN | Shaft Diameter: φ36mm | Lead: 10mm | Ca: 36.8kN | C0a: 85.0kN | Nut OD D: 58mm | Flange D1: 98mm | Nut Length L1: 93mm | PCD: 77mm | Type: Compact Single Nut, Deflector Return (DK)
DK4010-3THK DK4010-3, φ40 Lead10, Ca=29.8kN | Shaft Diameter: φ40mm | Lead: 10mm | Ca: 29.8kN | C0a: 69.3kN | Nut OD D: 62mm | Flange D1: 104mm | Nut Length L1: 83mm | PCD: 82mm | Type: Compact Single Nut, Deflector Return (DK)
DK4010-4THK DK4010-4, φ40 Lead10, Ca=38.1kN | Shaft Diameter: φ40mm | Lead: 10mm | Ca: 38.1kN | C0a: 92.4kN | Nut OD D: 62mm | Flange D1: 104mm | Nut Length L1: 93mm | PCD: 82mm | Type: Compact Single Nut, Deflector Return (DK)
DK4012-3THK DK4012-3, φ40 Lead12, Ca=30.6kN | Shaft Diameter: φ40mm | Lead: 12mm | Ca: 30.6kN | C0a: 72.3kN | Nut OD D: 62mm | Flange D1: 104mm | Nut Length L1: 90mm | PCD: 82mm | Type: Compact Single Nut, Deflector Return (DK)
DK4012-4THK DK4012-4, φ40 Lead12, Ca=39.2kN | Shaft Diameter: φ40mm | Lead: 12mm | Ca: 39.2kN | C0a: 96.4kN | Nut OD D: 62mm | Flange D1: 104mm | Nut Length L1: 103mm | PCD: 82mm | Type: Compact Single Nut, Deflector Return (DK)
DK4016-4THK DK4016-4, φ40 Lead16, Ca=39.1kN | Shaft Diameter: φ40mm | Lead: 16mm | Ca: 39.1kN | C0a: 96.8kN | Nut OD D: 62mm | Flange D1: 104mm | Nut Length L1: 120mm | PCD: 82mm | Type: Compact Single Nut, Deflector Return (DK)
DK4020-3THK DK4020-3, φ40 Lead20, Ca=29.4kN | Shaft Diameter: φ40mm | Lead: 20mm | Ca: 29.4kN | C0a: 69.3kN | Nut OD D: 62mm | Flange D1: 104mm | Nut Length L1: 123mm | PCD: 82mm | Type: Compact Single Nut, Deflector Return (DK)
