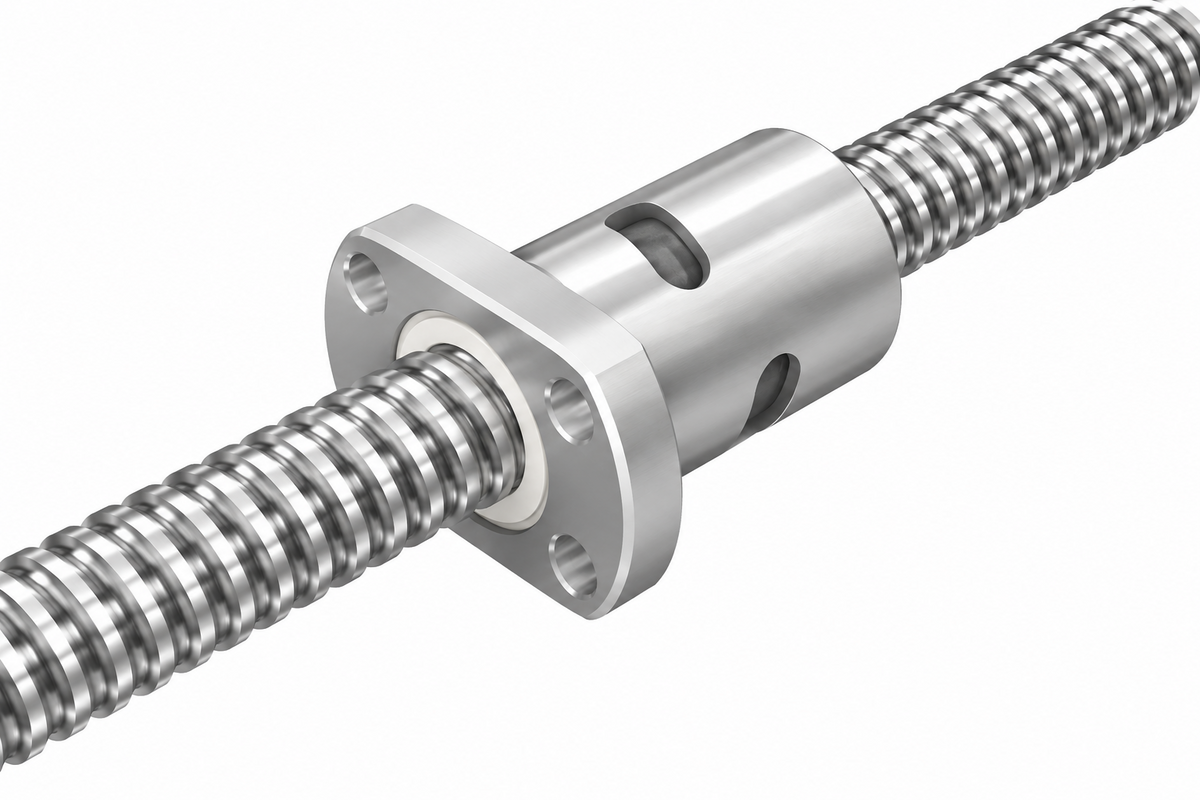

THK DK Ball Screw (Compact Single Nut, Shaft φ50)

THK DK Ball Screw (Compact Single Nut, Shaft φ50)

THK DK Series Compact Precision Ball Screw.

Key features

  • Most compact design — nut OD is 70~80% of return pipe type
  • Deflector return type for space-saving installation
  • Shaft diameter φ50mm

Specifications

Shaft Diameter φ50mm
Type Compact Single Nut, Deflector Return (DK)
DK5010-3 THK DK5010-3, φ50 Lead10, Ca=33.9kN | Shaft Diameter: φ50mm | Lead: 10mm | Ca: 33.9kN | C0a: 90.7kN | Nut OD D: 72mm | Flange D1: 123mm | Nut Length L1: 83mm | PCD: 101mm | Type: Compact Single Nut, Deflector Return (DK)
DK5010-4 THK DK5010-4, φ50 Lead10, Ca=43.4kN | Shaft Diameter: φ50mm | Lead: 10mm | Ca: 43.4kN | C0a: 120.5kN | Nut OD D: 72mm | Flange D1: 123mm | Nut Length L1: 93mm | PCD: 101mm | Type: Compact Single Nut, Deflector Return (DK)
DK5010-6 THK DK5010-6, φ50 Lead10, Ca=62.7kN | Shaft Diameter: φ50mm | Lead: 10mm | Ca: 62.7kN | C0a: 186.8kN | Nut OD D: 72mm | Flange D1: 123mm | Nut Length L1: 114mm | PCD: 101mm | Type: Compact Single Nut, Deflector Return (DK)
DK5012-3 THK DK5012-3, φ50 Lead12, Ca=45.8kN | Shaft Diameter: φ50mm | Lead: 12mm | Ca: 45.8kN | C0a: 113.0kN | Nut OD D: 75mm | Flange D1: 129mm | Nut Length L1: 97mm | PCD: 105mm | Type: Compact Single Nut, Deflector Return (DK)
DK5012-4 THK DK5012-4, φ50 Lead12, Ca=58.6kN | Shaft Diameter: φ50mm | Lead: 12mm | Ca: 58.6kN | C0a: 150.6kN | Nut OD D: 75mm | Flange D1: 129mm | Nut Length L1: 110mm | PCD: 105mm | Type: Compact Single Nut, Deflector Return (DK)
DK5016-3 THK DK5016-3, φ50 Lead16, Ca=45.7kN | Shaft Diameter: φ50mm | Lead: 16mm | Ca: 45.7kN | C0a: 113.3kN | Nut OD D: 75mm | Flange D1: 129mm | Nut Length L1: 111mm | PCD: 105mm | Type: Compact Single Nut, Deflector Return (DK)
DK5016-4 THK DK5016-4, φ50 Lead16, Ca=58.5kN | Shaft Diameter: φ50mm | Lead: 16mm | Ca: 58.5kN | C0a: 151.0kN | Nut OD D: 75mm | Flange D1: 129mm | Nut Length L1: 129mm | PCD: 105mm | Type: Compact Single Nut, Deflector Return (DK)
DK5020-3 THK DK5020-3, φ50 Lead20, Ca=44.2kN | Shaft Diameter: φ50mm | Lead: 20mm | Ca: 44.2kN | C0a: 108.8kN | Nut OD D: 75mm | Flange D1: 129mm | Nut Length L1: 136mm | PCD: 105mm | Type: Compact Single Nut, Deflector Return (DK)
Ball ScrewsTHK
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK DK Ball Screw (Compact Single Nut, Shaft φ50)

Brand THK·Ball Screws

Available part numbers (8)

DK5010-3, DK5010-4, DK5010-6, DK5012-3, DK5012-4, DK5016-3, DK5016-4, DK5020-3

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DK5010-3THK DK5010-3, φ50 Lead10, Ca=33.9kN | Shaft Diameter: φ50mm | Lead: 10mm | Ca: 33.9kN | C0a: 90.7kN | Nut OD D: 72mm | Flange D1: 123mm | Nut Length L1: 83mm | PCD: 101mm | Type: Compact Single Nut, Deflector Return (DK)
DK5010-4THK DK5010-4, φ50 Lead10, Ca=43.4kN | Shaft Diameter: φ50mm | Lead: 10mm | Ca: 43.4kN | C0a: 120.5kN | Nut OD D: 72mm | Flange D1: 123mm | Nut Length L1: 93mm | PCD: 101mm | Type: Compact Single Nut, Deflector Return (DK)
DK5010-6THK DK5010-6, φ50 Lead10, Ca=62.7kN | Shaft Diameter: φ50mm | Lead: 10mm | Ca: 62.7kN | C0a: 186.8kN | Nut OD D: 72mm | Flange D1: 123mm | Nut Length L1: 114mm | PCD: 101mm | Type: Compact Single Nut, Deflector Return (DK)
DK5012-3THK DK5012-3, φ50 Lead12, Ca=45.8kN | Shaft Diameter: φ50mm | Lead: 12mm | Ca: 45.8kN | C0a: 113.0kN | Nut OD D: 75mm | Flange D1: 129mm | Nut Length L1: 97mm | PCD: 105mm | Type: Compact Single Nut, Deflector Return (DK)
DK5012-4THK DK5012-4, φ50 Lead12, Ca=58.6kN | Shaft Diameter: φ50mm | Lead: 12mm | Ca: 58.6kN | C0a: 150.6kN | Nut OD D: 75mm | Flange D1: 129mm | Nut Length L1: 110mm | PCD: 105mm | Type: Compact Single Nut, Deflector Return (DK)
DK5016-3THK DK5016-3, φ50 Lead16, Ca=45.7kN | Shaft Diameter: φ50mm | Lead: 16mm | Ca: 45.7kN | C0a: 113.3kN | Nut OD D: 75mm | Flange D1: 129mm | Nut Length L1: 111mm | PCD: 105mm | Type: Compact Single Nut, Deflector Return (DK)
DK5016-4THK DK5016-4, φ50 Lead16, Ca=58.5kN | Shaft Diameter: φ50mm | Lead: 16mm | Ca: 58.5kN | C0a: 151.0kN | Nut OD D: 75mm | Flange D1: 129mm | Nut Length L1: 129mm | PCD: 105mm | Type: Compact Single Nut, Deflector Return (DK)
DK5020-3THK DK5020-3, φ50 Lead20, Ca=44.2kN | Shaft Diameter: φ50mm | Lead: 20mm | Ca: 44.2kN | C0a: 108.8kN | Nut OD D: 75mm | Flange D1: 129mm | Nut Length L1: 136mm | PCD: 105mm | Type: Compact Single Nut, Deflector Return (DK)
