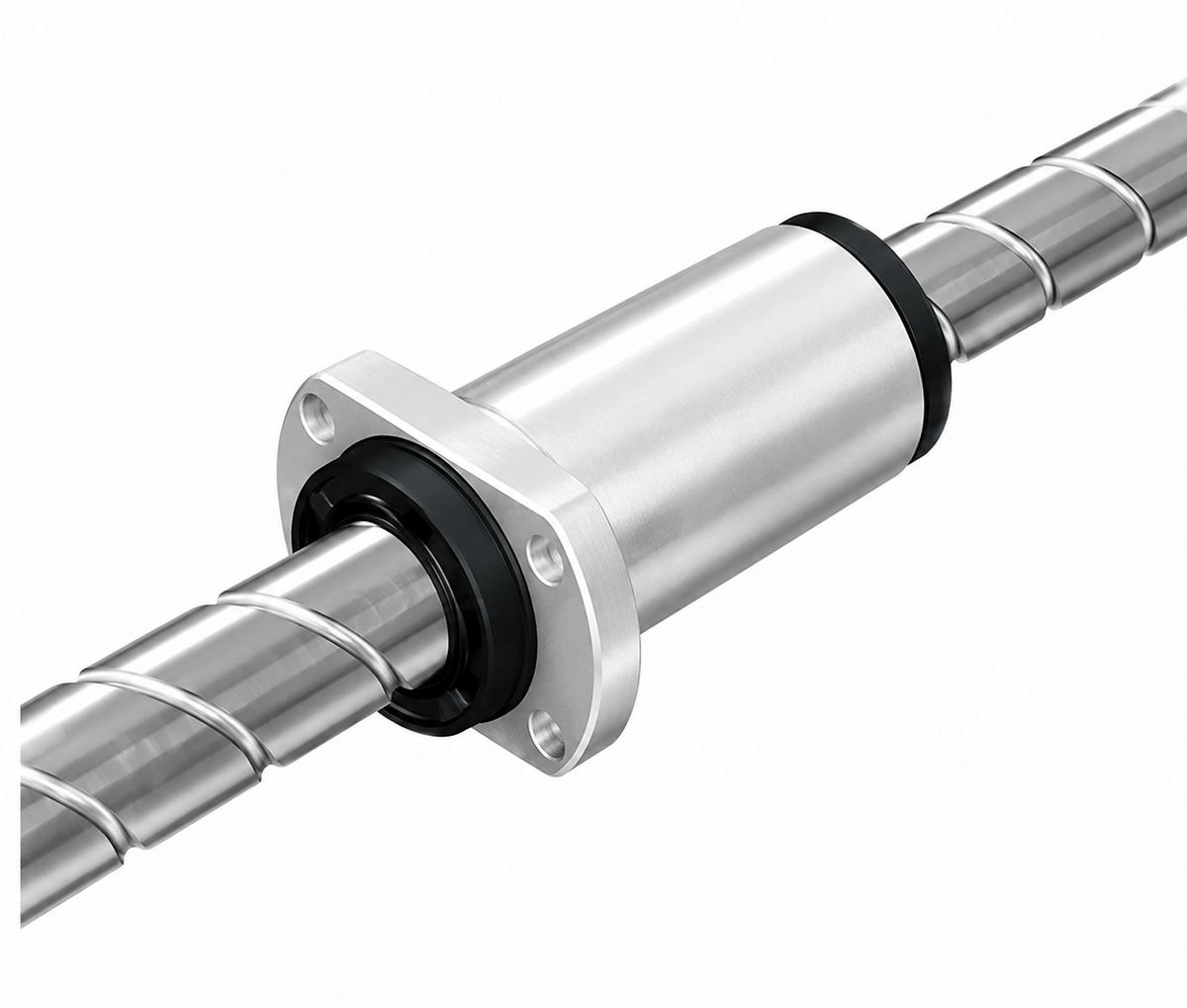

THK HBN6325V-10.5 Ball Screw (Heavy Load, Shaft φ63, Lead 25mm)

THK HBN6325V-10.5 Ball Screw (Heavy Load, Shaft φ63, Lead 25mm)

THK HBN-V Series Precision Ground Ball Screw with Ball Retainer.

Key features

  • High load capacity — over 2× higher dynamic load rating vs. conventional products
  • Ball retainer eliminates ball-to-ball contact for low noise, reduced torque variation, and long maintenance-free operation
  • Shaft diameter φ63mm, lead 25mm, 10.5 ball circuits
  • Ca=797kN, C0a=1920kN

Specifications

Shaft Diameter φ63mm
Lead 25mm
Ball Circuits 10.5
Ca 797kN
C0a 1920kN
Nut OD D 117mm
Flange D1 157mm
Nut Length L1 377mm
Type Heavy Load, Ball Retainer (HBN-V)
HBN6325V-10.5 THK HBN6325V-10.5, φ63 Lead25, Ca=797kN | Shaft Diameter: φ63mm | Lead: 25mm | Ball Circuits: 10.5 | Ca: 797kN | C0a: 1920kN | Nut OD D: 117mm | Flange D1: 157mm | Nut Length L1: 377mm | Type: Heavy Load, Ball Retainer (HBN-V)
Ball ScrewsTHK
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK HBN6325V-10.5 Ball Screw (Heavy Load, Shaft φ63, Lead 25mm)

Brand THK·Ball Screws

Available part numbers (1)

HBN6325V-10.5

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HBN6325V-10.5THK HBN6325V-10.5, φ63 Lead25, Ca=797kN | Shaft Diameter: φ63mm | Lead: 25mm | Ball Circuits: 10.5 | Ca: 797kN | C0a: 1920kN | Nut OD D: 117mm | Flange D1: 157mm | Nut Length L1: 377mm | Type: Heavy Load, Ball Retainer (HBN-V)
