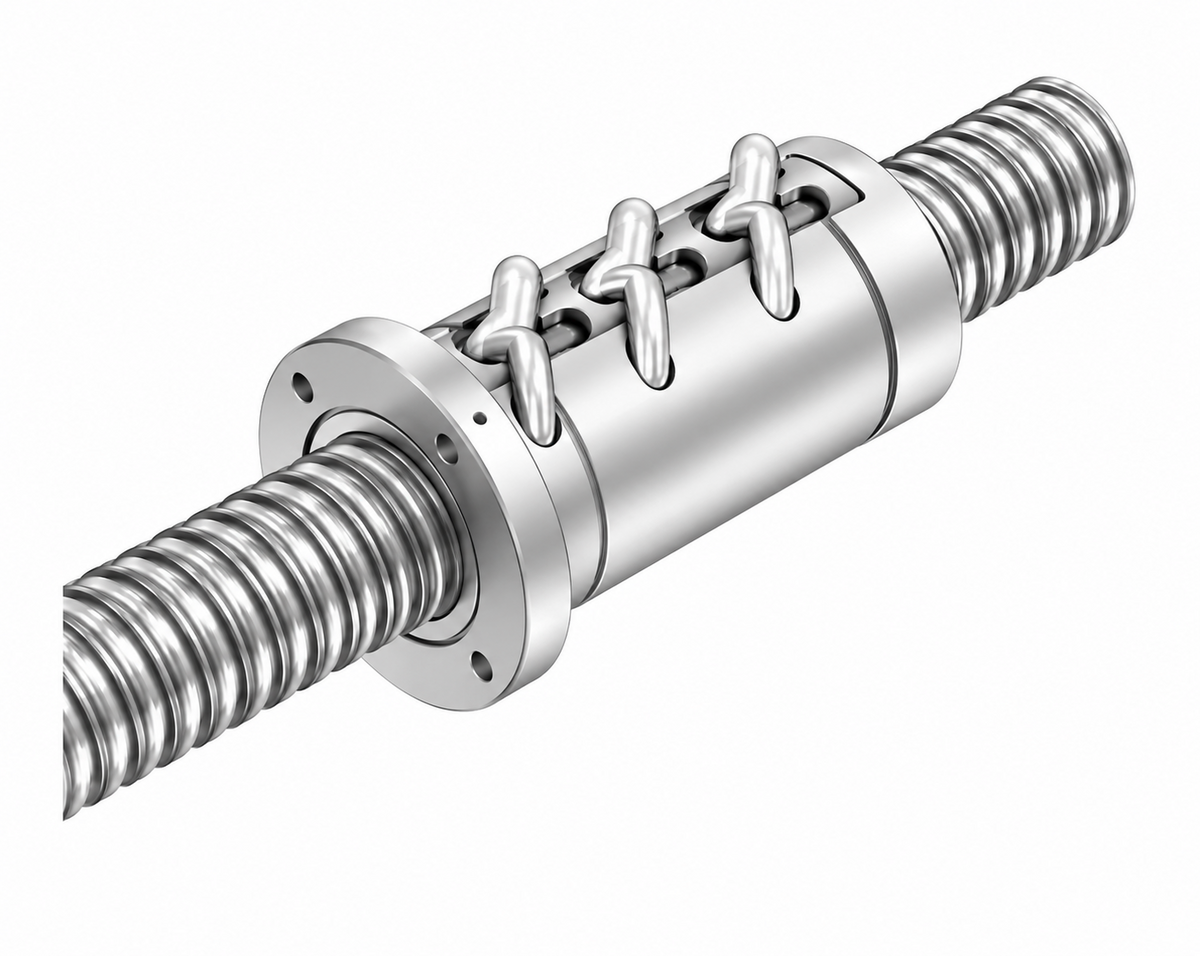

THK HBN6335K-15 Ball Screw (Heavy Load, Shaft φ63, Lead 35mm)

THK HBN6335K-15 Ball Screw (Heavy Load, Shaft φ63, Lead 35mm)

THK HBN-K Series Precision Ground Ball Screw with Ball Retainer.

Key features

  • High load capacity — over 2× higher dynamic load rating vs. conventional products
  • Ball retainer eliminates ball-to-ball contact for low noise, reduced torque variation, and long maintenance-free operation
  • Shaft diameter φ63mm, lead 35mm, 15 ball circuits
  • Ca=776kN, C0a=2064kN

Specifications

Shaft Diameter φ63mm
Lead 35mm
Ball Circuits 15
Ca 776kN
C0a 2064kN
Nut OD D 105mm
Flange D1 139mm
Nut Length L1 376mm
Type Heavy Load, Ball Retainer (HBN-K)
HBN6335K-15 THK HBN6335K-15, φ63 Lead35, Ca=776kN | Shaft Diameter: φ63mm | Lead: 35mm | Ball Circuits: 15 | Ca: 776kN | C0a: 2064kN | Nut OD D: 105mm | Flange D1: 139mm | Nut Length L1: 376mm | Type: Heavy Load, Ball Retainer (HBN-K)
Ball ScrewsTHK
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK HBN6335K-15 Ball Screw (Heavy Load, Shaft φ63, Lead 35mm)

Brand THK·Ball Screws

Available part numbers (1)

HBN6335K-15

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HBN6335K-15THK HBN6335K-15, φ63 Lead35, Ca=776kN | Shaft Diameter: φ63mm | Lead: 35mm | Ball Circuits: 15 | Ca: 776kN | C0a: 2064kN | Nut OD D: 105mm | Flange D1: 139mm | Nut Length L1: 376mm | Type: Heavy Load, Ball Retainer (HBN-K)
