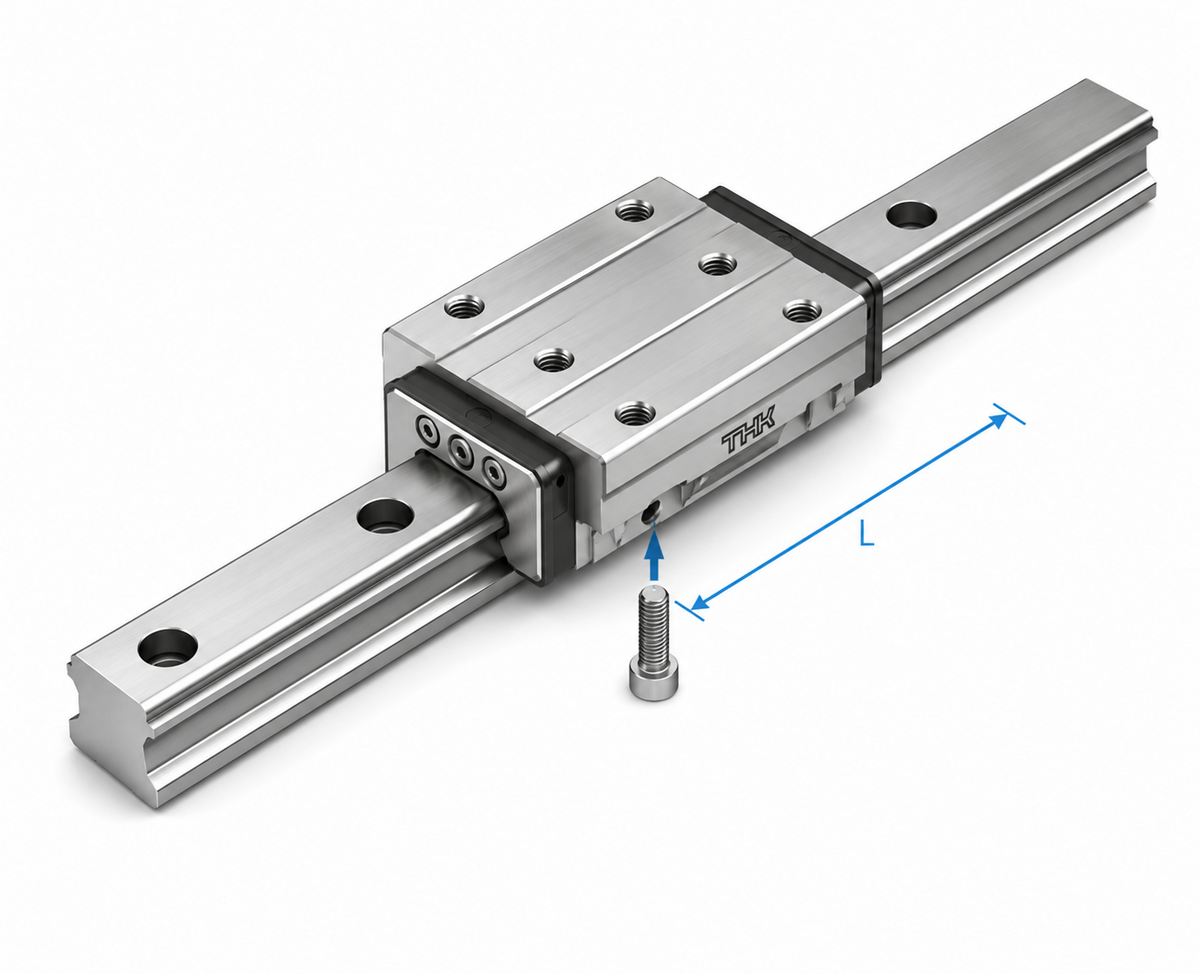

THK HSR-100/120/150HB LM Guide Block (Full Ball, Big Scale, 9 Through-holes)

THK HSR-100/120/150HB LM Guide Block (Full Ball, Big Scale, 9 Through-holes)

Big scale HSR type LM Guide for large machine tools and structures.

Key features

  • Block with 9 through-holes — bottom mounting (HB type). 4-direction equal load, 4-row high rigidity configuration

Specifications

Type LM Guide Block
Series HSR
Max Rail Length 3000 mm
Structure Full Ball DF
Mount Bottom (9 through-holes)
Load Type 4-Direction Equal
Scale Big Scale
Brand THK
HSR-100HB HSR 100HB LM Block H120×W250×L334mm | Type: LM Guide Block | Series: HSR | Model: HSR 100HB | Height M: 120 mm | Width W: 250 mm | Length L: 334 mm | Max Rail Length: 3000 mm | Dynamic Load C: 441 kN | Static Load C0: 540 kN | Structure: Full Ball DF | Mount: Bottom (9 through-holes) | Load Type: 4-Direction Equal | Scale: Big Scale | Brand: THK
HSR-120HB HSR 120HB LM Block H130×W290×L365mm | Type: LM Guide Block | Series: HSR | Model: HSR 120HB | Height M: 130 mm | Width W: 290 mm | Length L: 365 mm | Max Rail Length: 3000 mm | Dynamic Load C: 540 kN | Static Load C0: 653 kN | Structure: Full Ball DF | Mount: Bottom (9 through-holes) | Load Type: 4-Direction Equal | Scale: Big Scale | Brand: THK
HSR-150HB HSR 150HB LM Block H145×W350×L396mm | Type: LM Guide Block | Series: HSR | Model: HSR 150HB | Height M: 145 mm | Width W: 350 mm | Length L: 396 mm | Max Rail Length: 3000 mm | Dynamic Load C: 518 kN | Static Load C0: 728 kN | Structure: Full Ball DF | Mount: Bottom (9 through-holes) | Load Type: 4-Direction Equal | Scale: Big Scale | Brand: THK
LM GuidesTHK
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK HSR-100/120/150HB LM Guide Block (Full Ball, Big Scale, 9 Through-holes)

Brand THK·LM Guides

Available part numbers (3)

HSR-100HB, HSR-120HB, HSR-150HB

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HSR-100HBHSR 100HB LM Block H120×W250×L334mm | Type: LM Guide Block | Series: HSR | Model: HSR 100HB | Height M: 120 mm | Width W: 250 mm | Length L: 334 mm | Max Rail Length: 3000 mm | Dynamic Load C: 441 kN | Static Load C0: 540 kN | Structure: Full Ball DF | Mount: Bottom (9 through-holes) | Load Type: 4-Direction Equal | Scale: Big Scale | Brand: THK
HSR-120HBHSR 120HB LM Block H130×W290×L365mm | Type: LM Guide Block | Series: HSR | Model: HSR 120HB | Height M: 130 mm | Width W: 290 mm | Length L: 365 mm | Max Rail Length: 3000 mm | Dynamic Load C: 540 kN | Static Load C0: 653 kN | Structure: Full Ball DF | Mount: Bottom (9 through-holes) | Load Type: 4-Direction Equal | Scale: Big Scale | Brand: THK
HSR-150HBHSR 150HB LM Block H145×W350×L396mm | Type: LM Guide Block | Series: HSR | Model: HSR 150HB | Height M: 145 mm | Width W: 350 mm | Length L: 396 mm | Max Rail Length: 3000 mm | Dynamic Load C: 518 kN | Static Load C0: 728 kN | Structure: Full Ball DF | Mount: Bottom (9 through-holes) | Load Type: 4-Direction Equal | Scale: Big Scale | Brand: THK

Need a different model, or a part not listed here? Send us your parts list →
