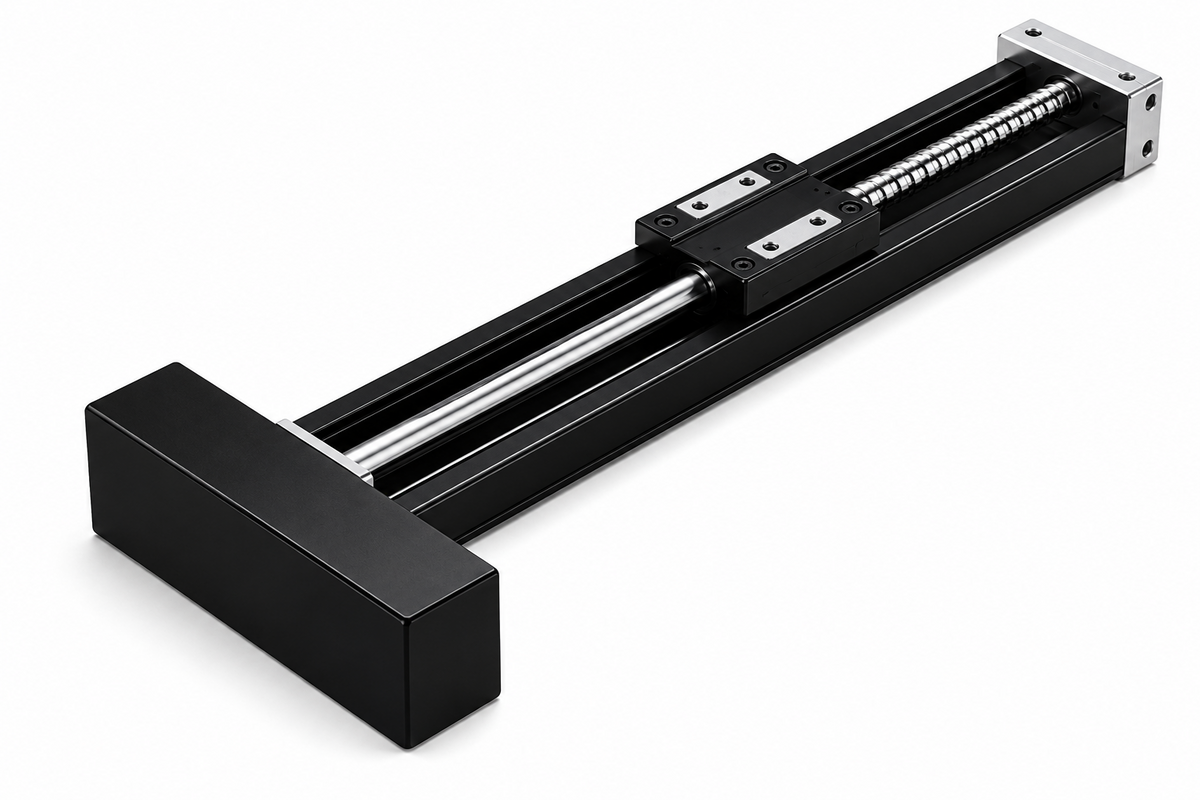

THK KR20 LM Guide Actuator, No Cover, Motor Parallel (Long Block ×2)

THK KR20 LM Guide Actuator, No Cover, Motor Parallel (Long Block ×2)

THK KR20 LM Guide Actuator.

Key features

  • No Cover, motor parallel configuration
  • Long Block ×2 (long type)
  • Integrated LM block and ball screw nut for compact design
  • Equal load capacity in 4 directions
  • Stroke range: 35–85 mm
  • See model number configuration guide A2-136

Specifications

Model KR20, Long Block ×2
Cover No Cover
Motor Mounting Parallel
Cover Code 30 (estimated ⚠️ A2-136 confirm required)
C 120 mm
Mounting Holes n 3
KR2030B-0035 KR20 No Cover Parallel, Long Block ×2, Stroke 35mm | Model: KR20, Long Block ×2 | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️ A2-136 confirm required) | Stroke: 35 mm | Outer Rail Length: 150 mm | Overall Length L1: 199.8 mm | C: 120 mm | G: 15 mm | Mounting Holes n: 3 | Mass: 0.95 kg
KR2030B-0085 KR20 No Cover Parallel, Long Block ×2, Stroke 85mm | Model: KR20, Long Block ×2 | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️ A2-136 confirm required) | Stroke: 85 mm | Outer Rail Length: 200 mm | Overall Length L1: 249.8 mm | C: 120 mm | G: 40 mm | Mounting Holes n: 3 | Mass: 1.09 kg
LM Guide ActuatorsTHK
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK KR20 LM Guide Actuator, No Cover, Motor Parallel (Long Block ×2)

Brand THK·LM Guide Actuators

Available part numbers (2)

KR2030B-0035, KR2030B-0085

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KR2030B-0035KR20 No Cover Parallel, Long Block ×2, Stroke 35mm | Model: KR20, Long Block ×2 | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️ A2-136 confirm required) | Stroke: 35 mm | Outer Rail Length: 150 mm | Overall Length L1: 199.8 mm | C: 120 mm | G: 15 mm | Mounting Holes n: 3 | Mass: 0.95 kg
KR2030B-0085KR20 No Cover Parallel, Long Block ×2, Stroke 85mm | Model: KR20, Long Block ×2 | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️ A2-136 confirm required) | Stroke: 85 mm | Outer Rail Length: 200 mm | Overall Length L1: 249.8 mm | C: 120 mm | G: 40 mm | Mounting Holes n: 3 | Mass: 1.09 kg
