• THK KR45H LM Guide Actuator, Motor Parallel, Short Block C/D
1 1

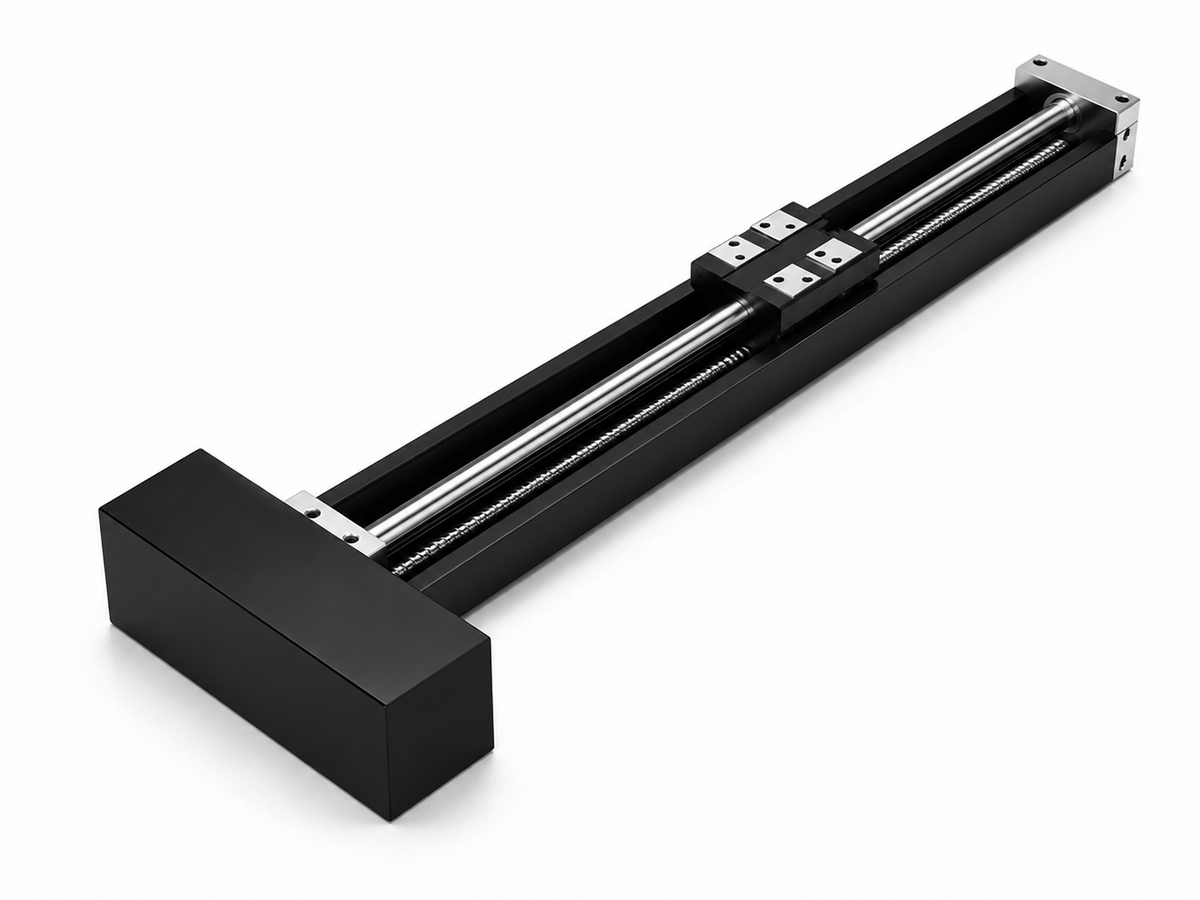

THK KR45H LM Guide Actuator, Motor Parallel, Short Block C/D

THK KR45H LM Guide Actuator, Motor Parallel, Short Block C/D

THK KR45H LM Guide Actuator, motor parallel configuration.

Key features

  • Available with or without cover
  • Short block ×1 (C-type) or ×2 (D-type)
  • Integrated LM block and ball screw nut for compact design
  • Equal load capacity in 4 directions
  • Stroke range: 230–830 mm (C-type), 160–760 mm (D-type)
  • See model number configuration guide A2-136

Specifications

Motor Mounting Parallel
KR45H30C-0230 KR45H No Cover Parallel, Short Block×1, Stroke 230mm | Model: KR45H, Short Block ×1 (C-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 230 mm | Outer Rail Length: 340 mm | Overall Length L1: 416 mm | C: 200 mm | Mass: 6.0 kg
KR45H30C-0330 KR45H No Cover Parallel, Short Block×1, Stroke 330mm | Model: KR45H, Short Block ×1 (C-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 330 mm | Outer Rail Length: 440 mm | Overall Length L1: 516 mm | C: 300 mm | Mass: 7.0 kg
KR45H30C-0430 KR45H No Cover Parallel, Short Block×1, Stroke 430mm | Model: KR45H, Short Block ×1 (C-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 430 mm | Outer Rail Length: 540 mm | Overall Length L1: 616 mm | C: 400 mm | Mass: 8.1 kg
KR45H30C-0530 KR45H No Cover Parallel, Short Block×1, Stroke 530mm | Model: KR45H, Short Block ×1 (C-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 530 mm | Outer Rail Length: 640 mm | Overall Length L1: 716 mm | C: 500 mm | Mass: 9.1 kg
KR45H30C-0630 KR45H No Cover Parallel, Short Block×1, Stroke 630mm | Model: KR45H, Short Block ×1 (C-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 630 mm | Outer Rail Length: 740 mm | Overall Length L1: 816 mm | C: 600 mm | Mass: 10.2 kg
KR45H30C-0730 KR45H No Cover Parallel, Short Block×1, Stroke 730mm | Model: KR45H, Short Block ×1 (C-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 730 mm | Outer Rail Length: 840 mm | Overall Length L1: 916 mm | C: 700 mm | Mass: 11.3 kg
KR45H30C-0830 KR45H No Cover Parallel, Short Block×1, Stroke 830mm | Model: KR45H, Short Block ×1 (C-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 830 mm | Outer Rail Length: 940 mm | Overall Length L1: 1016 mm | C: 800 mm | Mass: 12.3 kg
KR45H30D-0160 KR45H No Cover Parallel, Short Block×2, Stroke 160mm | Model: KR45H, Short Block ×2 (D-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 160 mm | Outer Rail Length: 340 mm | Overall Length L1: 416 mm | C: 200 mm | Mass: 6.6 kg
KR45H30D-0260 KR45H No Cover Parallel, Short Block×2, Stroke 260mm | Model: KR45H, Short Block ×2 (D-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 260 mm | Outer Rail Length: 440 mm | Overall Length L1: 516 mm | C: 300 mm | Mass: 7.6 kg
KR45H30D-0360 KR45H No Cover Parallel, Short Block×2, Stroke 360mm | Model: KR45H, Short Block ×2 (D-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 360 mm | Outer Rail Length: 540 mm | Overall Length L1: 616 mm | C: 400 mm | Mass: 8.7 kg
KR45H30D-0460 KR45H No Cover Parallel, Short Block×2, Stroke 460mm | Model: KR45H, Short Block ×2 (D-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 460 mm | Outer Rail Length: 640 mm | Overall Length L1: 716 mm | C: 500 mm | Mass: 9.7 kg
KR45H30D-0560 KR45H No Cover Parallel, Short Block×2, Stroke 560mm | Model: KR45H, Short Block ×2 (D-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 560 mm | Outer Rail Length: 740 mm | Overall Length L1: 816 mm | C: 600 mm | Mass: 10.8 kg
KR45H30D-0660 KR45H No Cover Parallel, Short Block×2, Stroke 660mm | Model: KR45H, Short Block ×2 (D-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 660 mm | Outer Rail Length: 840 mm | Overall Length L1: 916 mm | C: 700 mm | Mass: 11.9 kg
KR45H30D-0760 KR45H No Cover Parallel, Short Block×2, Stroke 760mm | Model: KR45H, Short Block ×2 (D-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 760 mm | Outer Rail Length: 940 mm | Overall Length L1: 1016 mm | C: 800 mm | Mass: 12.9 kg
KR45H31C-0230 KR45H With Cover Parallel, Short Block×1, Stroke 230mm | Model: KR45H, Short Block ×1 (C-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 230 mm | Outer Rail Length: 340 mm | Overall Length L1: 416 mm | C: 200 mm | Mass: 6.8 kg
KR45H31C-0330 KR45H With Cover Parallel, Short Block×1, Stroke 330mm | Model: KR45H, Short Block ×1 (C-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 330 mm | Outer Rail Length: 440 mm | Overall Length L1: 516 mm | C: 300 mm | Mass: 7.9 kg
KR45H31C-0430 KR45H With Cover Parallel, Short Block×1, Stroke 430mm | Model: KR45H, Short Block ×1 (C-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 430 mm | Outer Rail Length: 540 mm | Overall Length L1: 616 mm | C: 400 mm | Mass: 9.1 kg
KR45H31C-0530 KR45H With Cover Parallel, Short Block×1, Stroke 530mm | Model: KR45H, Short Block ×1 (C-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 530 mm | Outer Rail Length: 640 mm | Overall Length L1: 716 mm | C: 500 mm | Mass: 10.2 kg
KR45H31C-0630 KR45H With Cover Parallel, Short Block×1, Stroke 630mm | Model: KR45H, Short Block ×1 (C-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 630 mm | Outer Rail Length: 740 mm | Overall Length L1: 816 mm | C: 600 mm | Mass: 11.4 kg
KR45H31C-0730 KR45H With Cover Parallel, Short Block×1, Stroke 730mm | Model: KR45H, Short Block ×1 (C-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 730 mm | Outer Rail Length: 840 mm | Overall Length L1: 916 mm | C: 700 mm | Mass: 12.5 kg
KR45H31C-0830 KR45H With Cover Parallel, Short Block×1, Stroke 830mm | Model: KR45H, Short Block ×1 (C-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 830 mm | Outer Rail Length: 940 mm | Overall Length L1: 1016 mm | C: 800 mm | Mass: 13.6 kg
KR45H31D-0160 KR45H With Cover Parallel, Short Block×2, Stroke 160mm | Model: KR45H, Short Block ×2 (D-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 160 mm | Outer Rail Length: 340 mm | Overall Length L1: 416 mm | C: 200 mm | Mass: 7.6 kg
KR45H31D-0260 KR45H With Cover Parallel, Short Block×2, Stroke 260mm | Model: KR45H, Short Block ×2 (D-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 260 mm | Outer Rail Length: 440 mm | Overall Length L1: 516 mm | C: 300 mm | Mass: 8.7 kg
KR45H31D-0360 KR45H With Cover Parallel, Short Block×2, Stroke 360mm | Model: KR45H, Short Block ×2 (D-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 360 mm | Outer Rail Length: 540 mm | Overall Length L1: 616 mm | C: 400 mm | Mass: 9.9 kg
KR45H31D-0460 KR45H With Cover Parallel, Short Block×2, Stroke 460mm | Model: KR45H, Short Block ×2 (D-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 460 mm | Outer Rail Length: 640 mm | Overall Length L1: 716 mm | C: 500 mm | Mass: 11.0 kg
KR45H31D-0560 KR45H With Cover Parallel, Short Block×2, Stroke 560mm | Model: KR45H, Short Block ×2 (D-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 560 mm | Outer Rail Length: 740 mm | Overall Length L1: 816 mm | C: 600 mm | Mass: 12.2 kg
KR45H31D-0660 KR45H With Cover Parallel, Short Block×2, Stroke 660mm | Model: KR45H, Short Block ×2 (D-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 660 mm | Outer Rail Length: 840 mm | Overall Length L1: 916 mm | C: 700 mm | Mass: 13.3 kg
KR45H31D-0760 KR45H With Cover Parallel, Short Block×2, Stroke 760mm | Model: KR45H, Short Block ×2 (D-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 760 mm | Outer Rail Length: 940 mm | Overall Length L1: 1016 mm | C: 800 mm | Mass: 14.4 kg
LM Guide ActuatorsTHK
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK KR45H LM Guide Actuator, Motor Parallel, Short Block C/D

Brand THK·LM Guide Actuators

Available part numbers (28)

KR45H30C-0230, KR45H30C-0330, KR45H30C-0430, KR45H30C-0530, KR45H30C-0630, KR45H30C-0730, KR45H30C-0830, KR45H30D-0160, KR45H30D-0260, KR45H30D-0360 + 18 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KR45H30C-0230KR45H No Cover Parallel, Short Block×1, Stroke 230mm | Model: KR45H, Short Block ×1 (C-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 230 mm | Outer Rail Length: 340 mm | Overall Length L1: 416 mm | C: 200 mm | Mass: 6.0 kg
KR45H30C-0330KR45H No Cover Parallel, Short Block×1, Stroke 330mm | Model: KR45H, Short Block ×1 (C-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 330 mm | Outer Rail Length: 440 mm | Overall Length L1: 516 mm | C: 300 mm | Mass: 7.0 kg
KR45H30C-0430KR45H No Cover Parallel, Short Block×1, Stroke 430mm | Model: KR45H, Short Block ×1 (C-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 430 mm | Outer Rail Length: 540 mm | Overall Length L1: 616 mm | C: 400 mm | Mass: 8.1 kg
KR45H30C-0530KR45H No Cover Parallel, Short Block×1, Stroke 530mm | Model: KR45H, Short Block ×1 (C-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 530 mm | Outer Rail Length: 640 mm | Overall Length L1: 716 mm | C: 500 mm | Mass: 9.1 kg
KR45H30C-0630KR45H No Cover Parallel, Short Block×1, Stroke 630mm | Model: KR45H, Short Block ×1 (C-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 630 mm | Outer Rail Length: 740 mm | Overall Length L1: 816 mm | C: 600 mm | Mass: 10.2 kg
KR45H30C-0730KR45H No Cover Parallel, Short Block×1, Stroke 730mm | Model: KR45H, Short Block ×1 (C-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 730 mm | Outer Rail Length: 840 mm | Overall Length L1: 916 mm | C: 700 mm | Mass: 11.3 kg
KR45H30C-0830KR45H No Cover Parallel, Short Block×1, Stroke 830mm | Model: KR45H, Short Block ×1 (C-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 830 mm | Outer Rail Length: 940 mm | Overall Length L1: 1016 mm | C: 800 mm | Mass: 12.3 kg
KR45H30D-0160KR45H No Cover Parallel, Short Block×2, Stroke 160mm | Model: KR45H, Short Block ×2 (D-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 160 mm | Outer Rail Length: 340 mm | Overall Length L1: 416 mm | C: 200 mm | Mass: 6.6 kg
KR45H30D-0260KR45H No Cover Parallel, Short Block×2, Stroke 260mm | Model: KR45H, Short Block ×2 (D-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 260 mm | Outer Rail Length: 440 mm | Overall Length L1: 516 mm | C: 300 mm | Mass: 7.6 kg
KR45H30D-0360KR45H No Cover Parallel, Short Block×2, Stroke 360mm | Model: KR45H, Short Block ×2 (D-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 360 mm | Outer Rail Length: 540 mm | Overall Length L1: 616 mm | C: 400 mm | Mass: 8.7 kg
KR45H30D-0460KR45H No Cover Parallel, Short Block×2, Stroke 460mm | Model: KR45H, Short Block ×2 (D-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 460 mm | Outer Rail Length: 640 mm | Overall Length L1: 716 mm | C: 500 mm | Mass: 9.7 kg
KR45H30D-0560KR45H No Cover Parallel, Short Block×2, Stroke 560mm | Model: KR45H, Short Block ×2 (D-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 560 mm | Outer Rail Length: 740 mm | Overall Length L1: 816 mm | C: 600 mm | Mass: 10.8 kg
KR45H30D-0660KR45H No Cover Parallel, Short Block×2, Stroke 660mm | Model: KR45H, Short Block ×2 (D-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 660 mm | Outer Rail Length: 840 mm | Overall Length L1: 916 mm | C: 700 mm | Mass: 11.9 kg
KR45H30D-0760KR45H No Cover Parallel, Short Block×2, Stroke 760mm | Model: KR45H, Short Block ×2 (D-type) | Cover: No Cover | Motor Mounting: Parallel | Cover Code: 30 (estimated ⚠️) | Stroke: 760 mm | Outer Rail Length: 940 mm | Overall Length L1: 1016 mm | C: 800 mm | Mass: 12.9 kg
KR45H31C-0230KR45H With Cover Parallel, Short Block×1, Stroke 230mm | Model: KR45H, Short Block ×1 (C-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 230 mm | Outer Rail Length: 340 mm | Overall Length L1: 416 mm | C: 200 mm | Mass: 6.8 kg
KR45H31C-0330KR45H With Cover Parallel, Short Block×1, Stroke 330mm | Model: KR45H, Short Block ×1 (C-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 330 mm | Outer Rail Length: 440 mm | Overall Length L1: 516 mm | C: 300 mm | Mass: 7.9 kg
KR45H31C-0430KR45H With Cover Parallel, Short Block×1, Stroke 430mm | Model: KR45H, Short Block ×1 (C-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 430 mm | Outer Rail Length: 540 mm | Overall Length L1: 616 mm | C: 400 mm | Mass: 9.1 kg
KR45H31C-0530KR45H With Cover Parallel, Short Block×1, Stroke 530mm | Model: KR45H, Short Block ×1 (C-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 530 mm | Outer Rail Length: 640 mm | Overall Length L1: 716 mm | C: 500 mm | Mass: 10.2 kg
KR45H31C-0630KR45H With Cover Parallel, Short Block×1, Stroke 630mm | Model: KR45H, Short Block ×1 (C-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 630 mm | Outer Rail Length: 740 mm | Overall Length L1: 816 mm | C: 600 mm | Mass: 11.4 kg
KR45H31C-0730KR45H With Cover Parallel, Short Block×1, Stroke 730mm | Model: KR45H, Short Block ×1 (C-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 730 mm | Outer Rail Length: 840 mm | Overall Length L1: 916 mm | C: 700 mm | Mass: 12.5 kg
KR45H31C-0830KR45H With Cover Parallel, Short Block×1, Stroke 830mm | Model: KR45H, Short Block ×1 (C-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 830 mm | Outer Rail Length: 940 mm | Overall Length L1: 1016 mm | C: 800 mm | Mass: 13.6 kg
KR45H31D-0160KR45H With Cover Parallel, Short Block×2, Stroke 160mm | Model: KR45H, Short Block ×2 (D-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 160 mm | Outer Rail Length: 340 mm | Overall Length L1: 416 mm | C: 200 mm | Mass: 7.6 kg
KR45H31D-0260KR45H With Cover Parallel, Short Block×2, Stroke 260mm | Model: KR45H, Short Block ×2 (D-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 260 mm | Outer Rail Length: 440 mm | Overall Length L1: 516 mm | C: 300 mm | Mass: 8.7 kg
KR45H31D-0360KR45H With Cover Parallel, Short Block×2, Stroke 360mm | Model: KR45H, Short Block ×2 (D-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 360 mm | Outer Rail Length: 540 mm | Overall Length L1: 616 mm | C: 400 mm | Mass: 9.9 kg
KR45H31D-0460KR45H With Cover Parallel, Short Block×2, Stroke 460mm | Model: KR45H, Short Block ×2 (D-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 460 mm | Outer Rail Length: 640 mm | Overall Length L1: 716 mm | C: 500 mm | Mass: 11.0 kg
KR45H31D-0560KR45H With Cover Parallel, Short Block×2, Stroke 560mm | Model: KR45H, Short Block ×2 (D-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 560 mm | Outer Rail Length: 740 mm | Overall Length L1: 816 mm | C: 600 mm | Mass: 12.2 kg
KR45H31D-0660KR45H With Cover Parallel, Short Block×2, Stroke 660mm | Model: KR45H, Short Block ×2 (D-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 660 mm | Outer Rail Length: 840 mm | Overall Length L1: 916 mm | C: 700 mm | Mass: 13.3 kg
KR45H31D-0760KR45H With Cover Parallel, Short Block×2, Stroke 760mm | Model: KR45H, Short Block ×2 (D-type) | Cover: With Cover | Motor Mounting: Parallel | Cover Code: 31 (estimated ⚠️) | Stroke: 760 mm | Outer Rail Length: 940 mm | Overall Length L1: 1016 mm | C: 800 mm | Mass: 14.4 kg

Need a different model, or a part not listed here? Send us your parts list →
