THK Linear Ball Slide LSP20 (W22.3×H11)

THK Linear Ball Slide LSP20 (W22.3×H11)

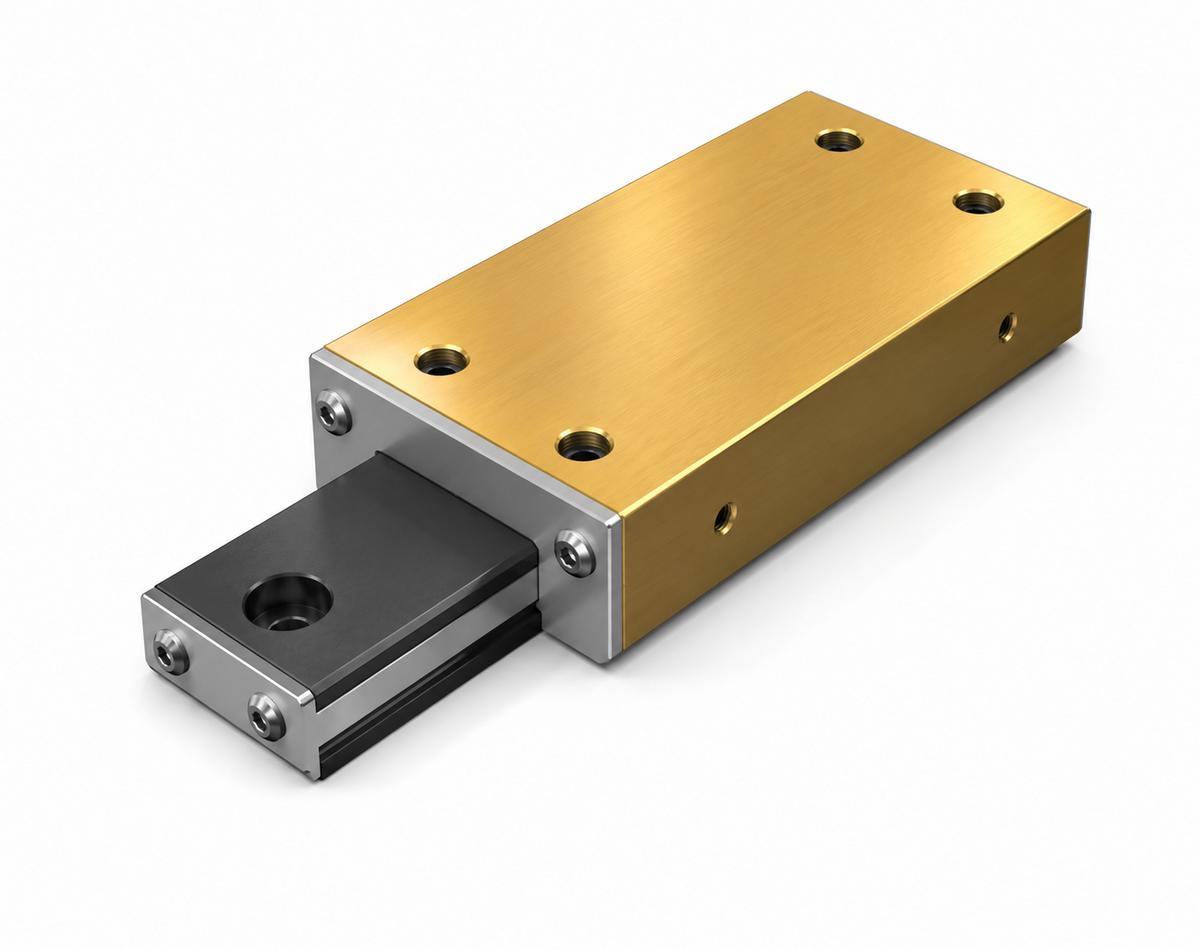

THK LSP Linear Ball Slide, LSP20 frame.

Key features

  • Base width W1=22.3mm, height H=11.0mm
  • Mounting hole d×D×h = 5.3×9×5.3mm, table tap M5×8.2
  • Stroke range 25~75mm
  • Basic dynamic load rating C = 157~392 N; static C0 = 284~706 N

Specifications

Frame LSP20
Slide Height (M) 20 mm
Slide Width (W) 44 mm
Base Width (W1) 22.3 mm
Base Height (H) 11.0 mm
Mounting Hole (d×D×h) 5.3×9×5.3 mm
Table Tap M5×8.2
LSP2050 THK Linear Ball Slide LSP2050, stroke 25mm, C=157N, 114g | Frame: LSP20 | Stroke: 25 mm | Slide Height (M): 20 mm | Slide Width (W): 44 mm | Slide Length (L): 53 mm | Base Width (W1): 22.3 mm | Base Height (H): 11.0 mm | Mounting Hole (d×D×h): 5.3×9×5.3 mm | Table Tap: M5×8.2 | Mass: 114 g | Basic Dynamic Load Rating C: 157 N | Basic Static Load Rating C0: 284 N | Static Allowable Moment MA=MB: 1.37 N·m | Static Allowable Moment MC: 2.25 N·m
LSP2080 THK Linear Ball Slide LSP2080, stroke 50mm, C=304N, 184g | Frame: LSP20 | Stroke: 50 mm | Slide Height (M): 20 mm | Slide Width (W): 44 mm | Slide Length (L): 83 mm | Base Width (W1): 22.3 mm | Base Height (H): 11.0 mm | Mounting Hole (d×D×h): 5.3×9×5.3 mm | Table Tap: M5×8.2 | Mass: 184 g | Basic Dynamic Load Rating C: 304 N | Basic Static Load Rating C0: 559 N | Static Allowable Moment MA=MB: 3.53 N·m | Static Allowable Moment MC: 4.51 N·m
LSP20100 THK Linear Ball Slide LSP20100, stroke 75mm, C=392N, 231g | Frame: LSP20 | Stroke: 75 mm | Slide Height (M): 20 mm | Slide Width (W): 44 mm | Slide Length (L): 103 mm | Base Width (W1): 22.3 mm | Base Height (H): 11.0 mm | Mounting Hole (d×D×h): 5.3×9×5.3 mm | Table Tap: M5×8.2 | Mass: 231 g | Basic Dynamic Load Rating C: 392 N | Basic Static Load Rating C0: 706 N | Static Allowable Moment MA=MB: 5.0 N·m | Static Allowable Moment MC: 5.69 N·m
