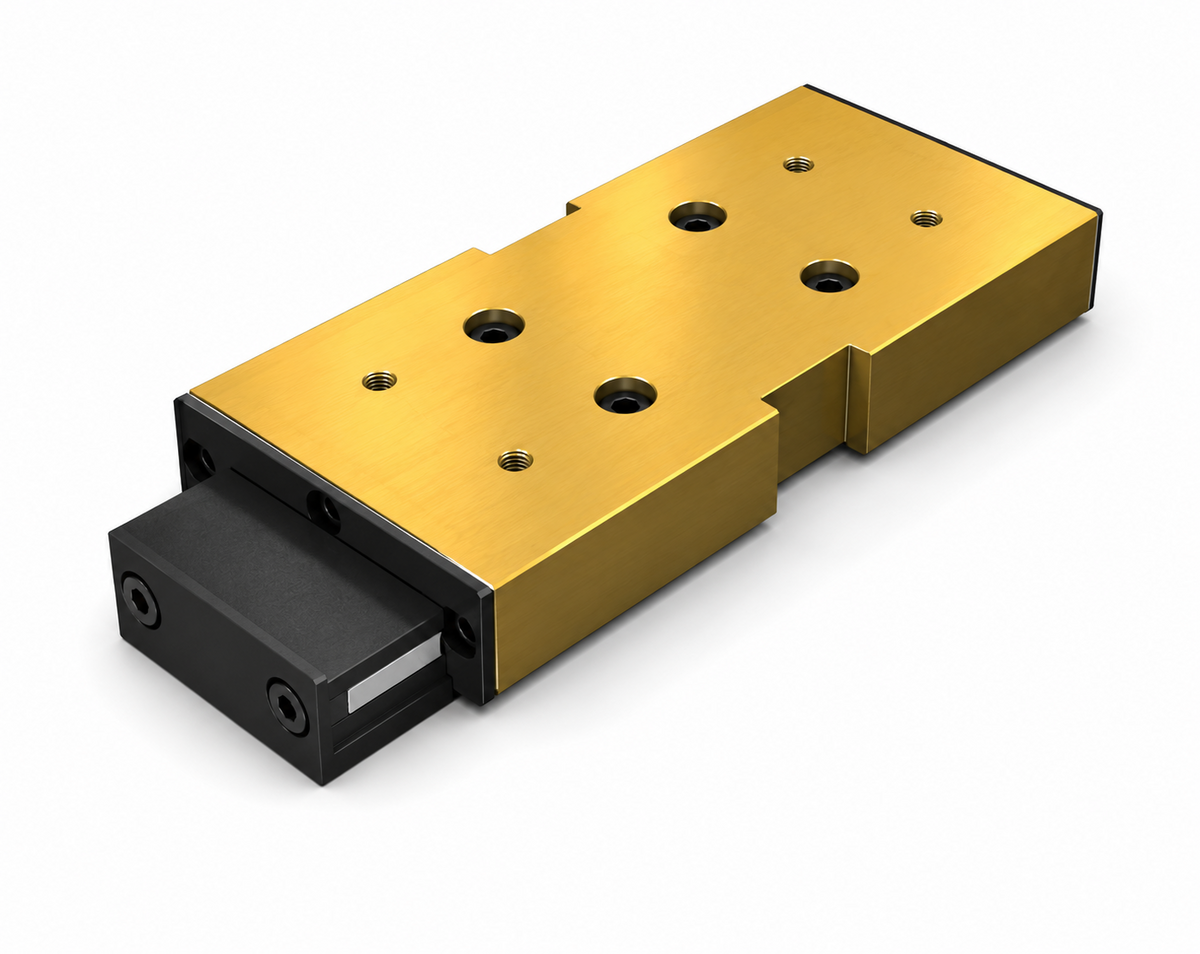

THK Linear Ball Slide with Air Cylinder LSC

THK Linear Ball Slide with Air Cylinder LSC

THK LSC Linear Ball Slide with built-in air cylinder.

Key features

  • Cylinder bore Ø10mm (LSC1015) and Ø15mm (LSC1515/1530/1550)
  • Theoretical thrust 38.2~86.3 N at 500 kPa
  • Stroke range 15~50mm
  • Basic dynamic load rating C = 392~794 N; static C0 = 676~1350 N
  • Note: Unit base, external stopper, and limit switch not available for LSC1015

Specifications

Speed Controller optional
LSC1015 THK Linear Ball Slide w/ Air Cylinder LSC1015, Ø10mm bore, stroke 15mm, 38.2N@500kPa | Cylinder Bore: Ø10 mm | Stroke: 15 mm | Theoretical Thrust @ 500kPa: 38.2 N | Slide Height (M): 25 mm | Slide Width (W): 50 mm | Slide Length (L): 80 mm | Mass: 0.25 kg | Basic Dynamic Load Rating C: 392 N | Basic Static Load Rating C0: 676 N | Static Allowable Moment MA=MB: 4.9 N·m | Static Allowable Moment MC: 7.45 N·m | Speed Controller: optional | Unit base/stopper/limit switch: N/A
LSC1515 THK Linear Ball Slide w/ Air Cylinder LSC1515, Ø15mm bore, stroke 15mm, 86.3N@500kPa | Cylinder Bore: Ø15 mm | Stroke: 15 mm | Theoretical Thrust @ 500kPa: 86.3 N | Slide Height (M): 30 mm | Slide Width (W): 70 mm | Slide Length (L): 80 mm | Mass: 0.37 kg | Basic Dynamic Load Rating C: 392 N | Basic Static Load Rating C0: 676 N | Static Allowable Moment MA=MB: 4.9 N·m | Static Allowable Moment MC: 11.1 N·m | Speed Controller: optional | Unit base/stopper/limit switch: optional
LSC1530 THK Linear Ball Slide w/ Air Cylinder LSC1530, Ø15mm bore, stroke 30mm, 86.3N@500kPa | Cylinder Bore: Ø15 mm | Stroke: 30 mm | Theoretical Thrust @ 500kPa: 86.3 N | Slide Height (M): 30 mm | Slide Width (W): 70 mm | Slide Length (L): 110 mm | Mass: 0.52 kg | Basic Dynamic Load Rating C: 549 N | Basic Static Load Rating C0: 951 N | Static Allowable Moment MA=MB: 8.43 N·m | Static Allowable Moment MC: 15.4 N·m | Speed Controller: optional | Unit base/stopper/limit switch: optional
LSC1550 THK Linear Ball Slide w/ Air Cylinder LSC1550, Ø15mm bore, stroke 50mm, 86.3N@500kPa | Cylinder Bore: Ø15 mm | Stroke: 50 mm | Theoretical Thrust @ 500kPa: 86.3 N | Slide Height (M): 30 mm | Slide Width (W): 70 mm | Slide Length (L): 150 mm | Mass: 0.72 kg | Basic Dynamic Load Rating C: 794 N | Basic Static Load Rating C0: 1350 N | Static Allowable Moment MA=MB: 15.4 N·m | Static Allowable Moment MC: 22.1 N·m | Speed Controller: optional | Unit base/stopper/limit switch: optional
