• THK Linear Roller Guide LRU (Inch Series)
1 1

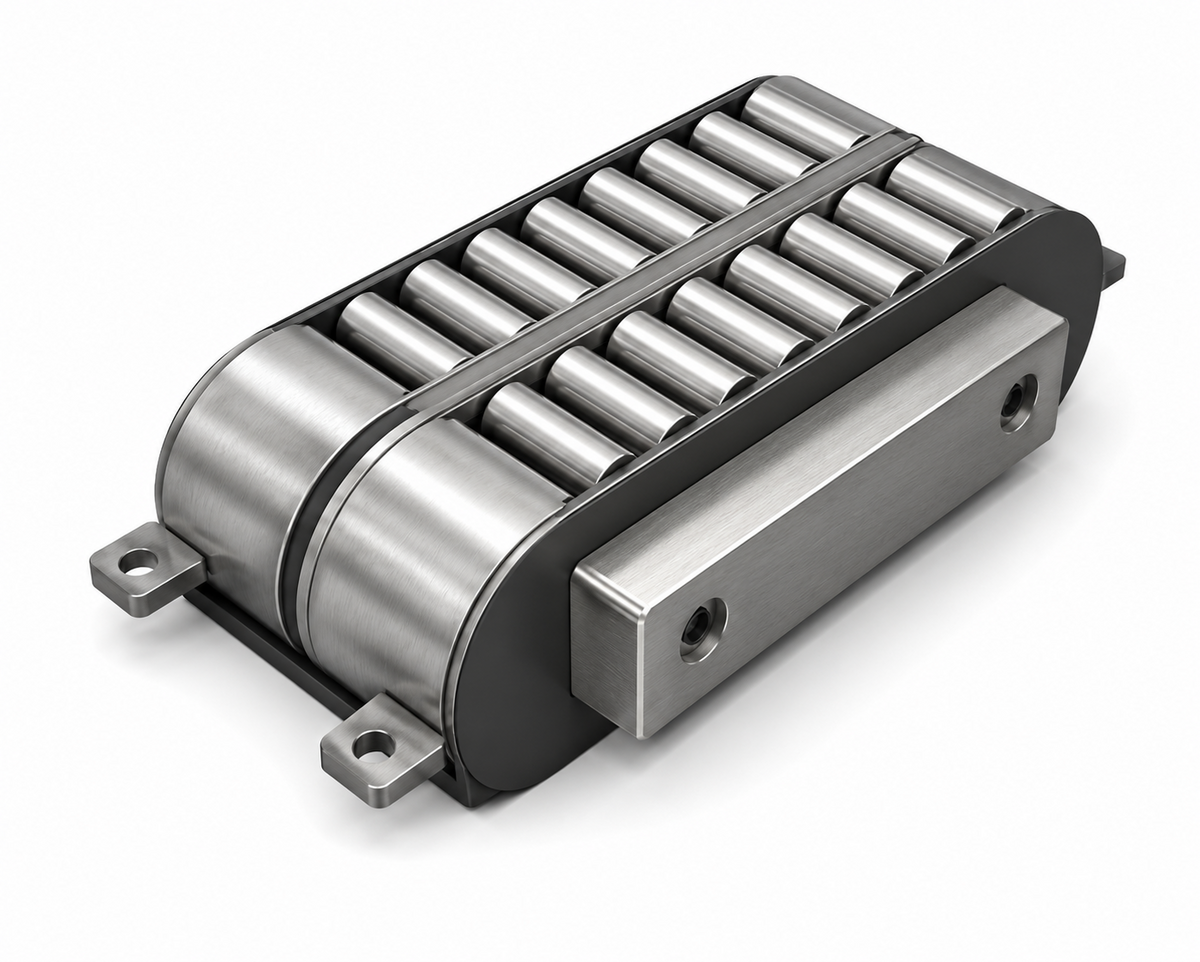

THK Linear Roller Guide LRU (Inch Series)

THK Linear Roller Guide LRU (Inch Series)

THK LRU type Linear Roller Guide, inch dimension series.

Key features

  • Width W1 = 22.23~76.2mm (9/16"~3")
  • Basic dynamic load rating C = 22.1~478 kN; static C0 = 42.5~807 kN
  • Refer to A10-15 for recommended mounting bolts

Specifications

Series Inch dimension
Note See A10-15 for recommended mounting bolts
LRU22.2 THK Linear Roller Guide LRU22.2 (inch), W1=22.23mm, C=22.1kN, 0.09kg | Series: Inch dimension | Width (W1): 22.23 mm | Thickness (T): 14.283 mm | Length (L): 51.0 mm | Mass: 0.09 kg | Basic Dynamic Load Rating C: 22.1 kN | Basic Static Load Rating C0: 42.5 kN | Note: See A10-15 for recommended mounting bolts
LRU25.4 THK Linear Roller Guide LRU25.4 (inch), W1=25.4mm, C=41.9kN, 0.22kg | Series: Inch dimension | Width (W1): 25.4 mm | Thickness (T): 19.05 mm | Length (L): 73.0 mm | Mass: 0.22 kg | Basic Dynamic Load Rating C: 41.9 kN | Basic Static Load Rating C0: 78.9 kN | Note: See A10-15 for recommended mounting bolts
LRU38.1 THK Linear Roller Guide LRU38.1 (inch), W1=38.1mm, C=107.0kN, 0.7kg | Series: Inch dimension | Width (W1): 38.1 mm | Thickness (T): 28.573 mm | Length (L): 101.6 mm | Mass: 0.7 kg | Basic Dynamic Load Rating C: 107.0 kN | Basic Static Load Rating C0: 198.0 kN | Note: See A10-15 for recommended mounting bolts
LRU50.8 THK Linear Roller Guide LRU50.8 (inch), W1=50.8mm, C=171.0kN, 1.7kg | Series: Inch dimension | Width (W1): 50.8 mm | Thickness (T): 38.098 mm | Length (L): 139.7 mm | Mass: 1.7 kg | Basic Dynamic Load Rating C: 171.0 kN | Basic Static Load Rating C0: 296.0 kN | Note: See A10-15 for recommended mounting bolts
LRU76.2 THK Linear Roller Guide LRU76.2 (inch), W1=76.2mm, C=478.0kN, 5.7kg | Series: Inch dimension | Width (W1): 76.2 mm | Thickness (T): 57.15 mm | Length (L): 206.4 mm | Mass: 5.7 kg | Basic Dynamic Load Rating C: 478.0 kN | Basic Static Load Rating C0: 807.0 kN | Note: See A10-15 for recommended mounting bolts
Roller GuidesTHK
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK Linear Roller Guide LRU (Inch Series)

Brand THK·Roller Guides

Available part numbers (5)

LRU22.2, LRU25.4, LRU38.1, LRU50.8, LRU76.2

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LRU22.2THK Linear Roller Guide LRU22.2 (inch), W1=22.23mm, C=22.1kN, 0.09kg | Series: Inch dimension | Width (W1): 22.23 mm | Thickness (T): 14.283 mm | Length (L): 51.0 mm | Mass: 0.09 kg | Basic Dynamic Load Rating C: 22.1 kN | Basic Static Load Rating C0: 42.5 kN | Note: See A10-15 for recommended mounting bolts
LRU25.4THK Linear Roller Guide LRU25.4 (inch), W1=25.4mm, C=41.9kN, 0.22kg | Series: Inch dimension | Width (W1): 25.4 mm | Thickness (T): 19.05 mm | Length (L): 73.0 mm | Mass: 0.22 kg | Basic Dynamic Load Rating C: 41.9 kN | Basic Static Load Rating C0: 78.9 kN | Note: See A10-15 for recommended mounting bolts
LRU38.1THK Linear Roller Guide LRU38.1 (inch), W1=38.1mm, C=107.0kN, 0.7kg | Series: Inch dimension | Width (W1): 38.1 mm | Thickness (T): 28.573 mm | Length (L): 101.6 mm | Mass: 0.7 kg | Basic Dynamic Load Rating C: 107.0 kN | Basic Static Load Rating C0: 198.0 kN | Note: See A10-15 for recommended mounting bolts
LRU50.8THK Linear Roller Guide LRU50.8 (inch), W1=50.8mm, C=171.0kN, 1.7kg | Series: Inch dimension | Width (W1): 50.8 mm | Thickness (T): 38.098 mm | Length (L): 139.7 mm | Mass: 1.7 kg | Basic Dynamic Load Rating C: 171.0 kN | Basic Static Load Rating C0: 296.0 kN | Note: See A10-15 for recommended mounting bolts
LRU76.2THK Linear Roller Guide LRU76.2 (inch), W1=76.2mm, C=478.0kN, 5.7kg | Series: Inch dimension | Width (W1): 76.2 mm | Thickness (T): 57.15 mm | Length (L): 206.4 mm | Mass: 5.7 kg | Basic Dynamic Load Rating C: 478.0 kN | Basic Static Load Rating C0: 807.0 kN | Note: See A10-15 for recommended mounting bolts
