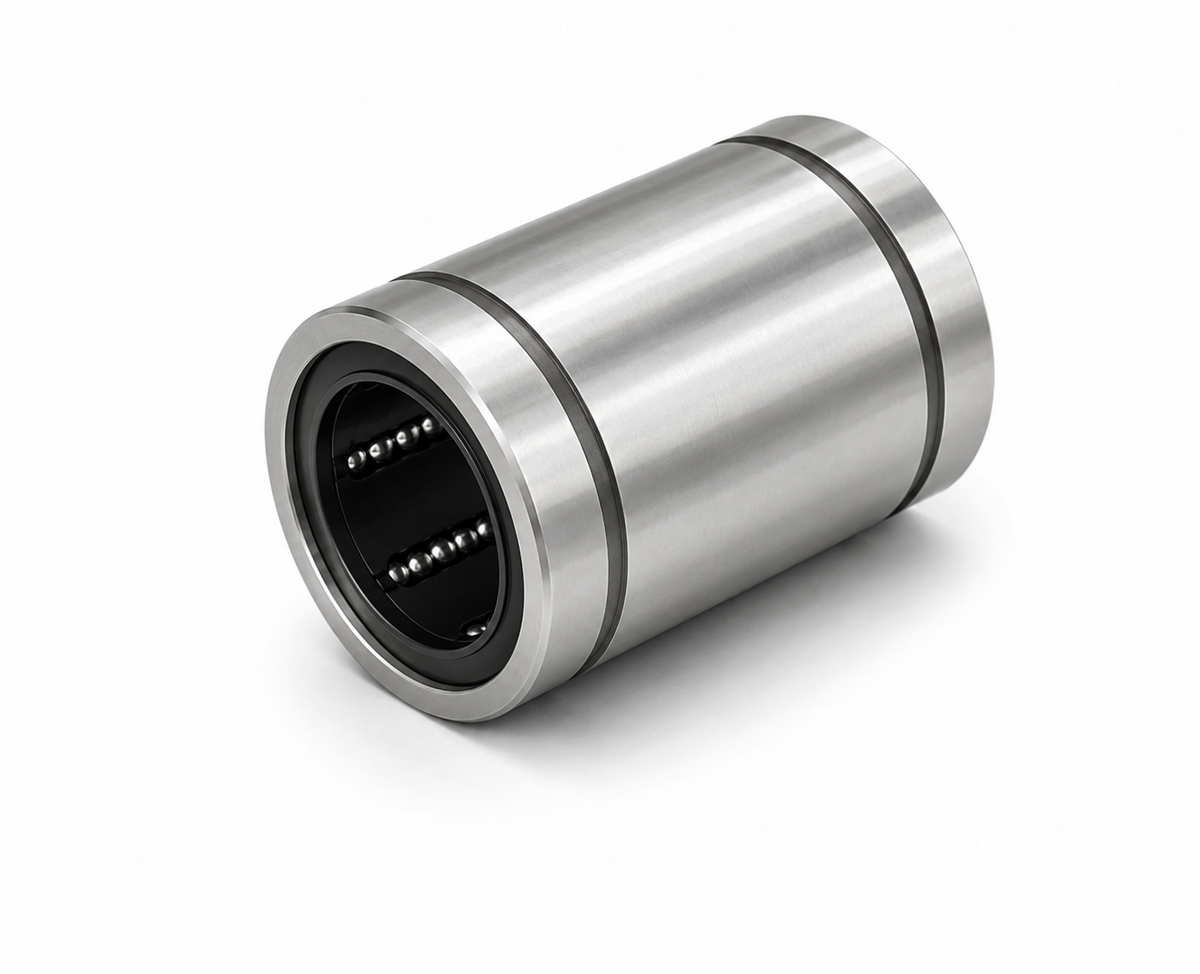

THK LM-AJ Linear Bush Clearance Adjustable Type (LM6-AJ~LM60-AJ)

THK LM-AJ Linear Bush Clearance Adjustable Type (LM6-AJ~LM60-AJ)

LM-AJ type Linear Bush — clearance adjustable.

Key features

  • Same outer dimensions as standard LM type
  • Outer shell has a longitudinal slot allowing inner diameter adjustment via housing
  • Enables easy clearance control between LM shaft and housing
  • Shaft diameters: 6~60mm
  • Synthetic resin retainer standard (max 80°C)

Specifications

Type Clearance Adjustable (slotted outer shell)
Clearance Adjustable via housing
Max Temp. 80°C (standard retainer)
Oil Hole Add suffix OH on order
LM6-AJ THK Linear Bush clearance adjustable, shaft φ6mm, OD φ12mm, L=19mm | Shaft Dia.: D0=6mm | Outer Dia.: D=12mm | Length: L=19mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LM8S-AJ THK Linear Bush clearance adjustable, shaft φ8mm, OD φ15mm, L=17mm | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=17mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LM8-AJ THK Linear Bush clearance adjustable, shaft φ8mm, OD φ15mm, L=24mm | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=24mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LM10-AJ THK Linear Bush clearance adjustable, shaft φ10mm, OD φ19mm, L=29mm | Shaft Dia.: D0=10mm | Outer Dia.: D=19mm | Length: L=29mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LM12-AJ THK Linear Bush clearance adjustable, shaft φ12mm, OD φ21mm, L=30mm | Shaft Dia.: D0=12mm | Outer Dia.: D=21mm | Length: L=30mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LM13-AJ THK Linear Bush clearance adjustable, shaft φ13mm, OD φ23mm, L=32mm | Shaft Dia.: D0=13mm | Outer Dia.: D=23mm | Length: L=32mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LM16-AJ THK Linear Bush clearance adjustable, shaft φ16mm, OD φ28mm, L=37mm | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=37mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LM20-AJ THK Linear Bush clearance adjustable, shaft φ20mm, OD φ32mm, L=42mm | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=42mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LM25-AJ THK Linear Bush clearance adjustable, shaft φ25mm, OD φ40mm, L=59mm | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=59mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LM30-AJ THK Linear Bush clearance adjustable, shaft φ30mm, OD φ45mm, L=64mm | Shaft Dia.: D0=30mm | Outer Dia.: D=45mm | Length: L=64mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LM35-AJ THK Linear Bush clearance adjustable, shaft φ35mm, OD φ52mm, L=70mm | Shaft Dia.: D0=35mm | Outer Dia.: D=52mm | Length: L=70mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LM40-AJ THK Linear Bush clearance adjustable, shaft φ40mm, OD φ60mm, L=80mm | Shaft Dia.: D0=40mm | Outer Dia.: D=60mm | Length: L=80mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LM50-AJ THK Linear Bush clearance adjustable, shaft φ50mm, OD φ80mm, L=100mm | Shaft Dia.: D0=50mm | Outer Dia.: D=80mm | Length: L=100mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LM60-AJ THK Linear Bush clearance adjustable, shaft φ60mm, OD φ90mm, L=110mm | Shaft Dia.: D0=60mm | Outer Dia.: D=90mm | Length: L=110mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
Linear BushingsTHK
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK LM-AJ Linear Bush Clearance Adjustable Type (LM6-AJ~LM60-AJ)

Brand THK·Linear Bushings

Available part numbers (14)

LM6-AJ, LM8S-AJ, LM8-AJ, LM10-AJ, LM12-AJ, LM13-AJ, LM16-AJ, LM20-AJ, LM25-AJ, LM30-AJ + 4 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LM6-AJTHK Linear Bush clearance adjustable, shaft φ6mm, OD φ12mm, L=19mm | Shaft Dia.: D0=6mm | Outer Dia.: D=12mm | Length: L=19mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LM8S-AJTHK Linear Bush clearance adjustable, shaft φ8mm, OD φ15mm, L=17mm | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=17mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LM8-AJTHK Linear Bush clearance adjustable, shaft φ8mm, OD φ15mm, L=24mm | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=24mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LM10-AJTHK Linear Bush clearance adjustable, shaft φ10mm, OD φ19mm, L=29mm | Shaft Dia.: D0=10mm | Outer Dia.: D=19mm | Length: L=29mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LM12-AJTHK Linear Bush clearance adjustable, shaft φ12mm, OD φ21mm, L=30mm | Shaft Dia.: D0=12mm | Outer Dia.: D=21mm | Length: L=30mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LM13-AJTHK Linear Bush clearance adjustable, shaft φ13mm, OD φ23mm, L=32mm | Shaft Dia.: D0=13mm | Outer Dia.: D=23mm | Length: L=32mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LM16-AJTHK Linear Bush clearance adjustable, shaft φ16mm, OD φ28mm, L=37mm | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=37mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LM20-AJTHK Linear Bush clearance adjustable, shaft φ20mm, OD φ32mm, L=42mm | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=42mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LM25-AJTHK Linear Bush clearance adjustable, shaft φ25mm, OD φ40mm, L=59mm | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=59mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LM30-AJTHK Linear Bush clearance adjustable, shaft φ30mm, OD φ45mm, L=64mm | Shaft Dia.: D0=30mm | Outer Dia.: D=45mm | Length: L=64mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LM35-AJTHK Linear Bush clearance adjustable, shaft φ35mm, OD φ52mm, L=70mm | Shaft Dia.: D0=35mm | Outer Dia.: D=52mm | Length: L=70mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LM40-AJTHK Linear Bush clearance adjustable, shaft φ40mm, OD φ60mm, L=80mm | Shaft Dia.: D0=40mm | Outer Dia.: D=60mm | Length: L=80mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LM50-AJTHK Linear Bush clearance adjustable, shaft φ50mm, OD φ80mm, L=100mm | Shaft Dia.: D0=50mm | Outer Dia.: D=80mm | Length: L=100mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LM60-AJTHK Linear Bush clearance adjustable, shaft φ60mm, OD φ90mm, L=110mm | Shaft Dia.: D0=60mm | Outer Dia.: D=90mm | Length: L=110mm | Type: Clearance Adjustable (slotted outer shell) | Clearance: Adjustable via housing | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
