THK LMF-L Linear Bush Flange Long Type (LMF6L~LMF60L)

THK LMF-L Linear Bush Flange Long Type (LMF6L~LMF60L)

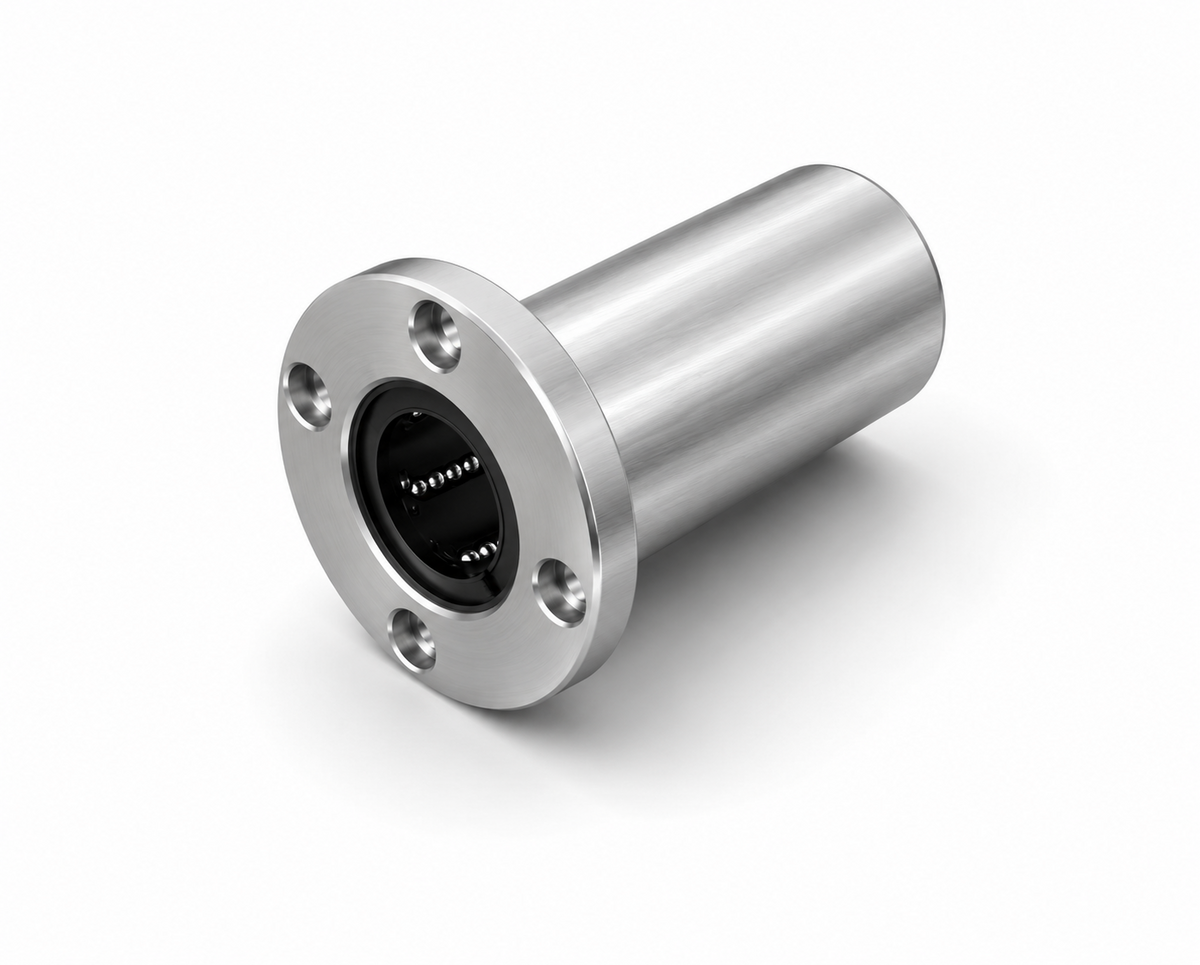

LMF-L type Linear Bush — flange integrated, long type.

Key features

  • Two retainers for optimal moment load performance
  • Nut and flange in one piece; mounts directly to housing with bolts
  • Shaft diameters: 6~60mm
  • Synthetic resin retainer (max 80°C)
  • Oil hole option (suffix OH)

Specifications

Type Flange integrated long type (2 retainers)
Feature Suitable for moment load applications
Max Temp. 80°C (standard retainer)
Oil Hole Add suffix OH on order
LMF6L THK Linear Bush flange long type, shaft φ6mm, OD φ12mm, L=35mm, flange φ28mm | Shaft Dia.: D0=6mm | Outer Dia.: D=12mm | Length: L=35mm | Flange OD: D1=28mm | Type: Flange integrated long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LMF8L THK Linear Bush flange long type, shaft φ8mm, OD φ15mm, L=45mm, flange φ32mm | Shaft Dia.: D0=8mm | Outer Dia.: D=15mm | Length: L=45mm | Flange OD: D1=32mm | Type: Flange integrated long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LMF10L THK Linear Bush flange long type, shaft φ10mm, OD φ19mm, L=55mm, flange φ39mm | Shaft Dia.: D0=10mm | Outer Dia.: D=19mm | Length: L=55mm | Flange OD: D1=39mm | Type: Flange integrated long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LMF12L THK Linear Bush flange long type, shaft φ12mm, OD φ21mm, L=57mm, flange φ42mm | Shaft Dia.: D0=12mm | Outer Dia.: D=21mm | Length: L=57mm | Flange OD: D1=42mm | Type: Flange integrated long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LMF13L THK Linear Bush flange long type, shaft φ13mm, OD φ23mm, L=61mm, flange φ43mm | Shaft Dia.: D0=13mm | Outer Dia.: D=23mm | Length: L=61mm | Flange OD: D1=43mm | Type: Flange integrated long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LMF16L THK Linear Bush flange long type, shaft φ16mm, OD φ28mm, L=70mm, flange φ48mm | Shaft Dia.: D0=16mm | Outer Dia.: D=28mm | Length: L=70mm | Flange OD: D1=48mm | Type: Flange integrated long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LMF20L THK Linear Bush flange long type, shaft φ20mm, OD φ32mm, L=80mm, flange φ54mm | Shaft Dia.: D0=20mm | Outer Dia.: D=32mm | Length: L=80mm | Flange OD: D1=54mm | Type: Flange integrated long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LMF25L THK Linear Bush flange long type, shaft φ25mm, OD φ40mm, L=112mm, flange φ62mm | Shaft Dia.: D0=25mm | Outer Dia.: D=40mm | Length: L=112mm | Flange OD: D1=62mm | Type: Flange integrated long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LMF30L THK Linear Bush flange long type, shaft φ30mm, OD φ45mm, L=123mm, flange φ74mm | Shaft Dia.: D0=30mm | Outer Dia.: D=45mm | Length: L=123mm | Flange OD: D1=74mm | Type: Flange integrated long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LMF35L THK Linear Bush flange long type, shaft φ35mm, OD φ52mm, L=135mm, flange φ82mm | Shaft Dia.: D0=35mm | Outer Dia.: D=52mm | Length: L=135mm | Flange OD: D1=82mm | Type: Flange integrated long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LMF40L THK Linear Bush flange long type, shaft φ40mm, OD φ60mm, L=154mm, flange φ96mm | Shaft Dia.: D0=40mm | Outer Dia.: D=60mm | Length: L=154mm | Flange OD: D1=96mm | Type: Flange integrated long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LMF50L THK Linear Bush flange long type, shaft φ50mm, OD φ80mm, L=192mm, flange φ116mm | Shaft Dia.: D0=50mm | Outer Dia.: D=80mm | Length: L=192mm | Flange OD: D1=116mm | Type: Flange integrated long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
LMF60L THK Linear Bush flange long type, shaft φ60mm, OD φ90mm, L=211mm, flange φ134mm | Shaft Dia.: D0=60mm | Outer Dia.: D=90mm | Length: L=211mm | Flange OD: D1=134mm | Type: Flange integrated long type (2 retainers) | Feature: Suitable for moment load applications | Max Temp.: 80°C (standard retainer) | Oil Hole: Add suffix OH on order
