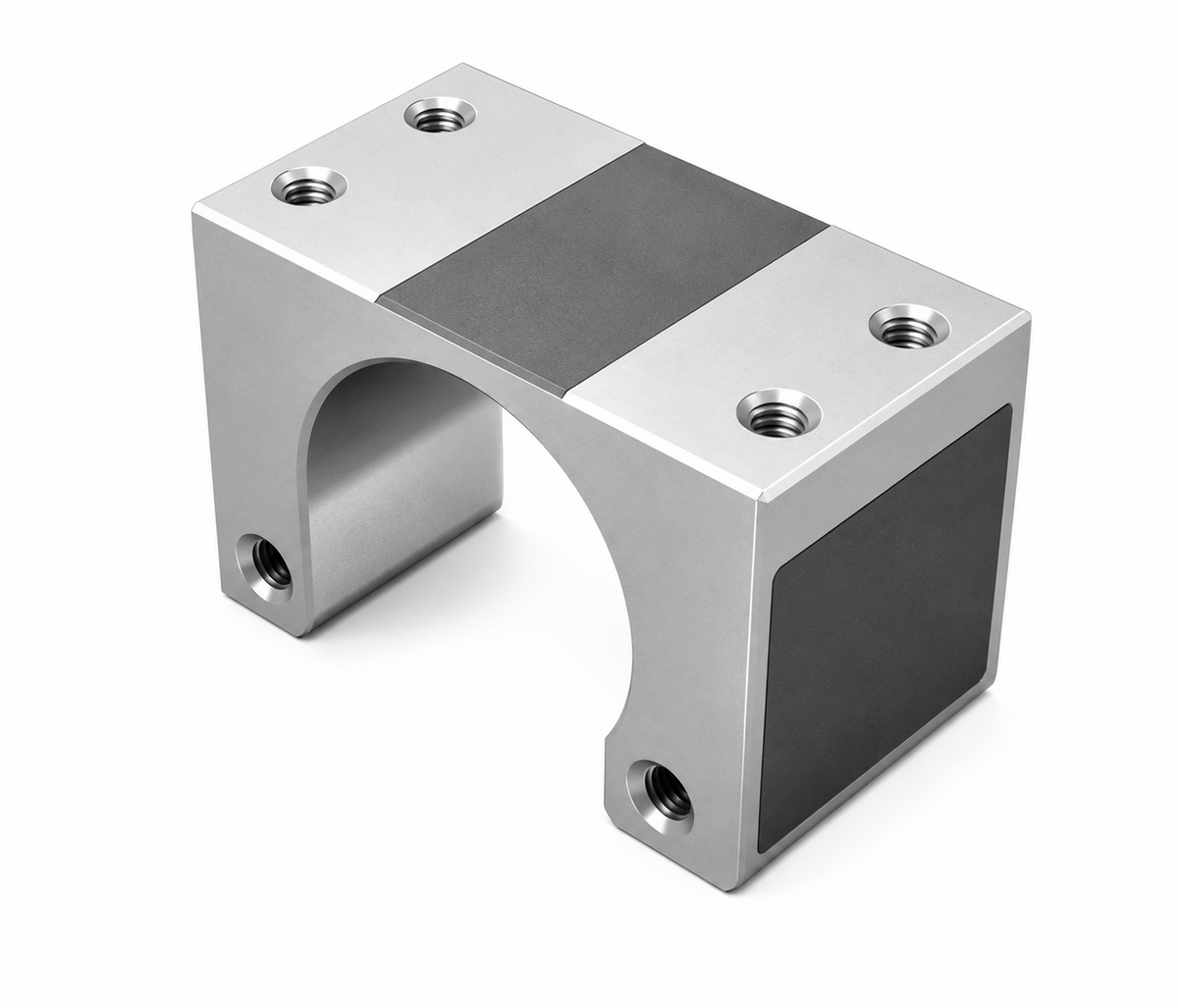

THK MC Nut Bracket (for BNK Finished Shaft Ball Screw)

THK MC Nut Bracket (for BNK Finished Shaft Ball Screw)

THK MC Series Nut Bracket for BNK finished shaft ball screws.

Key features

  • Standardized bracket for direct table mounting using bolts only — no housing required
  • Low-profile design for compact installation
  • Compatible with BNK series: BNK1004~BNK2020

Specifications

Type Nut Bracket for BNK Finished Shaft Ball Screw (MC)
MC1004 THK MC1004, Nut Bracket, for BNK1004, BNK1010 | Compatible Ball Screw: BNK1004, BNK1010 | Width W: 48mm | W1: 24mm | B: 40mm | B1: 4mm | Length L: 32mm | C: 16mm | C1: 10mm | F: 20mm | K: 32.5mm | T: 9mm | Bore D: 26.4mm | PCD: 36mm | Bolt S: M5×10 | Bolt S1: M4×7 | Mass: 0.24kg | Type: Nut Bracket for BNK Finished Shaft Ball Screw (MC)
MC1205 THK MC1205, Nut Bracket, for BNK1205 | Compatible Ball Screw: BNK1205 | Width W: 60mm | W1: 30mm | B: 47mm | B1: 6.5mm | Length L: 36mm | C: 24mm | C1: 6mm | F: 21mm | K: 37.0mm | T: 9mm | Bore D: 30.4mm | PCD: 40mm | Bolt S: M6×12 | Bolt S1: M4×7 | Mass: 0.38kg | Type: Nut Bracket for BNK Finished Shaft Ball Screw (MC)
MC1408 THK MC1408, Nut Bracket, for BNK1408, BNK1510, BNK1520, BNK1616 | Compatible Ball Screw: BNK1408, BNK1510, BNK1520, BNK1616 | Width W: 60mm | W1: 30mm | B: 50mm | B1: 5mm | Length L: 36mm | C: 20mm | C1: 10mm | F: 21.5mm | K: 37.0mm | T: 9mm | Bore D: 34.4mm | PCD: 45mm | Bolt S: M6×12 | Bolt S1: M5×7 | Mass: 0.34kg | Type: Nut Bracket for BNK Finished Shaft Ball Screw (MC)
MC2010 THK MC2010, Nut Bracket, for BNK2010 | Compatible Ball Screw: BNK2010 | Width W: 86mm | W1: 43mm | B: 70mm | B1: 8mm | Length L: 50mm | C: 30mm | C1: 10mm | F: 31mm | K: 54.0mm | T: 16mm | Bore D: 46.4mm | PCD: 59mm | Bolt S: M10×20 | Bolt S1: M6×10 | Mass: 1.04kg | Type: Nut Bracket for BNK Finished Shaft Ball Screw (MC)
MC2020 THK MC2020, Nut Bracket, for BNK2020 | Compatible Ball Screw: BNK2020 | Width W: 86mm | W1: 43mm | B: 70mm | B1: 8mm | Length L: 40mm | C: 24mm | C1: 8mm | F: 28mm | K: 51.0mm | T: 16mm | Bore D: 39.4mm | PCD: 59mm | Bolt S: M10×20 | Bolt S1: M6×10 | Mass: 0.83kg | Type: Nut Bracket for BNK Finished Shaft Ball Screw (MC)
Ball ScrewsTHK
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK MC Nut Bracket (for BNK Finished Shaft Ball Screw)

Brand THK·Ball Screws

Available part numbers (5)

MC1004, MC1205, MC1408, MC2010, MC2020

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
