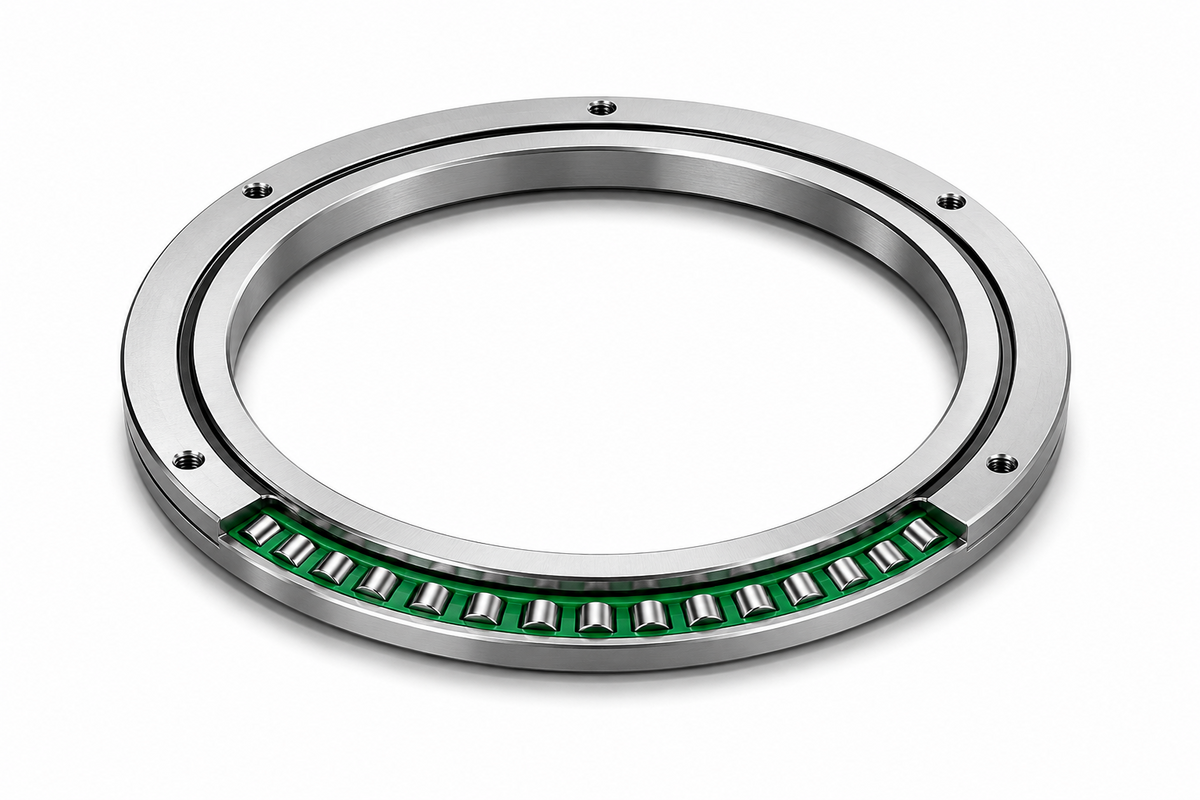

THK RE Cross Roller Ring USP Grade (Ultra-Super Precision, Split Inner Ring)

THK RE Cross Roller Ring USP Grade (Ultra-Super Precision, Split Inner Ring)

THK RE-type Cross Roller Ring USP grade — ultra-super precision exceeding JIS Class 2 / ISO Class 2 / DIN P2.

Key features

  • Split inner ring, integrated outer ring
  • For outer ring rotation applications
  • Seal version: RE...UU-USP
  • Bore range: 100–600 mm

Specifications

Grade USP (Ultra-Super Precision)
Type RE (Split Inner Ring)
RE10020USP THK RE10020USP, d=100mm D=150mm B=20mm USP grade | Model: RE10020USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 100 mm | OD D: 150 mm | Roller PCD dp: 127 mm | Width B: 20 mm | Dynamic Load C: 33.1 kN | Static Load C0: 50.9 kN | Mass: 1.45 kg | Seal variant: RE10020UU-USP
RE12025USP THK RE12025USP, d=120mm D=180mm B=25mm USP grade | Model: RE12025USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 120 mm | OD D: 180 mm | Roller PCD dp: 152 mm | Width B: 25 mm | Dynamic Load C: 66.9 kN | Static Load C0: 100.0 kN | Mass: 2.62 kg | Seal variant: RE12025UU-USP
RE15025USP THK RE15025USP, d=150mm D=210mm B=25mm USP grade | Model: RE15025USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 150 mm | OD D: 210 mm | Roller PCD dp: 182 mm | Width B: 25 mm | Dynamic Load C: 76.8 kN | Static Load C0: 128.0 kN | Mass: 3.16 kg | Seal variant: RE15025UU-USP
RE20030USP THK RE20030USP, d=200mm D=280mm B=30mm USP grade | Model: RE20030USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 200 mm | OD D: 280 mm | Roller PCD dp: 240 mm | Width B: 30 mm | Dynamic Load C: 114.0 kN | Static Load C0: 200.0 kN | Mass: 6.7 kg | Seal variant: RE20030UU-USP
RE25030USP THK RE25030USP, d=250mm D=330mm B=30mm USP grade | Model: RE25030USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 250 mm | OD D: 330 mm | Roller PCD dp: 287.5 mm | Width B: 30 mm | Dynamic Load C: 126.0 kN | Static Load C0: 244.0 kN | Mass: 8.1 kg | Seal variant: RE25030UU-USP
RE30035USP THK RE30035USP, d=300mm D=395mm B=35mm USP grade | Model: RE30035USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 300 mm | OD D: 395 mm | Roller PCD dp: 345 mm | Width B: 35 mm | Dynamic Load C: 183.0 kN | Static Load C0: 367.0 kN | Mass: 13.4 kg | Seal variant: RE30035UU-USP
RE40040USP THK RE40040USP, d=400mm D=510mm B=40mm USP grade | Model: RE40040USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 400 mm | OD D: 510 mm | Roller PCD dp: 453.4 mm | Width B: 40 mm | Dynamic Load C: 241.0 kN | Static Load C0: 531.0 kN | Mass: 23.5 kg | Seal variant: RE40040UU-USP
RE50040USP THK RE50040USP, d=500mm D=600mm B=40mm USP grade | Model: RE50040USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 500 mm | OD D: 600 mm | Roller PCD dp: 548.8 mm | Width B: 40 mm | Dynamic Load C: 239.0 kN | Static Load C0: 607.0 kN | Mass: 26.0 kg | Seal variant: RE50040UU-USP
RE60040USP THK RE60040USP, d=600mm D=700mm B=40mm USP grade | Model: RE60040USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 600 mm | OD D: 700 mm | Roller PCD dp: 650 mm | Width B: 40 mm | Dynamic Load C: 264.0 kN | Static Load C0: 721.0 kN | Mass: 29.0 kg | Seal variant: RE60040UU-USP
Cross Roller RingsTHK
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK RE Cross Roller Ring USP Grade (Ultra-Super Precision, Split Inner Ring)

Brand THK·Cross Roller Rings

Available part numbers (9)

RE10020USP, RE12025USP, RE15025USP, RE20030USP, RE25030USP, RE30035USP, RE40040USP, RE50040USP, RE60040USP

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RE10020USPTHK RE10020USP, d=100mm D=150mm B=20mm USP grade | Model: RE10020USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 100 mm | OD D: 150 mm | Roller PCD dp: 127 mm | Width B: 20 mm | Dynamic Load C: 33.1 kN | Static Load C0: 50.9 kN | Mass: 1.45 kg | Seal variant: RE10020UU-USP
RE12025USPTHK RE12025USP, d=120mm D=180mm B=25mm USP grade | Model: RE12025USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 120 mm | OD D: 180 mm | Roller PCD dp: 152 mm | Width B: 25 mm | Dynamic Load C: 66.9 kN | Static Load C0: 100.0 kN | Mass: 2.62 kg | Seal variant: RE12025UU-USP
RE15025USPTHK RE15025USP, d=150mm D=210mm B=25mm USP grade | Model: RE15025USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 150 mm | OD D: 210 mm | Roller PCD dp: 182 mm | Width B: 25 mm | Dynamic Load C: 76.8 kN | Static Load C0: 128.0 kN | Mass: 3.16 kg | Seal variant: RE15025UU-USP
RE20030USPTHK RE20030USP, d=200mm D=280mm B=30mm USP grade | Model: RE20030USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 200 mm | OD D: 280 mm | Roller PCD dp: 240 mm | Width B: 30 mm | Dynamic Load C: 114.0 kN | Static Load C0: 200.0 kN | Mass: 6.7 kg | Seal variant: RE20030UU-USP
RE25030USPTHK RE25030USP, d=250mm D=330mm B=30mm USP grade | Model: RE25030USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 250 mm | OD D: 330 mm | Roller PCD dp: 287.5 mm | Width B: 30 mm | Dynamic Load C: 126.0 kN | Static Load C0: 244.0 kN | Mass: 8.1 kg | Seal variant: RE25030UU-USP
RE30035USPTHK RE30035USP, d=300mm D=395mm B=35mm USP grade | Model: RE30035USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 300 mm | OD D: 395 mm | Roller PCD dp: 345 mm | Width B: 35 mm | Dynamic Load C: 183.0 kN | Static Load C0: 367.0 kN | Mass: 13.4 kg | Seal variant: RE30035UU-USP
RE40040USPTHK RE40040USP, d=400mm D=510mm B=40mm USP grade | Model: RE40040USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 400 mm | OD D: 510 mm | Roller PCD dp: 453.4 mm | Width B: 40 mm | Dynamic Load C: 241.0 kN | Static Load C0: 531.0 kN | Mass: 23.5 kg | Seal variant: RE40040UU-USP
RE50040USPTHK RE50040USP, d=500mm D=600mm B=40mm USP grade | Model: RE50040USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 500 mm | OD D: 600 mm | Roller PCD dp: 548.8 mm | Width B: 40 mm | Dynamic Load C: 239.0 kN | Static Load C0: 607.0 kN | Mass: 26.0 kg | Seal variant: RE50040UU-USP
RE60040USPTHK RE60040USP, d=600mm D=700mm B=40mm USP grade | Model: RE60040USP | Grade: USP (Ultra-Super Precision) | Type: RE (Split Inner Ring) | Bore d: 600 mm | OD D: 700 mm | Roller PCD dp: 650 mm | Width B: 40 mm | Dynamic Load C: 264.0 kN | Static Load C0: 721.0 kN | Mass: 29.0 kg | Seal variant: RE60040UU-USP
