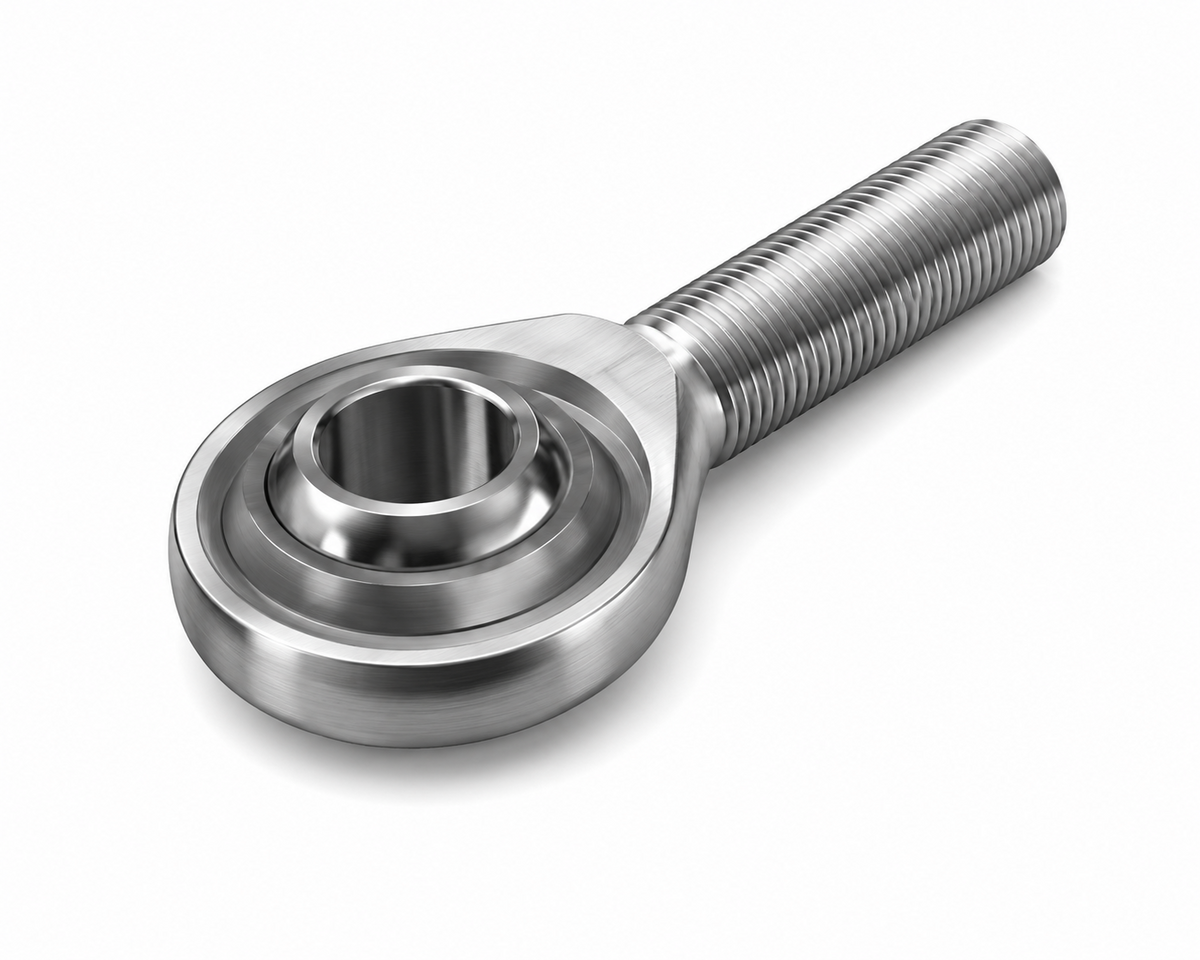

THK Rod End NOS-T (Male Thread, Maintenance-Free)

THK Rod End NOS-T (Male Thread, Maintenance-Free)

THK NOS-T type Maintenance-Free Rod End with male (external) thread.

Key features

  • Same construction as NHS-T (female thread) type
  • Self-lubricating synthetic resin bushing; no grease nipple required
  • Ball diameter (inch series): 9.525~38.1mm (3/8"~1-1/2")
  • NOS3T/4T: S20C holder; NOS5T~NOS22T: S35C chromate
  • Left-hand thread: suffix L

Specifications

Inner Ring SUJ2 58HRC+
Bushing Self-lubricating synthetic resin (maintenance-free)
Shaft Fit h7 (normal) / p6 (indeterminate direction)
Left-hand thread add L suffix
NOS3T THK Rod End NOS3T (male, maintenance-free), thread=M3×0.5, Da=9.525mm, Cs=1570N | Thread (male): M3×0.5 | Total Length (L): 33 mm | Holder Diameter (D): 12 mm | Ball Diameter (Da): 9.525 mm (3/8") | Bore Diameter (d): 3 mm | Allowable Tilt Angle α1/α2/α3: 8°/10°/42° | Radial Clearance: ≤0.3 mm | Static Load Capacity (Cs): 1570 N | Mass: 4.5 g | Holder Material: S20C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix
NOS4T THK Rod End NOS4T (male, maintenance-free), thread=M4×0.7, Da=10.319mm, Cs=2250N | Thread (male): M4×0.7 | Total Length (L): 37 mm | Holder Diameter (D): 14 mm | Ball Diameter (Da): 10.319 mm (13/32") | Bore Diameter (d): 4 mm | Allowable Tilt Angle α1/α2/α3: 9°/11°/35° | Radial Clearance: ≤0.3 mm | Static Load Capacity (Cs): 2250 N | Mass: 7.0 g | Holder Material: S20C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix
NOS5T THK Rod End NOS5T (male, maintenance-free), thread=M5×0.8, Da=11.112mm, Cs=3430N | Thread (male): M5×0.8 | Total Length (L): 41 mm | Holder Diameter (D): 16 mm | Ball Diameter (Da): 11.112 mm (7/16") | Bore Diameter (d): 5 mm | Allowable Tilt Angle α1/α2/α3: 8°/13°/30° | Radial Clearance: ≤0.3 mm | Static Load Capacity (Cs): 3430 N | Mass: 12.5 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix
NOS6T THK Rod End NOS6T (male, maintenance-free), thread=M6×1, Da=12.7mm, Cs=4900N | Thread (male): M6×1 | Total Length (L): 45 mm | Holder Diameter (D): 18 mm | Ball Diameter (Da): 12.7 mm (1/2") | Bore Diameter (d): 6 mm | Allowable Tilt Angle α1/α2/α3: 8°/13°/30° | Radial Clearance: ≤0.3 mm | Static Load Capacity (Cs): 4900 N | Mass: 19.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix
NOS8T THK Rod End NOS8T (male, maintenance-free), thread=M8×1.25, Da=15.875mm, Cs=6860N | Thread (male): M8×1.25 | Total Length (L): 53 mm | Holder Diameter (D): 22 mm | Ball Diameter (Da): 15.875 mm (5/8") | Bore Diameter (d): 8 mm | Allowable Tilt Angle α1/α2/α3: 8°/14°/25° | Radial Clearance: ≤0.5 mm | Static Load Capacity (Cs): 6860 N | Mass: 32.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix
NOS10T THK Rod End NOS10T (male, maintenance-free), thread=M10×1.5, Da=19.05mm, Cs=9410N | Thread (male): M10×1.5 | Total Length (L): 61 mm | Holder Diameter (D): 26 mm | Ball Diameter (Da): 19.05 mm (3/4") | Bore Diameter (d): 10 mm | Allowable Tilt Angle α1/α2/α3: 8°/14°/25° | Radial Clearance: ≤0.5 mm | Static Load Capacity (Cs): 9410 N | Mass: 54.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix
NOS12T THK Rod End NOS12T (male, maintenance-free), thread=M12×1.75, Da=22.225mm, Cs=11000N | Thread (male): M12×1.75 | Total Length (L): 69 mm | Holder Diameter (D): 30 mm | Ball Diameter (Da): 22.225 mm (7/8") | Bore Diameter (d): 12 mm | Allowable Tilt Angle α1/α2/α3: 8°/13°/25° | Radial Clearance: ≤0.5 mm | Static Load Capacity (Cs): 11000 N | Mass: 85.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix
NOS14T THK Rod End NOS14T (male, maintenance-free), thread=M14×2, Da=25.4mm, Cs=15200N | Thread (male): M14×2 | Total Length (L): 77 mm | Holder Diameter (D): 34 mm | Ball Diameter (Da): 25.4 mm (1") | Bore Diameter (d): 14 mm | Allowable Tilt Angle α1/α2/α3: 10°/16°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 15200 N | Mass: 126.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix
NOS16T THK Rod End NOS16T (male, maintenance-free), thread=M16×2, Da=28.575mm, Cs=20200N | Thread (male): M16×2 | Total Length (L): 85 mm | Holder Diameter (D): 38 mm | Ball Diameter (Da): 28.575 mm (1-1/8") | Bore Diameter (d): 16 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 20200 N | Mass: 185.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix
NOS18T THK Rod End NOS18T (male, maintenance-free), thread=M18×1.5, Da=31.75mm, Cs=25200N | Thread (male): M18×1.5 | Total Length (L): 93 mm | Holder Diameter (D): 42 mm | Ball Diameter (Da): 31.75 mm (1-1/4") | Bore Diameter (d): 18 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 25200 N | Mass: 260.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix
NOS20T THK Rod End NOS20T (male, maintenance-free), thread=M20×1.5, Da=34.925mm, Cs=27800N | Thread (male): M20×1.5 | Total Length (L): 101 mm | Holder Diameter (D): 46 mm | Ball Diameter (Da): 34.925 mm (1-3/8") | Bore Diameter (d): 20 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 27800 N | Mass: 340.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix
NOS22T THK Rod End NOS22T (male, maintenance-free), thread=M22×1.5, Da=38.1mm, Cs=35900N | Thread (male): M22×1.5 | Total Length (L): 109 mm | Holder Diameter (D): 50 mm | Ball Diameter (Da): 38.1 mm (1-1/2") | Bore Diameter (d): 22 mm | Allowable Tilt Angle α1/α2/α3: 10°/15°/23° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 35900 N | Mass: 435.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix
Roller GuidesTHK
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK Rod End NOS-T (Male Thread, Maintenance-Free)

Brand THK·Roller Guides

Available part numbers (12)

NOS3T, NOS4T, NOS5T, NOS6T, NOS8T, NOS10T, NOS12T, NOS14T, NOS16T, NOS18T + 2 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NOS3TTHK Rod End NOS3T (male, maintenance-free), thread=M3×0.5, Da=9.525mm, Cs=1570N | Thread (male): M3×0.5 | Total Length (L): 33 mm | Holder Diameter (D): 12 mm | Ball Diameter (Da): 9.525 mm (3/8") | Bore Diameter (d): 3 mm | Allowable Tilt Angle α1/α2/α3: 8°/10°/42° | Radial Clearance: ≤0.3 mm | Static Load Capacity (Cs): 1570 N | Mass: 4.5 g | Holder Material: S20C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix
NOS4TTHK Rod End NOS4T (male, maintenance-free), thread=M4×0.7, Da=10.319mm, Cs=2250N | Thread (male): M4×0.7 | Total Length (L): 37 mm | Holder Diameter (D): 14 mm | Ball Diameter (Da): 10.319 mm (13/32") | Bore Diameter (d): 4 mm | Allowable Tilt Angle α1/α2/α3: 9°/11°/35° | Radial Clearance: ≤0.3 mm | Static Load Capacity (Cs): 2250 N | Mass: 7.0 g | Holder Material: S20C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix
NOS5TTHK Rod End NOS5T (male, maintenance-free), thread=M5×0.8, Da=11.112mm, Cs=3430N | Thread (male): M5×0.8 | Total Length (L): 41 mm | Holder Diameter (D): 16 mm | Ball Diameter (Da): 11.112 mm (7/16") | Bore Diameter (d): 5 mm | Allowable Tilt Angle α1/α2/α3: 8°/13°/30° | Radial Clearance: ≤0.3 mm | Static Load Capacity (Cs): 3430 N | Mass: 12.5 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix
NOS6TTHK Rod End NOS6T (male, maintenance-free), thread=M6×1, Da=12.7mm, Cs=4900N | Thread (male): M6×1 | Total Length (L): 45 mm | Holder Diameter (D): 18 mm | Ball Diameter (Da): 12.7 mm (1/2") | Bore Diameter (d): 6 mm | Allowable Tilt Angle α1/α2/α3: 8°/13°/30° | Radial Clearance: ≤0.3 mm | Static Load Capacity (Cs): 4900 N | Mass: 19.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix
NOS8TTHK Rod End NOS8T (male, maintenance-free), thread=M8×1.25, Da=15.875mm, Cs=6860N | Thread (male): M8×1.25 | Total Length (L): 53 mm | Holder Diameter (D): 22 mm | Ball Diameter (Da): 15.875 mm (5/8") | Bore Diameter (d): 8 mm | Allowable Tilt Angle α1/α2/α3: 8°/14°/25° | Radial Clearance: ≤0.5 mm | Static Load Capacity (Cs): 6860 N | Mass: 32.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix
NOS10TTHK Rod End NOS10T (male, maintenance-free), thread=M10×1.5, Da=19.05mm, Cs=9410N | Thread (male): M10×1.5 | Total Length (L): 61 mm | Holder Diameter (D): 26 mm | Ball Diameter (Da): 19.05 mm (3/4") | Bore Diameter (d): 10 mm | Allowable Tilt Angle α1/α2/α3: 8°/14°/25° | Radial Clearance: ≤0.5 mm | Static Load Capacity (Cs): 9410 N | Mass: 54.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix
NOS12TTHK Rod End NOS12T (male, maintenance-free), thread=M12×1.75, Da=22.225mm, Cs=11000N | Thread (male): M12×1.75 | Total Length (L): 69 mm | Holder Diameter (D): 30 mm | Ball Diameter (Da): 22.225 mm (7/8") | Bore Diameter (d): 12 mm | Allowable Tilt Angle α1/α2/α3: 8°/13°/25° | Radial Clearance: ≤0.5 mm | Static Load Capacity (Cs): 11000 N | Mass: 85.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix
NOS14TTHK Rod End NOS14T (male, maintenance-free), thread=M14×2, Da=25.4mm, Cs=15200N | Thread (male): M14×2 | Total Length (L): 77 mm | Holder Diameter (D): 34 mm | Ball Diameter (Da): 25.4 mm (1") | Bore Diameter (d): 14 mm | Allowable Tilt Angle α1/α2/α3: 10°/16°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 15200 N | Mass: 126.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix
NOS16TTHK Rod End NOS16T (male, maintenance-free), thread=M16×2, Da=28.575mm, Cs=20200N | Thread (male): M16×2 | Total Length (L): 85 mm | Holder Diameter (D): 38 mm | Ball Diameter (Da): 28.575 mm (1-1/8") | Bore Diameter (d): 16 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 20200 N | Mass: 185.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix
NOS18TTHK Rod End NOS18T (male, maintenance-free), thread=M18×1.5, Da=31.75mm, Cs=25200N | Thread (male): M18×1.5 | Total Length (L): 93 mm | Holder Diameter (D): 42 mm | Ball Diameter (Da): 31.75 mm (1-1/4") | Bore Diameter (d): 18 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 25200 N | Mass: 260.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix
NOS20TTHK Rod End NOS20T (male, maintenance-free), thread=M20×1.5, Da=34.925mm, Cs=27800N | Thread (male): M20×1.5 | Total Length (L): 101 mm | Holder Diameter (D): 46 mm | Ball Diameter (Da): 34.925 mm (1-3/8") | Bore Diameter (d): 20 mm | Allowable Tilt Angle α1/α2/α3: 9°/15°/24° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 27800 N | Mass: 340.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix
NOS22TTHK Rod End NOS22T (male, maintenance-free), thread=M22×1.5, Da=38.1mm, Cs=35900N | Thread (male): M22×1.5 | Total Length (L): 109 mm | Holder Diameter (D): 50 mm | Ball Diameter (Da): 38.1 mm (1-1/2") | Bore Diameter (d): 22 mm | Allowable Tilt Angle α1/α2/α3: 10°/15°/23° | Radial Clearance: ≤0.7 mm | Static Load Capacity (Cs): 35900 N | Mass: 435.0 g | Holder Material: S35C (chromate) | Inner Ring: SUJ2 58HRC+ | Bushing: Self-lubricating synthetic resin (maintenance-free) | Shaft Fit: h7 (normal) / p6 (indeterminate direction) | Left-hand thread: add L suffix
