THK SBN2508V-7 Ball Screw (SBN-V Medium, Shaft φ25, Lead 8mm)

THK SBN2508V-7 Ball Screw (SBN-V Medium, Shaft φ25, Lead 8mm)

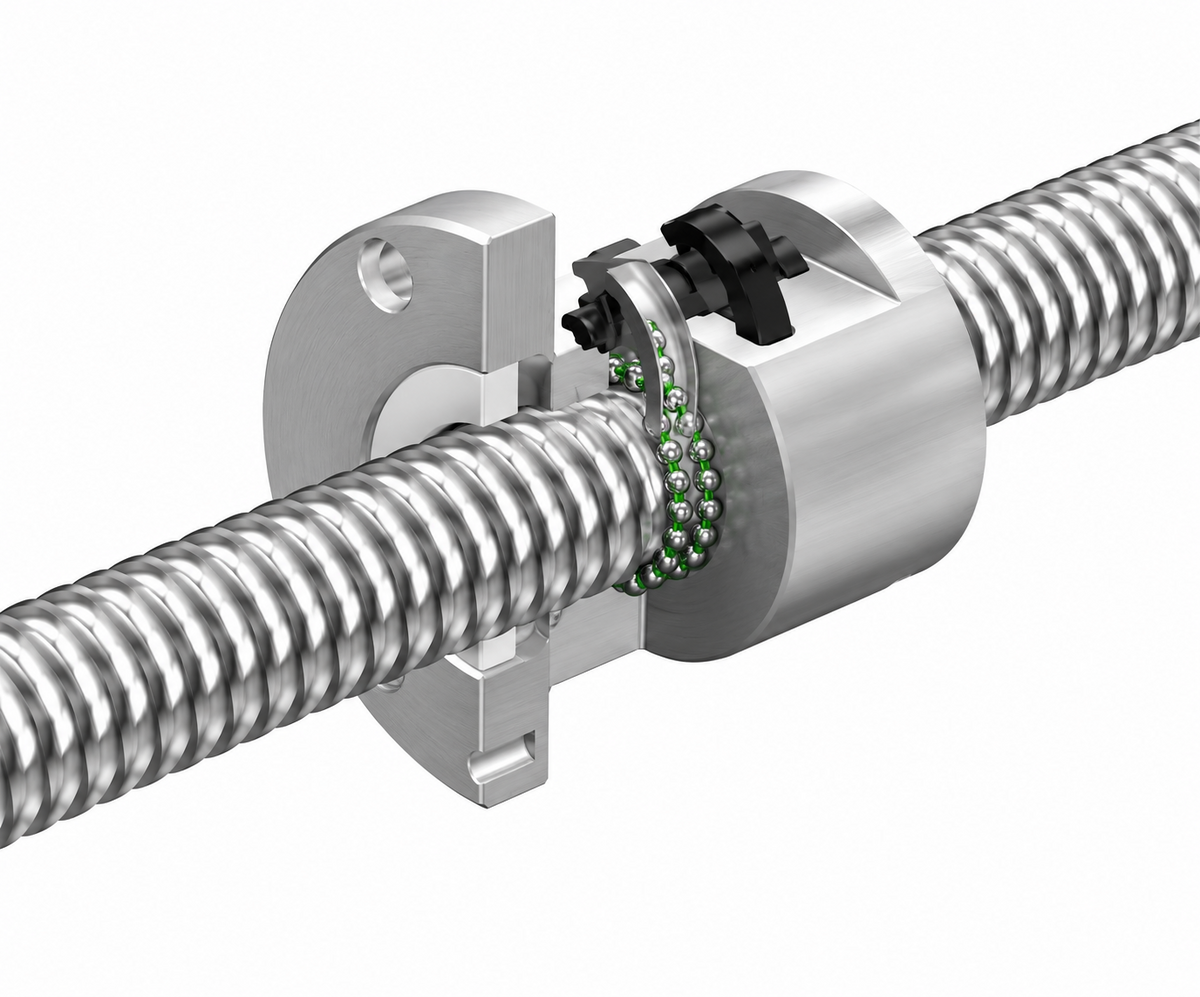

THK SBN-V Series High-Speed Precision Ground Ball Screw (Medium type) with Ball Retainer.

Key features

  • DN value 130,000
  • Ball retainer eliminates ball-to-ball contact for low noise, reduced torque variation, and long maintenance-free operation
  • Shaft diameter φ25mm, lead 8mm
  • Ca=26.2kN, C0a=43.0kN

Specifications

Shaft Diameter φ25mm
Lead 8mm
Ca 26.2kN
C0a 43.0kN
Nut OD D 58mm
Flange D1 85mm
Nut Length L1 98mm
DN Value 130,000
Size Medium
Type High-Speed, Ball Retainer (SBN-V)
SBN2508V-7 THK SBN2508V-7, φ25 Lead8, Ca=26.2kN | Shaft Diameter: φ25mm | Lead: 8mm | Ca: 26.2kN | C0a: 43.0kN | Nut OD D: 58mm | Flange D1: 85mm | Nut Length L1: 98mm | DN Value: 130,000 | Size: Medium | Type: High-Speed, Ball Retainer (SBN-V)
Ball ScrewsTHK
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK SBN2508V-7 Ball Screw (SBN-V Medium, Shaft φ25, Lead 8mm)

Brand THK·Ball Screws

Available part numbers (1)

SBN2508V-7

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SBN2508V-7THK SBN2508V-7, φ25 Lead8, Ca=26.2kN | Shaft Diameter: φ25mm | Lead: 8mm | Ca: 26.2kN | C0a: 43.0kN | Nut OD D: 58mm | Flange D1: 85mm | Nut Length L1: 98mm | DN Value: 130,000 | Size: Medium | Type: High-Speed, Ball Retainer (SBN-V)
