• THK SBN4012V-5 Ball Screw (SBN-V Medium, Shaft φ40, Lead 12mm)
1 1

THK SBN4012V-5 Ball Screw (SBN-V Medium, Shaft φ40, Lead 12mm)

THK SBN4012V-5 Ball Screw (SBN-V Medium, Shaft φ40, Lead 12mm)

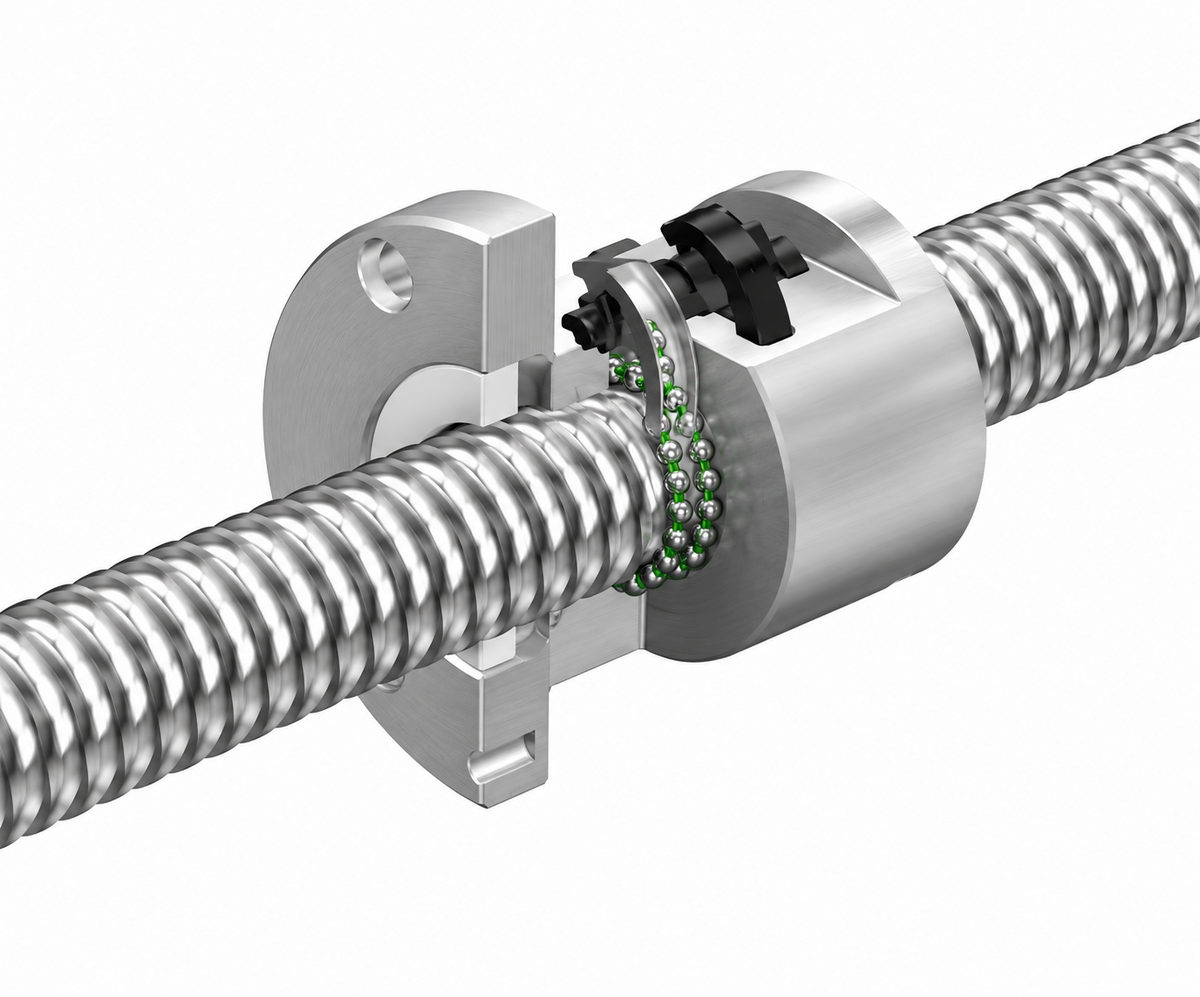

THK SBN-V Series High-Speed Precision Ground Ball Screw (Medium type) with Ball Retainer.

Key features

  • DN value 130,000
  • Ball retainer eliminates ball-to-ball contact for low noise, reduced torque variation, and long maintenance-free operation
  • Shaft diameter φ40mm, lead 12mm
  • Ca=42.0kN, C0a=73.6kN

Specifications

Shaft Diameter φ40mm
Lead 12mm
Ca 42.0kN
C0a 73.6kN
Nut OD D 84mm
Flange D1 126mm
Nut Length L1 119mm
DN Value 130,000
Size Medium
Type High-Speed, Ball Retainer (SBN-V)
SBN4012V-5 THK SBN4012V-5, φ40 Lead12, Ca=42.0kN | Shaft Diameter: φ40mm | Lead: 12mm | Ca: 42.0kN | C0a: 73.6kN | Nut OD D: 84mm | Flange D1: 126mm | Nut Length L1: 119mm | DN Value: 130,000 | Size: Medium | Type: High-Speed, Ball Retainer (SBN-V)
Ball ScrewsTHK
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK SBN4012V-5 Ball Screw (SBN-V Medium, Shaft φ40, Lead 12mm)

Brand THK·Ball Screws

Available part numbers (1)

SBN4012V-5

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SBN4012V-5THK SBN4012V-5, φ40 Lead12, Ca=42.0kN | Shaft Diameter: φ40mm | Lead: 12mm | Ca: 42.0kN | C0a: 73.6kN | Nut OD D: 84mm | Flange D1: 126mm | Nut Length L1: 119mm | DN Value: 130,000 | Size: Medium | Type: High-Speed, Ball Retainer (SBN-V)
