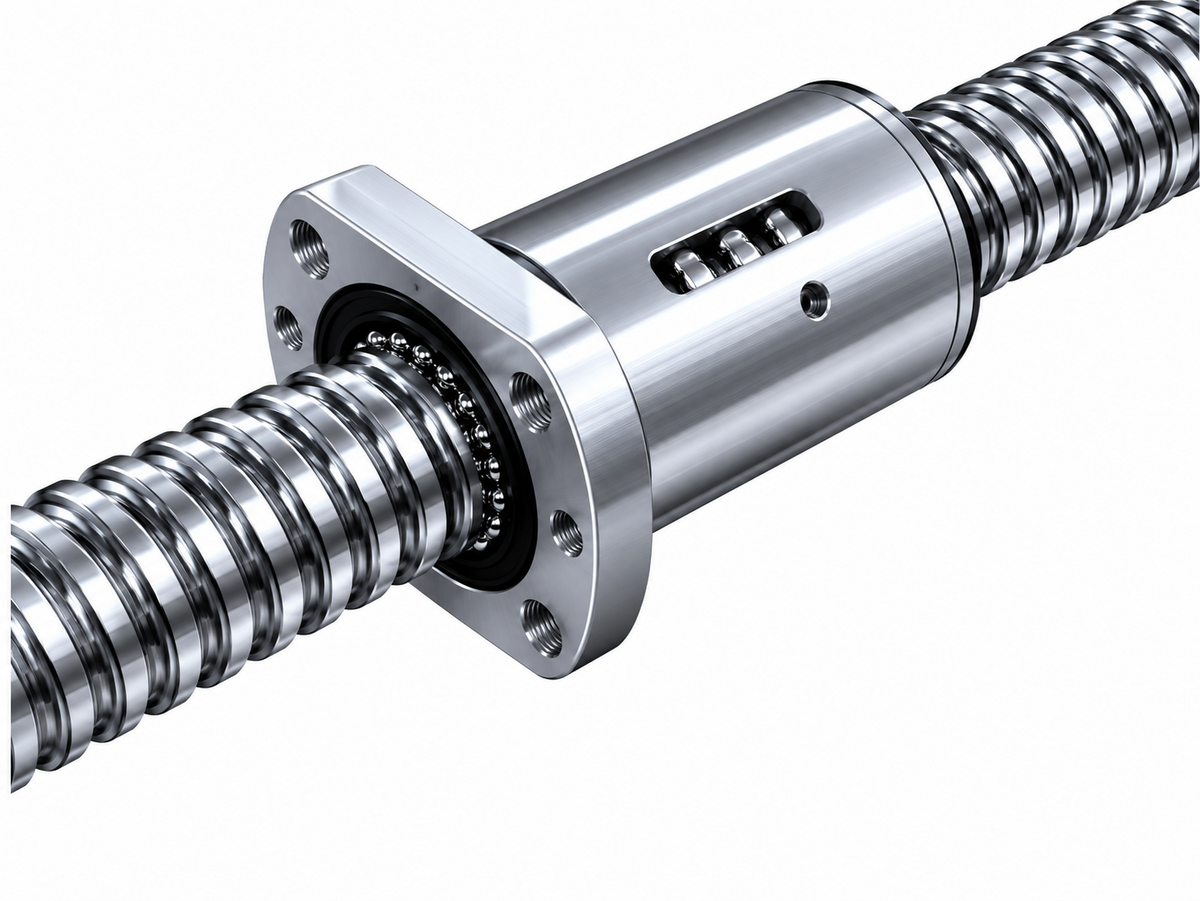

THK SDAN-V/VA Ball Screw (Double Nut, Shaft φ50)

THK SDAN-V Series Double Nut Preloaded Ball Screw with Ball Retainer.

Key features

Double nut preload eliminates backlash
Higher axial rigidity than SDA-V type
ISO3408 compliant nut dimensions
Shaft diameter range φ50mm
V, VA (large flange), VX (total ball) variants available

Specifications

Shaft Diameter	φ50mm
Type	Double Nut, Preloaded, Ball Retainer (SDAN-V)

SDAN5010V-5		THK SDAN5010V-5, φ50 Lead10, Ca=72.0kN \| Shaft Diameter: φ50mm \| Lead: 10mm \| Ball Center Dia dp: 51mm \| Ca(V)=72.0kN / C0a(V)=155.2kN \| Ca(VZ)=68.6kN / C0a(VZ)=163.2kN \| Nut OD D: 75mm \| Flange D1: 110mm \| Total Length L1: 135mm \| Nut Length: 85mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN5010VA-5		THK SDAN5010VA-5, φ50 Lead10, Ca=72.5kN \| Shaft Diameter: φ50mm \| Lead: 10mm \| Ball Center Dia dp: 51.75mm \| Ca(V)=72.5kN / C0a(V)=158.1kN \| Ca(VZ)=69.0kN / C0a(VZ)=165.7kN \| Nut OD D: 82mm \| Flange D1: 118mm \| Total Length L1: 135mm \| Nut Length: 92mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN5012V-5		THK SDAN5012V-5, φ50 Lead12, Ca=72.0kN \| Shaft Diameter: φ50mm \| Lead: 12mm \| Ball Center Dia dp: 51mm \| Ca(V)=72.0kN / C0a(V)=155.2kN \| Ca(VZ)=68.5kN / C0a(VZ)=163.3kN \| Nut OD D: 75mm \| Flange D1: 110mm \| Total Length L1: 158mm \| Nut Length: 85mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN5012VA-5		THK SDAN5012VA-5, φ50 Lead12, Ca=72.4kN \| Shaft Diameter: φ50mm \| Lead: 12mm \| Ball Center Dia dp: 51.75mm \| Ca(V)=72.4kN / C0a(V)=158.1kN \| Ca(VZ)=69.0kN / C0a(VZ)=165.9kN \| Nut OD D: 82mm \| Flange D1: 118mm \| Total Length L1: 158mm \| Nut Length: 92mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN5016V-5		THK SDAN5016V-5, φ50 Lead16, Ca=71.9kN \| Shaft Diameter: φ50mm \| Lead: 16mm \| Ball Center Dia dp: 51mm \| Ca(V)=71.9kN / C0a(V)=156.6kN \| Ca(VZ)=68.4kN / C0a(VZ)=163.7kN \| Nut OD D: 75mm \| Flange D1: 110mm \| Total Length L1: 189mm \| Nut Length: 85mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN5016VA-5		THK SDAN5016VA-5, φ50 Lead16, Ca=72.3kN \| Shaft Diameter: φ50mm \| Lead: 16mm \| Ball Center Dia dp: 51.75mm \| Ca(V)=72.3kN / C0a(V)=158.1kN \| Ca(VZ)=68.9kN / C0a(VZ)=166.2kN \| Nut OD D: 82mm \| Flange D1: 118mm \| Total Length L1: 189mm \| Nut Length: 92mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN5020V-5		THK SDAN5020V-5, φ50 Lead20, Ca=71.7kN \| Shaft Diameter: φ50mm \| Lead: 20mm \| Ball Center Dia dp: 51mm \| Ca(V)=71.7kN / C0a(V)=156.6kN \| Ca(VZ)=68.3kN / C0a(VZ)=164.2kN \| Nut OD D: 75mm \| Flange D1: 110mm \| Total Length L1: 232mm \| Nut Length: 85mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN5020VA-5		THK SDAN5020VA-5, φ50 Lead20, Ca=72.2kN \| Shaft Diameter: φ50mm \| Lead: 20mm \| Ball Center Dia dp: 51.75mm \| Ca(V)=72.2kN / C0a(V)=159.4kN \| Ca(VZ)=68.8kN / C0a(VZ)=166.7kN \| Nut OD D: 82mm \| Flange D1: 118mm \| Total Length L1: 232mm \| Nut Length: 92mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN5025V-4		THK SDAN5025V-4, φ50 Lead25, Ca=58.2kN \| Shaft Diameter: φ50mm \| Lead: 25mm \| Ball Center Dia dp: 51mm \| Ca(V)=58.2kN / C0a(V)=123.6kN \| Ca(VZ)=55.5kN / C0a(VZ)=129.8kN \| Nut OD D: 75mm \| Flange D1: 110mm \| Total Length L1: 235mm \| Nut Length: 85mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN5025VA-4		THK SDAN5025VA-4, φ50 Lead25, Ca=58.6kN \| Shaft Diameter: φ50mm \| Lead: 25mm \| Ball Center Dia dp: 51.75mm \| Ca(V)=58.6kN / C0a(V)=125.1kN \| Ca(VZ)=55.8kN / C0a(VZ)=131.7kN \| Nut OD D: 82mm \| Flange D1: 118mm \| Total Length L1: 235mm \| Nut Length: 92mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN5030V-4		THK SDAN5030V-4, φ50 Lead30, Ca=58.0kN \| Shaft Diameter: φ50mm \| Lead: 30mm \| Ball Center Dia dp: 51mm \| Ca(V)=58.0kN / C0a(V)=117.5kN \| Ca(VZ)=55.3kN / C0a(VZ)=122.6kN \| Nut OD D: 75mm \| Flange D1: 110mm \| Total Length L1: 265mm \| Nut Length: 85mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN5030VA-4		THK SDAN5030VA-4, φ50 Lead30, Ca=58.4kN \| Shaft Diameter: φ50mm \| Lead: 30mm \| Ball Center Dia dp: 51.75mm \| Ca(V)=58.4kN / C0a(V)=118.9kN \| Ca(VZ)=55.7kN / C0a(VZ)=124.5kN \| Nut OD D: 82mm \| Flange D1: 118mm \| Total Length L1: 265mm \| Nut Length: 92mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN5040V-3		THK SDAN5040V-3, φ50 Lead40, Ca=43.9kN \| Shaft Diameter: φ50mm \| Lead: 40mm \| Ball Center Dia dp: 51mm \| Ca(V)=43.9kN / C0a(V)=86.5kN \| Ca(VZ)=41.8kN / C0a(VZ)=90.7kN \| Nut OD D: 75mm \| Flange D1: 110mm \| Total Length L1: 268mm \| Nut Length: 85mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN5040VA-3		THK SDAN5040VA-3, φ50 Lead40, Ca=44.2kN \| Shaft Diameter: φ50mm \| Lead: 40mm \| Ball Center Dia dp: 51.75mm \| Ca(V)=44.2kN / C0a(V)=87.9kN \| Ca(VZ)=42.1kN / C0a(VZ)=92.0kN \| Nut OD D: 82mm \| Flange D1: 118mm \| Total Length L1: 269mm \| Nut Length: 92mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
SDAN5050V-2		THK SDAN5050V-2, φ50 Lead50, Ca=29.2kN \| Shaft Diameter: φ50mm \| Lead: 50mm \| Ball Center Dia dp: 51mm \| Ca(V)=29.2kN / C0a(V)=55.5kN \| Ca(VZ)=27.8kN / C0a(VZ)=58.0kN \| Nut OD D: 75mm \| Flange D1: 110mm \| Total Length L1: TBD \| Nut Length: 85mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)

Ball ScrewsTHK

15 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK SDAN-V/VA Ball Screw (Double Nut, Shaft φ50)

Brand THK·Ball Screws

Available part numbers (15)

SDAN5010V-5, SDAN5010VA-5, SDAN5012V-5, SDAN5012VA-5, SDAN5016V-5, SDAN5016VA-5, SDAN5020V-5, SDAN5020VA-5, SDAN5025V-4, SDAN5025VA-4 + 5 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SDAN5010V-5	THK SDAN5010V-5, φ50 Lead10, Ca=72.0kN \| Shaft Diameter: φ50mm \| Lead: 10mm \| Ball Center Dia dp: 51mm \| Ca(V)=72.0kN / C0a(V)=155.2kN \| Ca(VZ)=68.6kN / C0a(VZ)=163.2kN \| Nut OD D: 75mm \| Flange D1: 110mm \| Total Length L1: 135mm \| Nut Length: 85mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
	SDAN5010VA-5	THK SDAN5010VA-5, φ50 Lead10, Ca=72.5kN \| Shaft Diameter: φ50mm \| Lead: 10mm \| Ball Center Dia dp: 51.75mm \| Ca(V)=72.5kN / C0a(V)=158.1kN \| Ca(VZ)=69.0kN / C0a(VZ)=165.7kN \| Nut OD D: 82mm \| Flange D1: 118mm \| Total Length L1: 135mm \| Nut Length: 92mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
	SDAN5012V-5	THK SDAN5012V-5, φ50 Lead12, Ca=72.0kN \| Shaft Diameter: φ50mm \| Lead: 12mm \| Ball Center Dia dp: 51mm \| Ca(V)=72.0kN / C0a(V)=155.2kN \| Ca(VZ)=68.5kN / C0a(VZ)=163.3kN \| Nut OD D: 75mm \| Flange D1: 110mm \| Total Length L1: 158mm \| Nut Length: 85mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
	SDAN5012VA-5	THK SDAN5012VA-5, φ50 Lead12, Ca=72.4kN \| Shaft Diameter: φ50mm \| Lead: 12mm \| Ball Center Dia dp: 51.75mm \| Ca(V)=72.4kN / C0a(V)=158.1kN \| Ca(VZ)=69.0kN / C0a(VZ)=165.9kN \| Nut OD D: 82mm \| Flange D1: 118mm \| Total Length L1: 158mm \| Nut Length: 92mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
	SDAN5016V-5	THK SDAN5016V-5, φ50 Lead16, Ca=71.9kN \| Shaft Diameter: φ50mm \| Lead: 16mm \| Ball Center Dia dp: 51mm \| Ca(V)=71.9kN / C0a(V)=156.6kN \| Ca(VZ)=68.4kN / C0a(VZ)=163.7kN \| Nut OD D: 75mm \| Flange D1: 110mm \| Total Length L1: 189mm \| Nut Length: 85mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
	SDAN5016VA-5	THK SDAN5016VA-5, φ50 Lead16, Ca=72.3kN \| Shaft Diameter: φ50mm \| Lead: 16mm \| Ball Center Dia dp: 51.75mm \| Ca(V)=72.3kN / C0a(V)=158.1kN \| Ca(VZ)=68.9kN / C0a(VZ)=166.2kN \| Nut OD D: 82mm \| Flange D1: 118mm \| Total Length L1: 189mm \| Nut Length: 92mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
	SDAN5020V-5	THK SDAN5020V-5, φ50 Lead20, Ca=71.7kN \| Shaft Diameter: φ50mm \| Lead: 20mm \| Ball Center Dia dp: 51mm \| Ca(V)=71.7kN / C0a(V)=156.6kN \| Ca(VZ)=68.3kN / C0a(VZ)=164.2kN \| Nut OD D: 75mm \| Flange D1: 110mm \| Total Length L1: 232mm \| Nut Length: 85mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
	SDAN5020VA-5	THK SDAN5020VA-5, φ50 Lead20, Ca=72.2kN \| Shaft Diameter: φ50mm \| Lead: 20mm \| Ball Center Dia dp: 51.75mm \| Ca(V)=72.2kN / C0a(V)=159.4kN \| Ca(VZ)=68.8kN / C0a(VZ)=166.7kN \| Nut OD D: 82mm \| Flange D1: 118mm \| Total Length L1: 232mm \| Nut Length: 92mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
	SDAN5025V-4	THK SDAN5025V-4, φ50 Lead25, Ca=58.2kN \| Shaft Diameter: φ50mm \| Lead: 25mm \| Ball Center Dia dp: 51mm \| Ca(V)=58.2kN / C0a(V)=123.6kN \| Ca(VZ)=55.5kN / C0a(VZ)=129.8kN \| Nut OD D: 75mm \| Flange D1: 110mm \| Total Length L1: 235mm \| Nut Length: 85mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
	SDAN5025VA-4	THK SDAN5025VA-4, φ50 Lead25, Ca=58.6kN \| Shaft Diameter: φ50mm \| Lead: 25mm \| Ball Center Dia dp: 51.75mm \| Ca(V)=58.6kN / C0a(V)=125.1kN \| Ca(VZ)=55.8kN / C0a(VZ)=131.7kN \| Nut OD D: 82mm \| Flange D1: 118mm \| Total Length L1: 235mm \| Nut Length: 92mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
	SDAN5030V-4	THK SDAN5030V-4, φ50 Lead30, Ca=58.0kN \| Shaft Diameter: φ50mm \| Lead: 30mm \| Ball Center Dia dp: 51mm \| Ca(V)=58.0kN / C0a(V)=117.5kN \| Ca(VZ)=55.3kN / C0a(VZ)=122.6kN \| Nut OD D: 75mm \| Flange D1: 110mm \| Total Length L1: 265mm \| Nut Length: 85mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
	SDAN5030VA-4	THK SDAN5030VA-4, φ50 Lead30, Ca=58.4kN \| Shaft Diameter: φ50mm \| Lead: 30mm \| Ball Center Dia dp: 51.75mm \| Ca(V)=58.4kN / C0a(V)=118.9kN \| Ca(VZ)=55.7kN / C0a(VZ)=124.5kN \| Nut OD D: 82mm \| Flange D1: 118mm \| Total Length L1: 265mm \| Nut Length: 92mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
	SDAN5040V-3	THK SDAN5040V-3, φ50 Lead40, Ca=43.9kN \| Shaft Diameter: φ50mm \| Lead: 40mm \| Ball Center Dia dp: 51mm \| Ca(V)=43.9kN / C0a(V)=86.5kN \| Ca(VZ)=41.8kN / C0a(VZ)=90.7kN \| Nut OD D: 75mm \| Flange D1: 110mm \| Total Length L1: 268mm \| Nut Length: 85mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
	SDAN5040VA-3	THK SDAN5040VA-3, φ50 Lead40, Ca=44.2kN \| Shaft Diameter: φ50mm \| Lead: 40mm \| Ball Center Dia dp: 51.75mm \| Ca(V)=44.2kN / C0a(V)=87.9kN \| Ca(VZ)=42.1kN / C0a(VZ)=92.0kN \| Nut OD D: 82mm \| Flange D1: 118mm \| Total Length L1: 269mm \| Nut Length: 92mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
	SDAN5050V-2	THK SDAN5050V-2, φ50 Lead50, Ca=29.2kN \| Shaft Diameter: φ50mm \| Lead: 50mm \| Ball Center Dia dp: 51mm \| Ca(V)=29.2kN / C0a(V)=55.5kN \| Ca(VZ)=27.8kN / C0a(VZ)=58.0kN \| Nut OD D: 75mm \| Flange D1: 110mm \| Total Length L1: TBD \| Nut Length: 85mm \| Type: Double Nut, Preloaded, Ball Retainer (SDAN-V)
