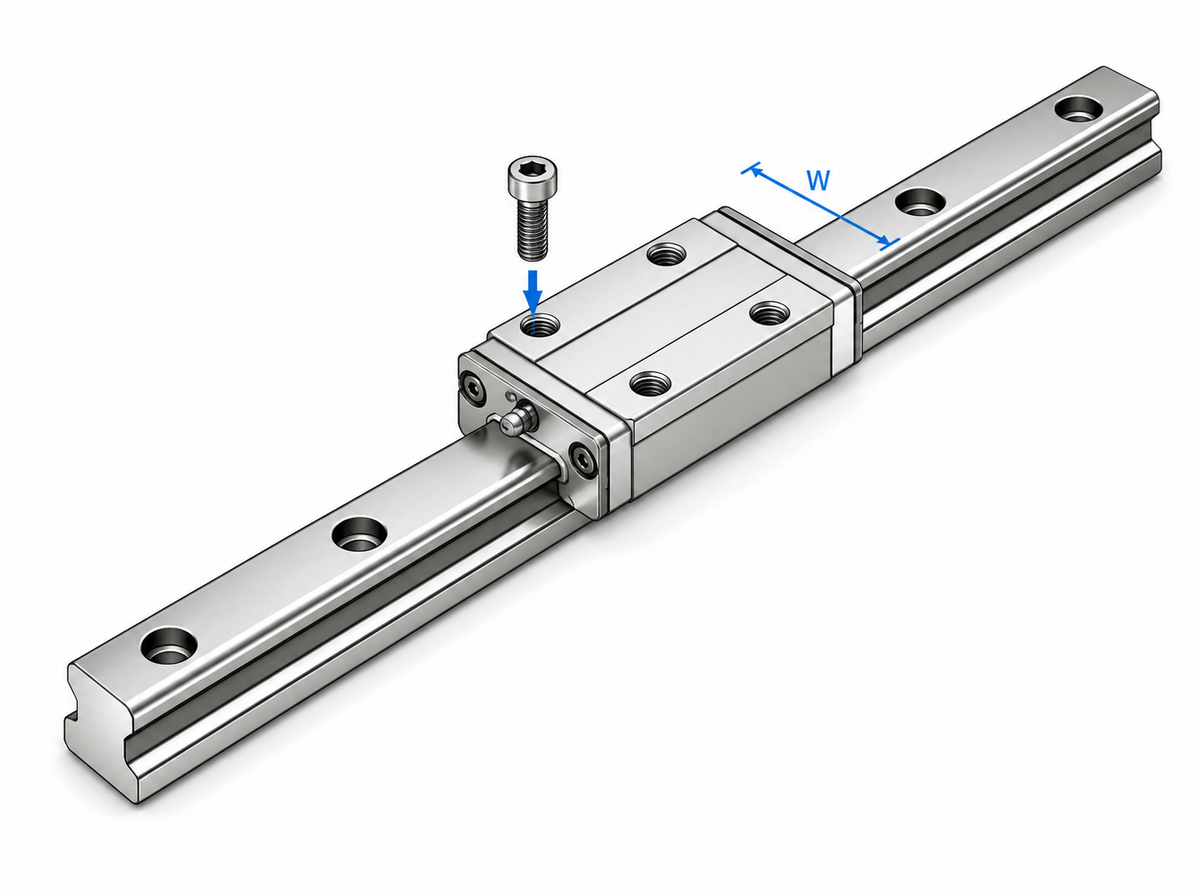

THK SR-M1-W/V High Temperature LM Guide Block (Narrow Width, Stainless, 150°C)

High temperature type SR LM Guide.

Key features

Narrow block width (W/V type) with tapped holes
Stainless end plate and high-temp rubber end seal — max 150°C operating temperature
Stainless block, rail and balls — ideal for clean rooms

Specifications

Type	High Temperature LM Guide Block
Series	SR-M1
Max Temperature	150°C
Material	Stainless Steel
Mount	Narrow Width Tapped
Application	High-temp / Clean room
Brand	THK

SR-15M1V		SR 15M1V LM Block H24×W34×L40.4mm \| Type: High Temperature LM Guide Block \| Series: SR-M1 \| Model: SR 15M1V \| Height M: 24 mm \| Width W: 34 mm \| Length L: 40.4 mm \| Max Rail Length: 1240 mm \| Dynamic Load C: 9.1 kN \| Static Load C0: 11.7 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Mount: Narrow Width Tapped \| Application: High-temp / Clean room \| Brand: THK
SR-15M1W		SR 15M1W LM Block H24×W34×L57mm \| Type: High Temperature LM Guide Block \| Series: SR-M1 \| Model: SR 15M1W \| Height M: 24 mm \| Width W: 34 mm \| Length L: 57 mm \| Max Rail Length: 1240 mm \| Dynamic Load C: 13.8 kN \| Static Load C0: 20.5 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Mount: Narrow Width Tapped \| Application: High-temp / Clean room \| Brand: THK
SR-20M1V		SR 20M1V LM Block H28×W42×L47.3mm \| Type: High Temperature LM Guide Block \| Series: SR-M1 \| Model: SR 20M1V \| Height M: 28 mm \| Width W: 42 mm \| Length L: 47.3 mm \| Max Rail Length: 1500 mm \| Dynamic Load C: 13.4 kN \| Static Load C0: 17.2 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Mount: Narrow Width Tapped \| Application: High-temp / Clean room \| Brand: THK
SR-20M1W		SR 20M1W LM Block H28×W42×L66.2mm \| Type: High Temperature LM Guide Block \| Series: SR-M1 \| Model: SR 20M1W \| Height M: 28 mm \| Width W: 42 mm \| Length L: 66.2 mm \| Max Rail Length: 1500 mm \| Dynamic Load C: 19.2 kN \| Static Load C0: 28.6 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Mount: Narrow Width Tapped \| Application: High-temp / Clean room \| Brand: THK
SR-25M1V		SR 25M1V LM Block H33×W48×L59.2mm \| Type: High Temperature LM Guide Block \| Series: SR-M1 \| Model: SR 25M1V \| Height M: 33 mm \| Width W: 48 mm \| Length L: 59.2 mm \| Max Rail Length: 1500 mm \| Dynamic Load C: 21.6 kN \| Static Load C0: 26.8 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Mount: Narrow Width Tapped \| Application: High-temp / Clean room \| Brand: THK
SR-25M1W		SR 25M1W LM Block H33×W48×L83mm \| Type: High Temperature LM Guide Block \| Series: SR-M1 \| Model: SR 25M1W \| Height M: 33 mm \| Width W: 48 mm \| Length L: 83 mm \| Max Rail Length: 1500 mm \| Dynamic Load C: 30.9 kN \| Static Load C0: 44.7 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Mount: Narrow Width Tapped \| Application: High-temp / Clean room \| Brand: THK
SR-30M1V		SR 30M1V LM Block H42×W60×L67.9mm \| Type: High Temperature LM Guide Block \| Series: SR-M1 \| Model: SR 30M1V \| Height M: 42 mm \| Width W: 60 mm \| Length L: 67.9 mm \| Max Rail Length: 1500 mm \| Dynamic Load C: 29.5 kN \| Static Load C0: 34.4 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Mount: Narrow Width Tapped \| Application: High-temp / Clean room \| Brand: THK
SR-30M1W		SR 30M1W LM Block H42×W60×L96.8mm \| Type: High Temperature LM Guide Block \| Series: SR-M1 \| Model: SR 30M1W \| Height M: 42 mm \| Width W: 60 mm \| Length L: 96.8 mm \| Max Rail Length: 1500 mm \| Dynamic Load C: 45.6 kN \| Static Load C0: 64.4 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Mount: Narrow Width Tapped \| Application: High-temp / Clean room \| Brand: THK
SR-35M1V		SR 35M1V LM Block H48×W70×L77.6mm \| Type: High Temperature LM Guide Block \| Series: SR-M1 \| Model: SR 35M1V \| Height M: 48 mm \| Width W: 70 mm \| Length L: 77.6 mm \| Max Rail Length: 1500 mm \| Dynamic Load C: 40.9 kN \| Static Load C0: 46.7 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Mount: Narrow Width Tapped \| Application: High-temp / Clean room \| Brand: THK
SR-35M1W		SR 35M1W LM Block H48×W70×L111mm \| Type: High Temperature LM Guide Block \| Series: SR-M1 \| Model: SR 35M1W \| Height M: 48 mm \| Width W: 70 mm \| Length L: 111 mm \| Max Rail Length: 1500 mm \| Dynamic Load C: 60.4 kN \| Static Load C0: 81.8 kN \| Max Temperature: 150°C \| Material: Stainless Steel \| Mount: Narrow Width Tapped \| Application: High-temp / Clean room \| Brand: THK

LM GuidesTHK

10 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK SR-M1-W/V High Temperature LM Guide Block (Narrow Width, Stainless, 150°C)

Brand THK·LM Guides

Available part numbers (10)

SR-15M1V, SR-15M1W, SR-20M1V, SR-20M1W, SR-25M1V, SR-25M1W, SR-30M1V, SR-30M1W, SR-35M1V, SR-35M1W

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
