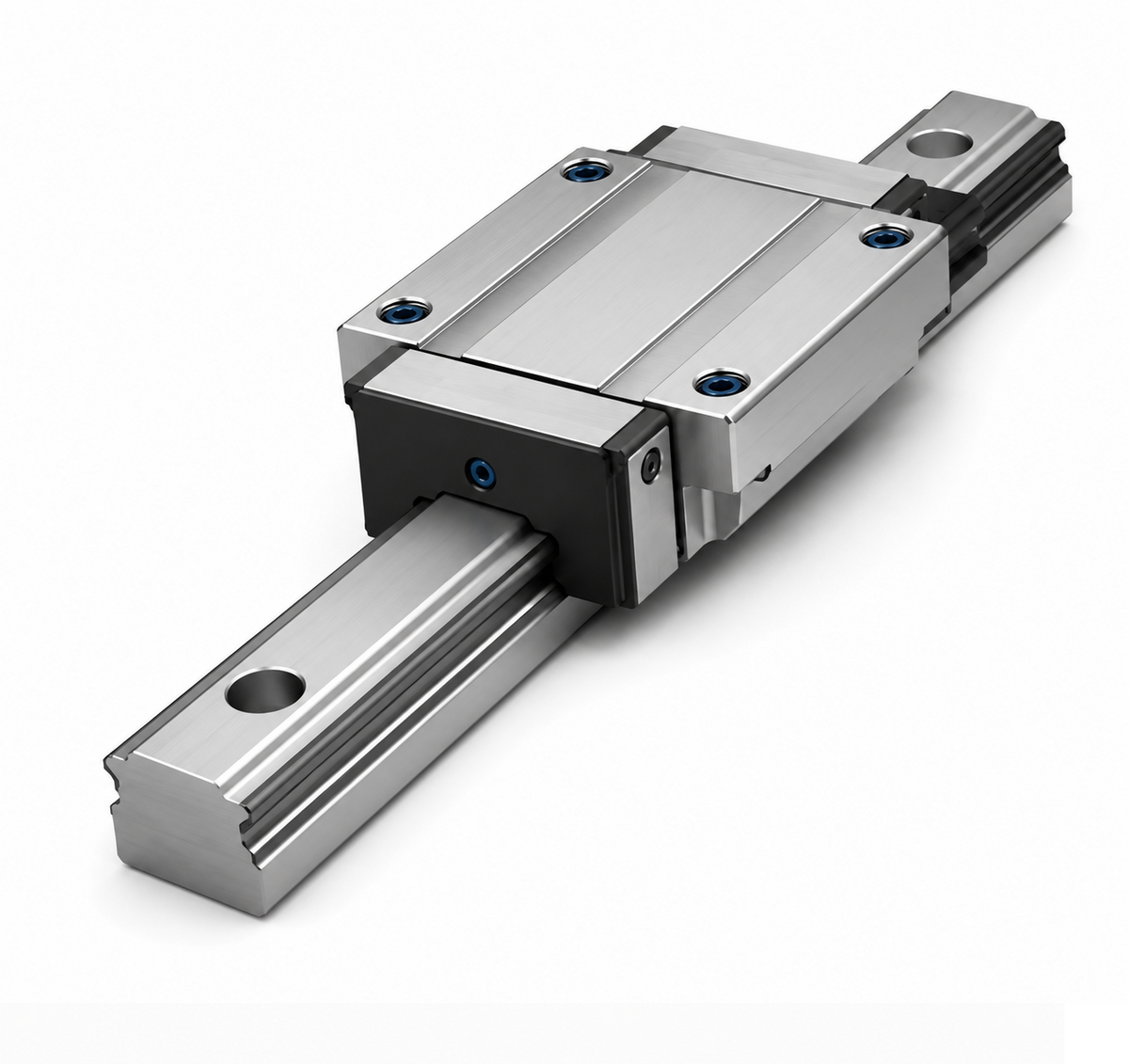

THK SVS-C/LC LM Guide Block (Heavy Load, 4-Direction Equal Load, Flange Type)

Heavy load Ball Retainer Type LM Guide for machine tools.

Key features

Flange type with tapped holes — mountable from top or bottom
Circular Arc groove structure for high load capacity and improved damping
SVS = 4-direction equal load type (same dimensions as SVR)

Specifications

Type	LM Guide Block
Series	SVS
Mount	Top or Bottom (Flange)
Structure	Circular Arc Ball Retainer
Load Type	4-Direction Equal
Brand	THK

SVS-25C		SVS 25C LM Block H31×W72×L82.8mm \| Type: LM Guide Block \| Series: SVS \| Block Type: 25C \| Height M: 31 mm \| Width W: 72 mm \| Length L: 82.8 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 37 kN \| Static Load C0: 52.2 kN \| Mount: Top or Bottom (Flange) \| Structure: Circular Arc Ball Retainer \| Load Type: 4-Direction Equal \| Brand: THK
SVS-25LC		SVS 25LC LM Block H31×W72×L102mm \| Type: LM Guide Block \| Series: SVS \| Block Type: 25LC \| Height M: 31 mm \| Width W: 72 mm \| Length L: 102 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 43.7 kN \| Static Load C0: 66.1 kN \| Mount: Top or Bottom (Flange) \| Structure: Circular Arc Ball Retainer \| Load Type: 4-Direction Equal \| Brand: THK
SVS-30C		SVS 30C LM Block H38×W90×L98mm \| Type: LM Guide Block \| Series: SVS \| Block Type: 30C \| Height M: 38 mm \| Width W: 90 mm \| Length L: 98 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 52 kN \| Static Load C0: 70.1 kN \| Mount: Top or Bottom (Flange) \| Structure: Circular Arc Ball Retainer \| Load Type: 4-Direction Equal \| Brand: THK
SVS-30LC		SVS 30LC LM Block H38×W90×L120.5mm \| Type: LM Guide Block \| Series: SVS \| Block Type: 30LC \| Height M: 38 mm \| Width W: 90 mm \| Length L: 120.5 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 64.4 kN \| Static Load C0: 95.2 kN \| Mount: Top or Bottom (Flange) \| Structure: Circular Arc Ball Retainer \| Load Type: 4-Direction Equal \| Brand: THK
SVS-35C		SVS 35C LM Block H44×W100×L109.5mm \| Type: LM Guide Block \| Series: SVS \| Block Type: 35C \| Height M: 44 mm \| Width W: 100 mm \| Length L: 109.5 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 68.6 kN \| Static Load C0: 88.6 kN \| Mount: Top or Bottom (Flange) \| Structure: Circular Arc Ball Retainer \| Load Type: 4-Direction Equal \| Brand: THK
SVS-35LC		SVS 35LC LM Block H44×W100×L135mm \| Type: LM Guide Block \| Series: SVS \| Block Type: 35LC \| Height M: 44 mm \| Width W: 100 mm \| Length L: 135 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 86.1 kN \| Static Load C0: 123 kN \| Mount: Top or Bottom (Flange) \| Structure: Circular Arc Ball Retainer \| Load Type: 4-Direction Equal \| Brand: THK
SVS-45C		SVS 45C LM Block H52×W120×L138.2mm \| Type: LM Guide Block \| Series: SVS \| Block Type: 45C \| Height M: 52 mm \| Width W: 120 mm \| Length L: 138.2 mm \| Max Rail Length: 3090 mm \| Dynamic Load C: 105 kN \| Static Load C0: 142 kN \| Mount: Top or Bottom (Flange) \| Structure: Circular Arc Ball Retainer \| Load Type: 4-Direction Equal \| Brand: THK
SVS-45LC		SVS 45LC LM Block H52×W120×L171mm \| Type: LM Guide Block \| Series: SVS \| Block Type: 45LC \| Height M: 52 mm \| Width W: 120 mm \| Length L: 171 mm \| Max Rail Length: 3090 mm \| Dynamic Load C: 123 kN \| Static Load C0: 178 kN \| Mount: Top or Bottom (Flange) \| Structure: Circular Arc Ball Retainer \| Load Type: 4-Direction Equal \| Brand: THK
SVS-55C		SVS 55C LM Block H63×W140×L163.3mm \| Type: LM Guide Block \| Series: SVS \| Block Type: 55C \| Height M: 63 mm \| Width W: 140 mm \| Length L: 163.3 mm \| Max Rail Length: 3060 mm \| Dynamic Load C: 136 kN \| Static Load C0: 180 kN \| Mount: Top or Bottom (Flange) \| Structure: Circular Arc Ball Retainer \| Load Type: 4-Direction Equal \| Brand: THK
SVS-55LC		SVS 55LC LM Block H63×W140×L200.5mm \| Type: LM Guide Block \| Series: SVS \| Block Type: 55LC \| Height M: 63 mm \| Width W: 140 mm \| Length L: 200.5 mm \| Max Rail Length: 3060 mm \| Dynamic Load C: 164 kN \| Static Load C0: 237 kN \| Mount: Top or Bottom (Flange) \| Structure: Circular Arc Ball Retainer \| Load Type: 4-Direction Equal \| Brand: THK
SVS-65C		SVS 65C LM Block H75×W170×L186mm \| Type: LM Guide Block \| Series: SVS \| Block Type: 65C \| Height M: 75 mm \| Width W: 170 mm \| Length L: 186 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 208 kN \| Static Load C0: 269 kN \| Mount: Top or Bottom (Flange) \| Structure: Circular Arc Ball Retainer \| Load Type: 4-Direction Equal \| Brand: THK
SVS-65LC		SVS 65LC LM Block H75×W170×L246mm \| Type: LM Guide Block \| Series: SVS \| Block Type: 65LC \| Height M: 75 mm \| Width W: 170 mm \| Length L: 246 mm \| Max Rail Length: 3000 mm \| Dynamic Load C: 260 kN \| Static Load C0: 370 kN \| Mount: Top or Bottom (Flange) \| Structure: Circular Arc Ball Retainer \| Load Type: 4-Direction Equal \| Brand: THK
