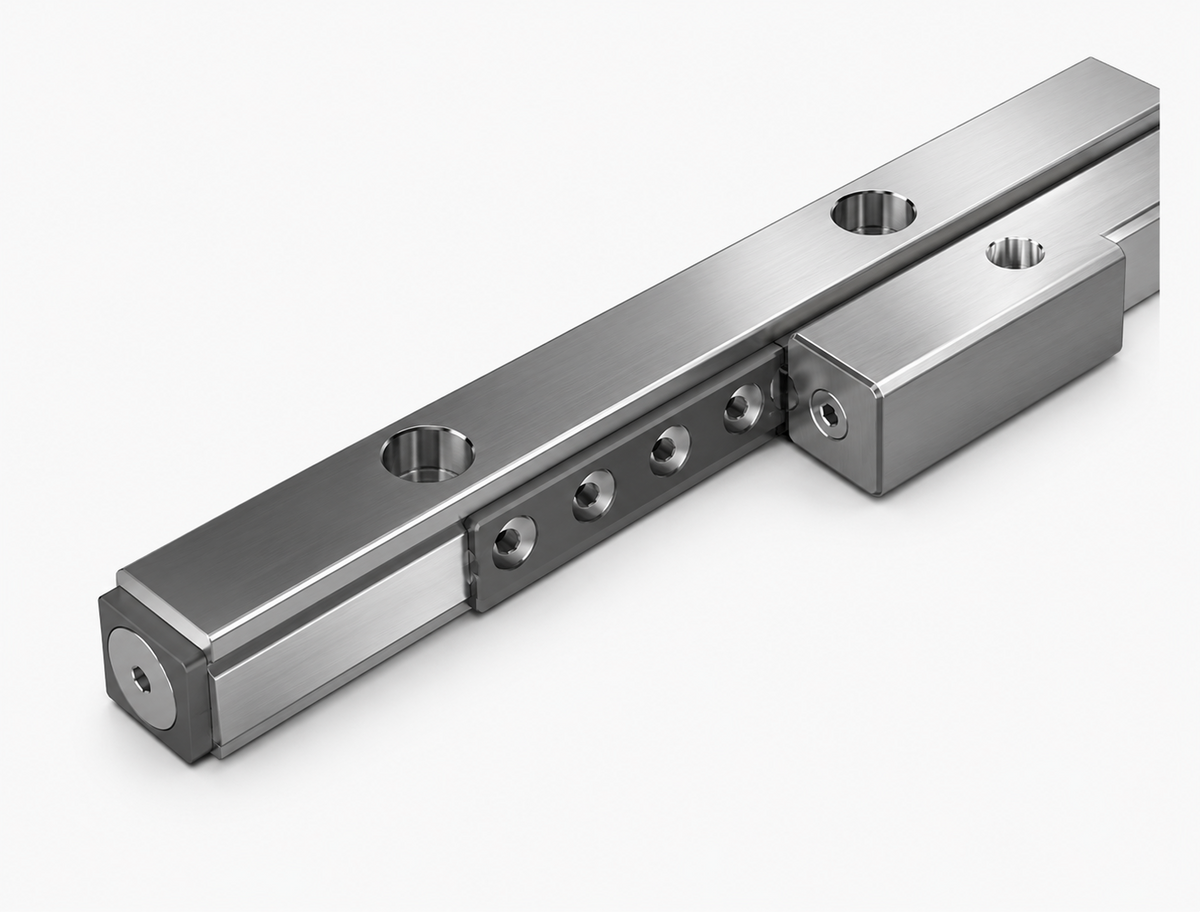

THK VR2 Cross Roller Guide (VR2-30×5Z~VR2-180×32Z)

THK VR2 Cross Roller Guide (VR2-30×5Z~VR2-180×32Z)

VR2 type Cross Roller Guide — compact high-rigidity LM system.

Key features

  • Precision rollers arranged in orthogonal crossed pattern; cage moves 1/2 of stroke along V-groove rail. 1 set = 4 rails + 2 cages
  • Larger size than VR1
  • Stainless steel type (VR2M) available on request
  • Rail lengths: 30~180mm
  • Max stroke: 18~102mm

Specifications

Set Configuration 1 set = 4 rails + 2 cages
Roller Dia. D=4.4mm, crossed 90°
Stainless Option VR2M available on request
Rail Fixing Screw M2×0.4
VR2-30x5Z THK cross roller guide VR2, rail L0=30mm, max stroke 18mm, Z=5 | Rail Length: L0=30mm | Max Stroke: 18mm | Roller Count: Z=5 per cage | Mounting Bolts: n×F=1×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4
VR2-45x8Z THK cross roller guide VR2, rail L0=45mm, max stroke 24mm, Z=8 | Rail Length: L0=45mm | Max Stroke: 24mm | Roller Count: Z=8 per cage | Mounting Bolts: n×F=2×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4
VR2-60x11Z THK cross roller guide VR2, rail L0=60mm, max stroke 30mm, Z=11 | Rail Length: L0=60mm | Max Stroke: 30mm | Roller Count: Z=11 per cage | Mounting Bolts: n×F=3×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4
VR2-75x13Z THK cross roller guide VR2, rail L0=75mm, max stroke 44mm, Z=13 | Rail Length: L0=75mm | Max Stroke: 44mm | Roller Count: Z=13 per cage | Mounting Bolts: n×F=4×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4
VR2-90x16Z THK cross roller guide VR2, rail L0=90mm, max stroke 50mm, Z=16 | Rail Length: L0=90mm | Max Stroke: 50mm | Roller Count: Z=16 per cage | Mounting Bolts: n×F=5×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4
VR2-105x18Z THK cross roller guide VR2, rail L0=105mm, max stroke 64mm, Z=18 | Rail Length: L0=105mm | Max Stroke: 64mm | Roller Count: Z=18 per cage | Mounting Bolts: n×F=6×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4
VR2-120x21Z THK cross roller guide VR2, rail L0=120mm, max stroke 70mm, Z=21 | Rail Length: L0=120mm | Max Stroke: 70mm | Roller Count: Z=21 per cage | Mounting Bolts: n×F=7×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4
VR2-135x23Z THK cross roller guide VR2, rail L0=135mm, max stroke 84mm, Z=23 | Rail Length: L0=135mm | Max Stroke: 84mm | Roller Count: Z=23 per cage | Mounting Bolts: n×F=8×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4
VR2-150x26Z THK cross roller guide VR2, rail L0=150mm, max stroke 90mm, Z=26 | Rail Length: L0=150mm | Max Stroke: 90mm | Roller Count: Z=26 per cage | Mounting Bolts: n×F=9×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4
VR2-165x29Z THK cross roller guide VR2, rail L0=165mm, max stroke 96mm, Z=29 | Rail Length: L0=165mm | Max Stroke: 96mm | Roller Count: Z=29 per cage | Mounting Bolts: n×F=10×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4
VR2-180x32Z THK cross roller guide VR2, rail L0=180mm, max stroke 102mm, Z=32 | Rail Length: L0=180mm | Max Stroke: 102mm | Roller Count: Z=32 per cage | Mounting Bolts: n×F=11×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4
Roller GuidesTHK
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK VR2 Cross Roller Guide (VR2-30×5Z~VR2-180×32Z)

Brand THK·Roller Guides

Available part numbers (11)

VR2-30x5Z, VR2-45x8Z, VR2-60x11Z, VR2-75x13Z, VR2-90x16Z, VR2-105x18Z, VR2-120x21Z, VR2-135x23Z, VR2-150x26Z, VR2-165x29Z + 1 more — see full table ↓

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
VR2-30x5ZTHK cross roller guide VR2, rail L0=30mm, max stroke 18mm, Z=5 | Rail Length: L0=30mm | Max Stroke: 18mm | Roller Count: Z=5 per cage | Mounting Bolts: n×F=1×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4
VR2-45x8ZTHK cross roller guide VR2, rail L0=45mm, max stroke 24mm, Z=8 | Rail Length: L0=45mm | Max Stroke: 24mm | Roller Count: Z=8 per cage | Mounting Bolts: n×F=2×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4
VR2-60x11ZTHK cross roller guide VR2, rail L0=60mm, max stroke 30mm, Z=11 | Rail Length: L0=60mm | Max Stroke: 30mm | Roller Count: Z=11 per cage | Mounting Bolts: n×F=3×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4
VR2-75x13ZTHK cross roller guide VR2, rail L0=75mm, max stroke 44mm, Z=13 | Rail Length: L0=75mm | Max Stroke: 44mm | Roller Count: Z=13 per cage | Mounting Bolts: n×F=4×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4
VR2-90x16ZTHK cross roller guide VR2, rail L0=90mm, max stroke 50mm, Z=16 | Rail Length: L0=90mm | Max Stroke: 50mm | Roller Count: Z=16 per cage | Mounting Bolts: n×F=5×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4
VR2-105x18ZTHK cross roller guide VR2, rail L0=105mm, max stroke 64mm, Z=18 | Rail Length: L0=105mm | Max Stroke: 64mm | Roller Count: Z=18 per cage | Mounting Bolts: n×F=6×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4
VR2-120x21ZTHK cross roller guide VR2, rail L0=120mm, max stroke 70mm, Z=21 | Rail Length: L0=120mm | Max Stroke: 70mm | Roller Count: Z=21 per cage | Mounting Bolts: n×F=7×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4
VR2-135x23ZTHK cross roller guide VR2, rail L0=135mm, max stroke 84mm, Z=23 | Rail Length: L0=135mm | Max Stroke: 84mm | Roller Count: Z=23 per cage | Mounting Bolts: n×F=8×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4
VR2-150x26ZTHK cross roller guide VR2, rail L0=150mm, max stroke 90mm, Z=26 | Rail Length: L0=150mm | Max Stroke: 90mm | Roller Count: Z=26 per cage | Mounting Bolts: n×F=9×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4
VR2-165x29ZTHK cross roller guide VR2, rail L0=165mm, max stroke 96mm, Z=29 | Rail Length: L0=165mm | Max Stroke: 96mm | Roller Count: Z=29 per cage | Mounting Bolts: n×F=10×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4
VR2-180x32ZTHK cross roller guide VR2, rail L0=180mm, max stroke 102mm, Z=32 | Rail Length: L0=180mm | Max Stroke: 102mm | Roller Count: Z=32 per cage | Mounting Bolts: n×F=11×15mm | Set Configuration: 1 set = 4 rails + 2 cages | Roller Dia.: D=4.4mm, crossed 90° | Stainless Option: VR2M available on request | Rail Fixing Screw: M2×0.4
