THK WHF Ball Screw (High Speed, DN120,000, φ15~25)

THK WHF Ball Screw (High Speed, DN120,000, φ15~25)

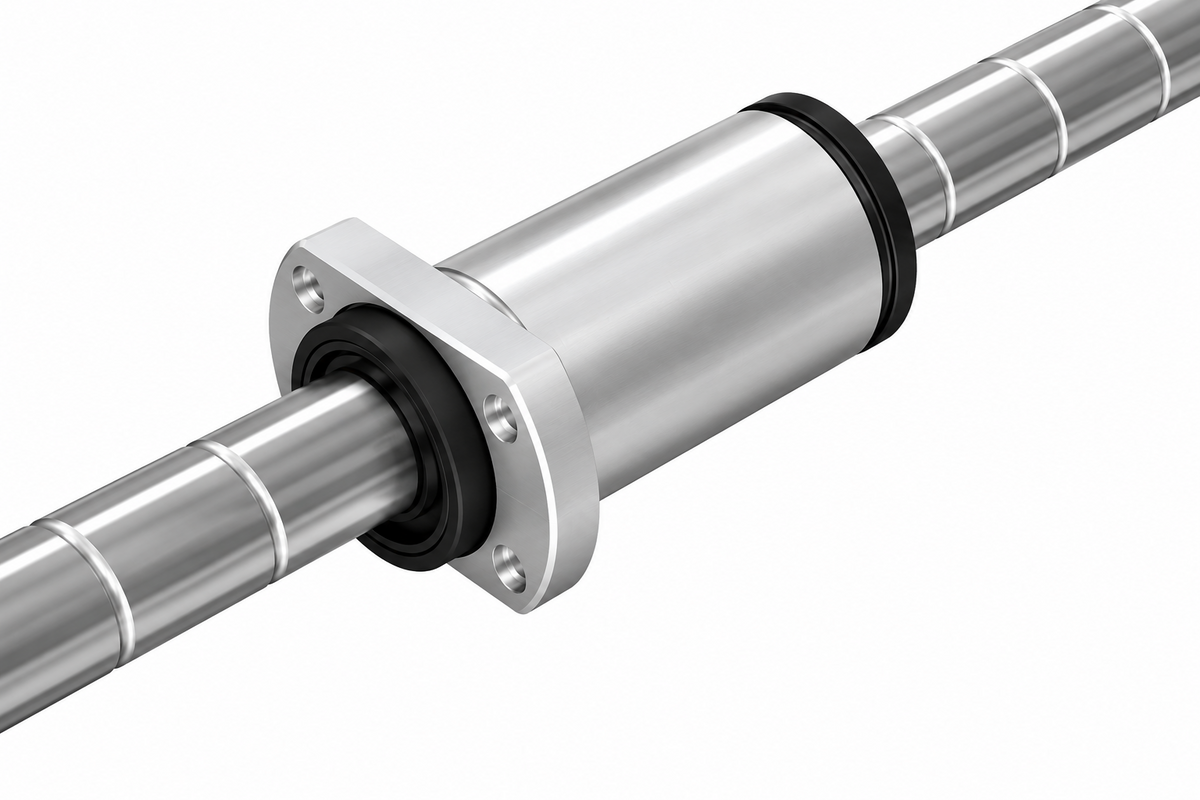

THK WHF Series High-Speed Precision Ground Ball Screw.

Key features

  • New circulation design achieves DN value 120,000
  • Shaft diameter range φ15~25mm, lead 20~50mm

Specifications

DN Value 120,000
Type High Speed (WHF)
WHF1530-3.4 THK WHF1530-3.4, φ15 Lead30, Ca=8.0kN | Shaft Diameter: φ15mm | Lead: 30mm | Ca: 8.0kN | C0a: 14.4kN | Nut OD D: 32mm | Flange D1: 53mm | Nut Length L1: 64.5mm | PCD: 43mm | DN Value: 120,000 | Type: High Speed (WHF)
WHF1540-3.4 THK WHF1540-3.4, φ15 Lead40, Ca=7.7kN | Shaft Diameter: φ15mm | Lead: 40mm | Ca: 7.7kN | C0a: 16.3kN | Nut OD D: 34mm | Flange D1: 57mm | Nut Length L1: 81.6mm | PCD: 45mm | DN Value: 120,000 | Type: High Speed (WHF)
WHF2020-3.4 THK WHF2020-3.4, φ20 Lead20, Ca=9.6kN | Shaft Diameter: φ20mm | Lead: 20mm | Ca: 9.6kN | C0a: 21.0kN | Nut OD D: 42mm | Flange D1: 64mm | Nut Length L1: 47.1mm | PCD: 53mm | DN Value: 120,000 | Type: High Speed (WHF)
WHF2025-3.4 THK WHF2025-3.4, φ20 Lead25, Ca=9.8kN | Shaft Diameter: φ20mm | Lead: 25mm | Ca: 9.8kN | C0a: 22.3kN | Nut OD D: 39mm | Flange D1: 62mm | Nut Length L1: 56.2mm | PCD: 50mm | DN Value: 120,000 | Type: High Speed (WHF)
WHF2030-3.4 THK WHF2030-3.4, φ20 Lead30, Ca=9.9kN | Shaft Diameter: φ20mm | Lead: 30mm | Ca: 9.9kN | C0a: 23.5kN | Nut OD D: 39mm | Flange D1: 62mm | Nut Length L1: 65.3mm | PCD: 50mm | DN Value: 120,000 | Type: High Speed (WHF)
WHF2040-3.4 THK WHF2040-3.4, φ20 Lead40, Ca=9.6kN | Shaft Diameter: φ20mm | Lead: 40mm | Ca: 9.6kN | C0a: 20.3kN | Nut OD D: 37mm | Flange D1: 57mm | Nut Length L1: 82.7mm | PCD: 47mm | DN Value: 120,000 | Type: High Speed (WHF)
WHF2525-3.4 THK WHF2525-3.4, φ25 Lead25, Ca=14.5kN | Shaft Diameter: φ25mm | Lead: 25mm | Ca: 14.5kN | C0a: 33.1kN | Nut OD D: 50mm | Flange D1: 77mm | Nut Length L1: 58.8mm | PCD: 63mm | DN Value: 120,000 | Type: High Speed (WHF)
WHF2550-3.4 THK WHF2550-3.4, φ25 Lead50, Ca=14.4kN | Shaft Diameter: φ25mm | Lead: 50mm | Ca: 14.4kN | C0a: 31.9kN | Nut OD D: 45mm | Flange D1: 69mm | Nut Length L1: 103.3mm | PCD: 57mm | DN Value: 120,000 | Type: High Speed (WHF)
Ball ScrewsTHK
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

THK WHF Ball Screw (High Speed, DN120,000, φ15~25)

Brand THK·Ball Screws

Available part numbers (8)

WHF1530-3.4, WHF1540-3.4, WHF2020-3.4, WHF2025-3.4, WHF2030-3.4, WHF2040-3.4, WHF2525-3.4, WHF2550-3.4

How to order

Send the THK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WHF1530-3.4THK WHF1530-3.4, φ15 Lead30, Ca=8.0kN | Shaft Diameter: φ15mm | Lead: 30mm | Ca: 8.0kN | C0a: 14.4kN | Nut OD D: 32mm | Flange D1: 53mm | Nut Length L1: 64.5mm | PCD: 43mm | DN Value: 120,000 | Type: High Speed (WHF)
WHF1540-3.4THK WHF1540-3.4, φ15 Lead40, Ca=7.7kN | Shaft Diameter: φ15mm | Lead: 40mm | Ca: 7.7kN | C0a: 16.3kN | Nut OD D: 34mm | Flange D1: 57mm | Nut Length L1: 81.6mm | PCD: 45mm | DN Value: 120,000 | Type: High Speed (WHF)
WHF2020-3.4THK WHF2020-3.4, φ20 Lead20, Ca=9.6kN | Shaft Diameter: φ20mm | Lead: 20mm | Ca: 9.6kN | C0a: 21.0kN | Nut OD D: 42mm | Flange D1: 64mm | Nut Length L1: 47.1mm | PCD: 53mm | DN Value: 120,000 | Type: High Speed (WHF)
WHF2025-3.4THK WHF2025-3.4, φ20 Lead25, Ca=9.8kN | Shaft Diameter: φ20mm | Lead: 25mm | Ca: 9.8kN | C0a: 22.3kN | Nut OD D: 39mm | Flange D1: 62mm | Nut Length L1: 56.2mm | PCD: 50mm | DN Value: 120,000 | Type: High Speed (WHF)
WHF2030-3.4THK WHF2030-3.4, φ20 Lead30, Ca=9.9kN | Shaft Diameter: φ20mm | Lead: 30mm | Ca: 9.9kN | C0a: 23.5kN | Nut OD D: 39mm | Flange D1: 62mm | Nut Length L1: 65.3mm | PCD: 50mm | DN Value: 120,000 | Type: High Speed (WHF)
WHF2040-3.4THK WHF2040-3.4, φ20 Lead40, Ca=9.6kN | Shaft Diameter: φ20mm | Lead: 40mm | Ca: 9.6kN | C0a: 20.3kN | Nut OD D: 37mm | Flange D1: 57mm | Nut Length L1: 82.7mm | PCD: 47mm | DN Value: 120,000 | Type: High Speed (WHF)
WHF2525-3.4THK WHF2525-3.4, φ25 Lead25, Ca=14.5kN | Shaft Diameter: φ25mm | Lead: 25mm | Ca: 14.5kN | C0a: 33.1kN | Nut OD D: 50mm | Flange D1: 77mm | Nut Length L1: 58.8mm | PCD: 63mm | DN Value: 120,000 | Type: High Speed (WHF)
WHF2550-3.4THK WHF2550-3.4, φ25 Lead50, Ca=14.4kN | Shaft Diameter: φ25mm | Lead: 50mm | Ca: 14.4kN | C0a: 31.9kN | Nut OD D: 45mm | Flange D1: 69mm | Nut Length L1: 103.3mm | PCD: 57mm | DN Value: 120,000 | Type: High Speed (WHF)

Need a different model, or a part not listed here? Send us your parts list →
